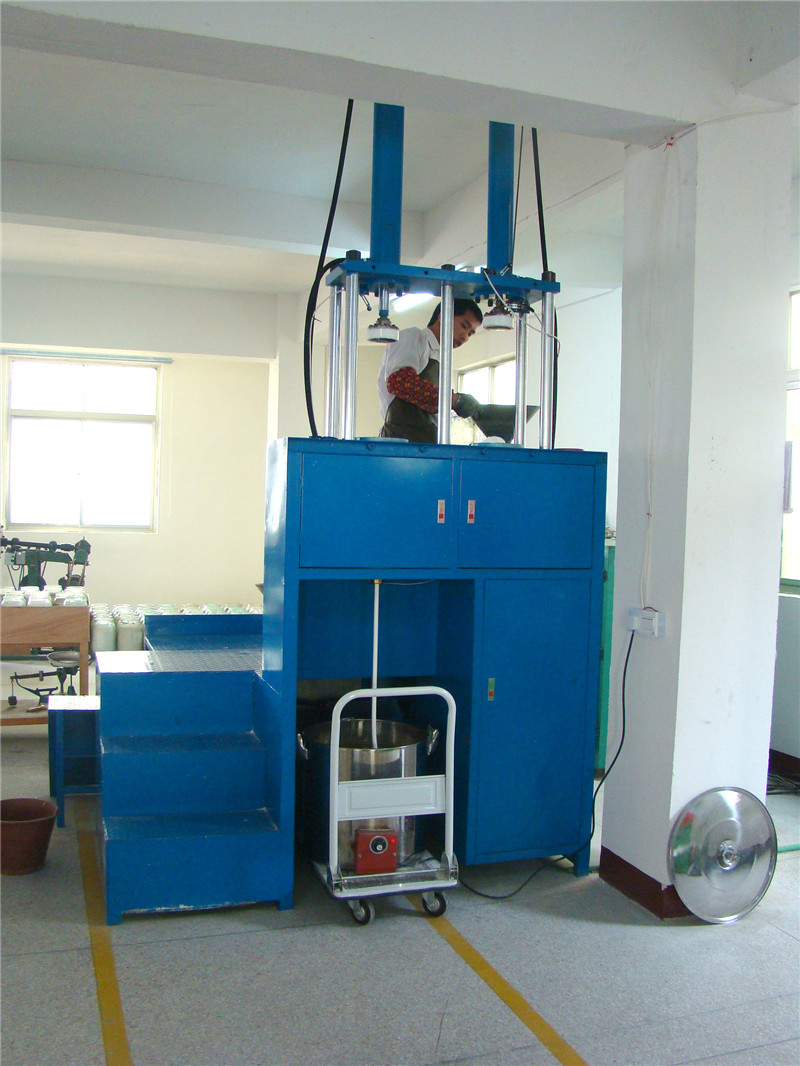

Automatic Layering Machine
After heat oven put the raw material into automatic layering machine. right side will make the raw material into cyclinder model, auto po-up, after put into left side, and making as strip model. And these strip should put into Water bucket( aim to adjust the temperature, heat preservation), the temperature of water bucket should keep in the 60-70 degree.
automatic , easy operation.
Oil pump motor power:
|
Y132M2-6, 5.5kw
|
Oil pump motor pressure:
|
64Kgf/cm2
|
Die mouth diameter:
|
30°φ16mm 1pc
|
Diameter of Loading Material cylinder:
|
φ100 mm
|
Diameter of cylinder:
|
φ80mm
|
Length of cylinder:
|
700mm
|
Max. stroke of plunger:
|
700mm
|
Material loading space:
|
700mm
|
Capacity:
|
100kg/h
|
Cylinder heater power:
|
4.5kw*3 zones
|
Machine weight :
|
1000kg
|
Dimensions:
|
L×W×H=1790×1060×2500mm
|
Our Service:
Before sales
Our professional technical recommend the right machine,and can also customise special machine as customer's requirement and special parts.
Sales following
During machine production, watching the machine quality and testing machine.and take pictures or make video for customer checking.
After Sales
We will send technical go to customer's factory to install and adjust machine.
We have after-sell service to supply all life-time machine maintance and repairment service.
FAQ:
Q: Are we a trading firm or a manufacturer?
A: We are a MANUFACTURER.
Q: What’s our payment mode?
A: L/C, T/T
Q: Can machines be customized?
A: YES.
Q: How long is the warranty period?
A: 12 months.
