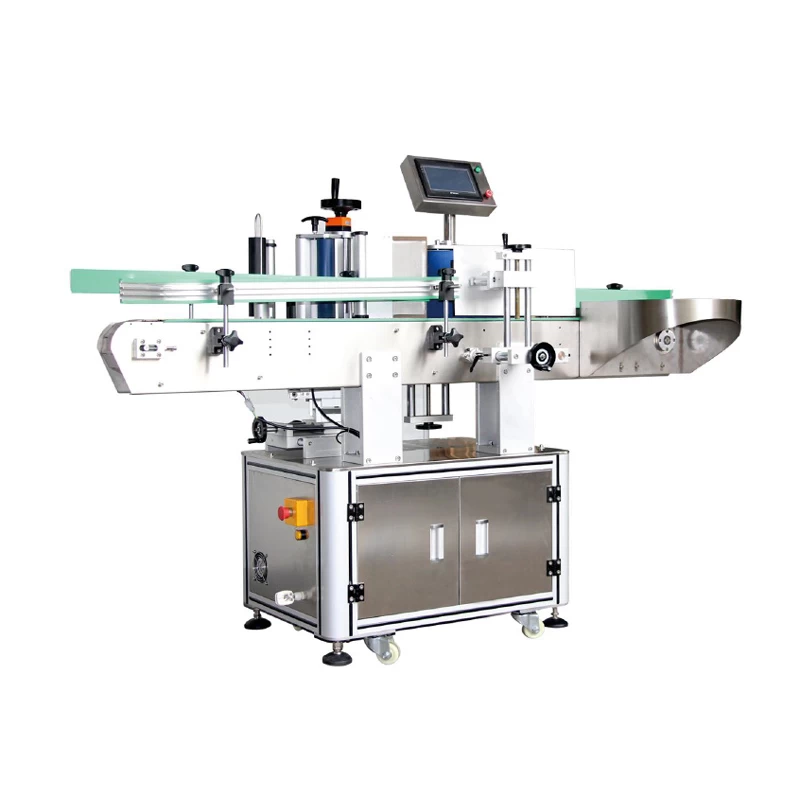

Automatic vertical type rub rolling round bottle labeling machine

This automatic vertical type rub rolling round bottle labeling machine is suitable for labels, self-adhesive labels, non drying film, electronic monitoring code, bar code, etc.



Automatic vertical type rub rolling round bottle labeling machine

Customized And OEM Service Available


Round Bottle Labeling Machine


Scope of trial

Applicable products: products that need labels and films on the circumferential surface.

Applicable industries: widely used in food, medicine, cosmetics, daily chemical, electronics, hardware, plastic and other industries

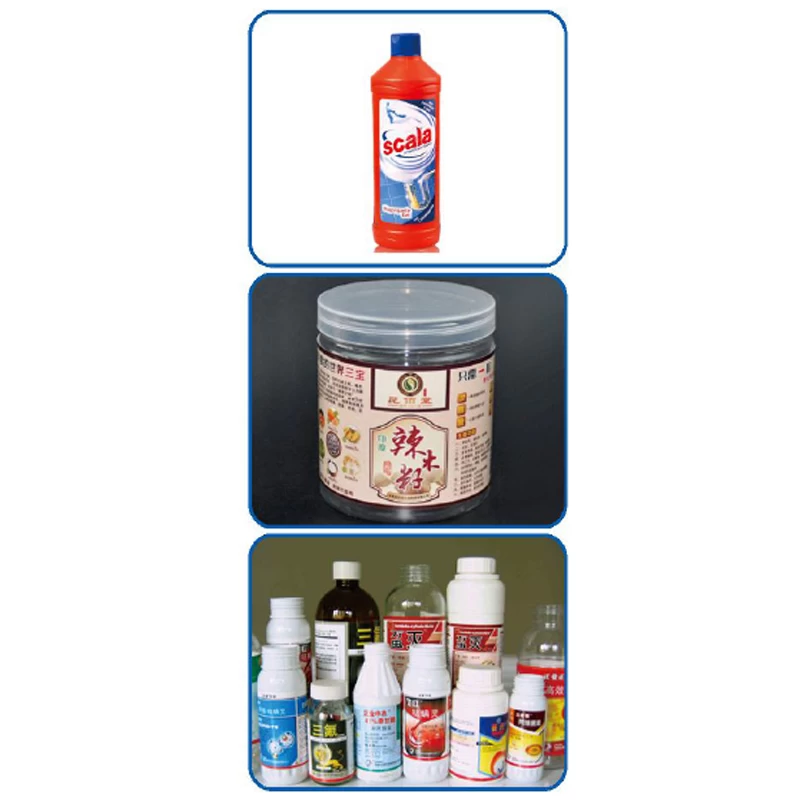

Examples are PET round bottles, plastic round bottles, canned food and so on.


Application scope

1.This automatic vertical type rub rolling round bottle labeling machine humanized touch screen, easy to operate, fully functional, with a wealth of online help function, a number of warning prompts;

2. High-quality labeling effect, the use of elastic-pressure labeling belt, labeling flat, no wrinkles, to achieve perfect labeling packaging quality;

3. Flexible application, bottle vertical labeling, with automatic bottle-splitting function, can be single-machine production, can also be connected to the production line;

4. intelligent system control, automatic photoelectric tracking identification, no matter not labeling, fault prompts and other functions.

5. The equipment has high stability. The advanced electronic control system is composed of Panasonic PLC, dimension-controlled touch screen, Panasonic needle-shaped eye, Louis test and Italian Titis test label eye.

6. New mechanism application, the bench base adopts 6-DOF adjusting mechanism, the height adjusting adopts three-bar adjusting mechanism, which is simple, convenient and efficient.

7. Optional functions: hot-code/spray code, automatic feeding and unloading, automatic feeding, adding labeling device, other functions (customized according to customerrequirements)


Technical parameters (the following are technical parameters of standard type, other special requirements and functions, which can be customized).

Model

MZH-L

standard rate

5~25m/min

Applicable label length

20~285mm

Labeling speed

40~120pcs/min

Applicable label width

15~150mm

Conveyor speed

5~25m/min

Applicable product diameter

Ø25~Ø 100mm

weight

185kg

Applicable product height

25~230mm

power

220V 50Hz

Applicable marking outer diameter

Ø280mm

power

1.2kw

Applicable to marking inner diameter of volume

Ø76mm

Conveyor direction

From left to right

Labeling accuracy

±1mm

equipment size

1900*1300*1350mm
