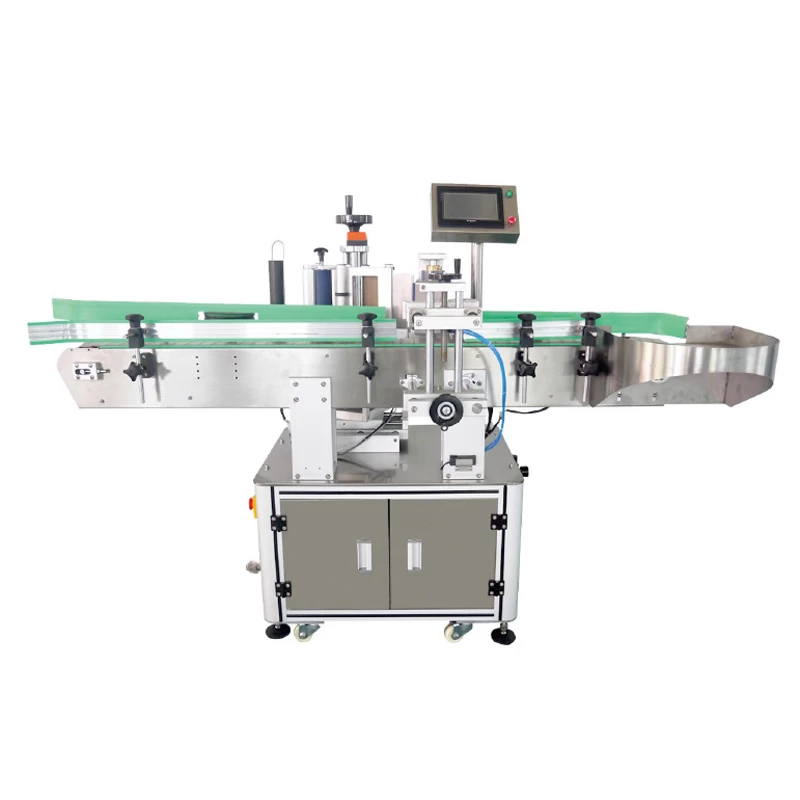

Full automatic vertical positioning round bottle labeling machine

This full automatic vertical positioning round bottle labeling machine applicable labels: stickers, adhesive film, electronic monitoring code, bar code and so on.



Full automatic vertical positioning round bottle labeling machine

Customized And OEM Service Available

Round Bottle Labeling Machine

Scope of application

This full automatic vertical positioning round bottle labeling machine is suitable for round bottles with diameters of 30mm-90mm.

Applicable industries: widely used in food, medicine, daily chemical, electronics, hardware, plastics and other industries.

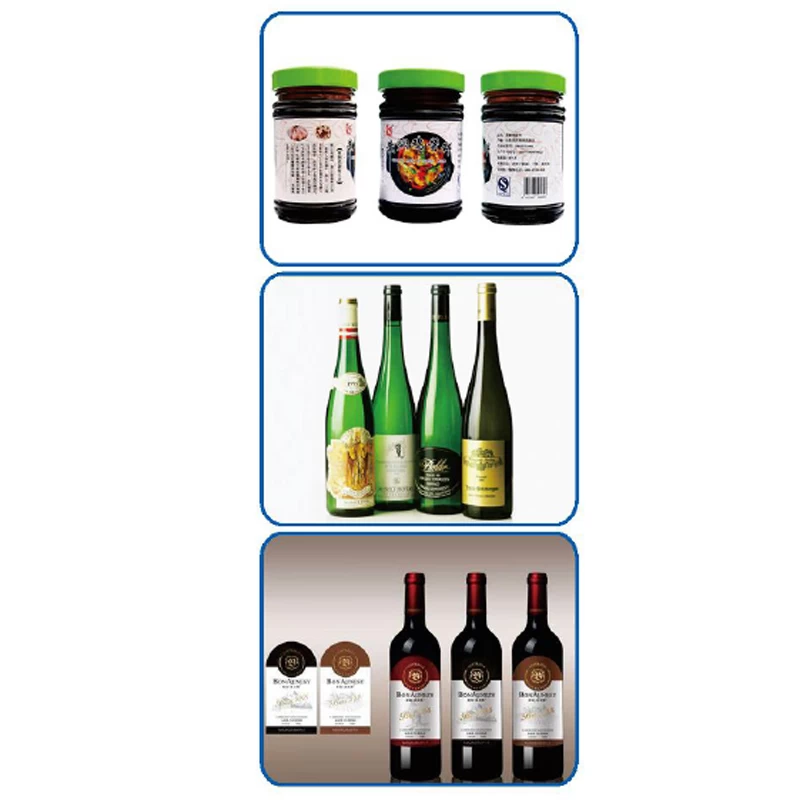

Application examples are sterilizing water bottle labelling, double labeling of double flask, red wine bottle positive marking, labeling and so on.


Functional characteristics

1. Humanized touch screen, simple and convenient operation, complete functions, with rich online help function, can set labeling parameters, a number of warning prompts, labeling quantity management;

2. The same equipment can realize single labeling and double labeling of cylinder objects. The distance between two labeling can be flexibly adjusted. The function of labeling on the circumferential surface can be realized by choosing the circumferential positioning detection device.

3. intelligent control, automatic photoelectric tracking recognition, no matter no labeling, fault indication and other functions.

4. High stability, using Panasonic PLC + dimension control touch screen + Panasonic needle-shaped electro-eye + Louis test / Italian Titis test label electro-eye composed of advanced electronic control system, support equipment 7 x24 hours operation;

5. It has automatic shutdown function, production counting function, power saving function (when there is no production in the set time, the equipment automatically turns to power saving standby state), production number setting prompt function, parameter setting protection function (parameter setting divided by authority management), convenient production management.

6. Optional functions: hot code/spray code, automatic feeding and unloading, automatic feeding, adding labeling device, non-standard bottle removal function (customized according to customer requirements).


Technical parameters (the following are technical parameters of standard type, other special requirements and functions, which can be customized).

Model



Label out speed

5~25m/min

Applicable label length

20~285mm

Labeling speed

30~60pcs/min

Applicable label width

20~160mm

Conveyor speed

5~18m/min

Applicable product diameter

Ø25~Ø 90mm

Weight

185kg

Applicable product height

25~300mm

Voltage

220V 50Hz

Applicable marking outer diameter

Ø280mm

Power

1.2kw

Applicable to marking inner diameter of volume

Ø76mm

Conveyor direction

From left to right

Labeling accuracy

±1mm

Equipment size

1900*1300*1350mm
