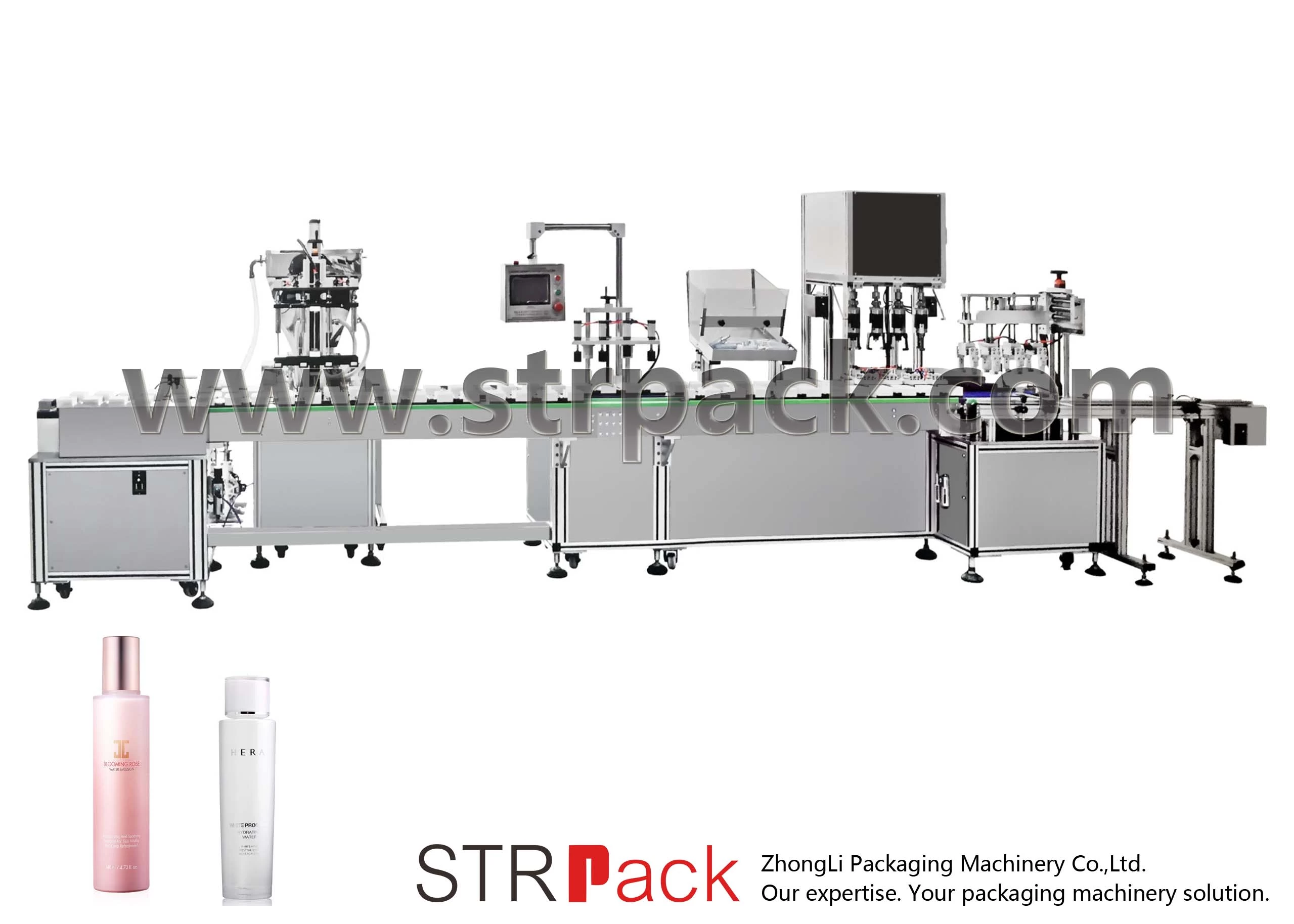

Automatic Water Emulsion Filling and Capping Machine


This production consists of bottle feeding table, peristaltic pump filling, feeding sprayer pump(glass dropper),pre-capping,servo capping, labelling and bottle collection table.




  • Brand NameSTRPACK
  • CertificationISO CE
  • Warranty:2 Years

Automatic Water Emulsion Filling and Capping Machine


Brief Introduction:

This sprayer pump, glass dropper bottle filling and capping machine includes the turn table feeding bottle, automatic filling, automatic feeding sprayer pumps(glass dropper),capping, labelling and bottle collection table.

This production consists of bottle feeding table, peristaltic pump filling, feeding sprayer pump(glass dropper),pre-capping,servo capping, labelling and bottle collection table.



Features:

Liquid, lotion, cream generic.

Automatic filling, within corking, capping, the container is discharged.

Linear operation, automatic maneuver recycled jig.

Fixture adjustable, exchange bottle type simply adjust the clamp to fill different bottle.

Servo motor control sneak follow filling, to prevent the filling material outside the spray when the bubble.

Servo motors combined with the rotary valve, piston quantitative filling, easy to control, regulate simple, high precision filling volume for the filling material more widely.

Capping servo lifting, robot gripping capping, cap size adjustable, capping torque adjustable, no damage to the cap, capping a high success rate.

Robot automatically discharged finished, convenient and reliable.

Equipped with moving wheels, easy to move. Machine with sanitary stainless steel, aluminum manufacturing quality, clean and hygienic.

Anyone can skillfully operate in a short time.

Man-machine interface with a recipe function, simply replace the product that you need to select the recipe can be realized easily and quickly.

The most suitable for the daily output of 15,000 to 25,000.



Main Parameter:

Model

Unit

SMF

Filling volume

Ml

5-100

Production capacity

Bottle/h

1500-3000

Quantitative error

%

≤±1%

Cap feeding rate

%

≥99

Capping rate

%

≥99

Source voltage

V

Three-phase four-wire system AC220V 380V ±10%

Consumed power

KW

2

Gas supply pressure

MPA

0.4-0.6

Air consumption

M3/min

0.2




After-sales Service:
(1) Under stable voltage, the machines' quality that we sold will be guaranteed for 2 year
(2) Long time technology will be supplied.
(3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you. Engineer's salary will be USD100.00/day/person.
We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
