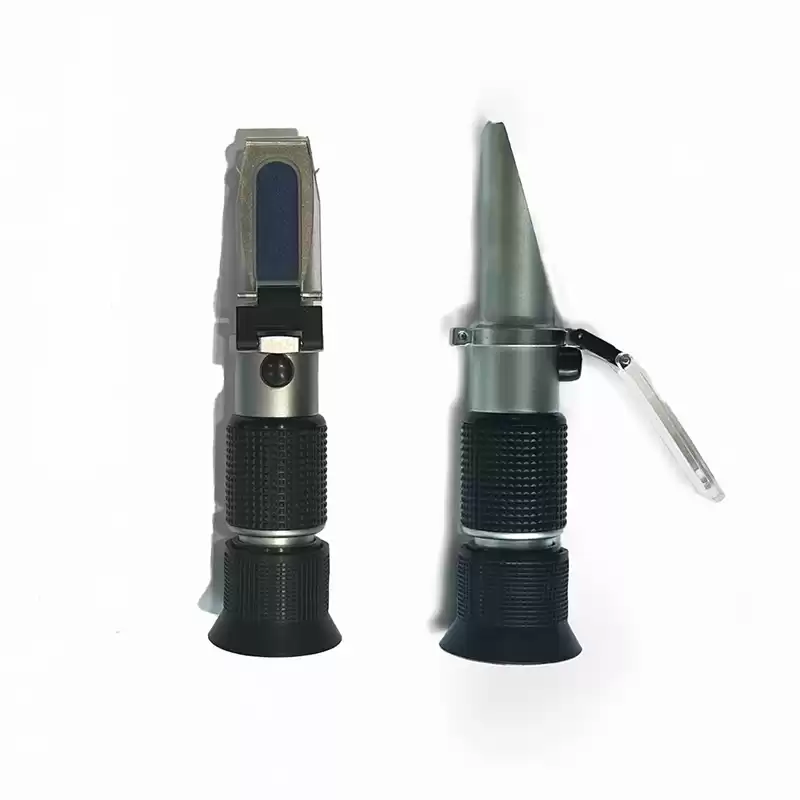

Automotive Antifreeze Refractometer ATC, Coolant Tester for Car Repairing Battery Fluid Fahrenheit

Product Description

The handheld antifreeze and battery fluid refractometer is widely used in car maintenance, repair workshops, and battery servicing. This tool helps ensure proper coolant protection in cold climates and accurate assessment of lead-acid battery charge levels.

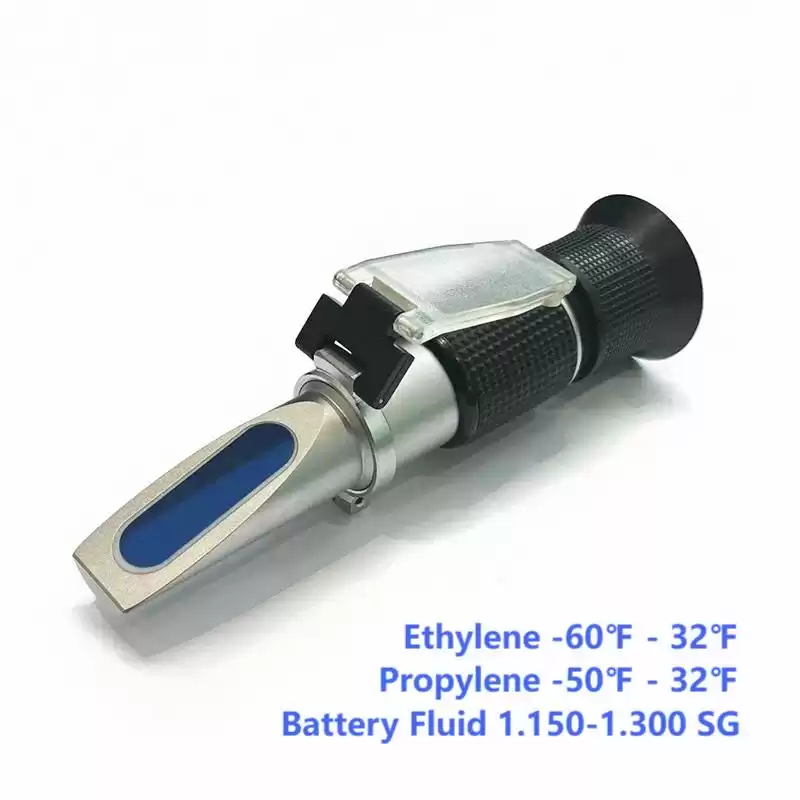

The RHA-300FA model handheld antifreeze and Battery acid refractometer has two functions:

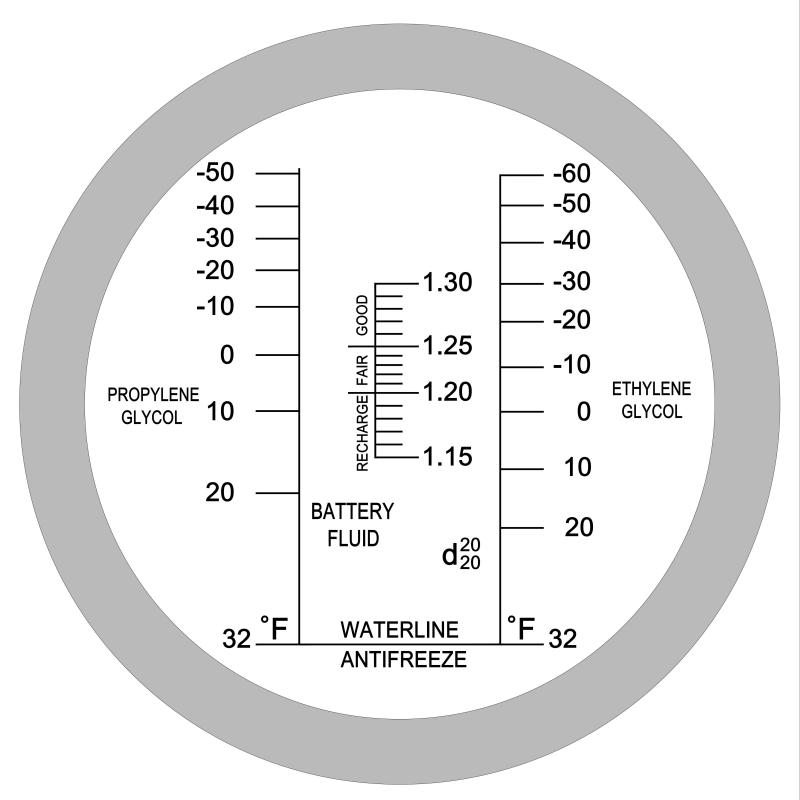

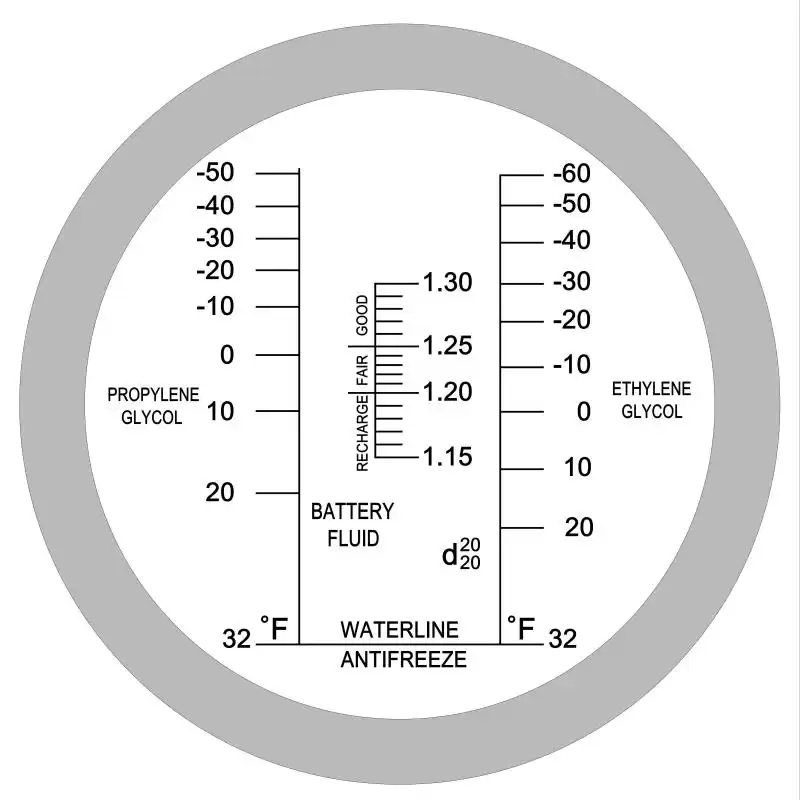

1. It measures the freezing temperature (in ℉) of ethylene glycol or propylene glycol - based automotive antifreeze. The reading indicates the temperature at which the measured solution starts to freeze.
2. It  measures the specific gravity (SG) of battery fluid. The specific gravity is the density ratio of battery fluid to water, which is used to indicate the charging state of lead - acid batteries. The higher the specific gravity value, the more fully the battery is charged.

Product Features

Coolant & Battery Testing in °F

 Measures freezing points of ethylene and propylene glycol coolants and the specific gravity (SG) of battery acid—all displayed in Fahrenheit.



Copper Alloy Body

 Durable and thermally stable for accurate results in workshop and outdoor environments.

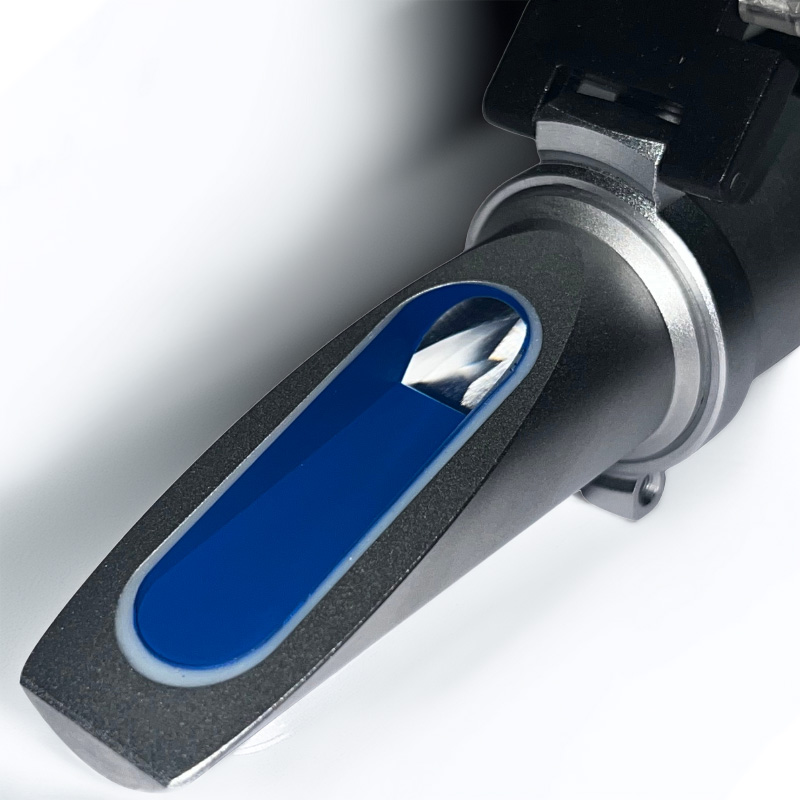

Crown Glass Prism

 Provides sharp, clear optical readings for ease of use and reliable results.



Automatic Temperature Compensation (ATC)

 Ensures measurement accuracy across varying ambient temperatures.









Typical Applications

- Coolant System Maintenance (°F)

 Measure the freezing point of ethylene or propylene glycol coolant (in °F) to ensure engine protection in cold climates.

- Vehicle Service & Repair

 Ideal for routine checks in cars, trucks, and motorcycles during seasonal coolant and battery maintenance.

- Battery Acid Testing

 Evaluate the specific gravity (SG) of lead-acid battery electrolyte to determine battery charge level and condition.

- Heavy Equipment & Machinery

 Check fluid performance in tractors, construction vehicles, and off-road equipment operating in low-temperature environments.







Product Parameters

Model	RHA-300FA
Net Weight	0.24kg
Length	157mm
Diameter	29mm
Temperature Range	10℃ to 30℃ with ATC 20℃ without ATC



Packaging

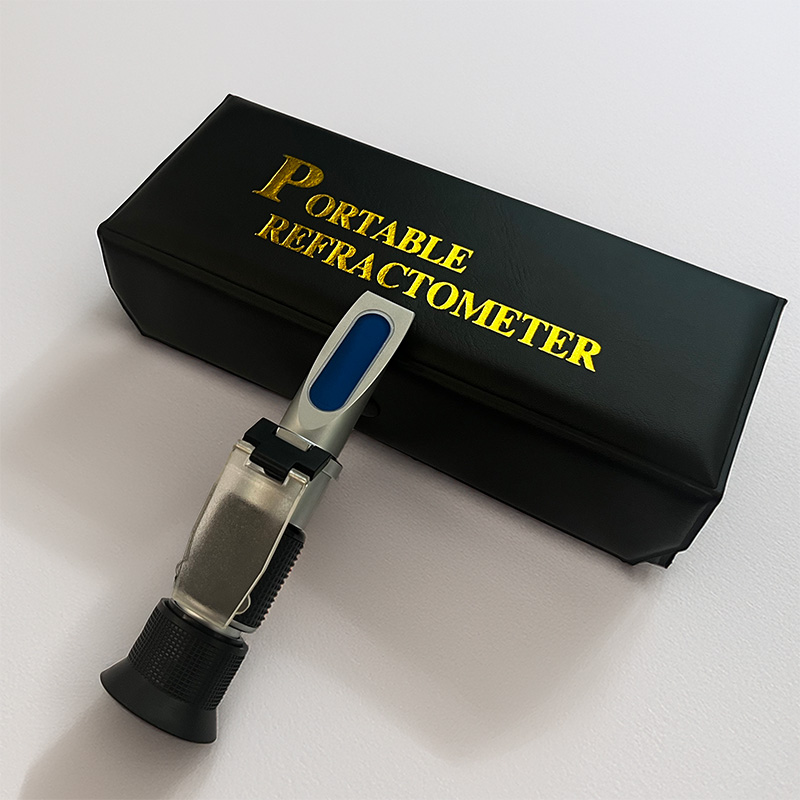

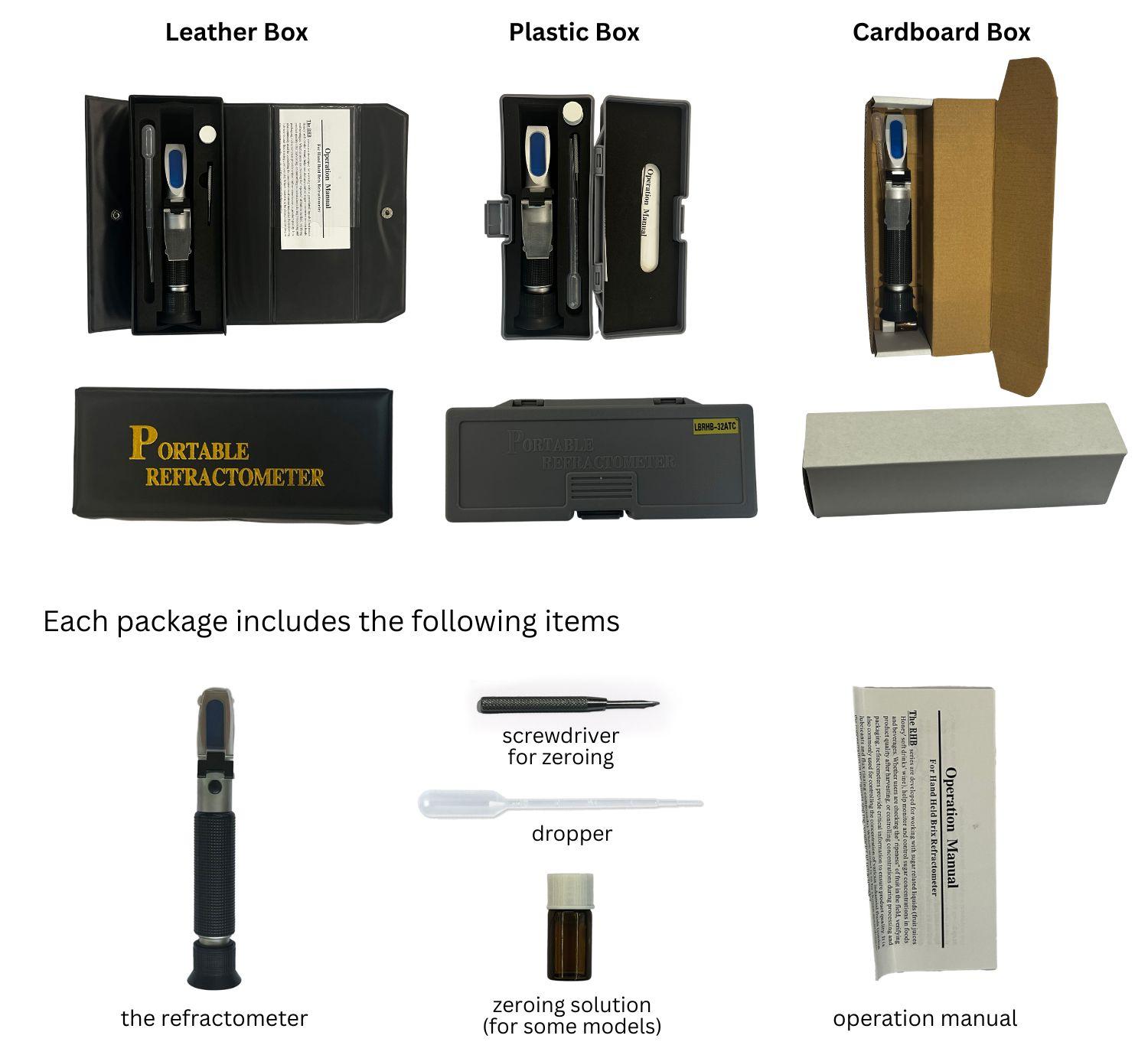

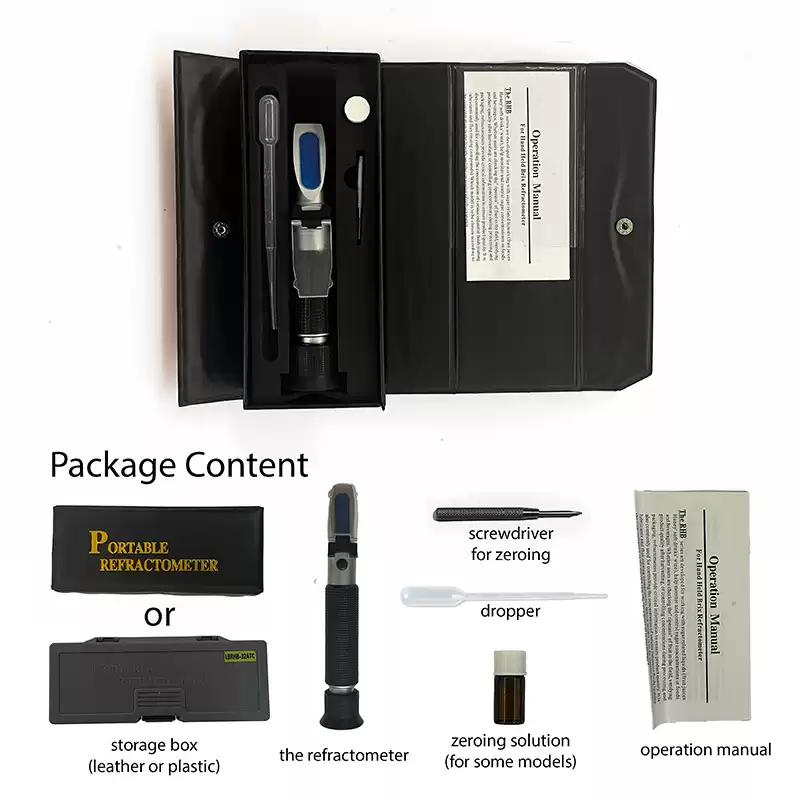

We have three packaging options: leather, plastic, or cardboard. The cost per unit vary with different packaging.

If you have a preferred packaging option or require customized packaging with your own text or logo, please feel free to send us an inquiry.
