Low Concentration Brix Refractometer ATC, Sugar Refractometer 0-20% Brix

Product Description

The handheld Brix refractometer is widely used for quality control across the food and beverage industry, agriculture, and various industrial applications. In agriculture, it helps determine crop sugar levels to identify the optimal harvest time. In the food and beverage industry, it is used to control the concentration of formulation solutions during production. In industrial settings, it monitors the concentration of cutting and grinding fluids.

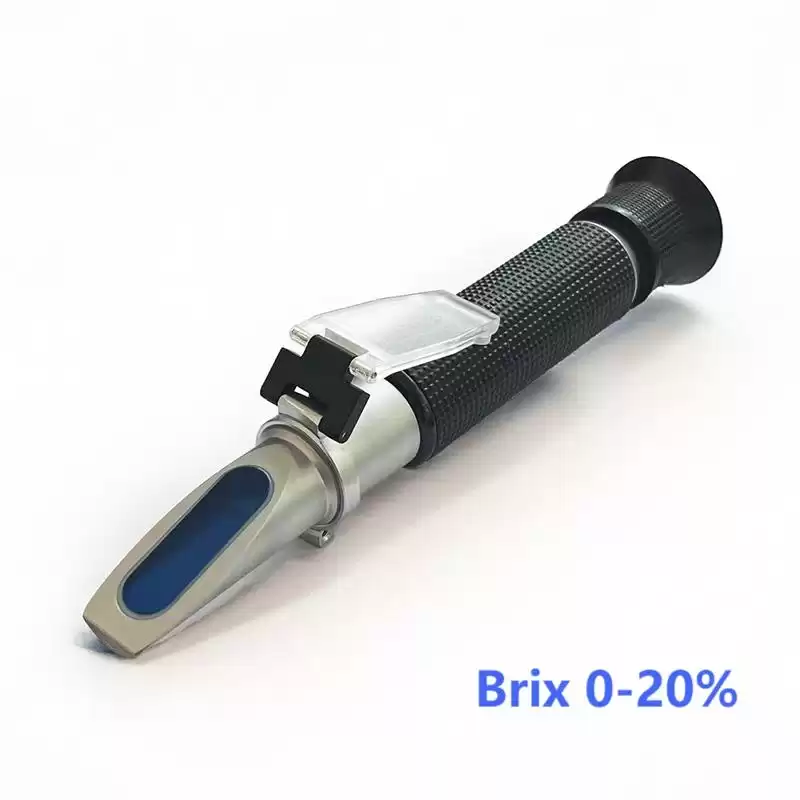

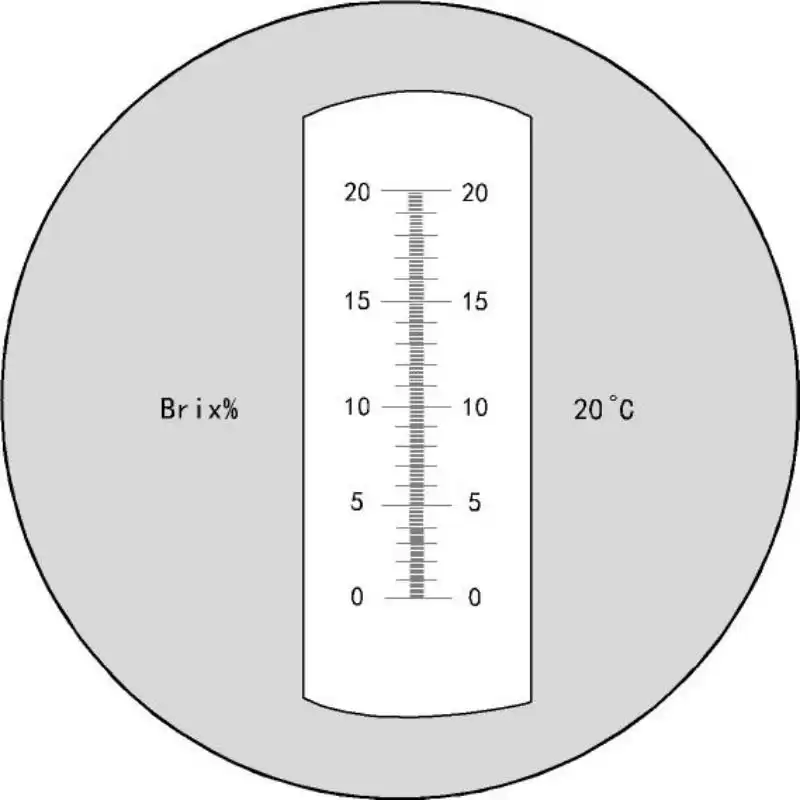

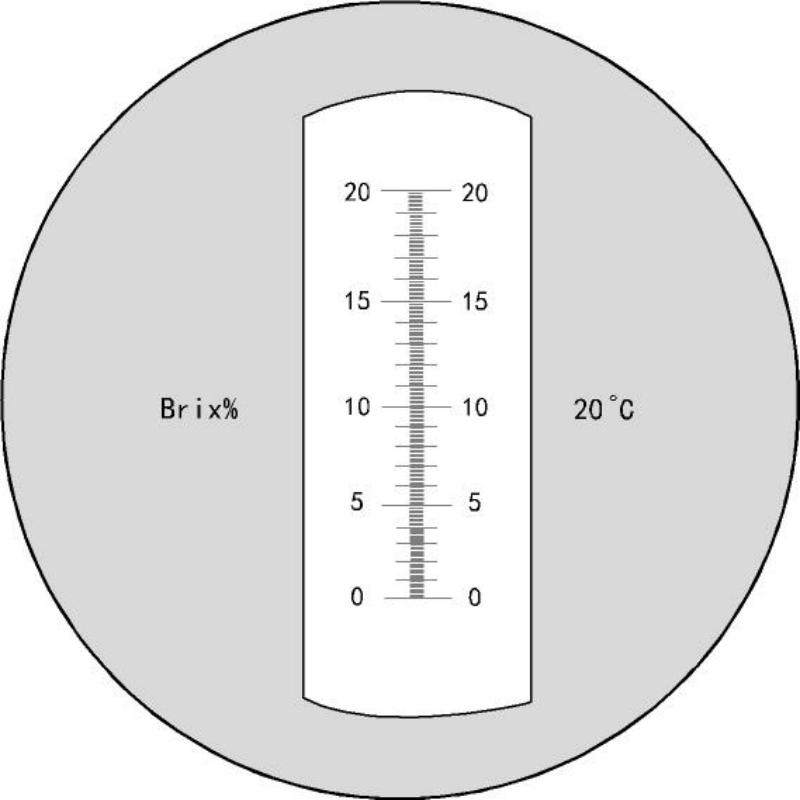

The RHB-20A handheld Brix refractometer is designed specifically for measuring the concentration of sugar in the liquid being tested. With a measurement range of 0 to 20% Brix and a measurement accuracy of ± 0.2%, this model is suitable for fresh fruit and vegetable juices, soft drinks and dairy products, sauces and seasonings, etc.

Product Features

- Precision for Low-Sugar Liquids

Specifically designed for accurate Brix measurement in juices, teas, and low-sugar solutions.



- Copper Body



Durable and stable in hand, the copper construction minimizes distortion and enhances long-term accuracy.

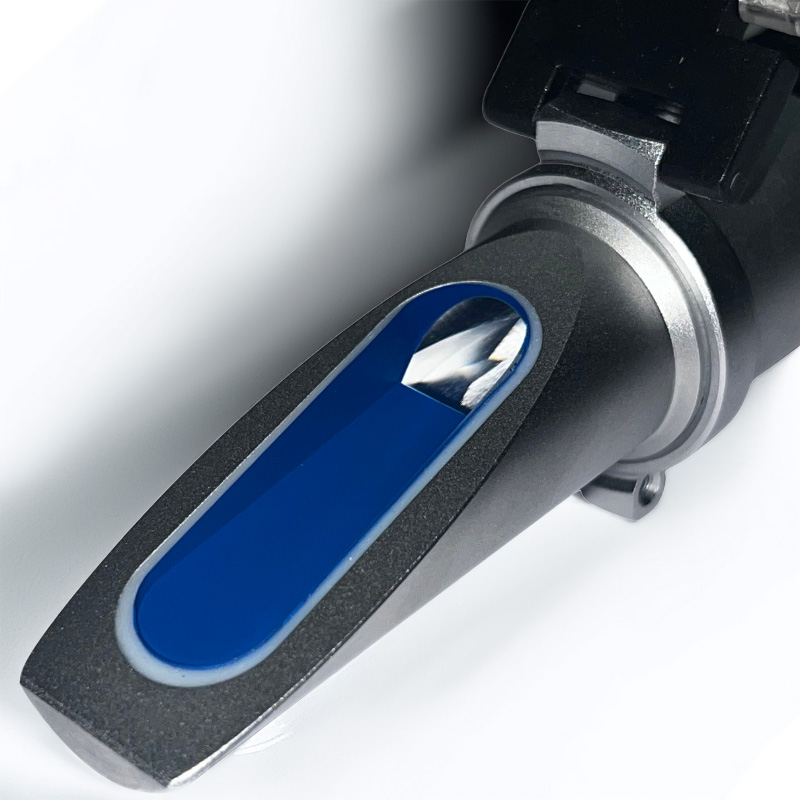

- Crown Glass Prism

The prism is made of special optical material to minimize deviation and to further improve accuracy.



- Temperature Compensation

The ATC function extends its effective temperature range to 10–30°C





Typical Applications



- Juice and Beverage Production

Monitor sugar content in low- to mid-sweetness drinks to ensure flavor consistency and labeling accuracy.



- Low-Brix Syrups and Sauces

Verify Brix levels during formulation of mild-sweet syrups or savory sauces.





Product Parameters

Model	RHB-20A
Net Weight	0.28kg
Length	203mm
Diameter	29mm
Temperature Range	10℃ to 30℃ with ATC 20℃ without ATC

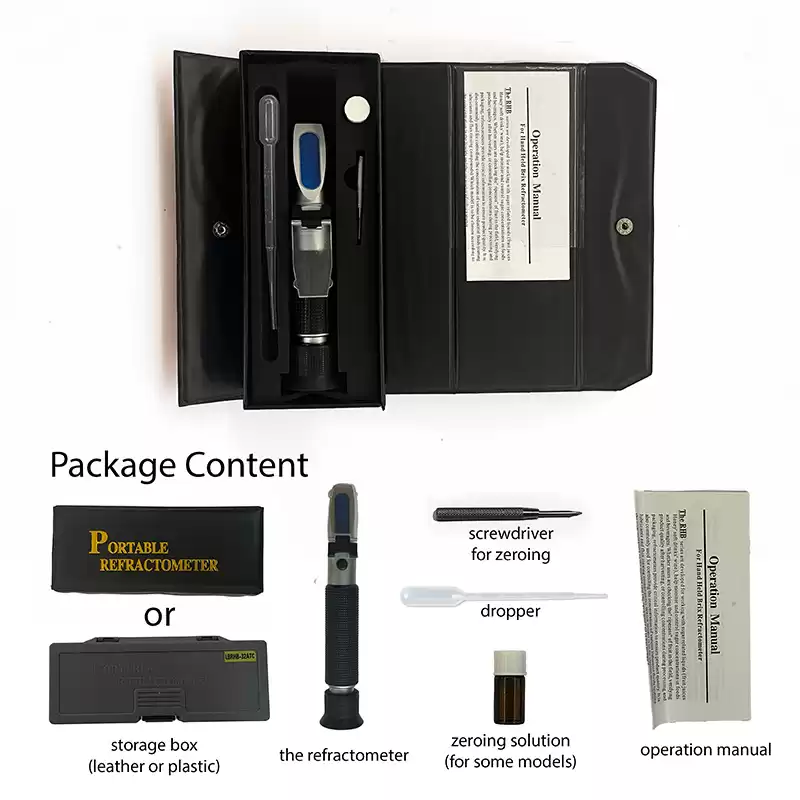

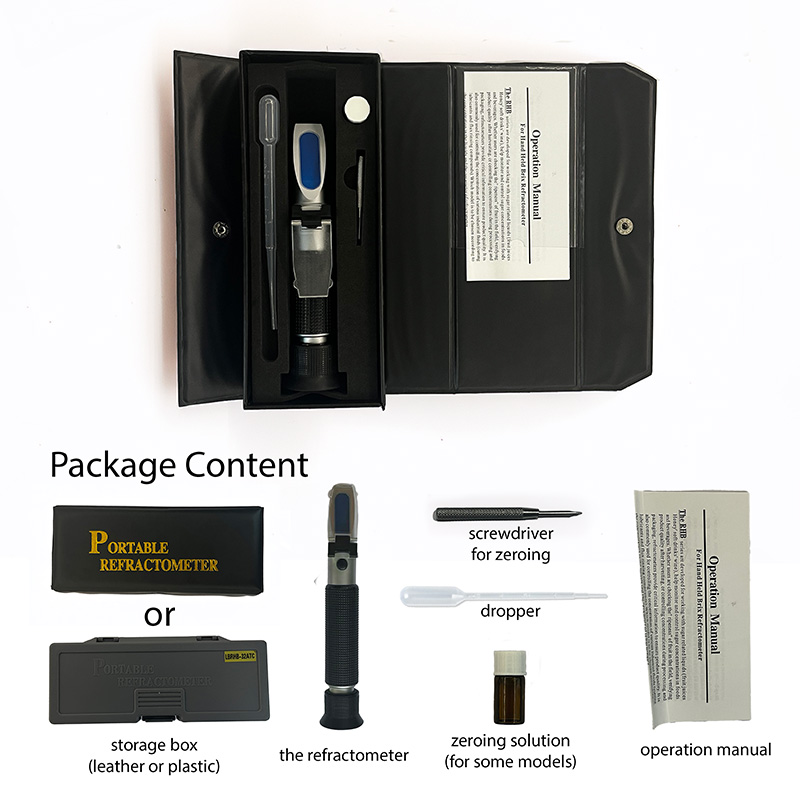

Packaging

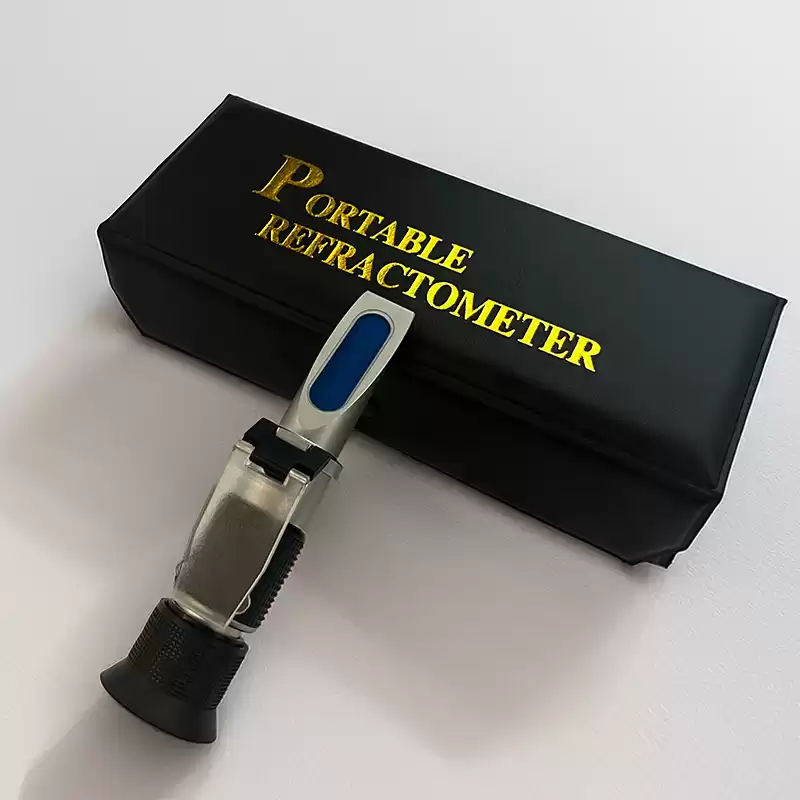

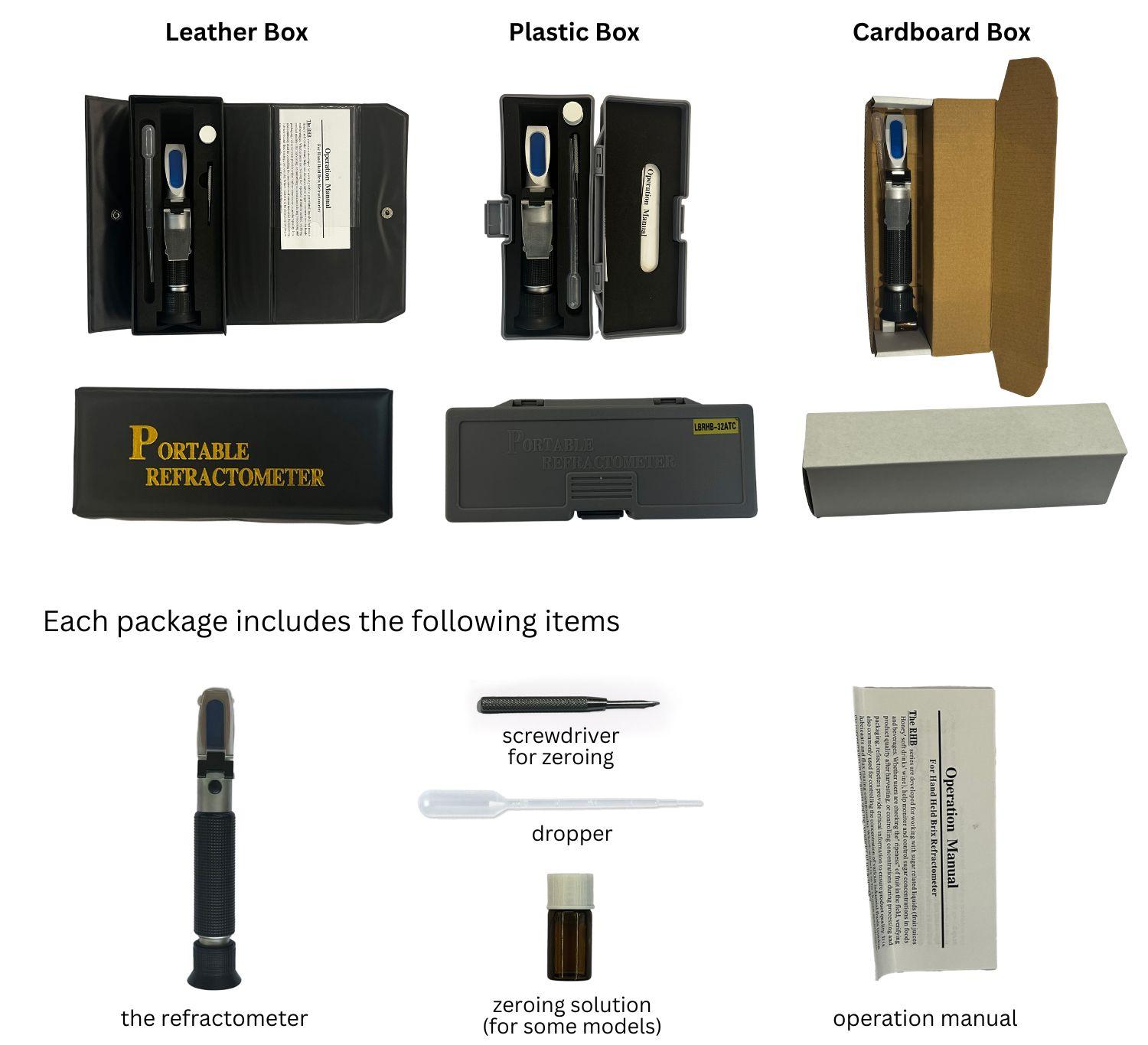

We have three packaging options: leather, plastic, or cardboard. The cost per unit vary with different packaging.

If you have a preferred packaging option or require customized packaging with your own text or logo, please feel free to send us an inquiry.
