Automotive Coolant Refractometer ATC, Coolant Tester for Ethylene, Propylene, Battery Fluid

Product Description

Handheld antifreeze and battery fluid refractometers are widely employed in automotive maintenance, repair workshops, and battery servicing. These tools play a critical role in ensuring proper coolant protection in cold environments and accurately evaluating the charge status of lead-acid batteries.

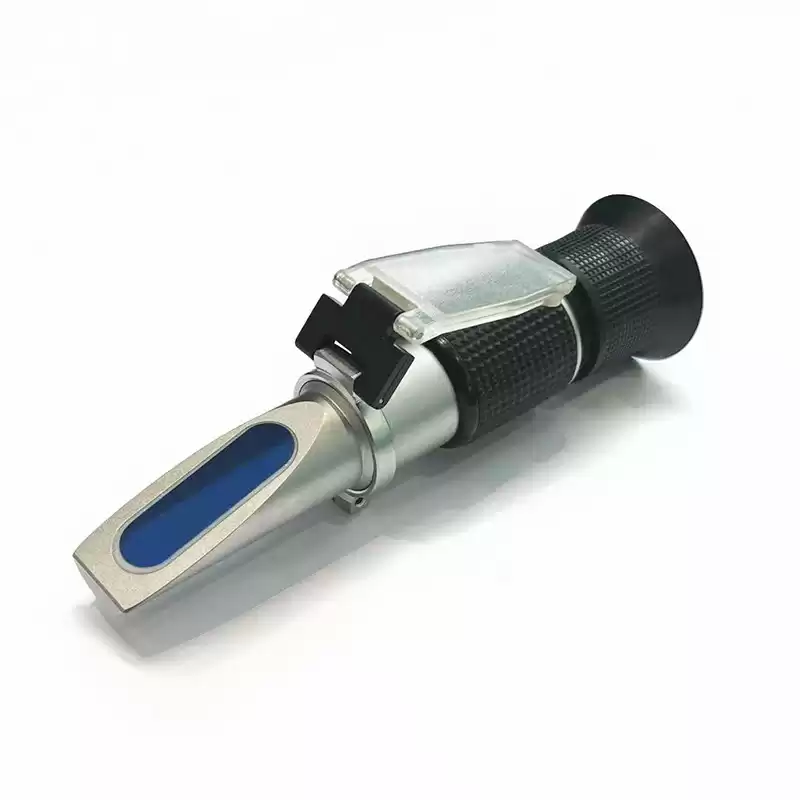

The RHA-200A handheld antifreeze and battery acid refractometer offers dual functionality:

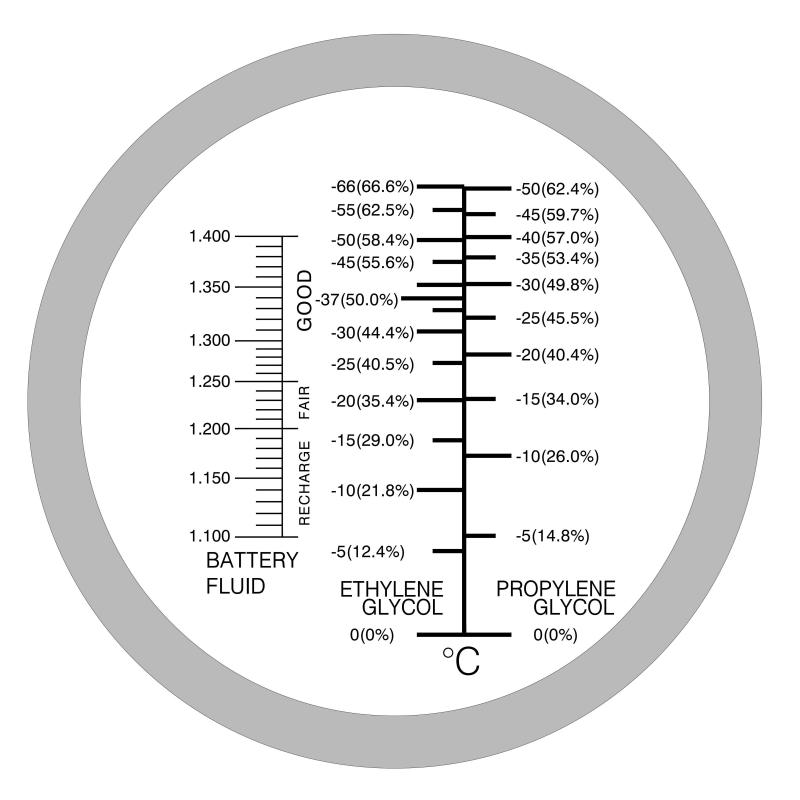

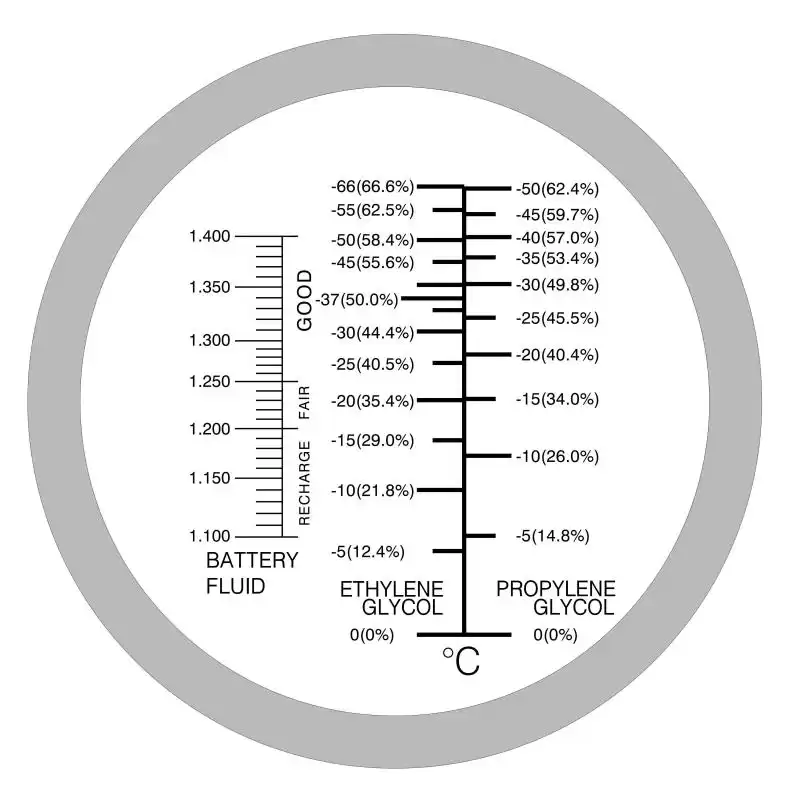

1. Antifreeze Freezing Point Measurement: It determines the freezing point (in °C) of ethylene glycol or propylene glycol-based automotive antifreeze. The reading reflects the temperature at which the tested solution will start to freeze, making this model ideal for use in regions where temperatures do not fall below -60°C.
2. Battery Acid Specific Gravity (SG) Measurement: It measures the specific gravity of battery acid, a parameter that compares the acid’s density to water and indicates the charge state of a lead-acid battery. Higher specific gravity values signify a more fully charged battery.

Product Features

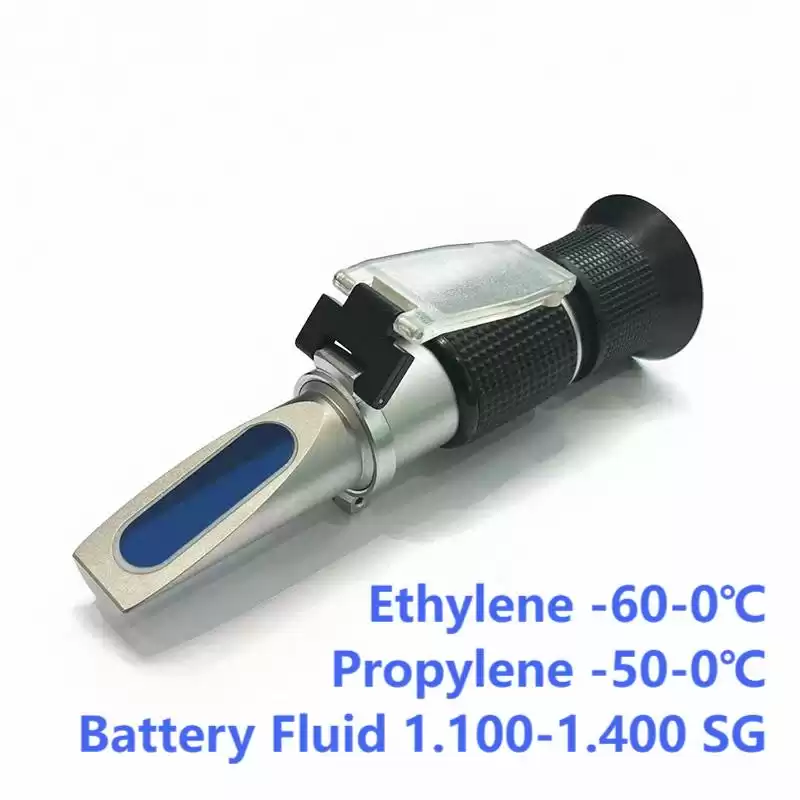

3 in 1 Measurement

Measures the freezing point of ethylene glycol, propylene glycol, and the specific gravity (SG) of battery fluid



Durable Copper Construction

Built with a copper body for excellent thermal stability, ruggedness, and long-lasting precision in harsh workshop environments.

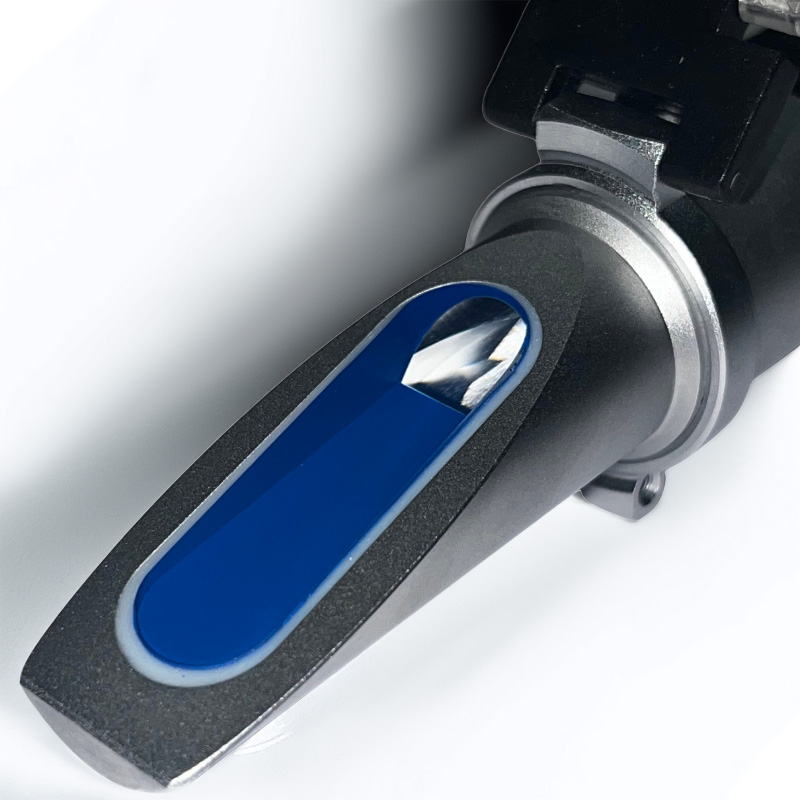

Crown Glass Prism

Eliminates refractive deviation, ensures clear, sharp optical readings for reliable day-to-day use.



Temperature Compensation

Delivers accurate readings without manual adjustments, even with fluctuating ambient temperatures.

Typical Applications

- Automotive Maintenance & Repair

Check the freezing point of ethylene and propylene glycol antifreeze to ensure proper engine protection under extreme temperatures.

- Battery Diagnostics

Measure the specific gravity of battery fluid to evaluate charge level and detect weak or failing lead-acid batteries.

- Heavy Equipment Maintenance

Monitor antifreeze and battery fluid conditions in tractors, loaders, construction machinery, and agricultural equipment.

- Workshop and Mobile Service Use

Reliable tool for mechanics and field technicians performing on-site inspections or maintenance services.







Product Parameters

Model	RHA-200A
Net Weight	0.24kg
Length	153mm
Diameter	29mm
Temperature Range	10℃ to 30℃ with ATC 20℃ without ATC
