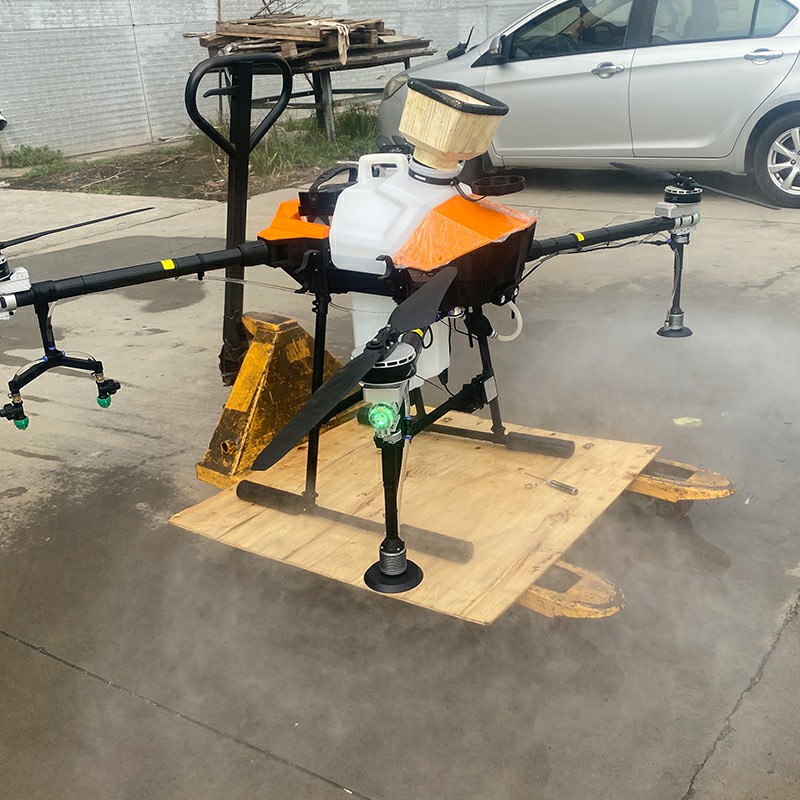

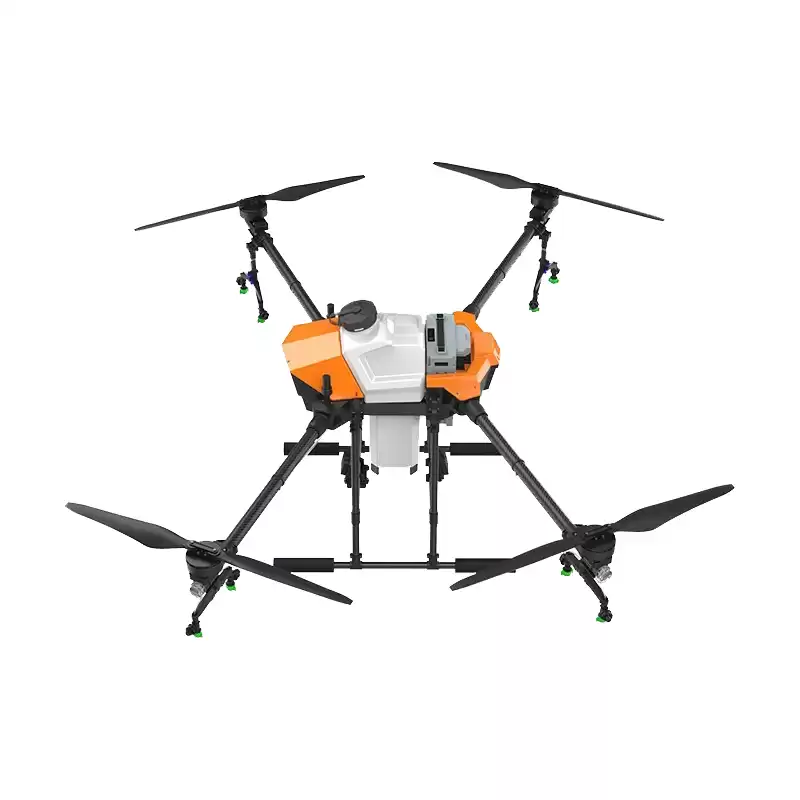

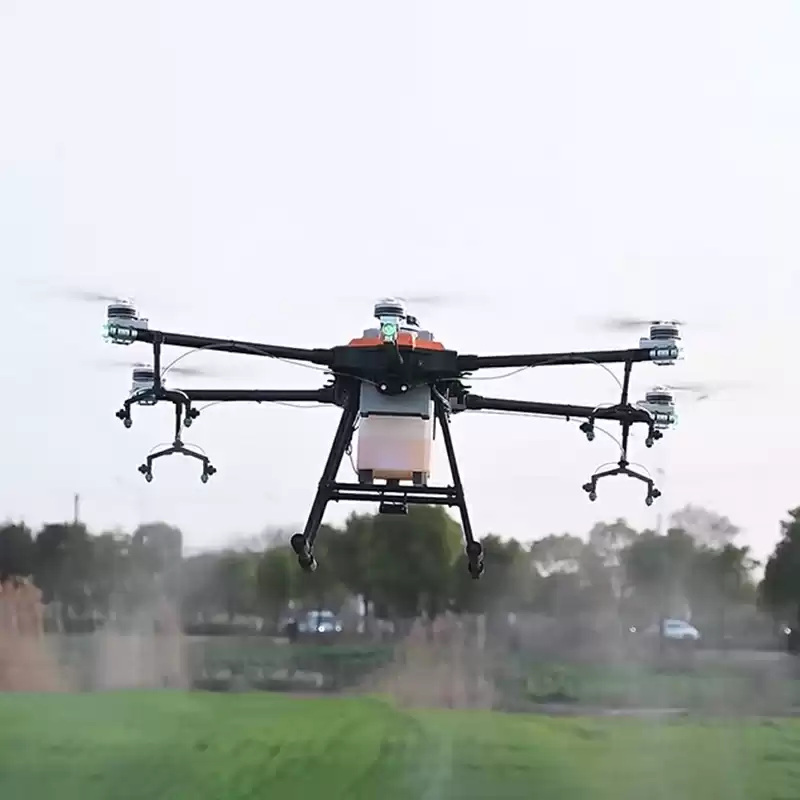

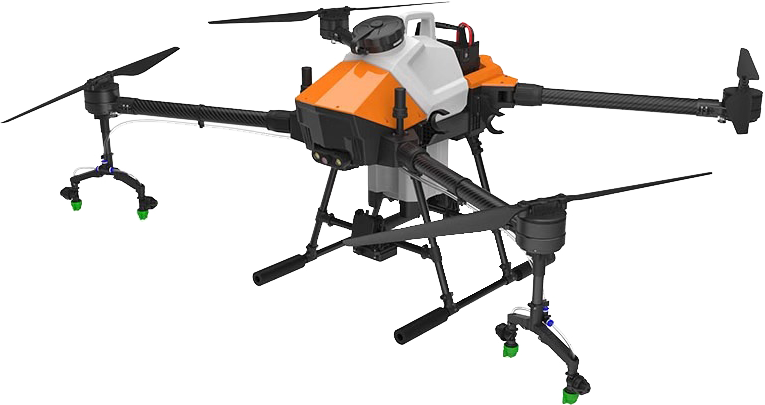

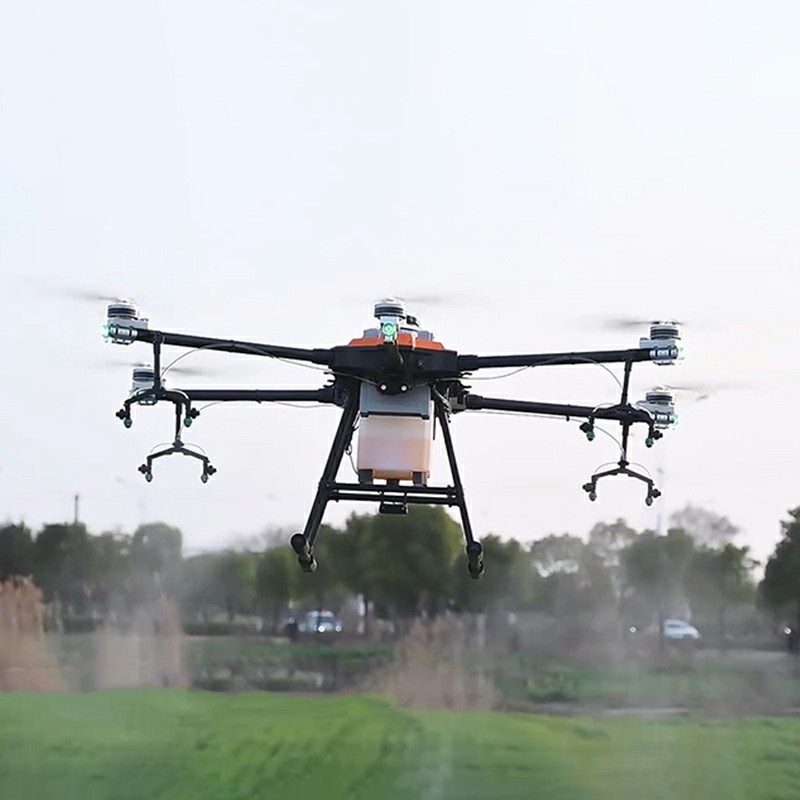

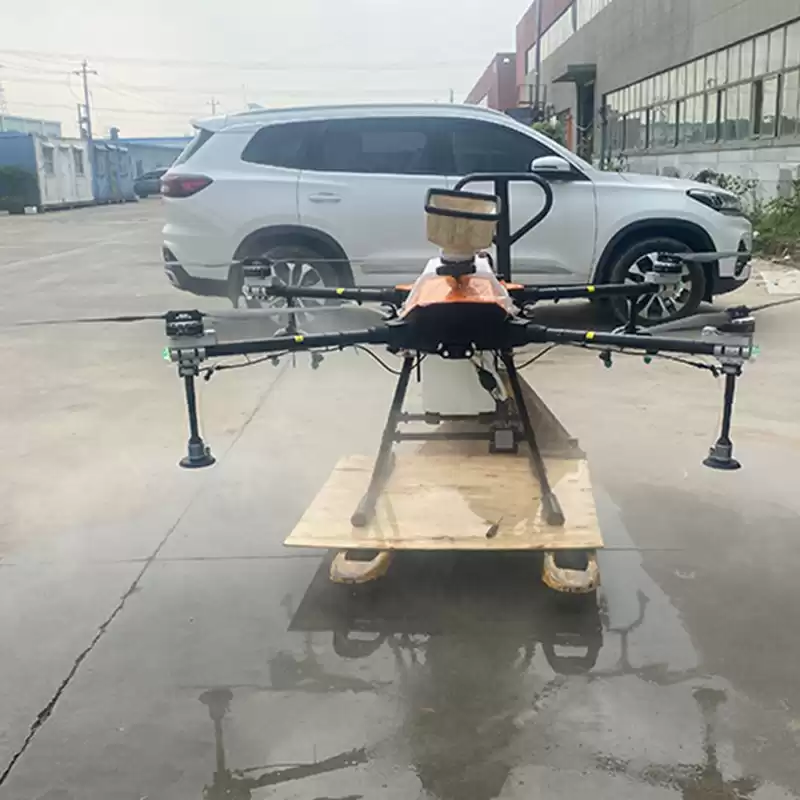

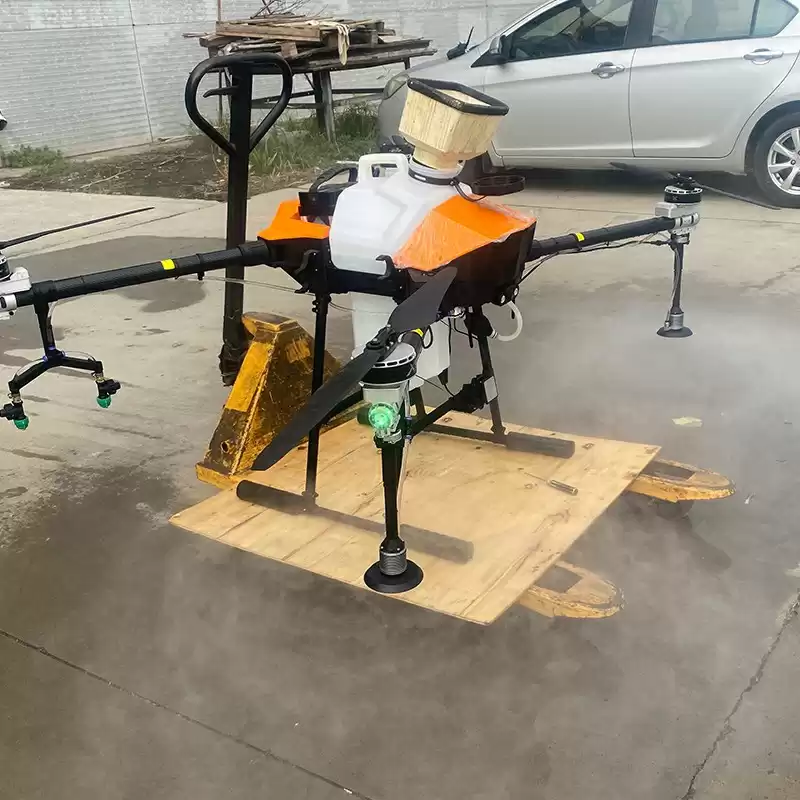

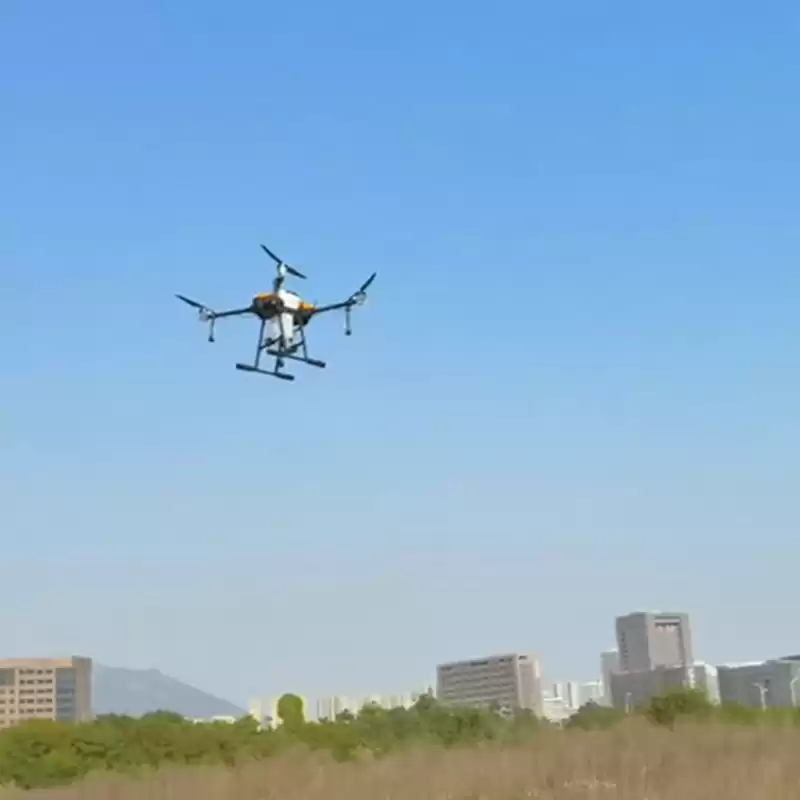

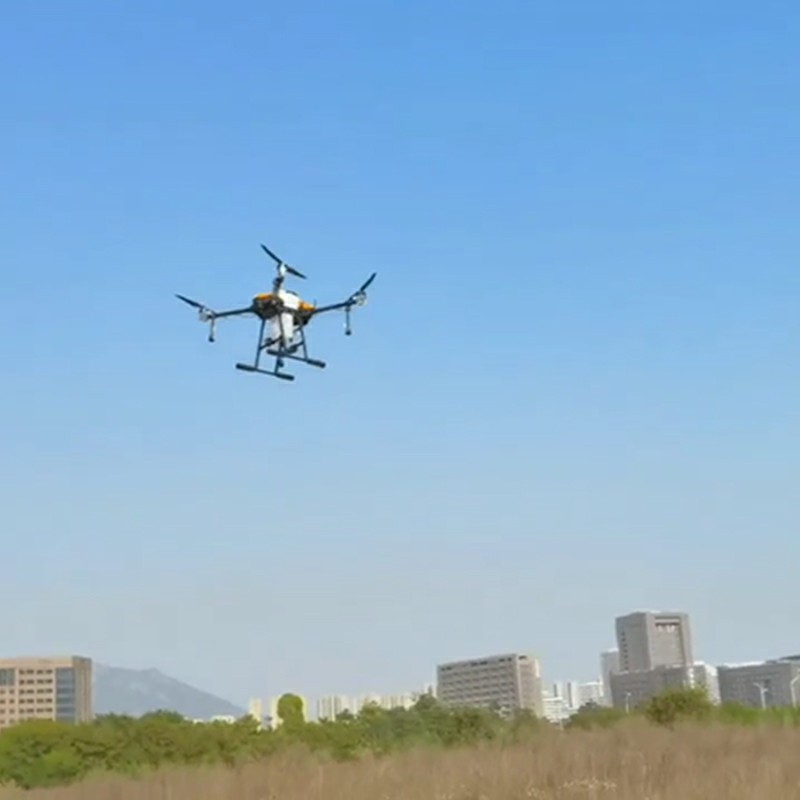

A high-performance crop protection drone designed specifically for agricultural spraying operations. It is equipped with a power system and flight control, which can achieve autonomous flight and precise spraying, improve pesticide utilization, reduce labor costs, and is suitable for agricultural operations in various terrains.
Functional Features
Autonomous flight: supports automatic flight route planning, intelligent obstacle avoidance, and precise and efficient completion of tasks.
Precise spraying: Professional atomizing nozzles combined with intelligent dosage control ensure even coverage of crops with medication.
Intelligent control: integrates advanced flight control technology, supports multiple intelligent operation modes, and improves operation efficiency.
Easy to maintain: Modular design, easy disassembly and assembly of key components, worry free cleaning and maintenance, and extended equipment lifespan.
Applicable scenarios
Widely applicable to various terrains such as plains, hills, and mountains for the cultivation of grain crops and economic crops, it meets the diverse operational needs of farmers of different scales, large-scale growers, agricultural cooperatives, and other users, and is an efficient tool for modern smart agriculture.
Technical parameters:
1. One machine for multiple purposes (spraying+spreading)
Quickly replaceable broadcasting and spraying systems to meet the operational needs of two different scenarios
2. Various models, quick disassembly battery, quick disassembly medicine box
3. Rack wheelbase: 1820mm
4. Medicine box capacity: 20L
5. Net weight of rack: 8.71kg
6. Net weight of medicine box: 1.62kg
7. Unfold size: 2465 * 1882 * 868mm Folding size: 972 * 623 * 868mm
8. Available colors: Orange/White
9. Power: X9 Plus 36inch
10. Battery: 22000mAh 14s
11. Arm outer diameter: 40mm
12. Dust proof and Waterproof: Dust proof and waterproof, with a waterproof rating of IP65, can be directly rinsed with water
13. Number of axes: Four axes
