LED Mini Wall Pack Lights
For feature, mini wall pack have elegant appearance and Unique and excellent structure, which have special patented die-casting radiator design mini wall light, this wall lamp adopts prismatic design to achieve ornamental and practicality.
Besides, it is equipped with intelligent photo sensitive parts wall light, and infrared human body sensing function, which saves power. In the application field, mainly used for courtyard lighting, are chitectural decorative lighting, pedestrian lighting, etc.
It is professional mini wall pack outside light.

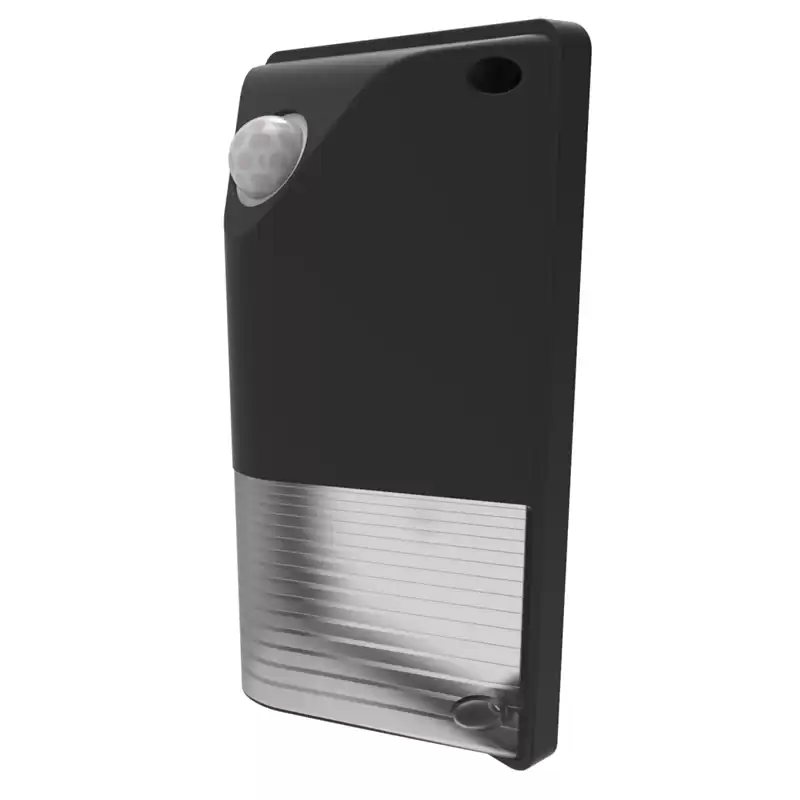

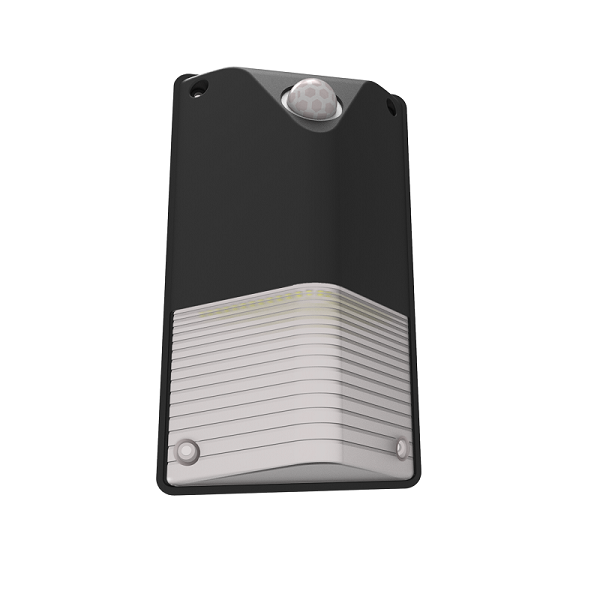

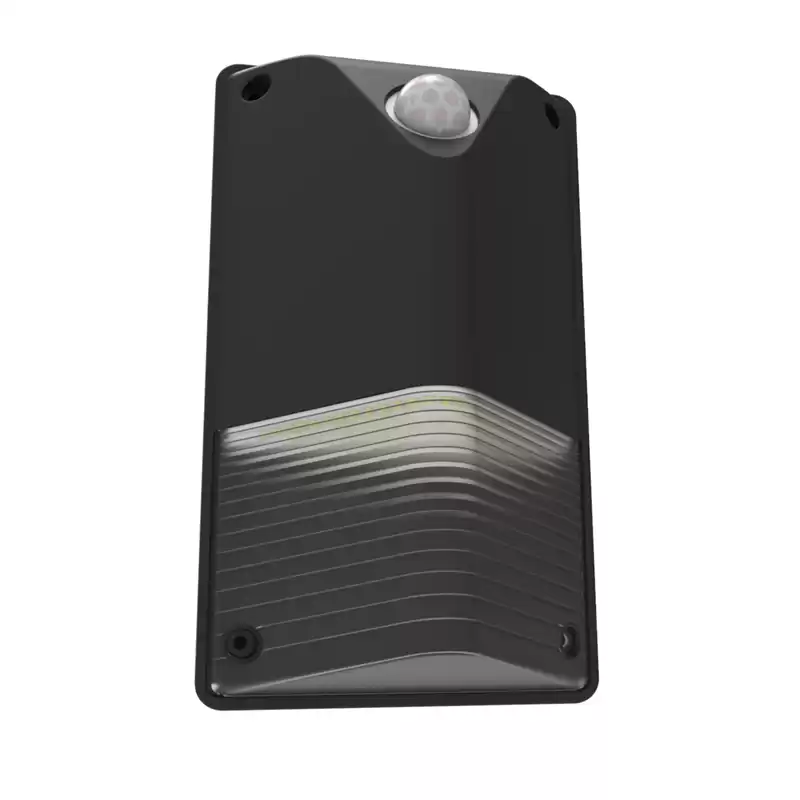

PRODUCT APPEARANCE
PRODUCT SPECIFICATION
|
Production No.
|
MA-HWP201D-13W
|
MA-HWP202D-26W
|
|
Power
|
13W
|
26W
|
|
CCT
|
3000K-7000K
|
3000K-7000K
|
|
Lumen
|
1690 lm
|
3380 lm
|
|
Input Frequency and Voltage
|
50/60HZ 100-277V
|
50/60HZ 100-277V
|
|
Power Factor
|
≥0.95
|
≥0.95
|
|
CRI
|
Ra≥80
|
Ra≥80
|
|
Material
|
Aluminum alloy + PC Cover
|
Aluminum alloy + PC Cover
|
|
Standard color
|
Dark bronze/Black
|
Dark bronze/Black
|
|
IP Grade
|
IP 54
|
IP 54
|
|
Lifespan
|
>54000 hours
|
>54000 hours
|
|
Working Temperature
|
-40℉~122℉
|
-40℉~122℉
|
|
Total Harmonic Distortion
|
15%
|
15%
|
|
Warranty
|
5 Year
|
5 Year
|

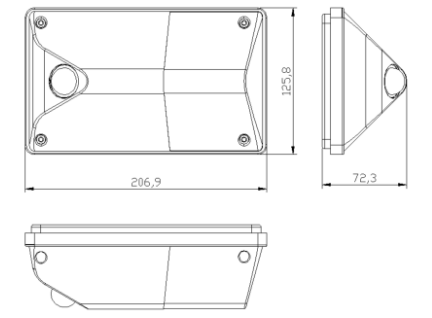

PRODUCT DIMENSION
PACKAGE INFORMATIONS
It is Wrap the lamp body in a foam bag, put it in a card board box, and 2Pcs in an outer box.
|
Production No.
|
MA-HWP201D-13W
|
MA-HWP202D-26W
|
|
Inner Box Size (MM)
|
210 * 130 * 79 mm
|
210 * 130 * 79 mm
|
|
Carton Size (MM) 2 Pcs/carton
|
220*170*150 mm
|
220*170*150 mm
|
|
N.W. (KG)
|
0.48 KG
|
0.48 KG
|
|
G.W. (KG)
|
1.34 KG / 2 Pcs /Carton
|
1.34 KG / 2 Pcs /Carton
|
