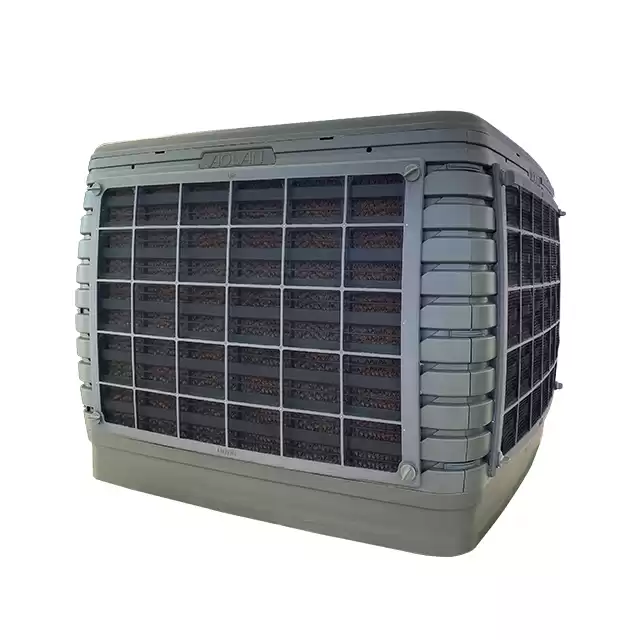

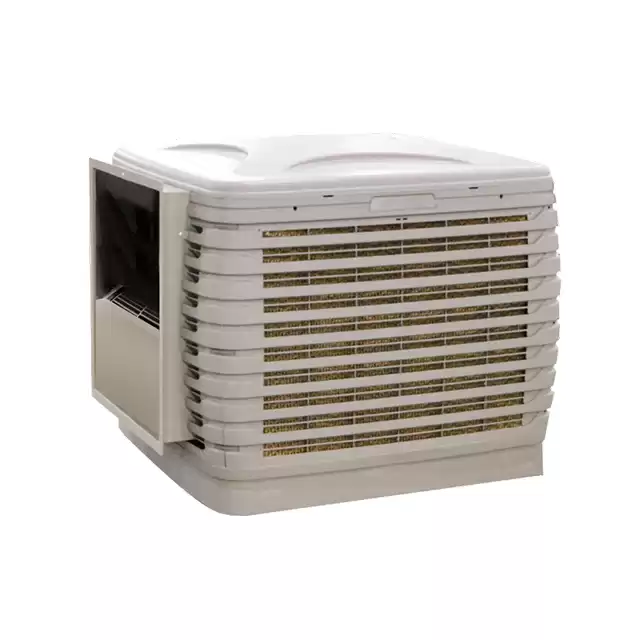

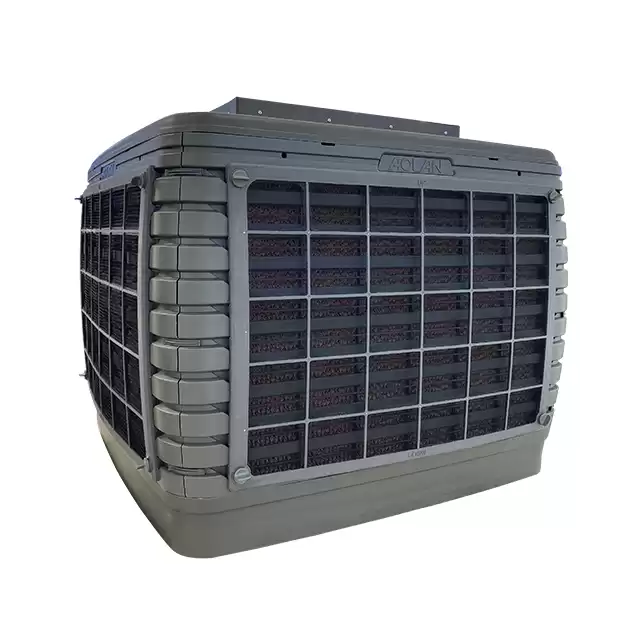

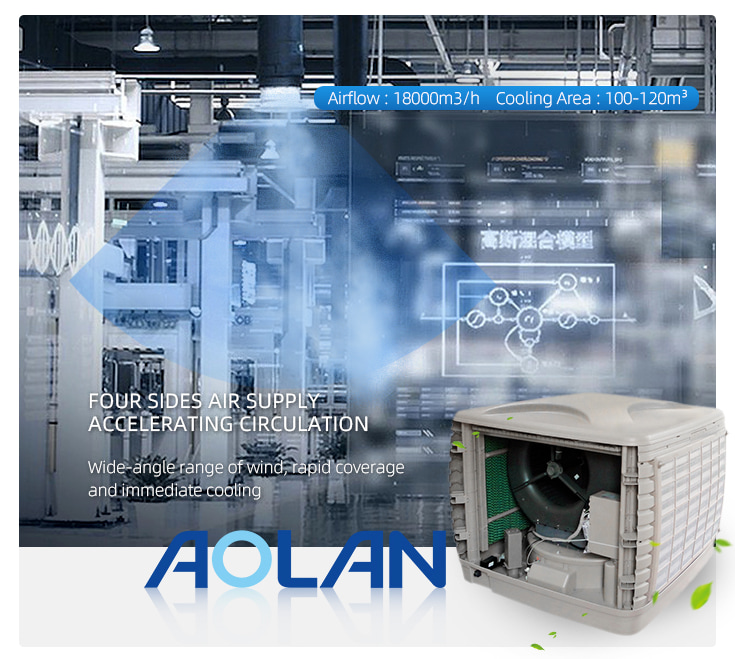

Airflow Water Cooling air Cooler Industrial Evaporative Air Cooler Warehouse Factory Cooling System
This warehouse evaporative coolers is equipped with a brushless DC motor known for its smooth, quiet operation and lightweight design, ensuring minimal noise and no excitation sound. It efficiently operates on both 50Hz and 60Hz frequencies within a wide 200-264V range, allowing seamless use across various power supplies. The motor's high efficiency delivers a substantial 20% reduction in operating costs for comparable running conditions, offering significant savings.

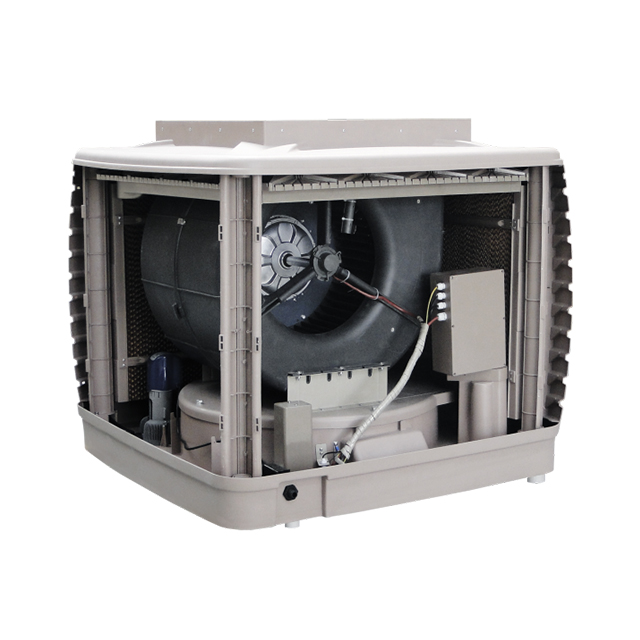

Its direct-connected motor to the centrifugal unit simplifies maintenance by reducing running parts, providing long-term reliability. The cooler features an intelligent LCD controller for easy monitoring of operational status and faults, while constant power electronic control dynamically adjusts airflow based on resistance, ensuring consistent air pressure and volume. With a forward-leaning multi-blade centrifugal fan for high static pressure and extended air supply, this cooler uses advanced composite materials for lightweight, corrosion resistance, and excellent vibration absorption. The unit's two air outlet options cater to stable, low-noise operation, making it an optimal choice for commercial environments. An included air damper prevents heat loss by trapping warm air during winter months.
Specification:w
Model/Specs
|
AZL18-LX10CZ |
| AZL18-LS10CZ |
| AZL18-LC10CZ |

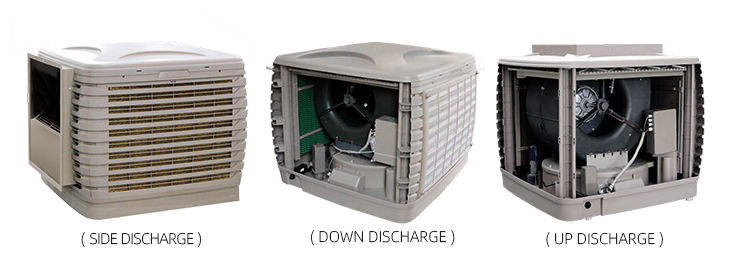

| X-down discharge,S-up discharge,C-side discharge |
| Electric source |
220-240/ /50-60(V/Hz) |
| Motor |
DC(220V,3-phase) |
| Power |
1.5KW |
| Rated Current |
7.5A |
| Airflow |
18000m³/h |
| Fan Type |
Centrifugal |
| Fan Speeds |
Multi-speed,Inverter |
| Pressure |
183Pa |
| Vent Size (L*W)(mm) |
650*650 (down/up)
6000*600（side）
|
| Noise |
≤65dBA |

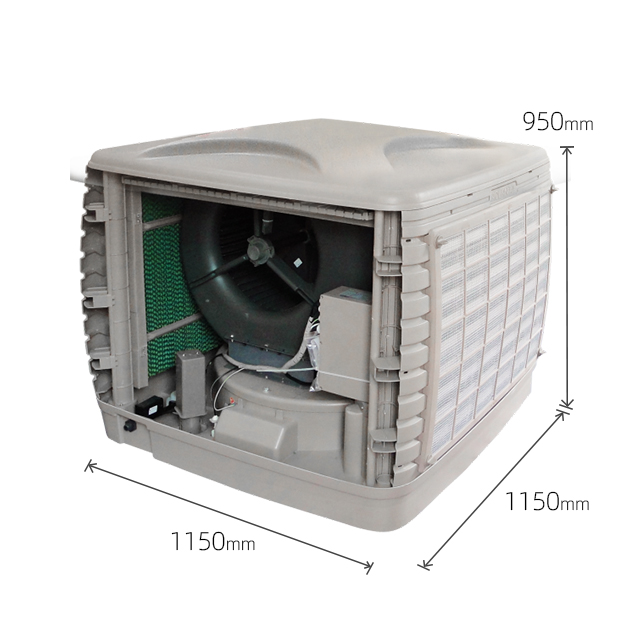

| Dimension (L*W*H)(mm) |
1150*1150*950mm (down)
1150*1150*982mm (up)
1210*1150*950mm (side)
|
| Pad Size (L*W*H)(mm) |
620*825*75mm
620*825*100mm
|
| Net Weight (±3kg) |
79
|
| Operation Weight(kg) |
107
|
| Controller |
LED Control |
| Pre-dust Filter |
Optional |
| Pre-cooling |
Optional |
| Group-control |
Optional |
| Tem&hum Control |
Optional |
| QTY/FULL(40HQ) |
44 |
| QTY/SKD(40HQ) |
45 |
Characteristics:

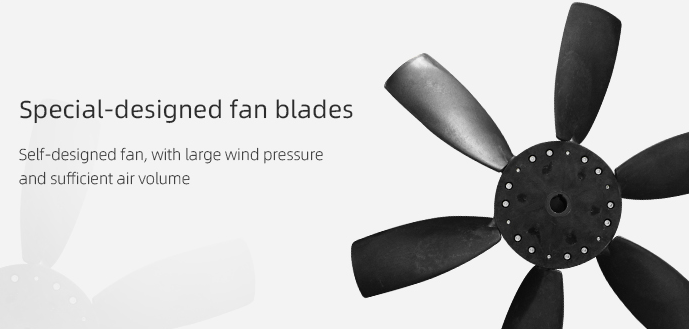

Special-designed fan blades
Self-designed fan, with large wind pressure
and sufficient air volume

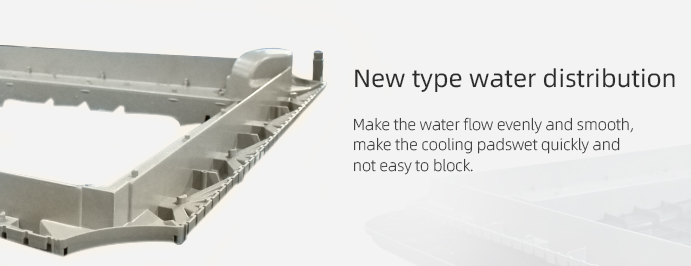

New type water distribution
Make the water flow evenly and smooth,
make the cooling padswet quickly and not easy to block.

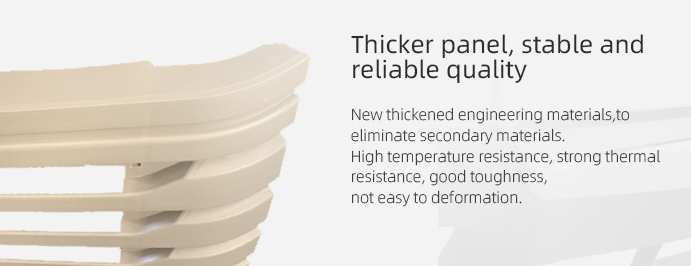

Thicker panel, stable and reliable quality
New thickened engineering materials,to eliminate secondary materials. High temperature resistance, strong thermal
resistance, good toughness, not easy to deformation.

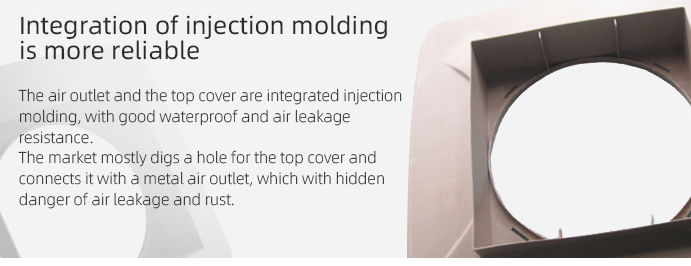

Integration of injection molding is more reliable
The air outlet and the top cover are integrated injection
molding, with good waterproof and air leakage resistance.
AOLAN PERFORMANCE MOTOR
(1) A new generation of energy-saving products. (2) Aluminum alloy shell,no rust, fast heat dissipation.
(3) High-density of pure copper coil, low resistance consumption. (4) with sufficientpower and air volum,low temperature rise, long life.
(5)Anti-burning machine, with thermat protection switch protection.
NEW THICKENED 100% ENGINEERING MATERIALS, NO SECONDARY MATERIALS!
High temperature resistance, strong thermal resistance, good toughness, anti-corrosion, anti-ultraviolet, anti-aging,long life,
Casing warranty of more than 10 years.
More advantages:
1. This cooler features a brushless DC motor for smooth, quiet operation, with lightweight construction and no excitation noise.
2. It operates on both 50Hz and 60Hz frequencies within a 200-264V range, ensuring adaptability to different power supplies.
3. The motor's high efficiency results in a 20% reduction in running costs under similar operating conditions.
4. The centrifugal unit boasts a direct-connected motor, reducing the number of running parts and simplifying maintenance.
5. An intelligent LCD controller provides clear visibility into the equipment's operational status and any faults.
6. Constant power electronic control adjusts air pressure and volume based on resistance, ensuring consistent airflow and reach.
7. It employs a professionally designed forward-leaning multi-blade centrifugal fan for high static pressure and extended air supply distances.
8. Constructed with new composite materials, the volute and impeller offer lightweight, corrosion-resistant, anti-aging properties, and excellent vibration absorption. Additionally, the cooler has two air outlet options for stable, low-noise operation, making it particularly ideal for commercial settings. An included air damper prevents hot air from escaping in winter.
