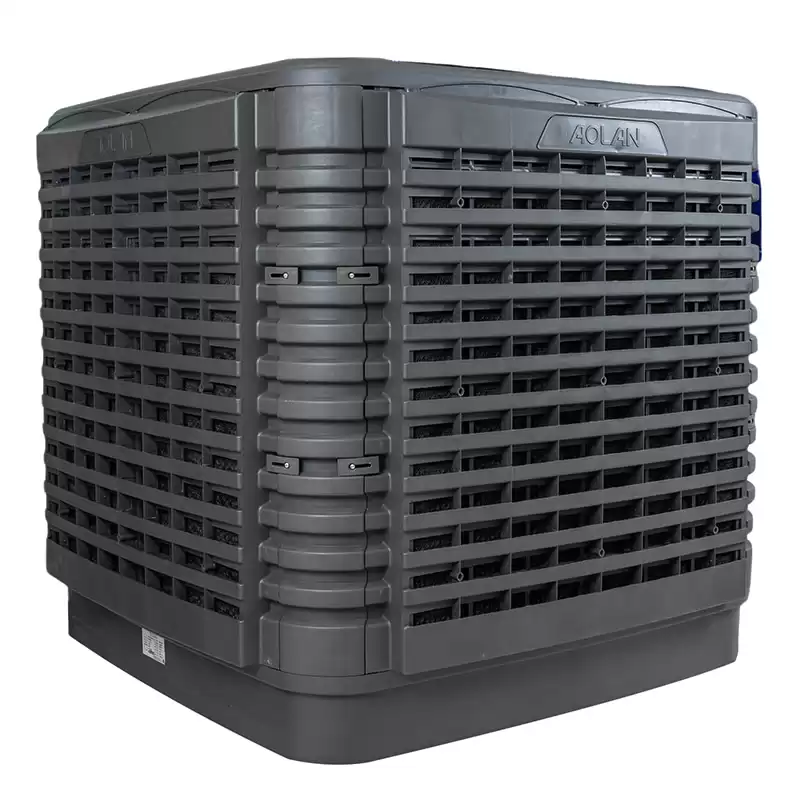

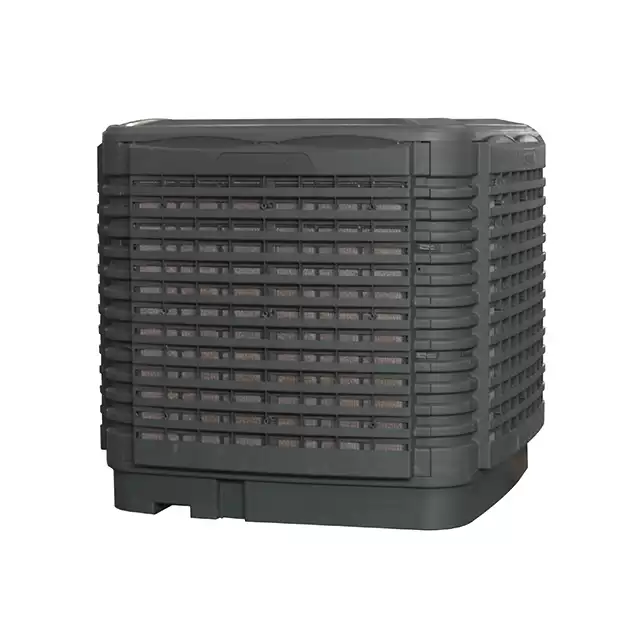

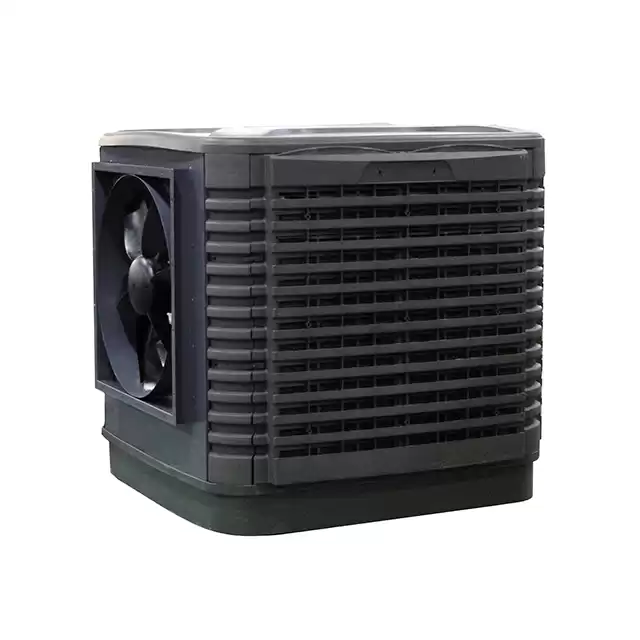

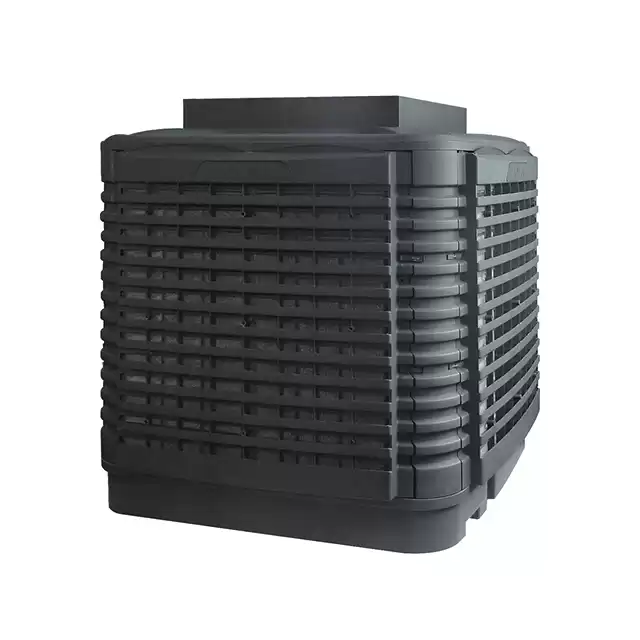

Airflow Water Cooling air Cooler Industrial Evaporative Air Cooler Warehouse Factory Cooling System
1. Superior Durability and Weather Resistance:
Industrial air cooler Crafted from high-strength weather-resistant engineering plastics, the shell of our cooling system boasts unmatched longevity and performance. Designed to withstand the test of time, this anti-aging, anti-UV, and anti-corrosion construction assures a warranty of over a decade, providing peace of mind and value for our customers. The shell's remarkable resistance ensures it remains free from deformation, even when exposed to harsh environmental conditions, guaranteeing that our cooling systems maintain their integrity and functionality over the long term.
2. Enhanced Water Protection and Efficiency:
With a newly designed side panel featuring a lower hook louver, our systems provide an innovative solution to prevent water drift and leakage. This feature not only enhances the overall aesthetic appeal but also serves a crucial function in safeguarding against water-related issues, ensuring optimal performance. By addressing water seepage concerns, we prioritize efficiency and reliability in our cooling systems, setting a new standard for functionality and protection in demanding environments.
Specification:
Model/Specs
|
AZL25-ZX30C |
| AZL25-ZS30C |
| AZL25-ZC30C |

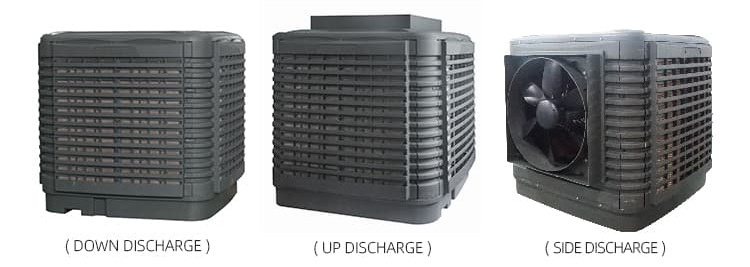

| X-down discharge,S-up discharge,C-side discharge |
| Electric source |
380-415/50-60(V/Hz) 3-phase |
| Power |
2.2KW |
| Rated Current |
5.4A |
| Airflow |
25000m³/h |
| Fan Type |
Axial |
| Fan Speeds |
Multi-speed,Inverter |
| Pressure |
306Pa |
| Vent Size (L*W) |
765*765mm |
| Noise |
≤78dBA |

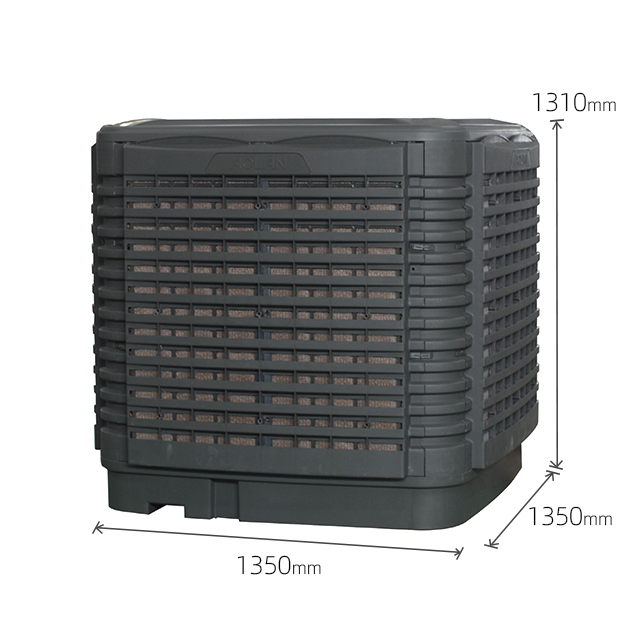

| Dimension (L*W*H) |
1350*1350*1310mm (down/side)
1350*1350*1426mm (up)
|
| Pad Size (L*W*H) |
970*886*100mm |
| Net Weight (±3kg) |
120(down)147(up)
156(side)
|
| Operation Weight |
175(down)202(up)
211(side)
|
| Controller |
LCD Control |
| Pre-dust Filter |
Optional |
| Pre-cooling |
Optional |
| Group-control |
Optional |
| Tem&hum Control |
Optional |
| QTY/FULL(40HQ) |
9(down/up/side) |
| QTY/SKD(40HQ) |
45(down)/39(up)/42(side) |
Characteristics:

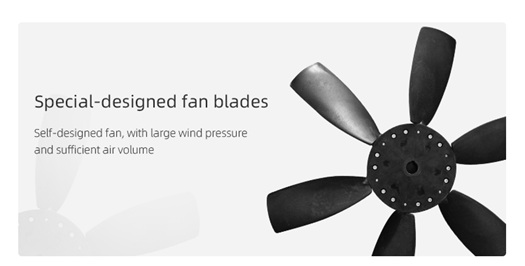

Special-designed fan blades
Self-designed fan, with large wind pressure
and sufficient air volume

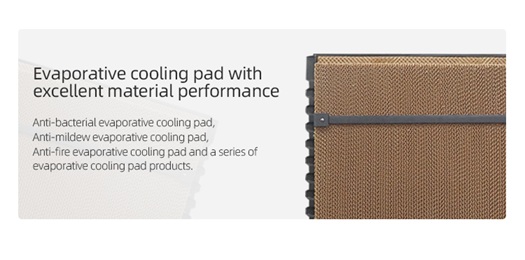

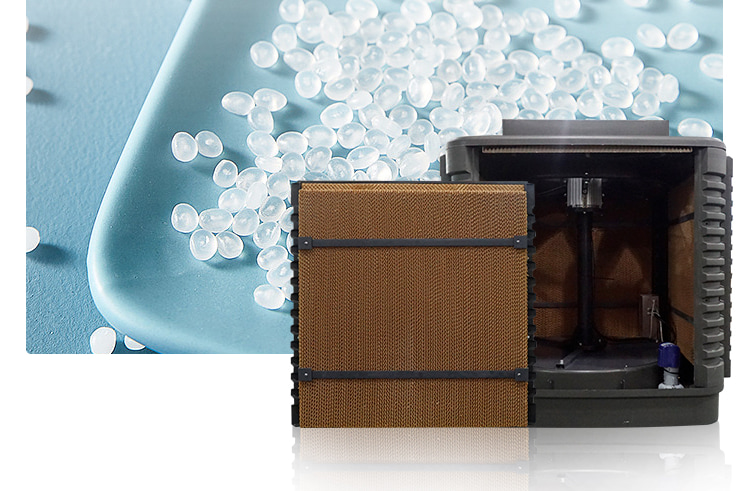

Anti-bacterial evaporative cooling pad, Anti-mildew evaporative cooling pad, Anti-fire evaporative cooling pad and a series of evaporative cooling pad products.

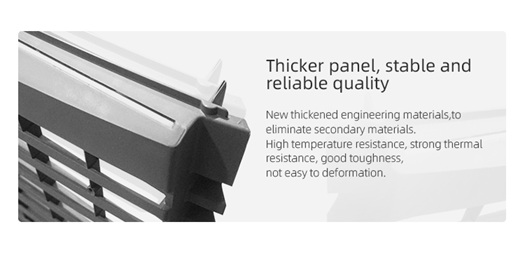

New thickened engineering materials,to eliminate secondary materials. High temperature resistance,
strong thermal resistance, good toughness, not easy to deformation.

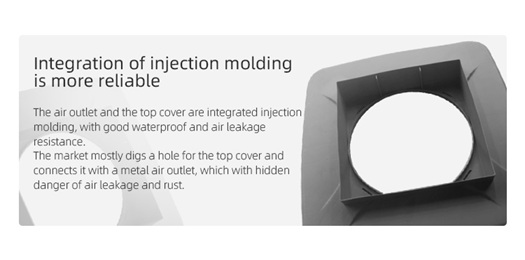

Air outlet and top cover are integrally injection-molded, ensuring good waterproofing and leak resistance.
Common designs use a cut-out top with metal outlets, which may cause air leakage and rust over time.
New thickened 100%
engineering materials, No secondary materials !
High temperature resistance, strong thermal resistance,
good toughness, anti-corrosion, anti-ultraviolet, anti-aging,
long life, Sasing warranty of more than 10 years.
It's pure and fresh. Paper is stronger,
less crush and better saturation,etc.
High cooling efficiency above 82%.
More advantages:
1. Durable Shell: High-strength, weather-resistant engineering plastics ensure a warranty exceeding ten years without deformation.
2. Enhanced Water Protection: Lower hook louver design prevents water drift and leakage, ensuring long-term integrity.
3. Easy Maintenance: Equipped with a molded dust filter for effortless disassembly and maintenance procedures.
4. Efficient Cooling: Utilizes raw wood pulp paper fiber composite evaporative pads for easy cleaning and powerful cooling capabilities.
5. Superior Motor Design: Features high-quality fully enclosed aluminum shell motors for excellent heat dissipation and superior insulation protection.
6. Automatic Water Control: Incorporates an automatic water system with an open water distributor for consistent water flow and minimal blockages.
7. Versatile Air Supply: Offers three types of air outlets (top, down, side) to choose from, providing flexibility for various B2B applications.
