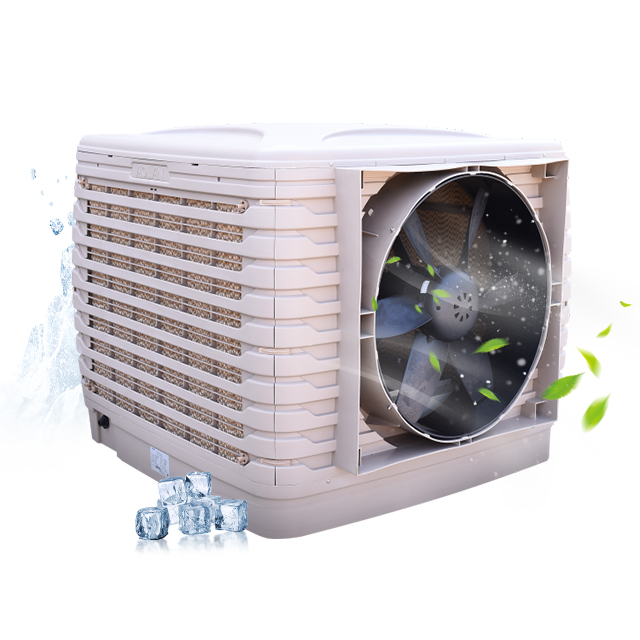

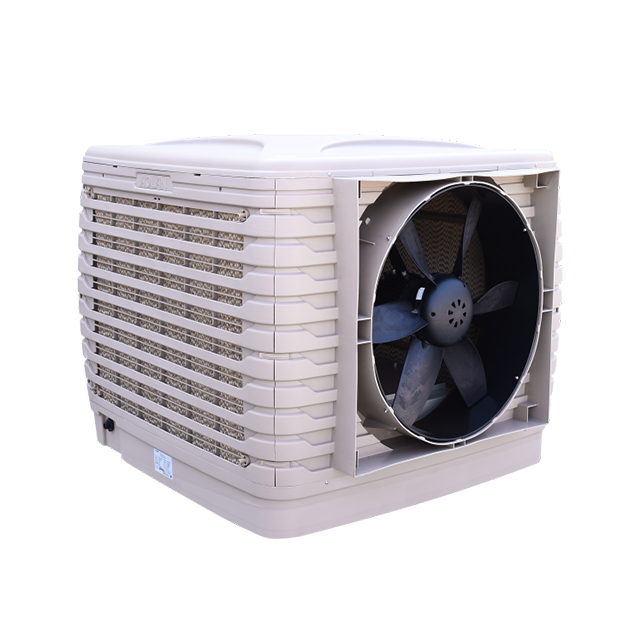

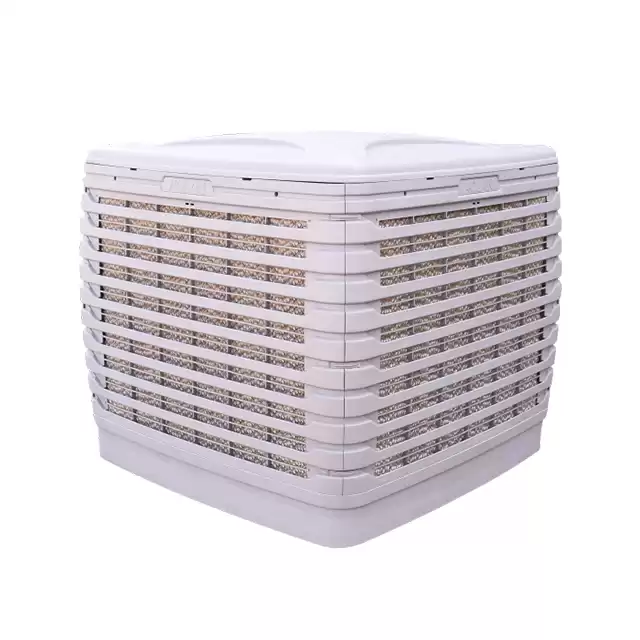

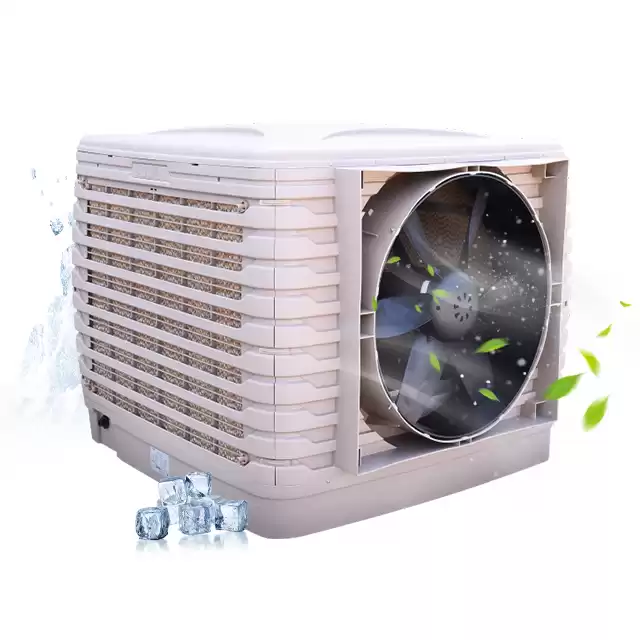

Airflow Water Cooling air Cooler Industrial Evaporative Air Cooler Warehouse Factory Cooling System

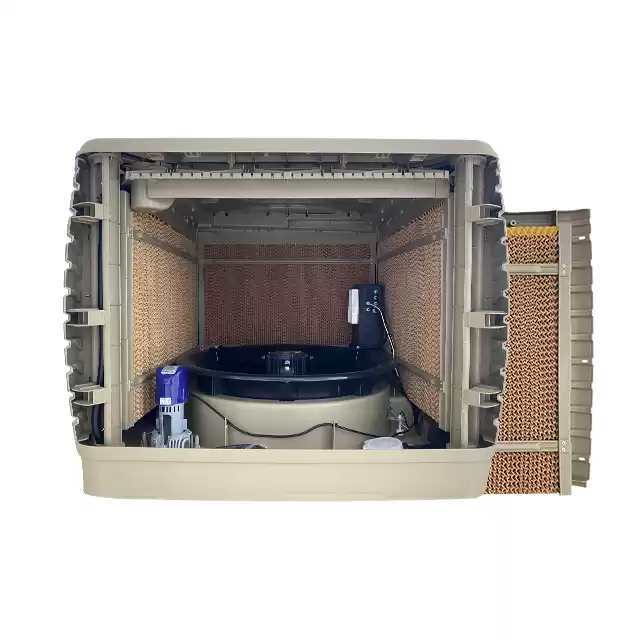

This evaporative air cooler industrial cooler is engineered with a robust and thoughtful design, featuring a slanted water tank equipped with a drain valve positioned at the lowest point for efficient drainage. The water-flow during drainage effectively cleans the tank, ensuring optimal hygiene standards. The integrated water distributor eliminates the risk of water leakage with a single built-in pipe, enhancing reliability.
The system is designed for user convenience and longevity, incorporating features like an easily accessible air damper to prevent hot air escape in winter, a hassle-free filter installation for easy cleaning, and a choice of LCD or standard controllers for user-friendly operation. With the use of high-quality materials, including anti-UV, anti-corrosion, and anti-aging casing materials, the cooler maintains its integrity over time. Additionally, the specially designed fan impeller balances large airflow with minimal noise, while the moistureproof, waterproof motor operates efficiently with minimal temperature rise. The cooling efficiency is further enhanced with high-performance cooling pads, ensuring effective evaporation and simple maintenance. With multiple discharge options—top, bottom, and side—the cooler can adapt to various installation environments with ease.
Specification:
Model/Specs
|
AZL18-ZX10E |
| AZL18-ZS10E |
| AZL18-ZC10E |
| X-down discharge,S-up discharge,C-side discharge |
| Electrical source |
110/220 /50-60(V/Hz) 1-phase |
| Power |
1.1KW |
| Rated Current |
5.6A |
| Airflow |
18000m³/h |
| Fan Type |
Axial |
| Fan Speeds |
Multi-speed,Silicon Control |
| Pressure |
190Pa |
| Vent Size (L*W)(mm) |
650*650(down/up)
720*660（side）
|
| Noise |
≤76dBA |

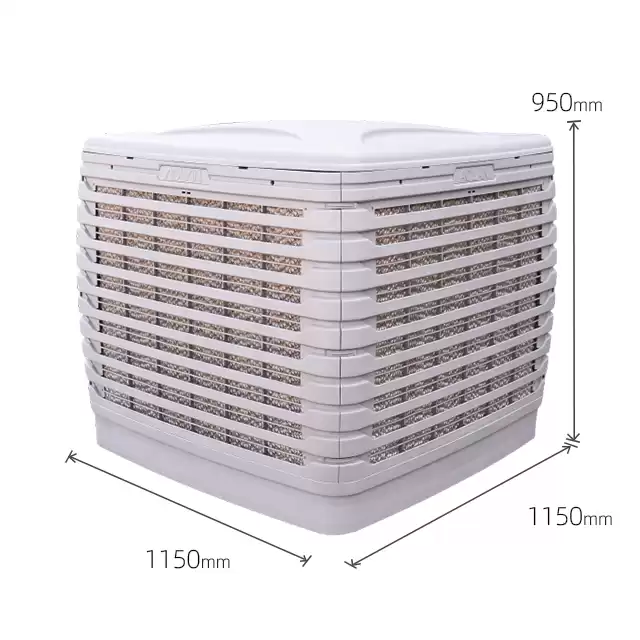

| Dimension (L*W*H)(mm) |
1150*1150*950mm (down)
1150*1150*982mm (up)
1205*1150*950mm (side)
|
| Pad Size (L*W*H)(mm) |
620*825*100mm |
| Net Weight (±3kg) |
80(down)86(up/side)
|
| Operation Weight(kg) |
110(down) 116(up/side)
|
| Controller |
LED Control |
| Pre-dust Filter |
Optional |
| Pre-cooling |
Optional |
| Group-control |
Optional |
| Tem&hum Control |
Optional |
| QTY/FULL(40HQ) |
40(down/up/side) |
| QTY/SKD(40HQ) |
70(down)/60(up)/60(side) |
Characteristics:

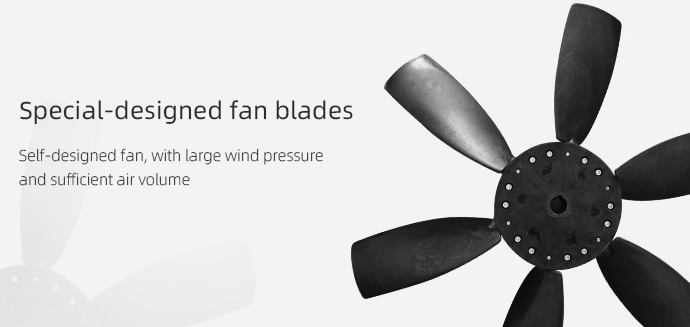

Special-designed fan blades
Self-designed fan, with large wind pressure
and sufficient air volume

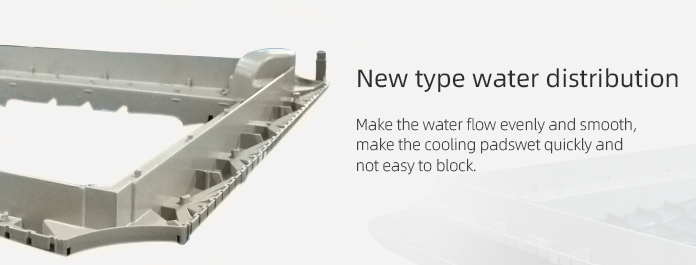

New type water distribution
Make the water flow evenly and smooth, make the
cooling padswet quickly and not easy to block.

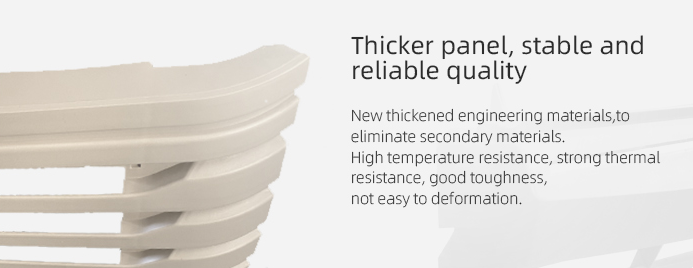

Thicker panel, stable and reliable quality
New thickened engineering materials,to eliminate secondary materials. High temperature resistance, strong thermal
resistance, good toughness, not easy to deformation.
Integration of injection molding is more reliable
The air outlet and the top cover are integrated injection
molding, with good waterproof and air leakage resistance.
More advantages:
1. Reasonable design with strong structure.
2. Slant water tank with drain valve in lowest place, while drainage, water-flow can wash tank.
3. Integrated water distributor with only one built-in pipe -no risk for water leakage.
4.The installation position of the drain valve adopts a sinking design, which is conducive to cleaning and discharging of dirt.
5. The tank slope design, the drainage is extremely clean and smooth.
6. With air damper to avoid hot air outlet in winter.
7. Easy installation filter, which is easy to clean.
8. Using LCD or standard controller, easy to operate.
9. Materials for casing are anti-UV, anti-corrosion, anti-aging, and no deformation.
10. Fan impeller is special designed to allow large airflow but lower noise.
11. Motor applied is moistureproof, waterproof with tiny temperature rise.
12. Using high efficient cooling pads with large evaporation capacity, good cooling efficiency and easy to clean.

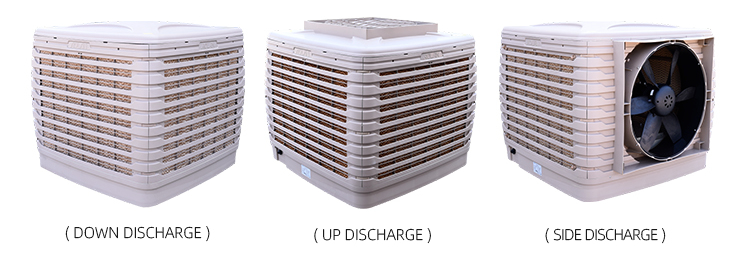

13. With top, down and side discharge, to meet a variety of installation environments.
