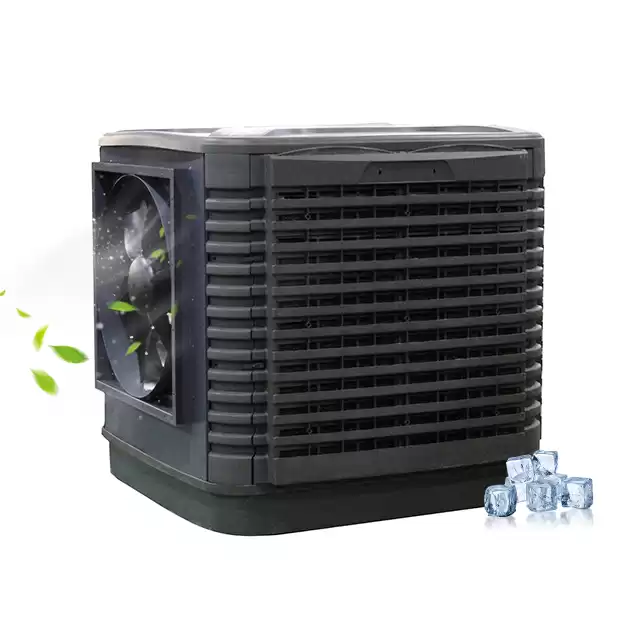

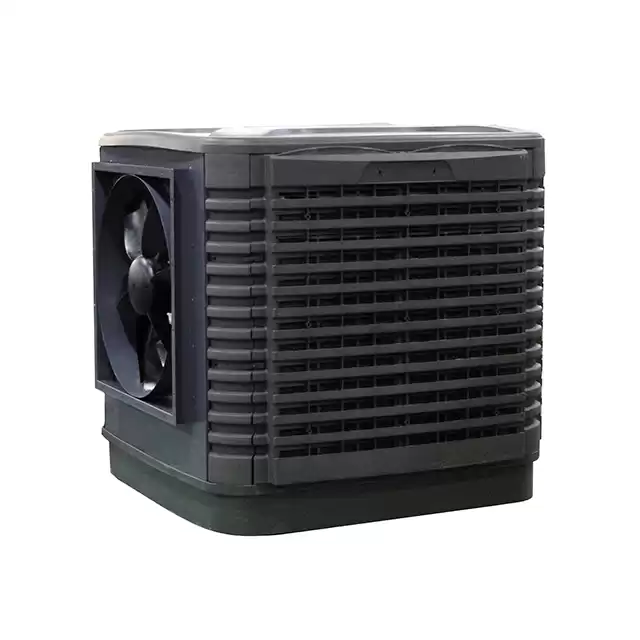

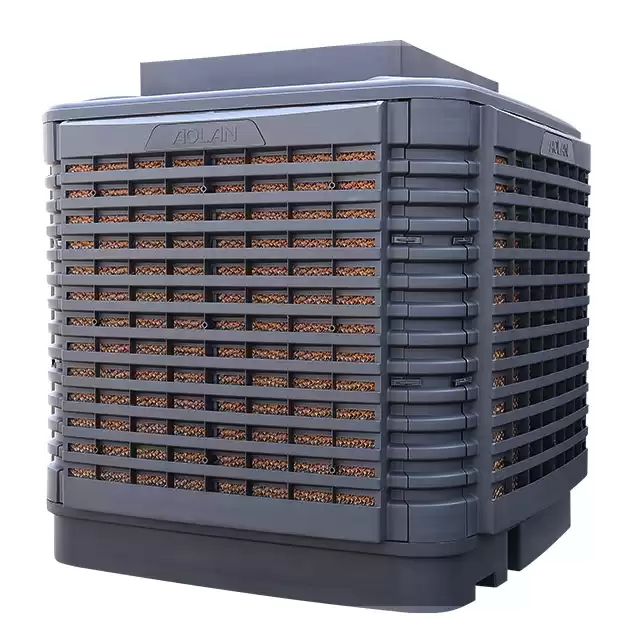

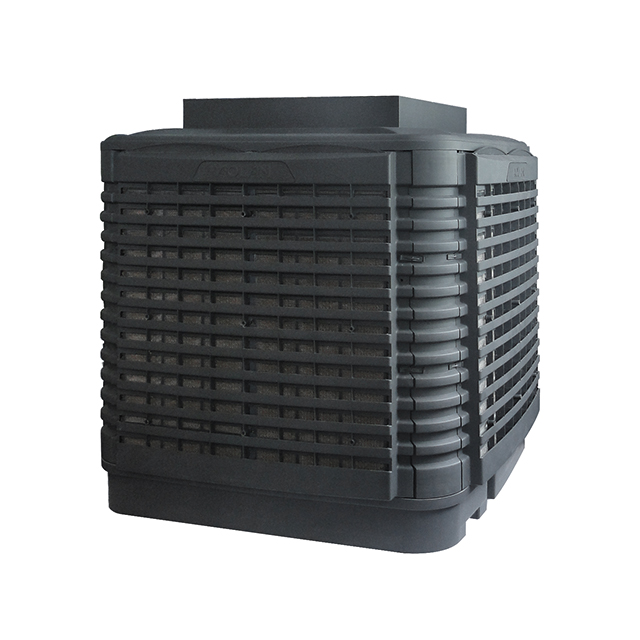

Airflow Water Cooling air Cooler Industrial Evaporative Air Cooler Warehouse Factory Cooling System
This industrial evaporative air cooler boasts a durable build, featuring a high-strength, weather-resistant engineering plastic shell that resists aging, UV rays, and corrosion. Crafted to last over a decade, it maintains its shape and integrity through diverse conditions. An upgraded side panel with a lower hook louver minimizes water drift and leakage, enhancing its efficiency.

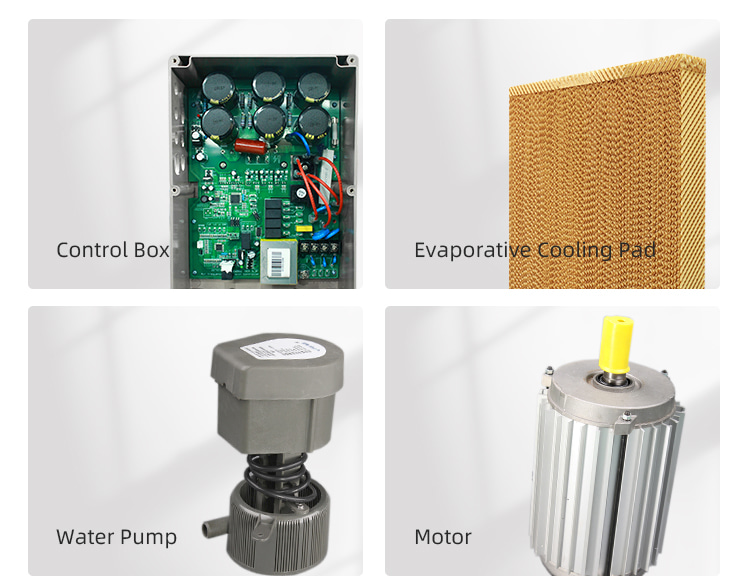

Equipped with a fully enclosed aluminum-shell motor, this unit ensures superior heat dissipation and waterproof protection for long-lasting, moisture-resistant operation. Its advanced features include an automatic water control system and an open water distributor to guarantee smooth, even water flow without the risk of clogging. This design ensures optimal performance and safety in various settings.
Designed for high air volume, low noise, and stable performance, this air cooler offers versatility with top, bottom, and side air outlet options to accommodate diverse installation requirements. Additionally, it incorporates a low-water-level foot pump with a flame-retardant housing and a thermal protection switch, enhancing safety measures in its operation.
Specification:
Model/Specs
|
AZL30-ZX32C |
| AZL30-ZS32C |
| AZL30-ZC32C |

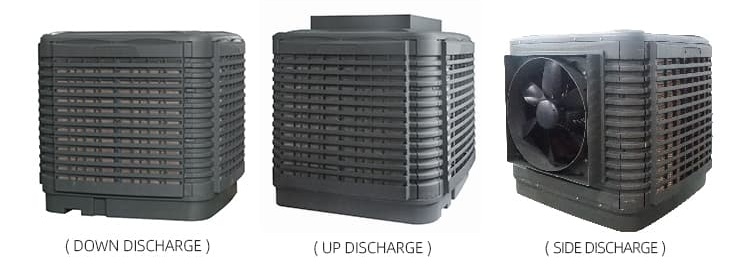

| X-down discharge,S-up discharge,C-side discharge |
| Electric source |
380-415/50-60(V/Hz) 3-phase |
| Power |
3.0/1.0KW |
| Rated Current |
7.1/3.5A |
| Airflow |
30000/20000m³/h |
| Fan Type |
Axial |
| Fan Speeds |
3-phase,2-speed |
| Pressure |
366/160Pa |
| Vent Size (L*W) |
765*765mm |
| Noise |
≤80dBA |

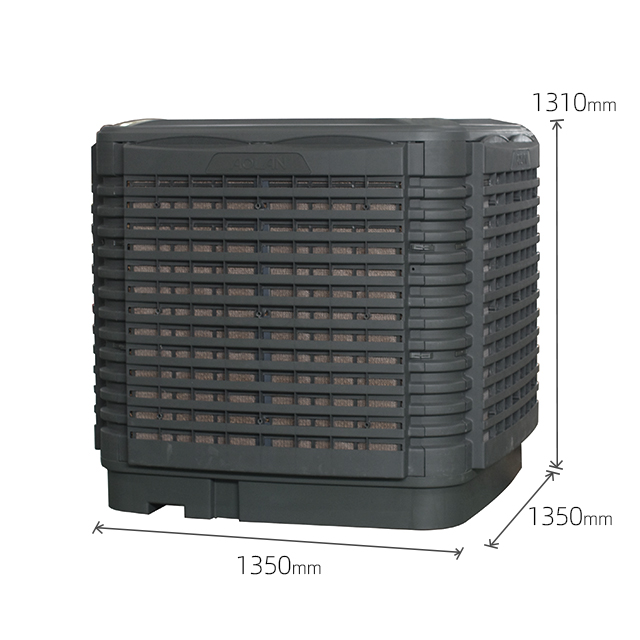

| Dimension (L*W*H) |
1350*1350*1310mm (down/side)
1350*1350*1426mm (up)
|
| Pad Size (L*W*H) |
970*886*100mm |
| Net Weight (±3kg) |
125(down)152(up)
161(side)
|
| Operation Weight |
180(down)207(up)
(side)
|
| Controller |
LED Control |
| Pre-dust Filter |
Optional |
| Pre-cooling |
Optional |
| Group-control |
Optional |
| Tem&hum Control |
Optional |
| QTY/FULL(40HQ) |
9(down/up/side) |
| QTY/SKD(40HQ) |
45(down)/39(up)/42(side) |
Characteristics:

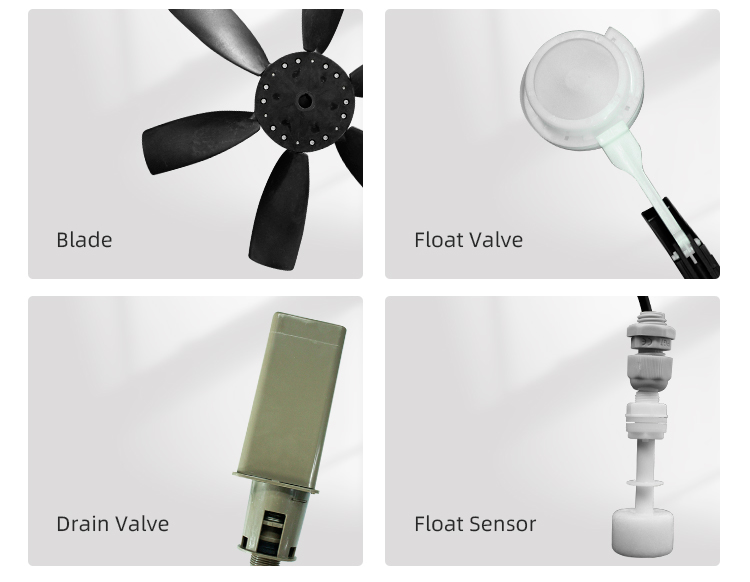

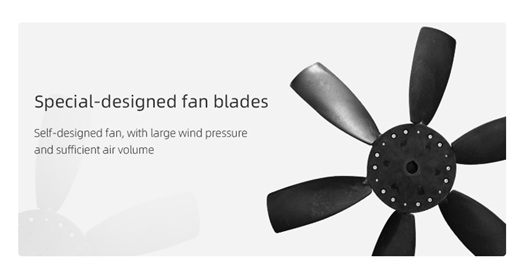

Special-designed fan blades
Self-designed fan, with large wind pressure
and sufficient air volume

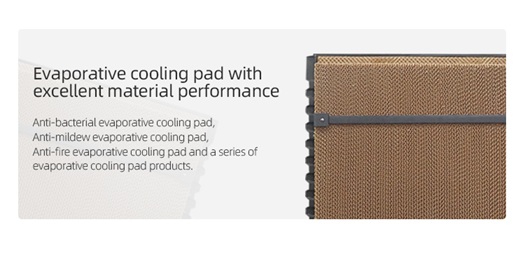

Anti-bacterial evaporative cooling pad, Anti-mildew evaporative cooling pad, Anti-fire evaporative cooling pad and a series of evaporative cooling pad products.

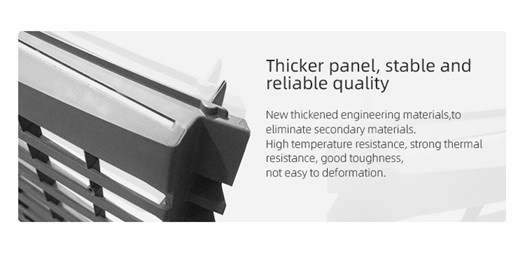

New thickened engineering materials,to eliminate secondary materials. High temperature resistance,
strong thermal resistance, good toughness, not easy to deformation.

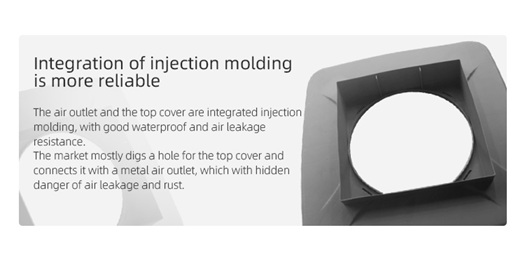

Air outlet and top cover are integrally injection-molded, ensuring good waterproofing and leak resistance.
Common designs use a cut-out top with metal outlets, which may cause air leakage and rust over time.
More advantages:
1. The shell is crafted from high-strength weather-resistant engineering plastics, built to last over a decade without aging, UV degradation, or corrosion, ensuring shape retention.
2. Upgraded side panel includes a lower hook louver to reduce water drift and leakage, enhancing overall performance.
3. The unit is furnished with an easily removable molded dust filter, simplifying maintenance procedures.
4. Evaporative cooling pads, constructed from raw wood pulp fiber, deliver efficient cooling and are effortless to clean.
5. Featuring a fully enclosed aluminum-shell motor with superior heat dissipation and waterproof protection for long-lasting, moisture-resistant operation.
6. Automatic water control system with an open water distributor ensures uniform water flow, minimizing clogs.
7. Designed for high air volume with low noise and stable performance, catering to diverse installation requirements.
8. Incorporates a low-water-level foot pump with a flame-retardant housing and thermal protection switch for heightened safety; choice of top, bottom, or side air outlets available.
