Deep-Dive Brief: Bachmann ISI222 – High-Speed 2-Axis Positioning Module
Contact: ab@mooreplc.com | Same-day dispatch worldwide

1.Product Identity

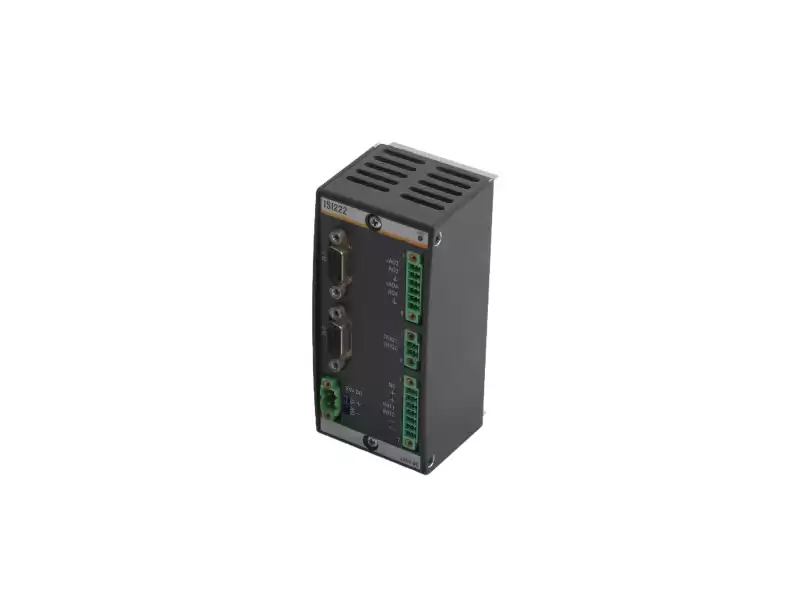

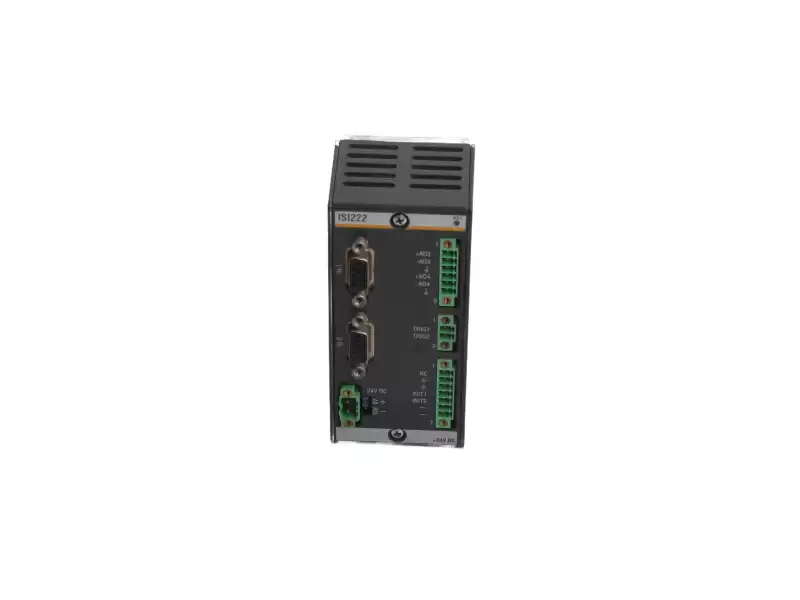

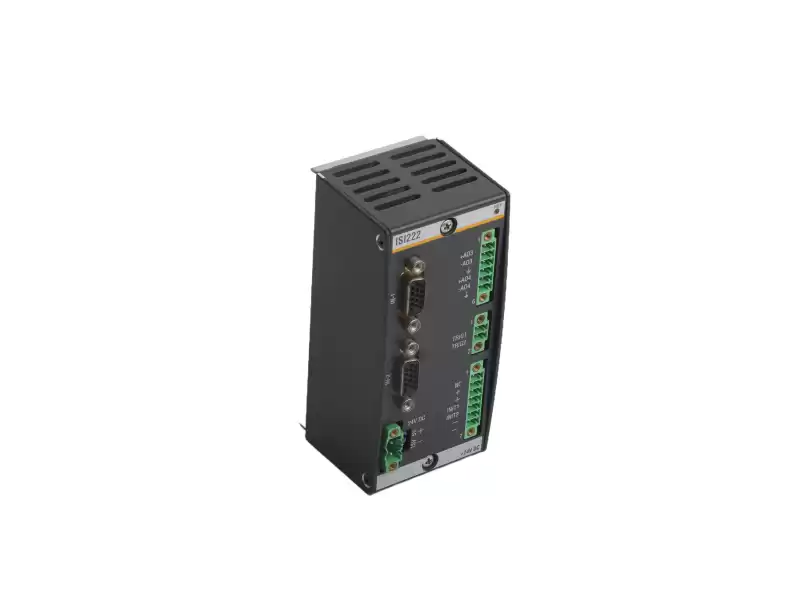

ISI222 is a 2-axis positioning and encoder-interface module for Bachmann M1 controllers. It combines incremental & SSI encoder inputs, 14-bit ±10 V analogue outputs, and fast digital I/O to deliver sub-millisecond motion loops for wind turbines, steel mills and test rigs.

2.Verified Technical Data (per vendor datasheet & CE marking)
• Encoder Inputs  2 × INC (A/B/N) or SSI, 1 MHz, RS-422 level, 32-bit counter
• Analog Outputs 2 × ±10 V, 14-bit, ±2 mA, 40 µs update, synchronized to system clock
• Digital I/O   4 × 24 V DC inputs (trigger, homing), 2 × 5 V/15 V/24 V encoder supplies
• Synchronisation IO-Bus-SYNC with M1 cycle, < 1 µs jitter
• Power     5 V DC, 320 mA (module), encoder supply max. 200 mA total
• Temperature  –40 °C … +70 °C, 3U CompactPCI, 0.2 kg
• Certifications  CE, UL, marine (DNV, ABS, LR, BV, NK, KR, RINA)

3.Fresh Application Ideas
• Wind-turbine blade pitch – 1 MHz encoder tracks blade angle while 40 µs analog output drives hydraulic servo valve.
• Steel-mill finishing line – dual-encoder feedback on top/bottom rolls, synchronized via IO-Bus-SYNC for zero-strip tension error.
• Automotive test bench – SSI encoder on steering column + INC encoder on torque motor; 14-bit analog output provides ±10 V stimulus.
