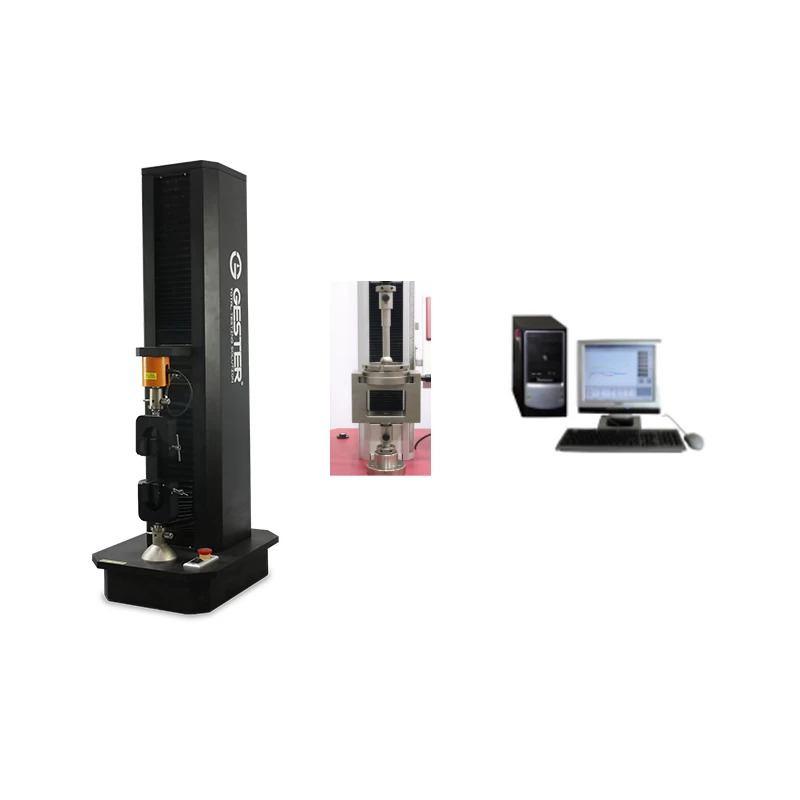

Ball Burst Strength Tester GT-C02-2
Product Introduction
|
Application:
Ball Burst Strength Tester is used for testing ball burst and extension of cotton fabric, elastic fabric and socks and gloves products.
Standards:
GB/T 19976, ASTM D 3787, EN 12332-1, FZ/T 01030, FZ/T 60019
|
Feature
-
All computer operation, with straightforward result of report forms, curve, graph.
-
DC servo drive, can setting speed of wide range.
-
Import sensor, precision of force measurement over 0.2% F.S.
-
Can customized special busting function according to customer’s requires.
-
Elegant aluminium alloy shell.
Key Specifications
Model
|
GT-C02-2
|
Force Range
|
2500N(1%～100% of Full Range)
|
Force Accuracy
|
±0.2%F.S
|
Speed Range
|
0.01-1000mm/min
|
Max. Drop Stroke Of Ball
|
120mm
|
Standards
|
GB/T 19976,
ASTM D 3787
|
EN 12332-1
|
FZ/T 01030,
FZ/T 60019
|
Related Grips
|
GT-CA05A
|
GT-CA05B
|
GT-CA05C
|
Dia. Of Clamp
|
Φ44.45mm
|
Φ45mm
|
Φ25mm
|
Dia. Of Burst Ball
|
Φ25.4mm
|
Φ38mm
|
Φ20mm
|
Operate Control
|
Can Use Operation Screen, Connecting With Computer, Pad And Cellphone
|
Power Supply
|
AC 220V 50/60HZ
|
Machine Drive
|
Servo motor drive, Synchronous wheel and precision ball screw drive
|
Power
|
200W
|
Power Supply
|
AC 220V 50/60HZ
|
Dimensions (W x D x H)
|
47x38x186 cm
|
Weight
|
85kgs
|
Application Industry
All kinds of materials can be tested on the Ball Burst Strength Tester
