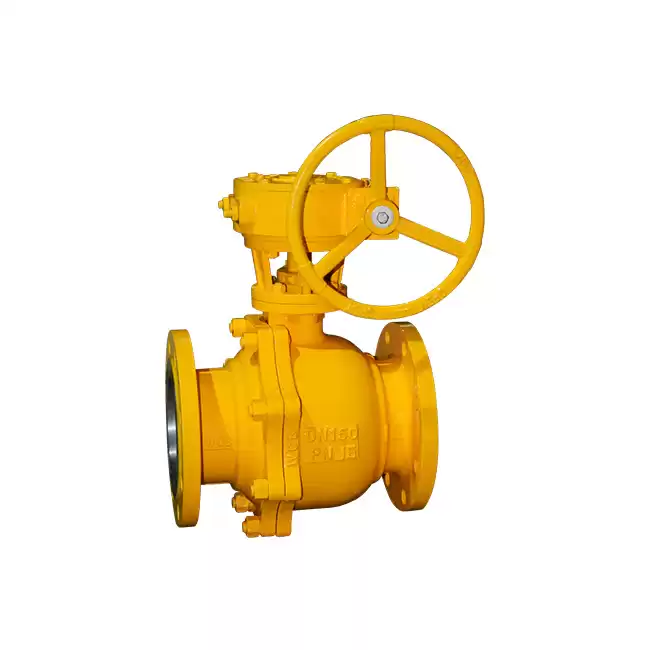

Ball Valve Floating Full Bore DN150 PN16 WCB

DIN3357 2Pcs Full Bore Floating Ball Valve

DN150,PN16,WCB,F316,RPTFE,Gear Box

Manufacture STAVAL Factory Offers.

Feature:

Fire Safe Design, Anti Static Design, Anti Blowout Stem,Drian And Vent

Key Specification

Type	Ball Valve
Size	DN150
Pressure	PN16
Construction	2Pcs, Full Bore, Floating, Side Entry, Bolt Bonnet,
Connection	RF End
Body/Bonnet Material	A216 WCB
Ball Material	F316
Stem Material	F316
Seat Material	RPTFE
Bolt/Nut	B7/2H
Design Standard	DIN3352 / ISO17292
Face to Face Dimension	EN558-1
End Connection	BS EN1092-1
Fire Safe	API607
Inspection & Test Std.	API598
Temperature Range	-29℃~+120℃
Medium	Oil, Water, Gas

EN10204 3.1 Certificate Issued By STAVAL

Inspection Report Issued By STAVAL
