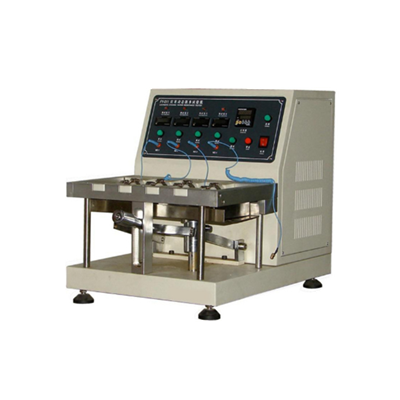

Bally Water Penetration Tester

Bally Water Penetration Tester is used to determine the water penetration of leather using repeated linear compression.

Test Standards

ISO 5403-1
ISO 17702
EN ISO 20344 6.13
EN 344-1 5.12
EN ISO 20347 6.3.1
GB/T 3903.17
GB/T 20991 6.13
AS/NZS 2210.2 6.13

Parameters

Model AT-L9009
Station 4
Clamp cylinder Dia. 30.0mm±0.5mm,
Coaxial cylinder spacing Max. (40.0±0.5)mm
Moving cylinder stroke 2mm, 3mm, 4mm, 6mm
Moving cylinder speed 50 cycles/min
Ring clamp Inner dia. 30mm~40mm adjustable
Specimen size 75mmX60mm
Counter LED display 0~999,999
Shutdown Electrode induction
Power supply 1 phase, AC 220V 50/60Hz or specified by user
