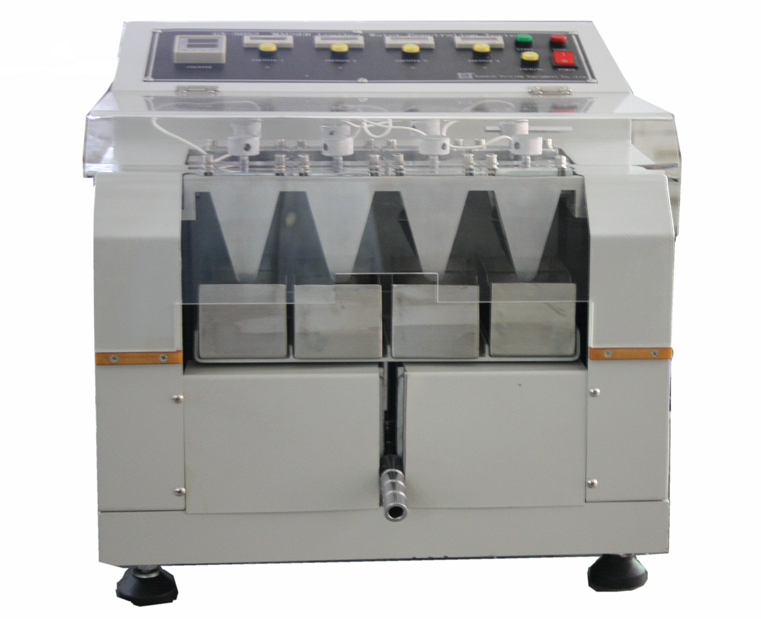

Maeser Water Resistance Tester

Maeser Water Resistance Tester is used to determine the dynamic water resistance of shoe upper leather by means of repetitively angular flexing.

Test Standards

ISO 5403-2
ASTM-D2099
SATRA TM34

Parameters

Model AT-L9010
Test piece 1~4pcs
Test standard ASTM-D2099 ISO 5403-2, SATRA PM34 type2 SATRA PM34 type1
Moving fixture flexing angle Non required 32°± 1° 30°± 1°
Moving fixture flexing displacement 25.4±1.3mm Non required
Clamps tip radius 4mm 7.5mm±0.5mm
Test piece size 4 "* 4"(101.6mm X101.6mm) 114mmX114mm
Clamps V-shaped
Counter 0~999,999
Test speed (90±5)rpm
Shutdown method Electrode induction
Steel ball 135 ± 5g, dia. 3mm
Dimension 49X45X45cm (LxWxH)
Weight 55kg
Power 1phase, AC 220V 50/60Hz
