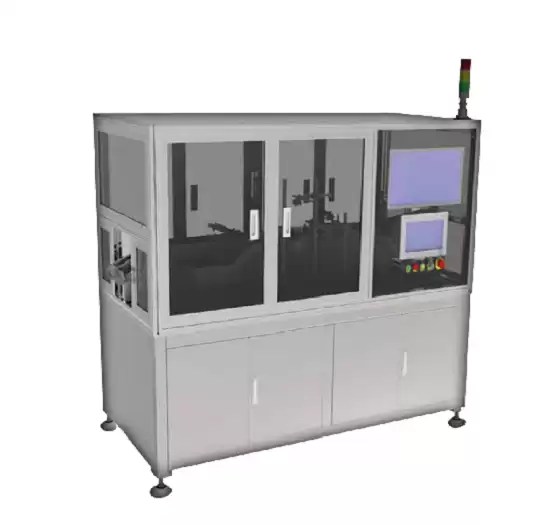

Battery Appearance Inspection Machine
Products Description
Cylindrical battery appearance testing equipment is used to detect the appearance defects of 21700,22650,32131,32650 cylindrical battery, respectively detect the cylindrical scratches, pits and end surface explosion-proof valve deformation of the battery, test 2 batteries at a time, the 3d high-definition camera has the detection precision of ±0.05mm, the bad battery can be eliminated automatically, and the detection efficiency can reach 60pcs/min. Good stability, can be customized according to the use of the design of the battery feeding mode, can be used as a stand-alone machine, can also be used with the automation line.
Performance Characteristics
1. Automatic reading code to verify the feeding battery information;
2. 3D visual inspection of the battery cylinder surface scratches, pits and so on;
3. 2D vision detection of battery end face explosion-proof valve deformation and so on;
4. Automatically eliminate NG products according to the test results.
Technical Parameter
|
Model Number
|
TMAX-BJXC-SAD01
|
Beat
|
60PPM
|
|
Voltage Source
|
220V 50HZ
|
Batteries
|
18650/21700/22650 ect.
|
|
Power
|
1.2KW
|
Pressure
|
0.5-0.7MPA
|
|
Precision
|
±0.5mm
|
Dimensions
|
1750*1000*1950(mm)
|
