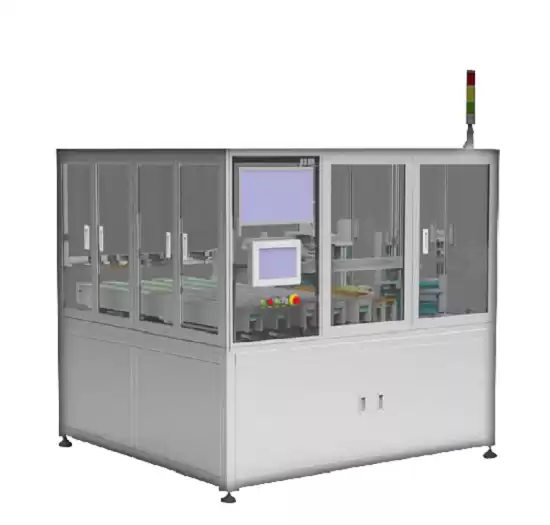

Cylindrical Battery Sorting Machine - 4 Grades
Products Description
The cylindrical battery sorter is used for OCV test and sorting of 18650, 21700 and other cylindrical batteries. Ten batteries are tested at a time, and the batteries are sorted into four grades according to capacity. Full box battery stacking feeding, high-speed servo module manipulator grabs the transferred battery, CCD high-speed dynamic code reading, the analysis beat can reach 120pcs/min. The battery loading and unloading mode can be customized according to the use needs, which can be used as a stand-alone or with automatic production line.
Performance Characteristics
1. Full box battery stacking buffer feeding, empty box automatic stacking;
2. High precision battery tester, high test precision;
3. CCD high speed dynamic code reading, high accuracy, fast efficiency;
4. It can be divided into 4 grades according to the capacity battery.
Technical Parameter
|
Model Number
|
TMAX-BJXC-STS0401
|
Beat
|
120PPM
|
|
Voltage Source
|
220V 50HZ
|
Batteries
|
18650/21700 ect.
|
|
Power
|
2KW
|
Pressure
|
0.5-0.7MPA
|
|
Testing
|
Open Circuit Voltage,
AC Internal Resistance
|
Precision
|
Internal Resistance:0.1MΩ
Voltage:0.001V
|
|
Grades
|
4
|
Dimensions
|
2000*2000*1800(mm)
|
