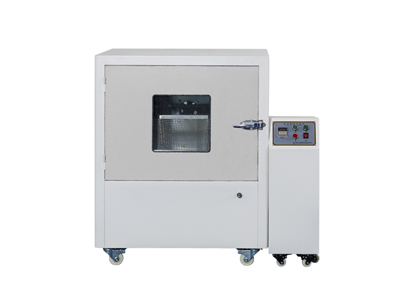

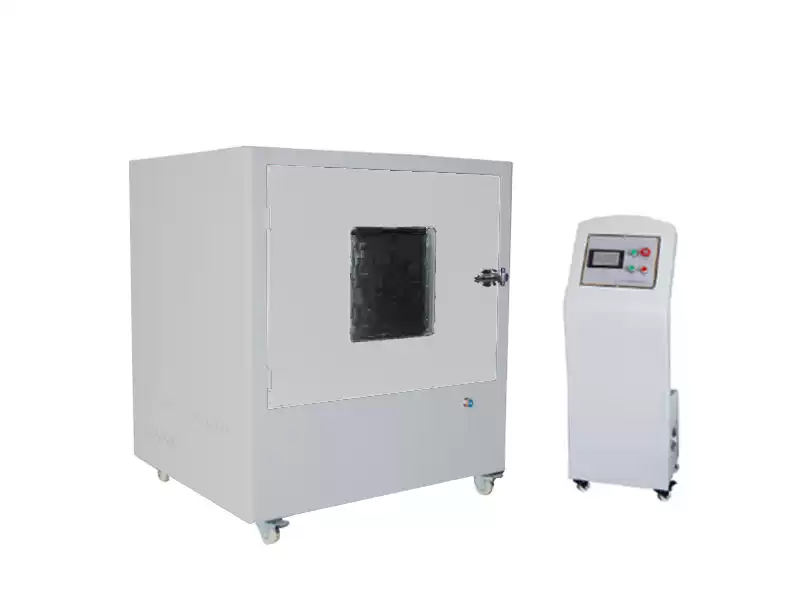

Battery Burning Test Machine China Supplier
Amade-tech battery buring test equipment is used for determination of flame resistance of lithium ion batteries or cells.
Lithium ion batteries or cells are placed on the steel wire mesh which is located on a circular hole of 102mm(4 inches) in diameter. The wire mesh is positioned about 38mm above the burner. The enclosure of test piece is fenced with an octagonal light weight aluminum mesh. The test piece is heated up on the wire mesh until explosion happens or the lithium-ion batteries or cells are ignited and worn out.
Standards
UL1642, UL2054
Key Parameters
|
Model
|
AT-L5009
|
|
Burner
|
Bunsen burner, nozzle diameter is 9.5mm length:100 mm
|
|
Flame time
|
0 ~ 9999s/m/h adjustable
|
|
Test hole diameter
|
102mm(4inch)
|
|
Remote wire-controlled distance
|
no barrier, 7 meter
|
|
The distance between burner and screen
|
38mm
|
|
Test octagonal cage height
|
12 "(305mm)
|
|
Burning gas
|
Methane or Liquefied petroleum gas
Flue and air flowing adjustable
|
|
Weight
|
Appr. 350kg
|
