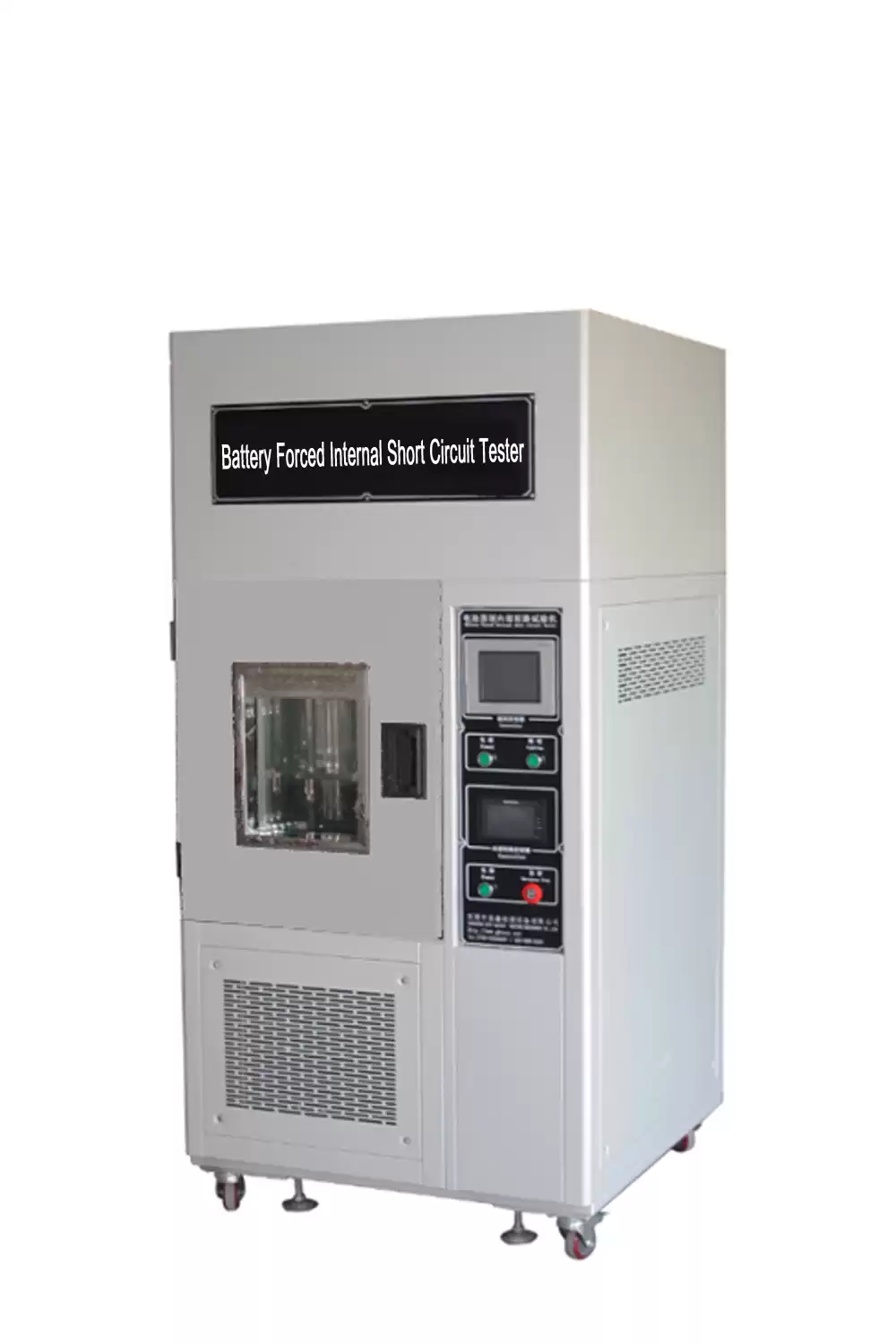

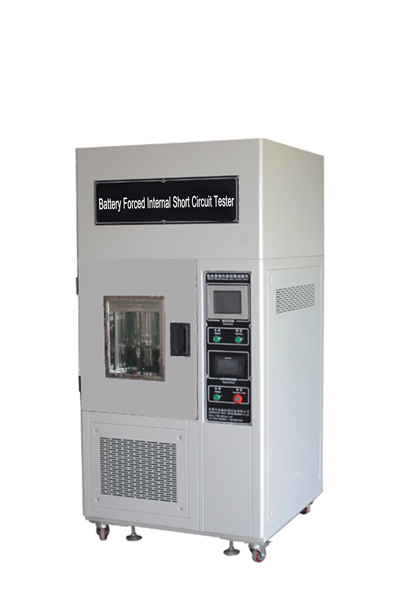

Battery Forced Internal Short Circuit Test Chamber

It is intended for simulation of forced internal short circuit of batteries under defined conditions to determine the security performance.



Lithium Battery Forced Internal Short Circuit Testing Equipment China Supplier

Amadetech Battery Forced Internal Short Circuit Test Chamber is intended for simulation of forced internal short circuit of batteries under defined conditions to determine the security performance.

It is made up of temperature control chamber, pressing jig, and professional testing control software with functions of data acquisition and analysis.

The control system is run via the test software. The frequency of voltage acquisition data is up to 100Hz. The test pressure, pressure retention time, cell voltage drop can be set and feature real-time monitoring via software.

Key Specifications

Model

AT-L5010

Temperature controlled chamber

Temperature range: 0 ° C ~ 100 ° C

Accuracy:  ±0.1 °C

Temperature fluctuation: ±0.5 °C

Temperature uniformity: ±1.5 °C

Heating rate: average 3 °C / min (from 0 ° C to 100 ° C, nonlinear no-load, average temperature rise)

Cooling speed: average 1 °C / min (from 100 ° C to 0 ° C, nonlinear no-load, average cooling)

Interior chamber dimension: W400×H500×D400mm

Interior chamber material: 304 stainless steel plate, test box bottom reinforcement

Cell forced internal short circuit test system

Test load: 0~1000N adjustable (usually use 400N and 800N)

Load accuracy ≤0.5%F.S

Pressing speed range: 0.01~20mm/s adjustable, common test speed: 0.1mm/s

Voltage acquisition

Range: 0~10V

Resolution: 1mV

Frequency: 100 Hz
