Battery Internal Resistance Tester
1 Usually the smaller resistance for the battery or battery core, the higher quality for the battery.
So testing battery resistance is a rapid and accurate method to check battery performance.
2 TMAX-R203 Battery internal resistance tester adopts four line acquisition method, can test the resistance or
impedance with or without power supply.
3 This battery internal resistance tester is widely used for battery manufacture and battery sellers to check the
battery performance.
|
Machine model
|

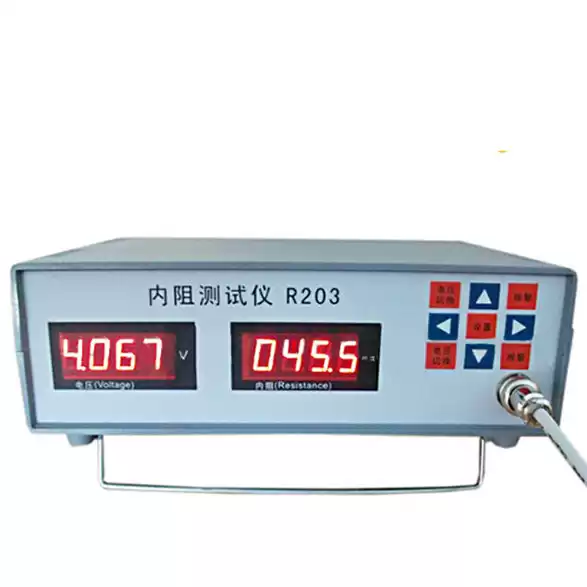

Battery internal resistance tester TMAX-R203
|
|
Source voltage
|
AC110V-240V, 50/60HZ
|
|
Power
|
10-30W
|
|
Testing speed
|
100ms
|
|
Advantages
|
Can connect with computer
Suitable varies kinds battery and battery core
Buzzer alarm
|
|
Voltage test V1
|
Voltage range : 0-4.999V
|
|
Minimum resolution : 0.001V
|
|
Accuracy : ±0.002V
|
|
Voltage test V2
|
Voltage range : 0-29.99V
|
|
Minimum resolution : 0.01V
|
|
Accuracy : ±0.01V
|
|
Resistance test R1
|
Resistance range : 0.1—200 mΩ
|
|
Minimum resolution : 0.1mΩ
|
|
Accuracy : ±0.5 mΩ
|
|
Resistance test R2
|
Resistance range :1—2000 mΩ
|
|
Minimum resolution : 1mΩ
|
|
Accuracy : ±2 mΩ
|
|
Suitable batteries
|
Lithium battery, lithium pouch cell(Lithium polymer battery),
Nickel metal hydride, nickel cadmium battery, lead-acid battery and so on.
|
|
Dimension
|
250*190*90mm
|
|
Weight
|
2kg
|
|
Warranty
|
One Year limited warranty with lifetime support
|
|
Reference Pictures
|

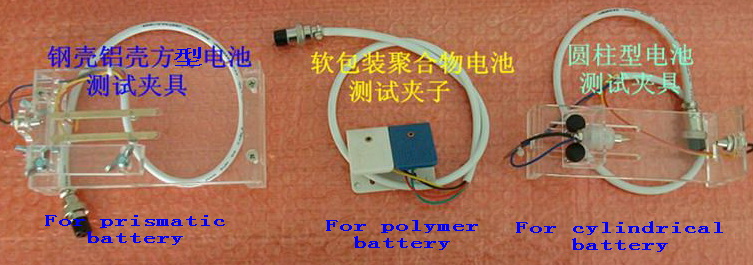

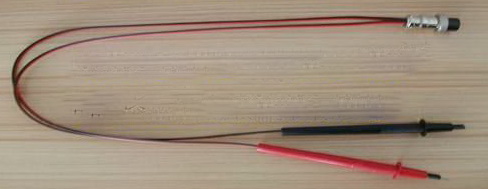

1 Testing clamps

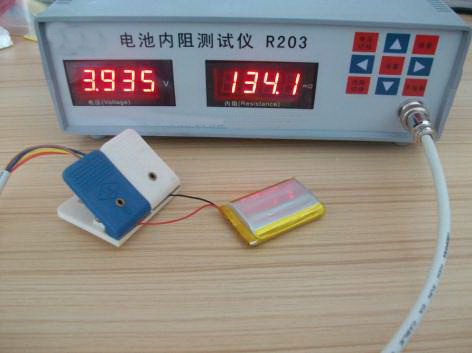

2 Polymer battery inner resistance test (Pouch cell)

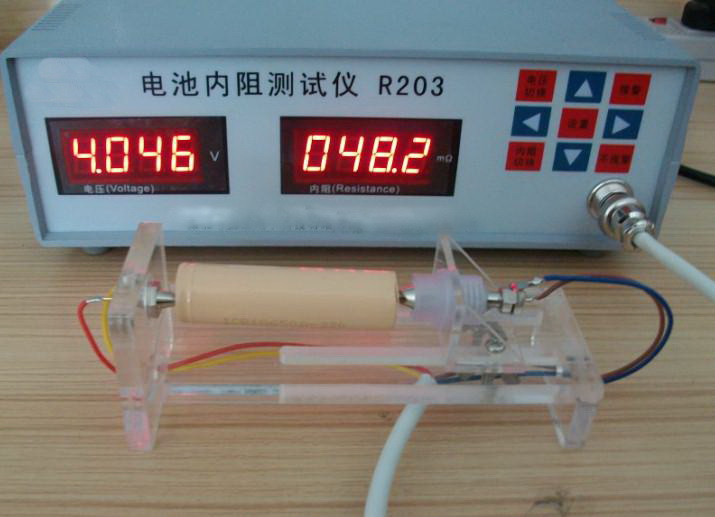

3 18650 Battery internal resistance test
|
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
