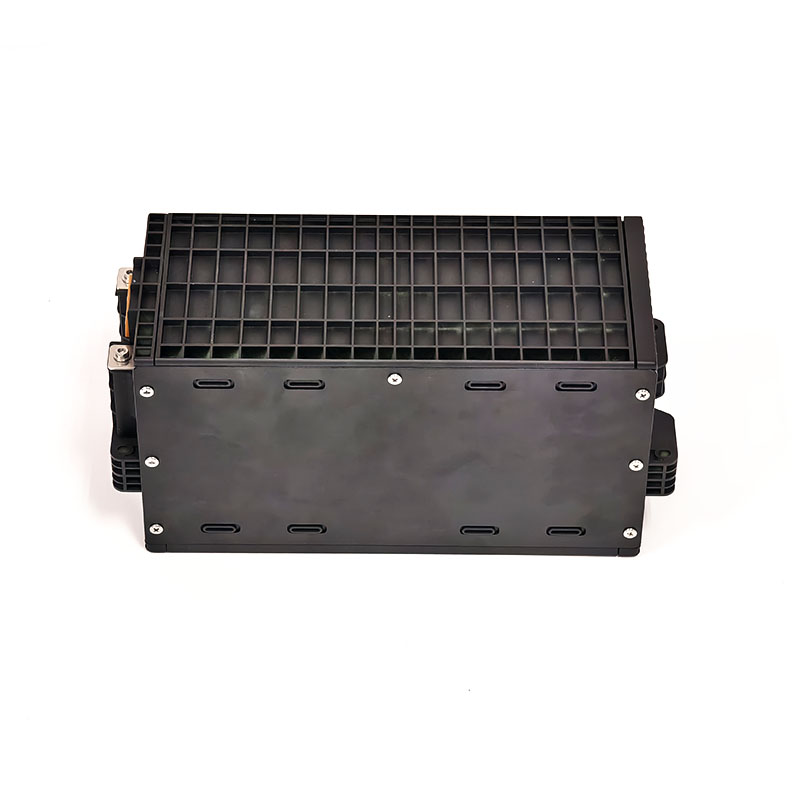

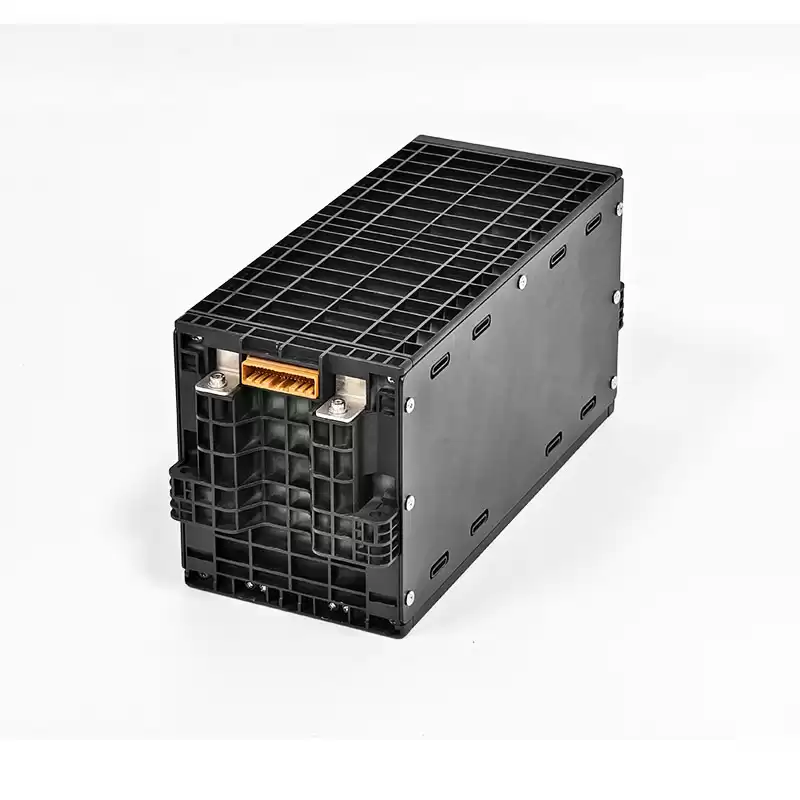

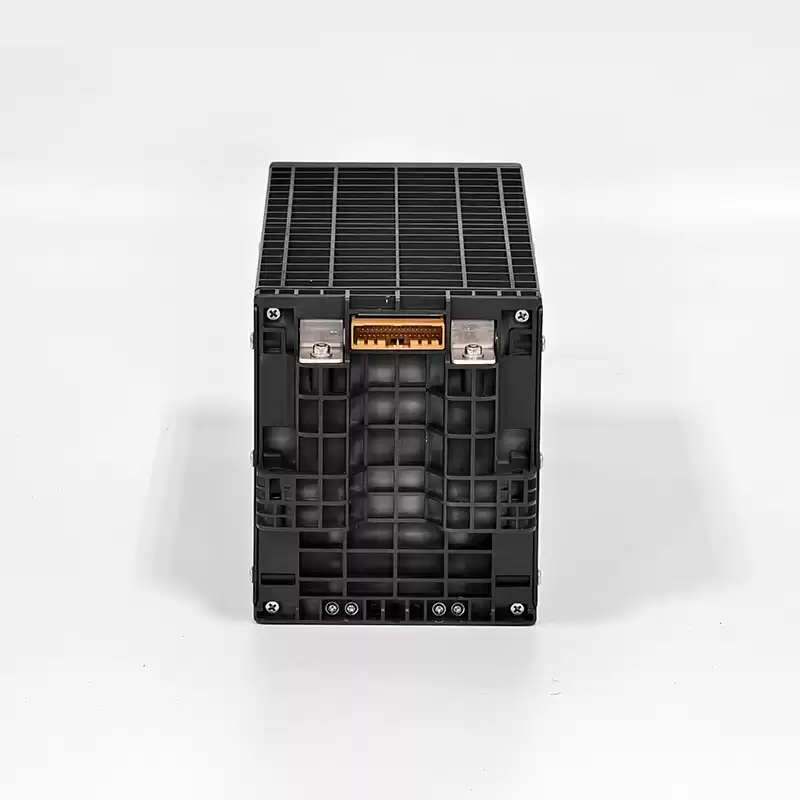

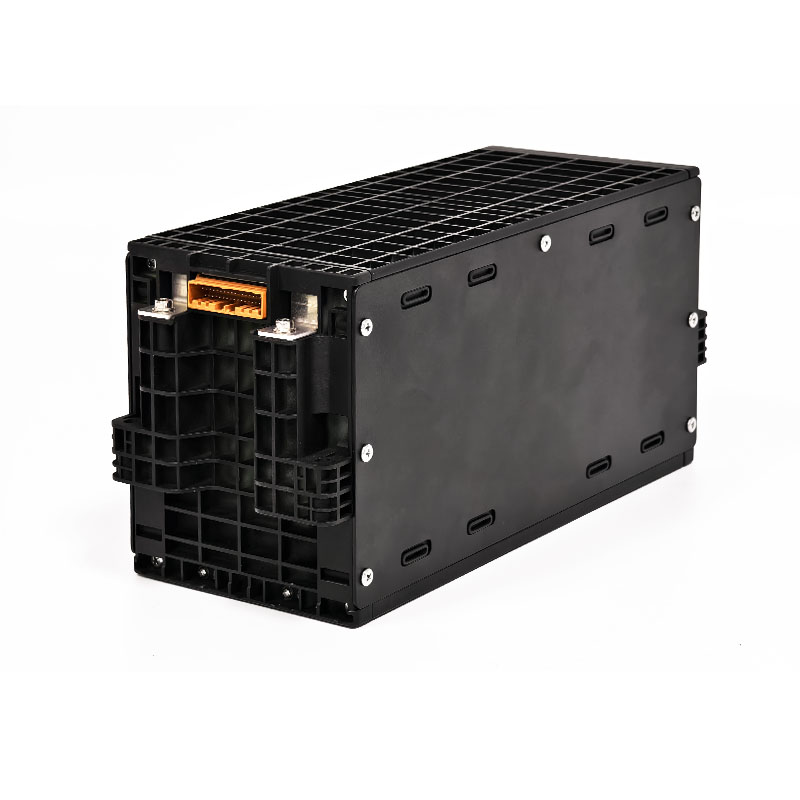

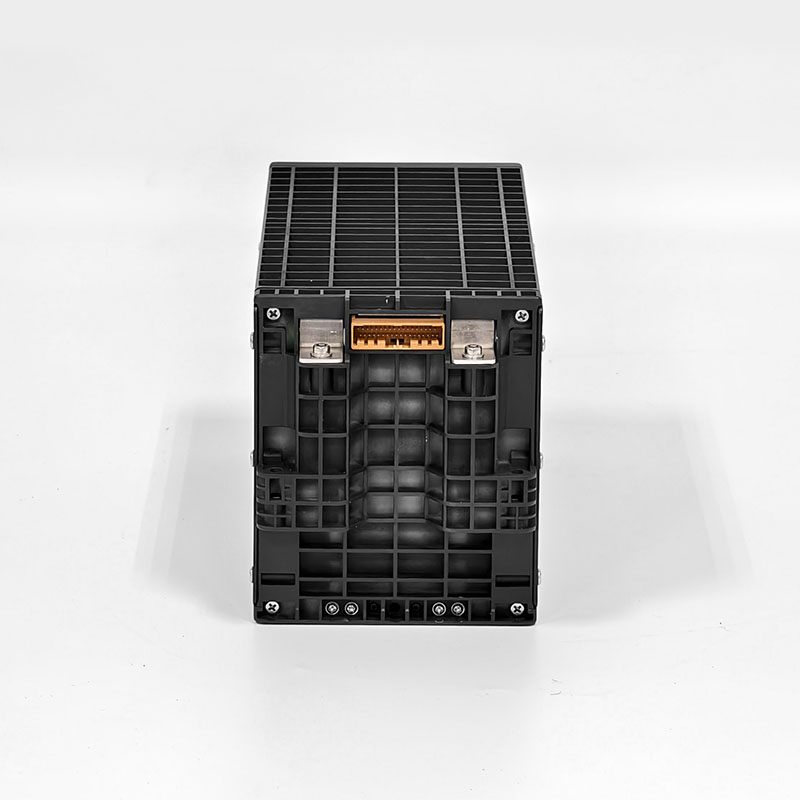

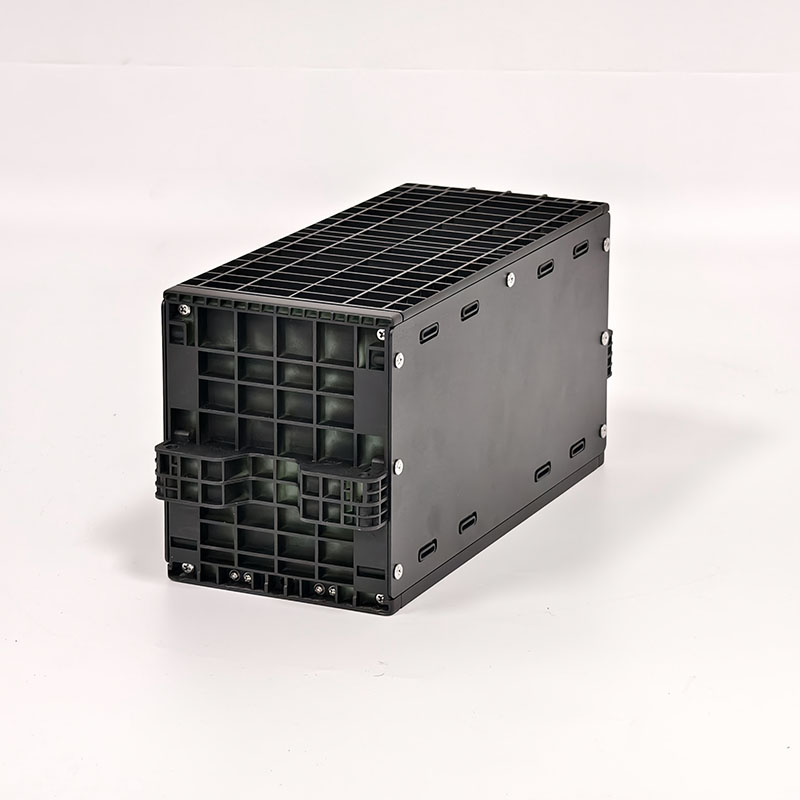

Battery Pack 1242Wh

Off-grid Work Site, A Wide Operational Temperature



◆ IP65 grade dustproof and waterproof performance, it can withstand most industrial environments

◆ Ultra-high performance in impact resistance and vibration resistance

◆ Small size, strong output

◆ A built-in BMS that optimizes battery's charging and discharging progress

◆ Made with LFP cells that known for its high safety and long lifespan

◆ Equipped with a self heating system for better performance under cold condition





CSP-1242 has IP65 dustproof and waterproof performance, and high impact and vibration resistance. This model is especially suitable for remote, high altitude locations.

This battery pack doesn't have a built-in inverter, which means it can only operate when paired with a controller, or simply served as a module in energy storage system.



Rated capacity1242Wh

Power: 2484W

Nominal Voltage: 25.6V DC

Working Temperature: -30~ 55Charge

-30~ 55Discharge

Communication: RS485, CAN

Configuration: 16pcs

Ingress Rating: IP65

Cycle life: Capacity ≥80% after 5000 charge-discharge cycles (under the condition of 25℃ ambient temperature)

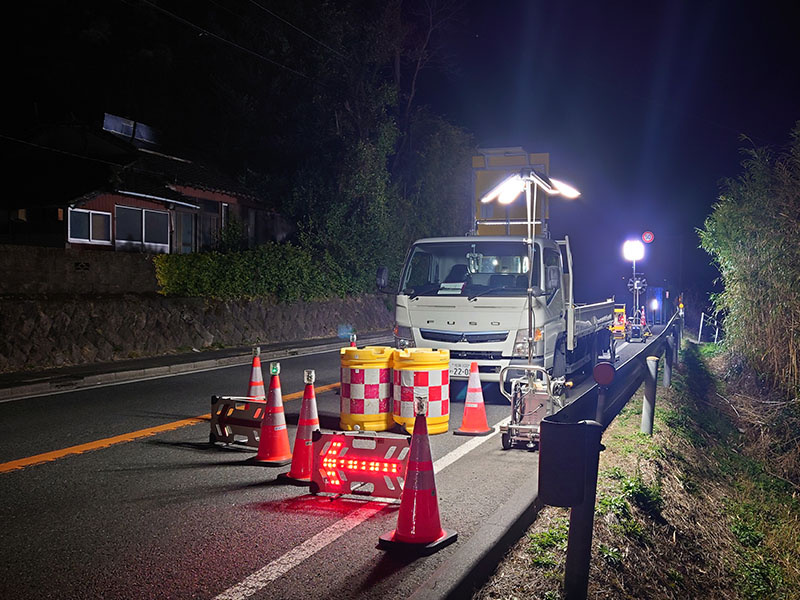

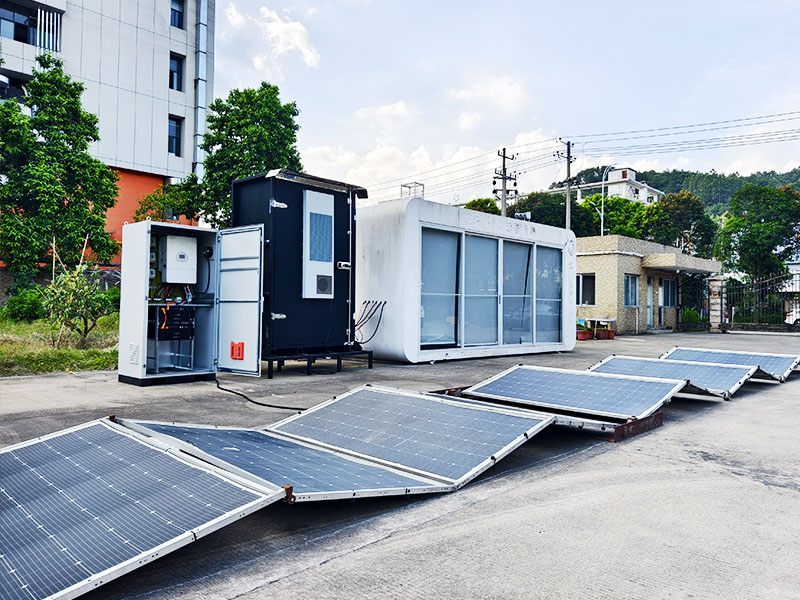

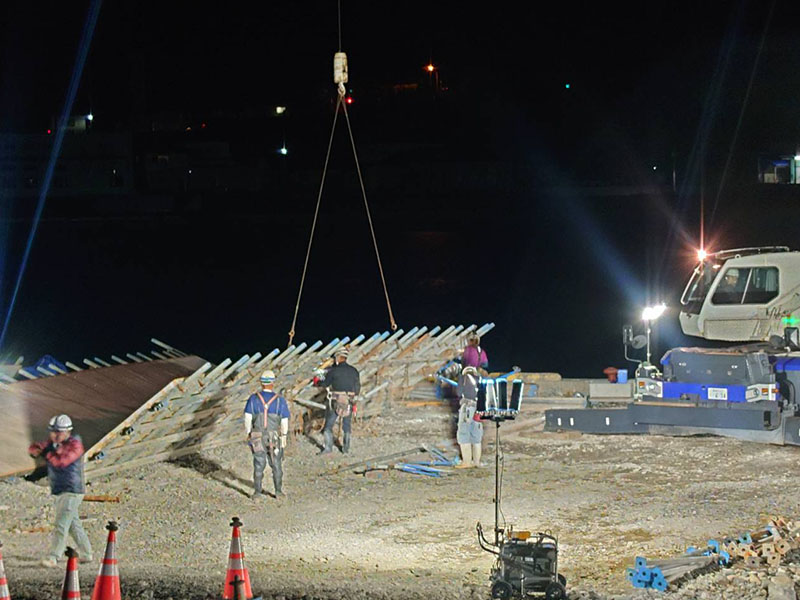

Application scenarios



Spec sheet

Model  CSP-1242
Rated Energy  1242 Wh

Nominal Voltage

 25.6V DC

Nominal capacity

 50Ah

Rated output power

 Max 2484W

Depth of discharge

 95%

Working Temperature

 -30~ 55Charge; -30~ 55Discharge
Battery type  Lithium iron phosphate ion(LFP)

Communication

 RS485, CAN

Configuration
(max. in 1 battery group)

 16pcs

Weight

 ≈15kg

Dimension

 L317 x W145 x H170 mm

Cell type

 LFP

Cooling type

 Passive

Breaker

 NO

Ingress Rating

 IP65

Humidity

 5% ~ 95%(RH) No condensation

Cycle life

 Battery capacity 80% after 5000 cycle (At an ambient temperature of 25, 0.2C)
