Battery Pack 5120Wh

Residential Power Backup, Energy Storage System Component, Off-grid Work Site



◆ IP65 grade dustproof and waterproof performance, it can withstand most industrial environments

◆ Ultra-high performance in impact resistance and vibration resistance

◆ Parallel function can support up to 16 batteries, to form up a small scale ESS

◆ A built-in BMS that optimizes battery's charging and discharging progress

◆ Made with LFP cells that known for its high safety and long lifespan

◆ Equipped with a self heating system for better performance under cold condition

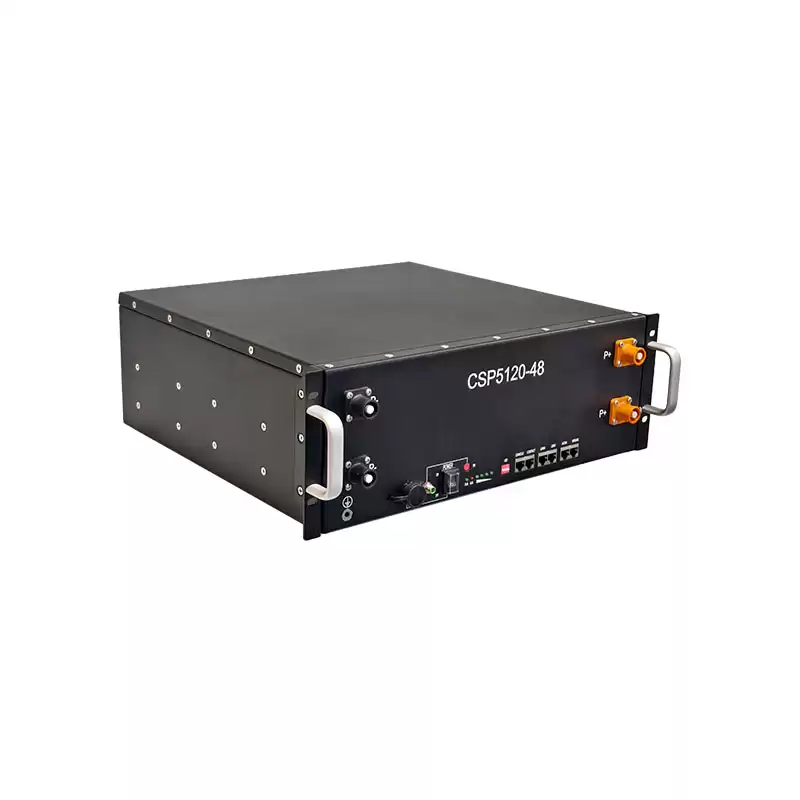

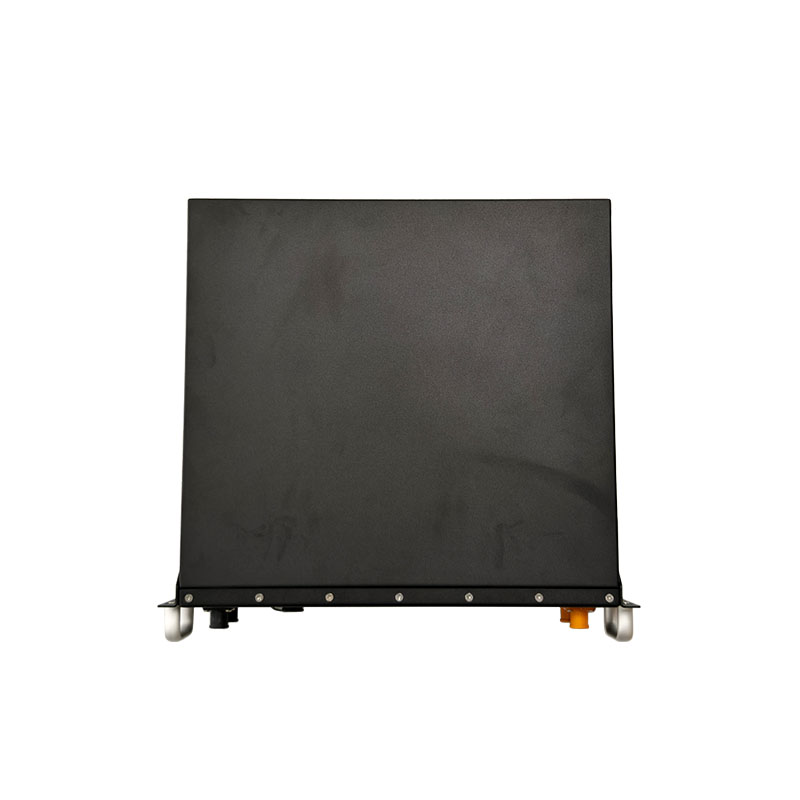

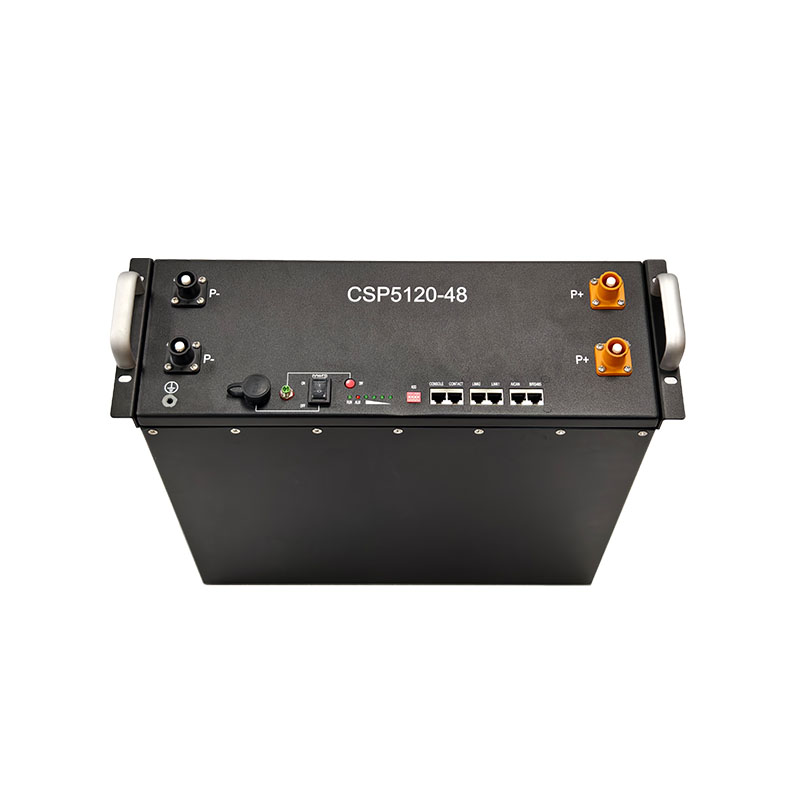

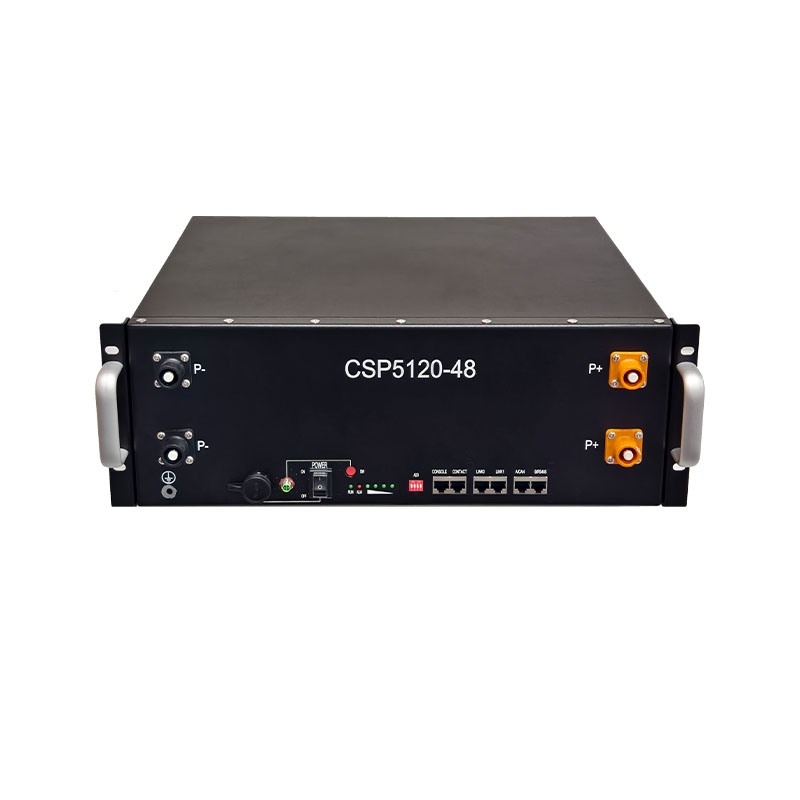

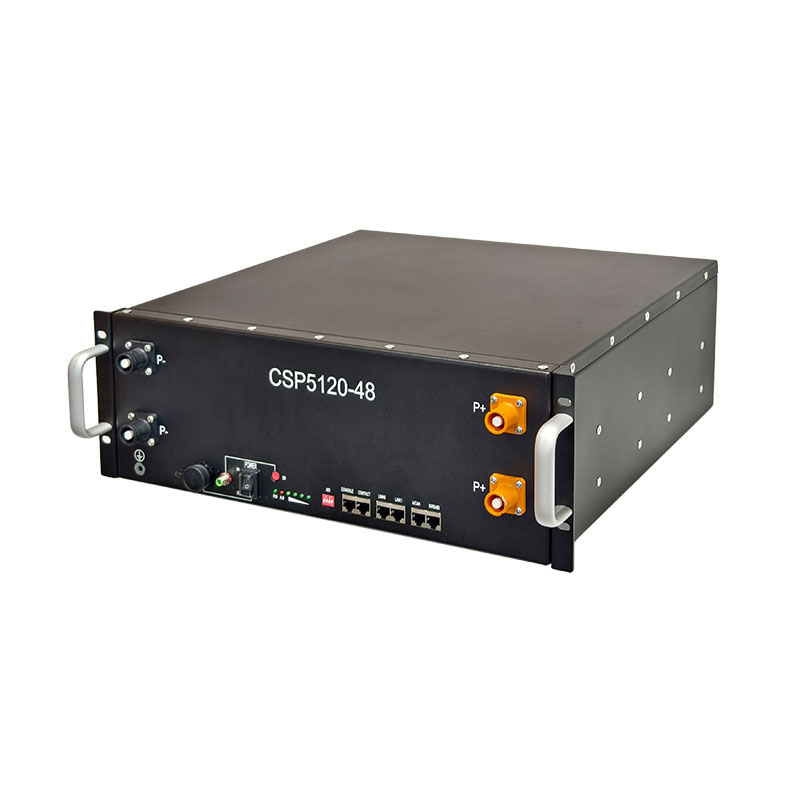

CSP-5120 battery pack is mainly developed as parts of ESS. It has IP65 dustproof and waterproof performance, and high impact and vibration resistance.

This battery pack doesn't have a built-in inverter, which means it can only operate when paired with a controller, or simply served as a module in energy storage system.



Rated capacity5120Wh

Power: 5120W

Nominal Voltage: 51.2V DC

Working Temperature: 0~ 50Charge

-20~ 50Discharge

Communication: RS485, CAN

Configuration: 16pcs

Ingress Rating: IP65

Cycle life: Capacity ≥80% after 5000 charge-discharge cycles (under the condition of 25℃ ambient temperature)







Application scenarios



Spec sheet

Model  CSP-5120
Rated Energy  5120 Wh

Nominal Voltage

 51.2V DC

Nominal capacity

 100Ah

Rated output power

 Max 5120W

Depth of discharge

 95%

Working Temperature

 0~ 50Charge; -20~ 50Discharge
Battery type  Lithium iron phosphate ion(LFP)

Communication

 RS485, CAN

Configuration
(max. in 1 battery group)

 16pcs

Weight

 ≈50kg

Dimension

 L482 x W458 x H161 mm

Cell type

 LFP

Cooling type

 Passive

Breaker

 NO

Ingress Rating

 IP65

Humidity

 5% ~ 95%(RH) No condensation

Cycle life

 Battery capacity 80% after 5000 cycle (At an ambient temperature of 25, 0.2C)
