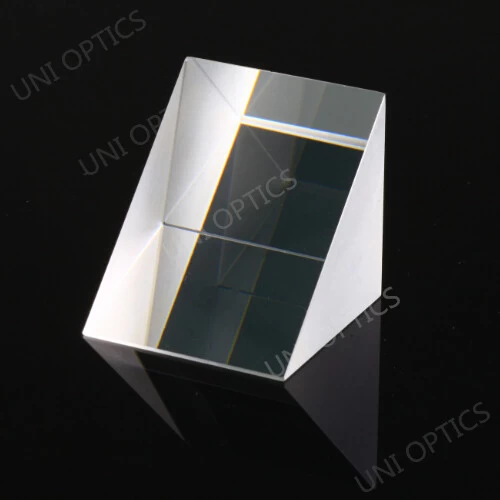

1.What is right angle prism used for?
Right Angle Prisms are typically used to bend image paths or for redirecting light. It is used to deviate light through 90 degree, and it also can be used to deflect light through 180 degree by total internal reflection.
2.What kinds of materials can UNI Optics use to make right angle prism?
N-BK7 glass , UV Fused silica, other optical glass
3. What is UNI Optics standard manufacturing capability and top limit for right angle prism?
|
Specification
|
Standard capability
|
Top limit
|
|
Dimension Tolerance
|
+0/-0.2mm
|
+0/-0.05mm
|
|
Clear Aperture
|
>80%
|
>85%
|
|
Angle Tolerance
|
+/-3’
|
+/-10’’
|
|
Flatness
|
λ/4@632.8nm
|
λ/8@632.8nm
|
|
Surface quality
|
60-40
|
10-5
|
4. What is the typical size?
|
AxBxC(mm)
|
AxBxC(mm)
|
AxBxC(mm)
|
|
1.0x1.0x1.0
|
12.7x12.7x12.7
|
38.1x38.1x38.1
|
|
2.0x2.0x2.0
|
15.0x15.0x15.0
|
40.0x40.0x40.0
|
|
3.0x3.0x3.0
|
18.0x18.0x18.0
|
50.0x50.0x50.0
|
|
5.0x5.0x5.0
|
20.0x20.0x20.0
|
50.8x50.8x50.8
|
|
8.0x8.0x8.0
|
25.4x25.4x25.4
|
60.0x60.0x60.0
|
|
10.0x10.0x10.0
|
30.0x30.0x30.0
|
70.0x70.0x70.0
|
Other sizes and shapes are available.
