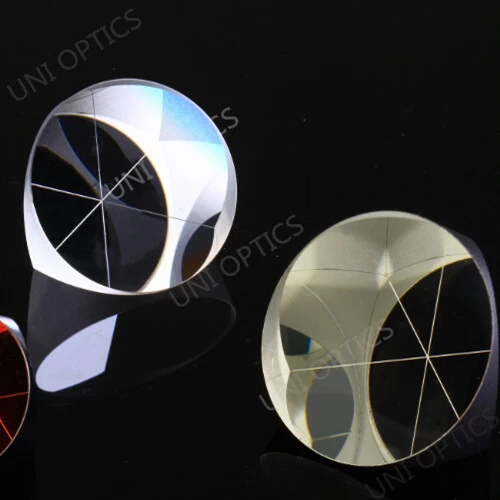

1. What is cube corner prism?
Cube corner prism has three mutually perpendicular surfaces and a hypotenuse face. It operates on the principle of total internal reflection (TIR). A beam entering the effective aperture is reflected by the three roof surfaces and emerges from the entrance/exit surface parallel to itself. This property is independent of direction of the retro-reflector, within acceptance angle limitations. For applications in which either the acceptance angle for TIR is exceeded, or the reflecting surfaces can not be kept sufficiently clean for TIR, a metal or dielectric coating can be applied to the reflecting surfaces.
2. What kinds of materials can UNI Optics use to cube corner prism?
N-BK7 glass , UV Fused silica or other optical glasses.
3. What is UNI Optics standard manufacturing capability and top limit for right angle prism?
|
Specifications
|
Standard capability
|
Top limit
|
|
Dimension Tolerance
|
+0/-0.2mm
|
+0/-0.05mm
|
|
Clear Aperture
|
>80%
|
>85%
|
|
Angle Tolerance (180°)
|
+/-30’’
|
+/-1’’
|
|
Flatness
|
λ/4@632.8nm
|
λ/8@632.8nm
|
|
Surface quality
|
60-40
|
10-5
|
4.What is the typical size?
|
Diameter(mm)
|
Height(mm)
|
Deviation( 180°)
|
|
Φ4
|
3.0
|
3"-10"
|
|
Φ8
|
8.0
|
3"-10"
|
|
Φ10
|
7.5
|
3"-10"
|
|
Φ12.7
|
10.2
|
3"-10"
|
|
Φ15.0
|
11.4
|
3"-10"
|
|
Φ25.4
|
19.1
|
3"-10"
|
|
Φ38.1
|
29.2
|
3"-10"
|
|
Φ42
|
34.9
|
3"-10"
|
|
Φ50
|
37.5
|
3"-10"
|
|
Φ50.8
|
38.1
|
3"-10"
|
|
Φ62.23
|
47.9
|
3"-10"
|
|
Φ62.5
|
48.0
|
3"-10"
|
|
Φ64
|
48.0
|
3"-10"
|
|
Φ65
|
39.1
|
3"-10"
|
|
Φ70
|
50.0
|
3"-10"
|
|
Φ72.52
|
52.3
|
3"-10"
|
