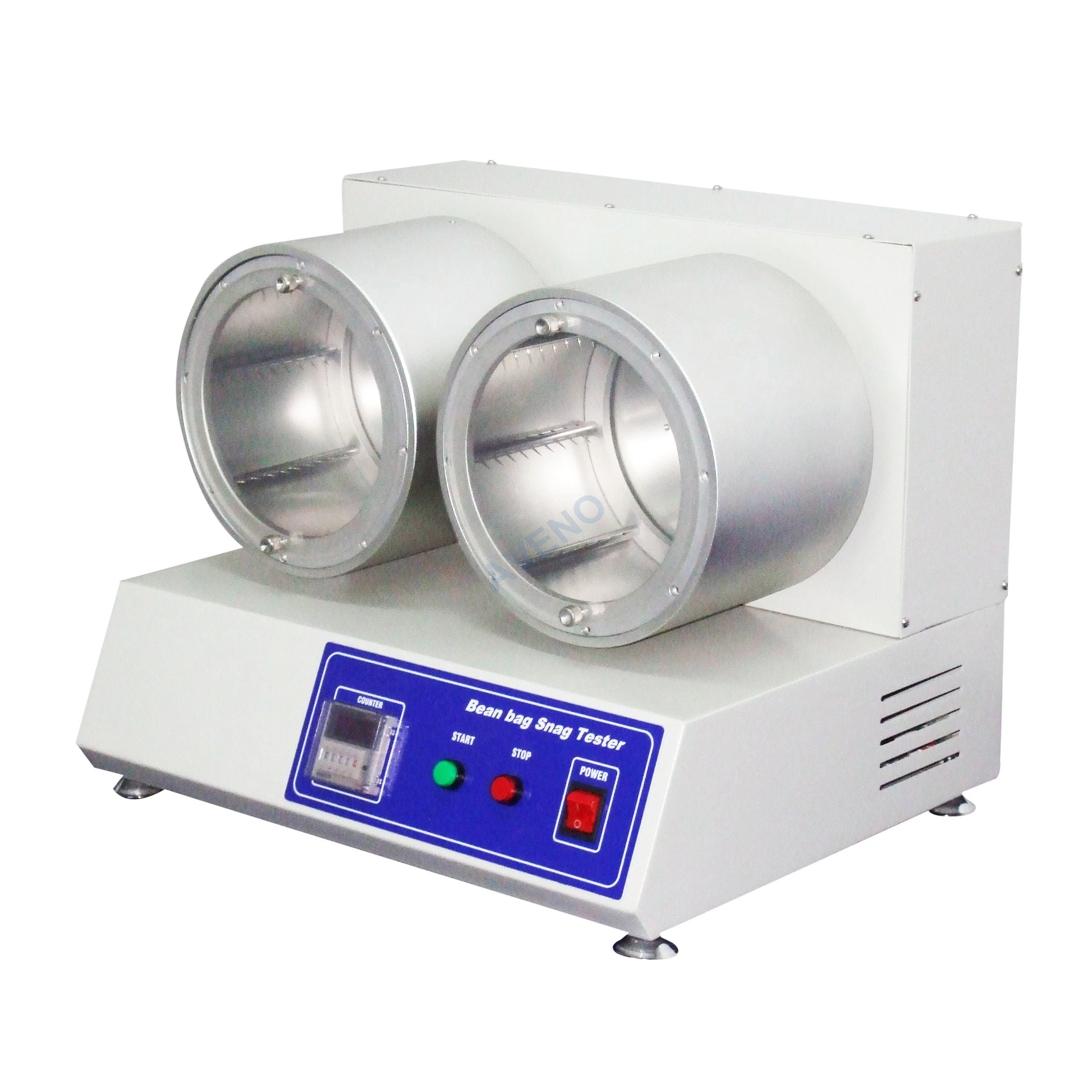

AG13-Bean Bag Snag Tester
Application Of Bean
Bag Snag Tester
Bean Bag Snag Tester is used to determine the
snagging and picking resistance of knitted and woven fabric. Put a bean bag
inside a knitted sample, then put the sample into the test roller and rotate a
certain number of cycles. After test, evaluate the snag grade of the sample.
Standards Of Bean Bag Snag Tester
ASTM D5362
JIS L1058
M&S P21A.
Key Specification Of Bean Bag Snag Tester
|
Model
|
AG13 Bean Bag Snag Tester
|
|
Rotation speed
|
20±3 r/min
|
|
Roller Diameter
|
200mm
|
|
Pinned shelf
|
8pcs
|
|
Pinned bar
|
9pcs,external diameter:8mm,depth:127mm
|
|
Nails
|
bulged length 10 mm ,spacing 12 mm ,the angle of vertical direction 30°±5
|
|
Counter Control
|
1-99999 can be set
|
|
Power supply
|
AC220V, 50/60HZ
|
|
Dimension
|
47x38x38cm
|
|
Weight
|
40Kg
|
Accessories Of Bean Bag Snag Tester
|
Standard
Accessories
|
450g bean bag
|
1pc
|
|
Sample
template
|
1pc
|
|
Power line
|
1pc
|
