Bearing XKAQ-00026 XKAQ00026 for HYUNDAI R450LC-7

Hyundai excavator Slewing motor bearing XKAQ-00026 XKAQ00026


XKAQ-00026 BRG.;HYUNDAI parts fit: R180LC-7 ,R180LC-9,R210LC-7,R210LC-9,R235LCR-9,R450LC-7,R500LC-7 .




Hyundai excavator Slewing bearing XKAQ-00026

P/N XKAQ-00026 Material:
GCR15
i/d mm
O/D
mm
H mm
Brand: ZHZB
Precision
P0 , P6 , P5
Structure:
Spherical roller bearing

Product features:
1. Special bearing for excavator slewing gearbox
2. With high radial load capacity, it can also bear axial load in any direction.
3. High-strength high-quality steel
4. Long service life
5. Smooth rotation, low noise

Our advantage:
100% factory quality inspection
Respond to customer questions within one day;
Allow small orders;
Faster transportation efficiency
Good after-sales service.
Professional manufacturer of bearings for slewing gearboxes of excavators. Has many years of manufacturing experience

Production Process






Product Photos

XKAQ-00026Hyundai XKAQ-00026Bearing XKAQ-00026

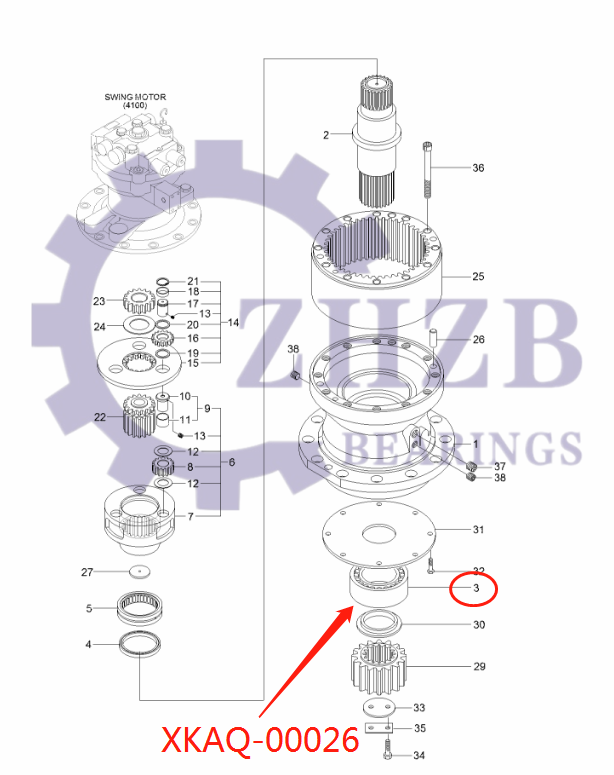

Any other parts for the Slewing motor system you need , pls search from below picture and form list then mark to me , we will quote to you.

Hyundai parts

Pos.

Part No

Qty

Parts name

Comments

*-2.

31QB-10140

[1]

  SWING REDUCTION GEAR

     SEE 4100

*-2.

31QB-10141

[1]

  SWING REDUCTION GEAR

     SEE 4100

*-2.

31QB-10141AR

[1]

  SWING REDUCTION GEAR

     SEE 4100

1.

XKAQ-00637

[1]

  CASING



1.

XKAQ-00964

[1]

  CASING



2.

XKAQ-00645

[1]

  SHAFT-DRIVE



3.

XKAQ-00026

[1]

  BEARING-ROLLER



4.

XKAQ-00032

[1]

  SEAL-OIL



5.

XKAQ-00647

[1]

  BEARING-ROLLER



5.

XKAQ-00961

[1]

  BEARING-ROLLER



6.

XKAQ-00753

[1]

  CARRIER ASSY 2



7.

XKAQ-00075

[1]

  CARRIER 2



8.

XKAQ-00023

[3]

  GEAR-PLANET 2



9.

XKAQ-00643

[3]

  PIN ASSY 2



10.

XKAQ-00070

[1]

  PIN 2

     INCL 11

N11.

XKAQ-00291

[1]

  BUSHING 2



12.

XKAQ-00644

[6]

  WASHER-THRUST



13.

XKAQ-00048

[6]

  PIN-SPRING



14.

XKAQ-00754

[1]

  CARRIER ASSY 1

     INCL 13

15.

XKAQ-00531

[1]

  CARRIER 1



16.

XKAQ-00646

[3]

  GEAR-PLANET 1



17.

XKAQ-00415

[3]

  PIN 1



18.

XKAQ-00030

[3]

  CAGE-NEEDLE



19.

XKAQ-00417

[3]

  PLATE 1-SIDE



20.

XKAQ-00416

[3]

  PLATE 2-SIDE



21.

XKAQ-00041

[3]

  RING-STOP



22.

XKAQ-00755

[1]

  GEAR-SUN 2



23.

XKAQ-00648

[1]

  GEAR-SUN 1



24.

XKAQ-00534

[1]

  PLATE-SIDE 3



25.

XKAQ-00779

[1]

  GEAR-RING



26.

XKAQ-00072

[2]

  PIN-KNOCK



27.

XKAQ-00404

[1]

  PLATE-THRUST



29.

XKAQ-00641

[1]

  GEAR-PINION

     OLD

29.

XKAQ-00979

[1]

  GEAR-PINION

     NEW

30.

XKAQ-00018

[1]

  SPACER



31.

XKAQ-00031

[1]

  PLATE-COVER



32.

XKAQ-00064

[8]

  BOLT-HEX



33.

XKAQ-00043

[1]

  PLATE-LOCK



34.

XKAQ-00042

[2]

  BOLT-HEX



35.

XKAQ-00044

[1]

  WASHER-LOCK



36.

XKAQ-00065

[12]

  BOLT-SOCKET



37.

XKAQ-00049

[1]

  PLUG



38.

XKAQ-00274

[2]

  PLUG



N.

@

[AR]

  NOT SUPPLIED PARTS
