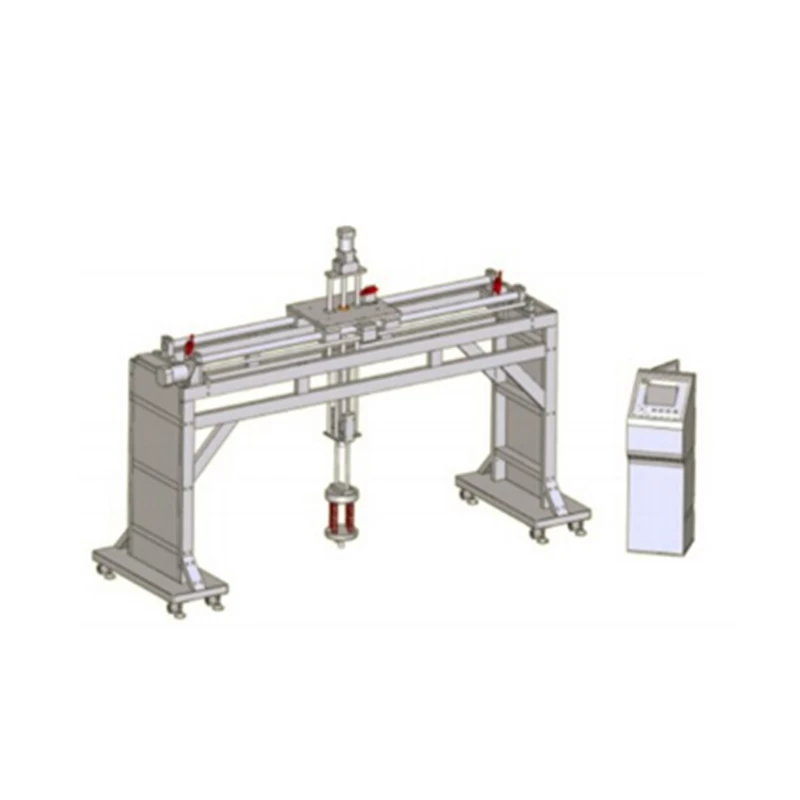

Bed And Mattress Comprehensive Performance Tester GT-LA09
Product Introduction
Application:
This machine is the newest design bed and mattress comprehensive performance tester according to EN 1725 standard.
In general, the machine is configured with the following test functions:
Vertical impact test: allow impactor to fall freely from a height of 180mm onto the test unit.
Durability test : test simulating the repeated application of loads .The durability test is a procedure mainly intended to evaluate the change of the properties of the test unit caused by repeated loading.
Bed edge durability test: apply a force of 1000N for 5000 cycles by means of edge loading pad at the bed edge test point, then measure the height loss .
Vertical static load test: apply a vertical forces of 1400N for 10s downwards using the loading pad on the bed base.
Bed edge vertical static load test: using two loading pads apply two forces of 1200N for 1min on the centre line of the bed frame side member.（LA09B configures this feature）
Feature
|
l The whole machine frame made of high quality aluminum, beautiful.
l This machine uses PLC to touch the screen control.
l Motor is Japan's Panasonic servo motor, the power sensor is the United States Celtron.
l The machine is equipped with an alarm device, indicating safe operation
|
|

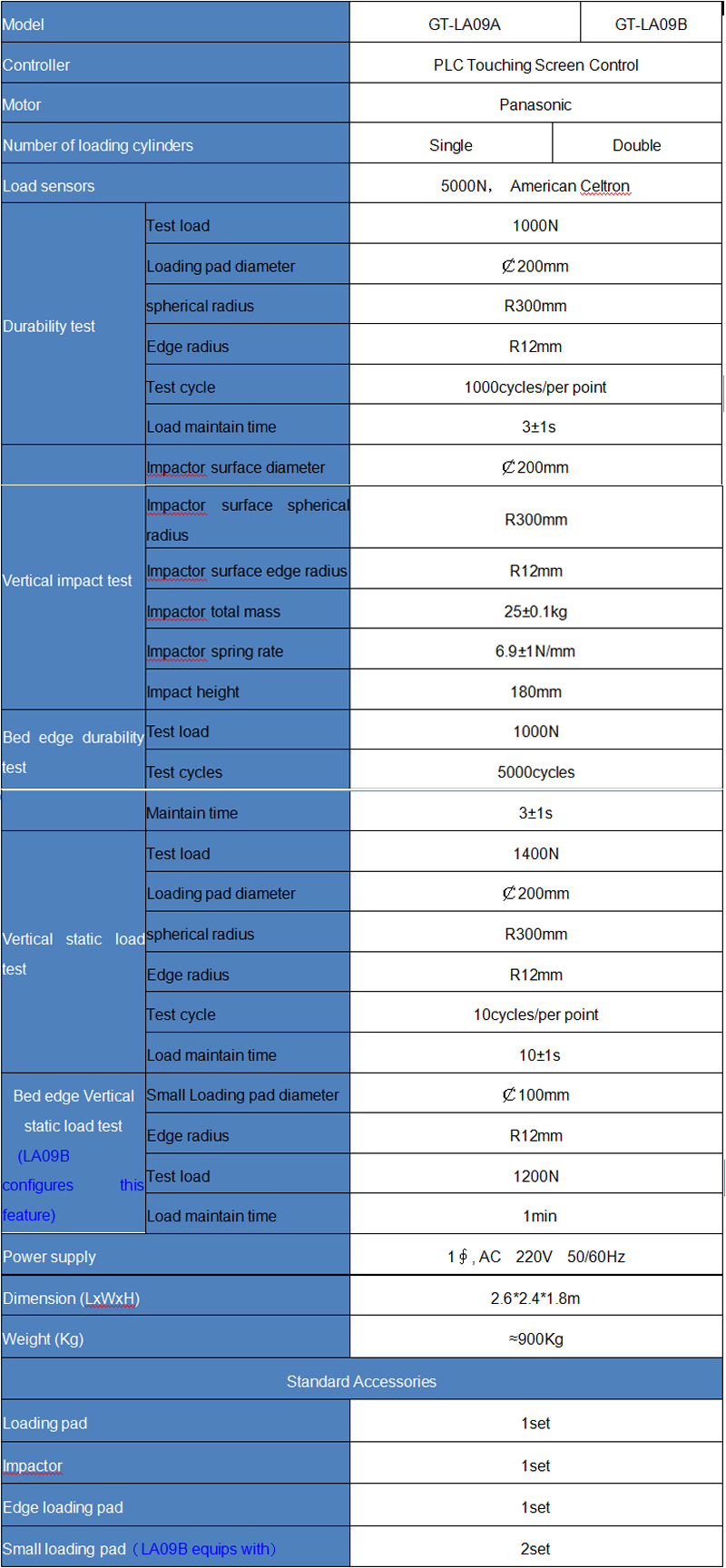

Key Specifications
