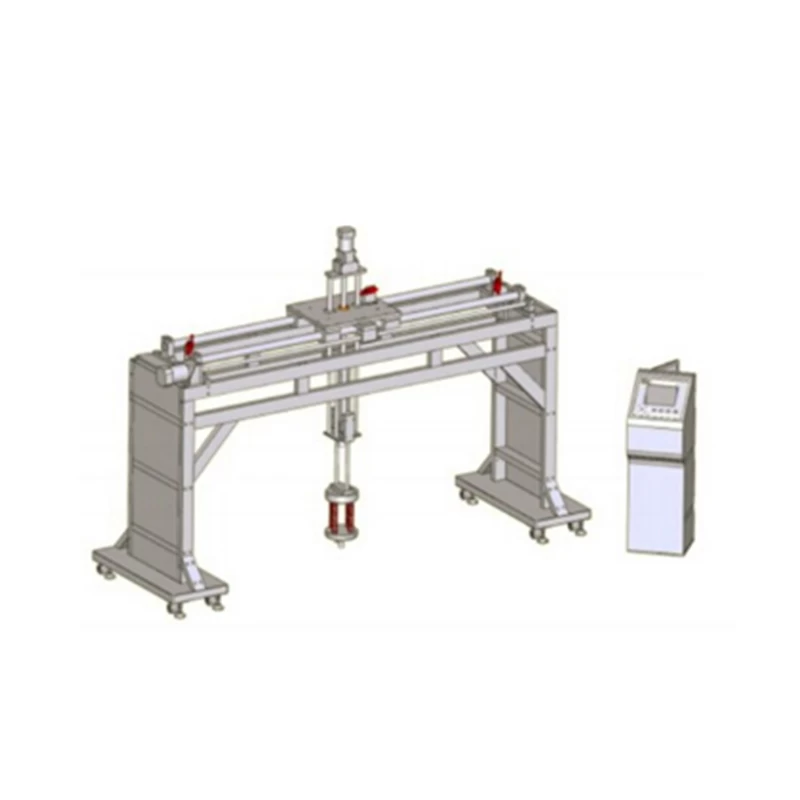

Bed And Mattress Comprehensive Performance Tester GT-LA09

Bed And Mattress Comprehensive Performance Tester is the newest design bed and mattress comprehensive performance tester according to EN 1725 standard.


  • standardEN 1725 section 7.3, 7.4, 7.5, 7.6, (Method 7.7 uses LA09B)
  • certificateISO 9001, UKAS, CE

Bed And Mattress Comprehensive Performance Tester

Applications:

This machine is the newest design bed and mattress comprehensive performance tester according to EN 1725 standard.

In general, the machine is configured with the following test functions:
Vertical impact test:  allow impactor to fall freely from a height of 180mm onto the test unit.
Durability test: test simulating the repeated application of loads The durability test is a procedure mainly intended to evaluate the change of the properties of the test unit caused by repeated loading.
Bed edge durability test: apply a force of 1000N for 5000 cycles by means of edge loading pad at the bed edge test point, then measure the height loss .
Vertical static load test: apply a vertical forces of 1400N for 10s downwards using the loading pad on the bed base.
Bed edge vertical static load test:  using two loading pads apply two forces of 1200N for 1min on the centre line of the bed frame side member.(LA09B configures this feature)


Standards:

EN 1725 section 7.3, 7.4, 7.5, 7.6, (Method 7.7 uses LA09B)


Feature

  • The whole machine frame made of high quality aluminum, beautiful.
  • This machine  uses PLC to touch the screen control.
  • Motor is Japan's Panasonic servo motor, the power sensor is the United States Celtron.
  • The machine is equipped with an alarm device, indicating safe operation

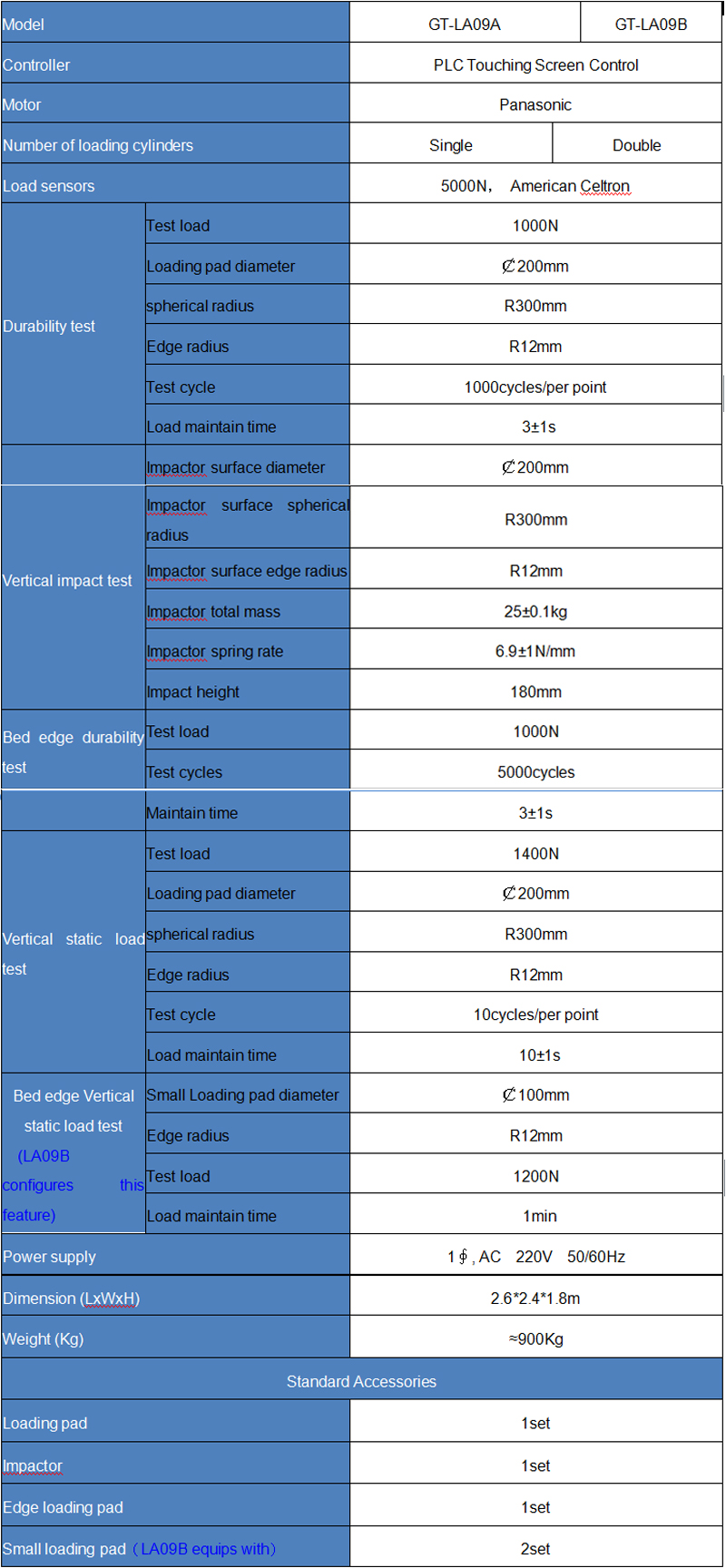

Key Specification

Bed And Mattress Comprehensive Performance Tester
