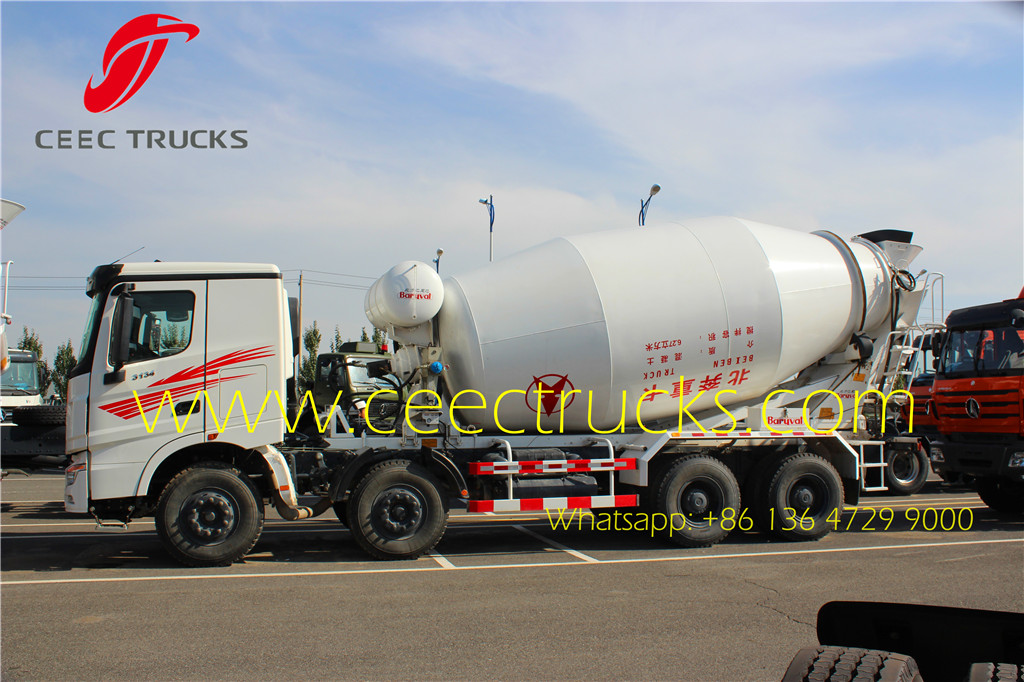

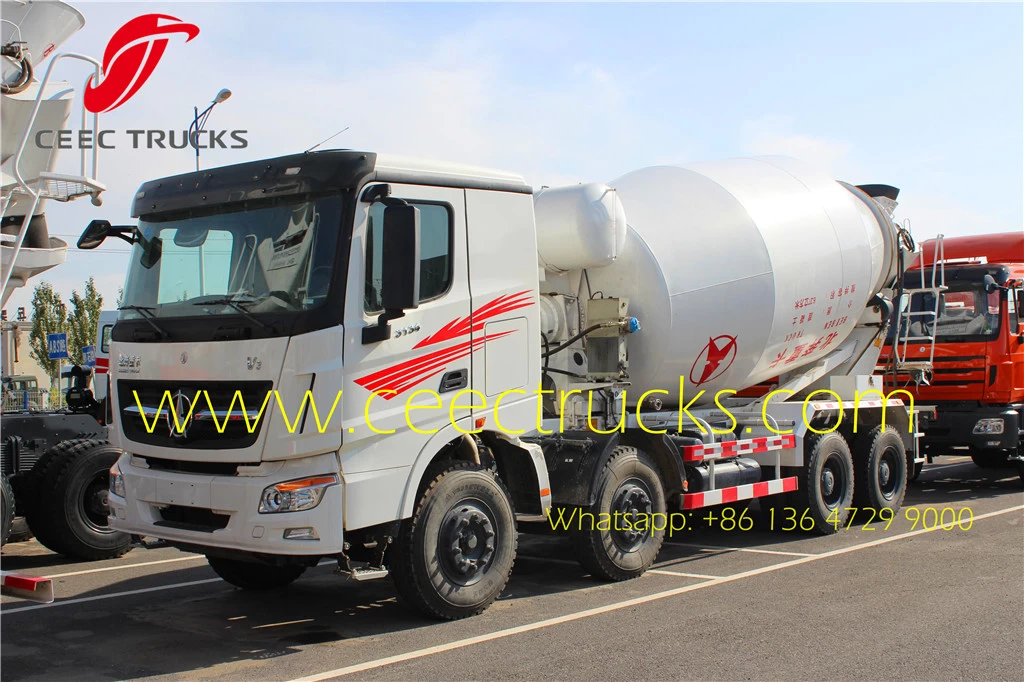

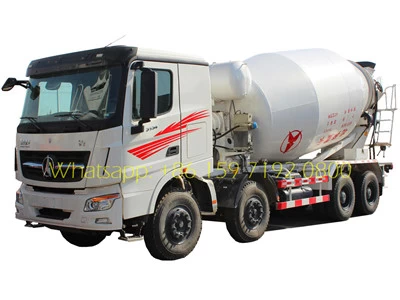

Best price Beiben 14 CBM V3 cement mixer trucks
Best beiben 14 CBM concrete mxier trucks als can be named as beiben 8*4 transit mixer truck, beiben 14 CBM mixer tanker truck,
beiben 12 wheeler cement mixer truck, which mainly used for cement
mixing and being widely used in Factory, Construction Plant, etc. Our LHD & RHD
beiben 10 CBM, 14 CBM mixer trucks widely export to Congo, Tanzania, Ethiopia, Zambia, Togo, Algeria, Kenya, Dubai, Myanmar, etc.
CEEC TRUCKS produced Beiben 14 CBM concrete mixer truck features:

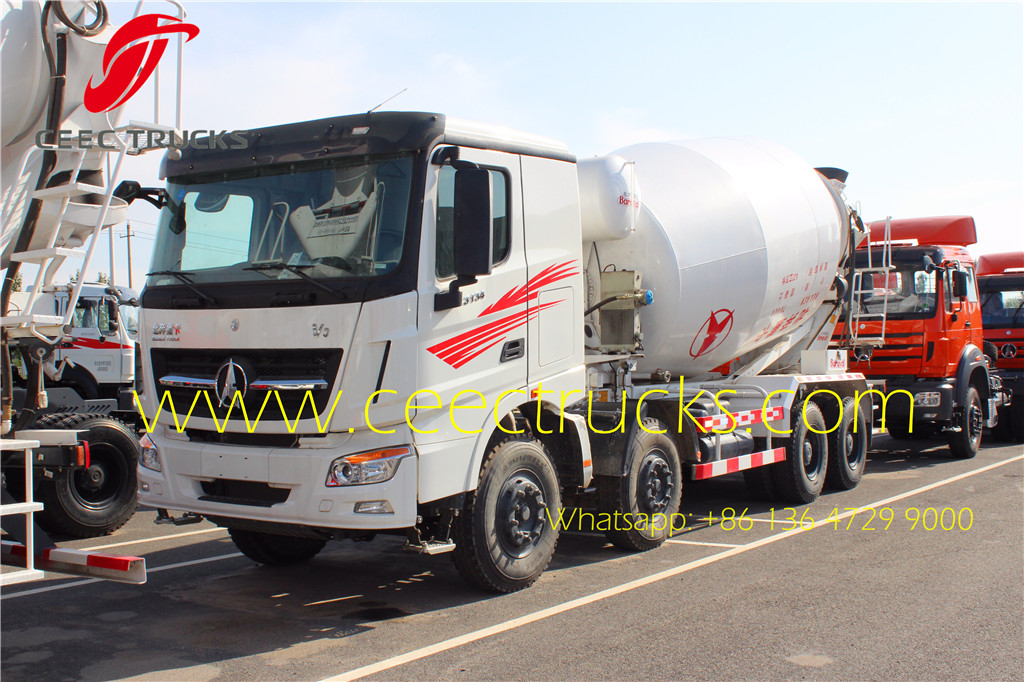

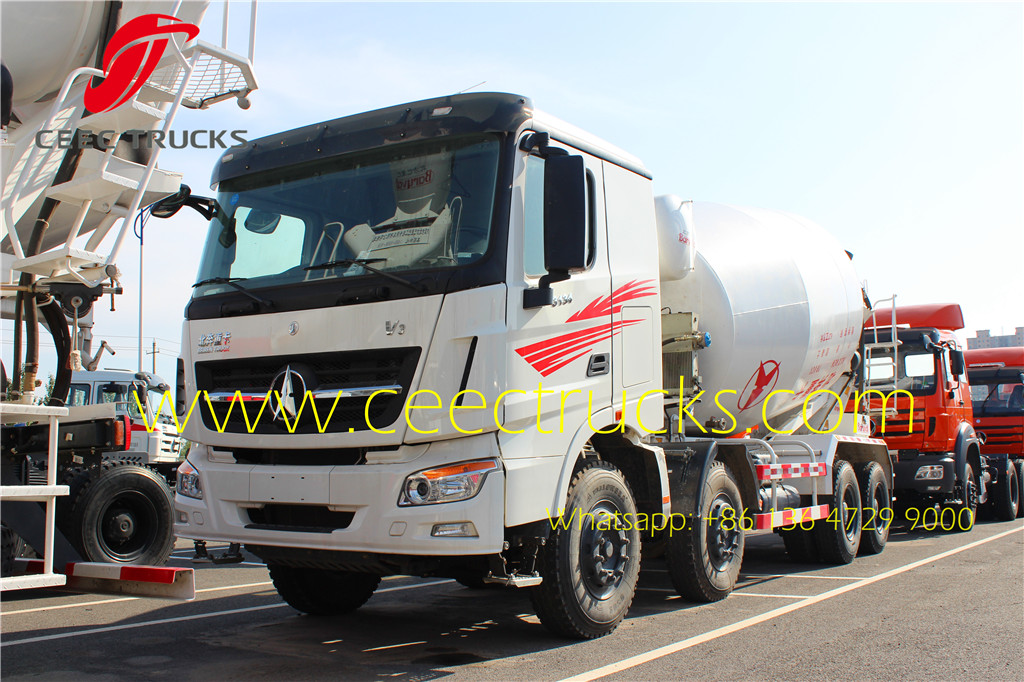

★ Beiben 3134, 3138 transit mixer trucks equipped with new V3 cabin, which has attractive appearance
★ WEICHAI engine WP10.340E32, Euro 2 / 3 emission, strongly 340ps, and 9shift manual mechinical gearbox
★ Curb weight approx 13650kg and rated mixing capacity can be up to 10CBM, very good performance
★ Specific heavy truck metallic framework and stressed-skin construction, processing security of same level of European automobiles
★ Beiben 2534 Tractor truck use European ECER29 safety and regulatory requirements, stamping molding of frame only once ensures girder strength
★ High strength carbon steel Q345 material, with thickness over 6mm
★ Americal brand Eaton Hydraulic Pump, Hydraulic Motor, and best performed Germany Rexroth Reducer.
Similar Key Words: beiben 14 CBM concrete mixer truck, north benz 3134,3138 transit mixer truck, beiben 3138 mixer trucks, beiben 12 wheeler mixer truck, beiben 14 CBM mixer truck, Kenya RHD beiben mixer truck, Cameroon 2534 beiben mixer truck, Africa 14 CBM cement mixer trucks, Beiben 14 CBM concrete mixing trucks price
| Beiben 3134 transit mixer truck /8×4/3450+1450/Short Cab/LHD
|

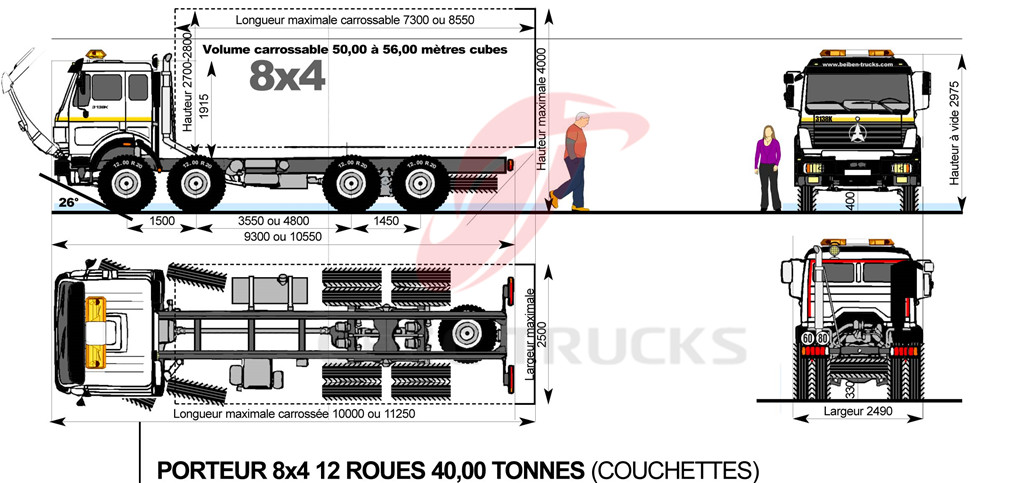

| Dimension
|
11080*2500*3980mm
|
| Approaching angle/Departure angle
|
26/20°
|
| Overhang(front/rear)
|
1410/2640mm
|
| Wheel base
|
1500+3550+1450
|
| Max speed
|
80km/h
|
| Curb weight
|
13650kg
|
| Loading capacity
|
11220kg
|
| Slope climbing capability
|
Max.40%
|
| Engine
|
Model
|
WP10.380E32，water-cooled，four strokes，6 cylinders in line，turbocharged, directly injection
|
| Displacement
|
9.726L/Diesel
|
| Stroke
|
126/130mm
|
| Max. power
|
250/2200 (kw/rpm)
|
| Max.torque
|
1350/1200-1600（Nm/rpm）
|
| Emission stantard
|
EuroⅢ
|
| Fuel tanker capacity
|
300L
|
| Clutch
|
∮430, Single dry frictional disc，Hydraulic boosting
|
| Gearbox
|
ZF160, mechanism,9 forward gears,1 reverse gear, manual operated, with synchronizer
|
| Gear ratio of gear box
|
12.60/8.39/6.31/4.64/3.43/2.45/1.84/1.35/1.00 R: 11.02
|
| Suspension system
|
Front
|
Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension , 10pcs
|
| Rear
|
Non-free standing stablization spring, balance suspension system, 13pcs
|
| Brake system
|
Service brake
|
Brake gap can be adjusted automatically, double circulation air brake system
|
| Assistant brake
|
Engine exhaust brake
|
| Park brake
|
Potential springs pressing on middle and rear wheels
|
| Steering system
|
TAS85,whole circulation in ball, hydraulic booster
|
| Frame
|
Fish belly shape, variable width, variable sections
|
| Front axle (Mercedes Technology)
|
Double-shoe pneumatic brake, non-driving steering axle
|
| Middle and Rear axle (Mercedes Technology)
|
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle
|
| Tyre
|
12.00R20 Radial
|
| Electrical system
|
Battery
|
2X12V/135Ah
|
| Generator
|
28V-35A
|
| Starter
|
5.4Kw/24V
|

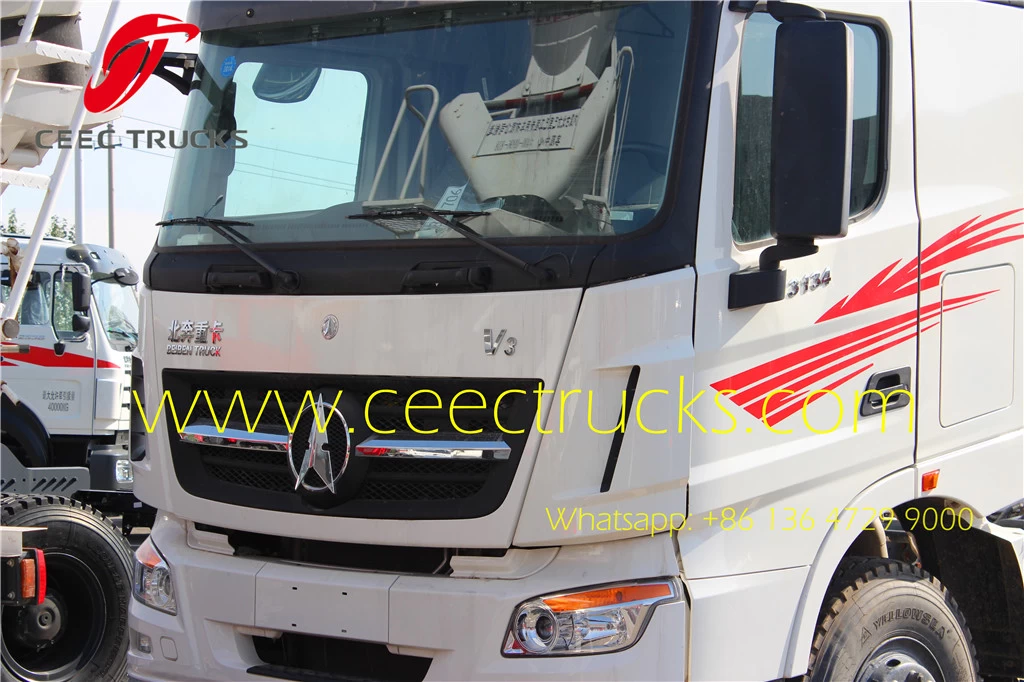

| Cabin
|
NG80B Long cabin with single sleeper;
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;
High back with arm seat for driver, high back seat for co-driver; With inner A/C
|
| Main technical parameters of concrete mixer
|
| Drum performance parameter
|
Geometric Volume m3
|
15.5 m3
|
| Effective Volume m3
|
10 m3
|
| Filling Ratio %
|
64.5%
|
| Gradient of the Drum °
|
15°
|
| Filling speed m3/min
|
≥3
|
| Discharging Speed m3/min
|
≥2
|
| Surplus Ration %
|
<1%
|
| Range of Slump mm
|
20～300
|

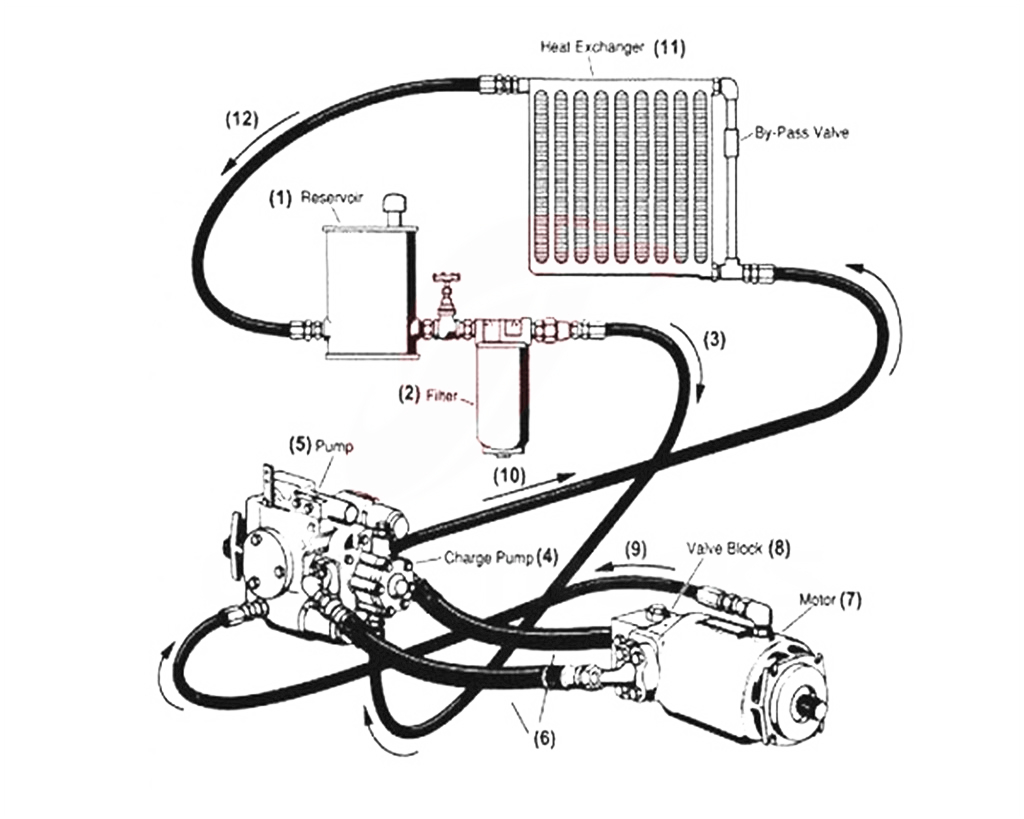

| Hydraulic System
|
Pump
|
Eaton 54 (ACA542337R)
|
| Motor
|
Eaton 54 (HHD542337R)
|
| Gear Box
|
PMB6sp
|
| Water supply system
|
Volume of water tank
|
400L
|
| Water supply type
|
Air pressure Type
|

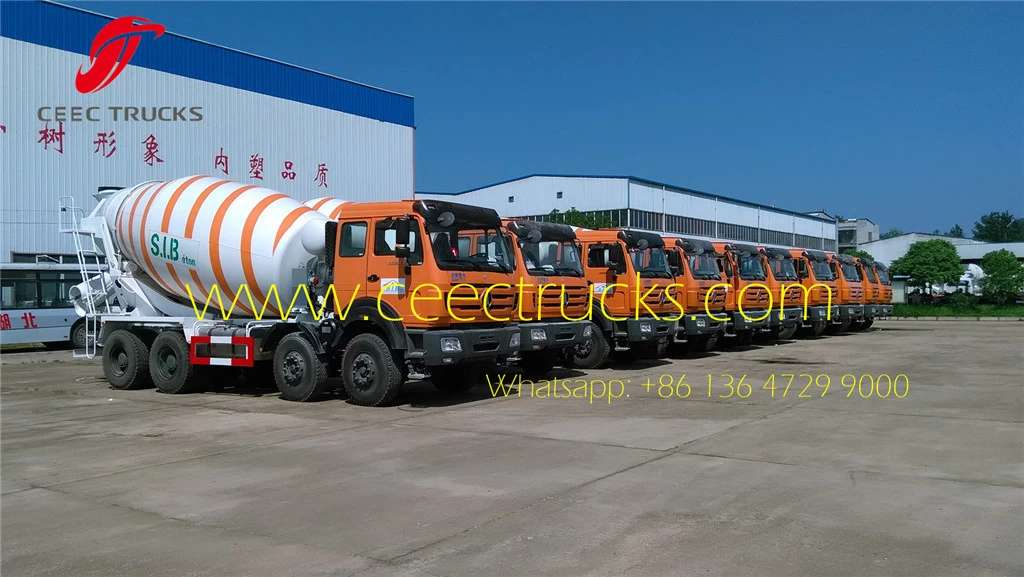

Beiben Transit mixer trucks on sale
