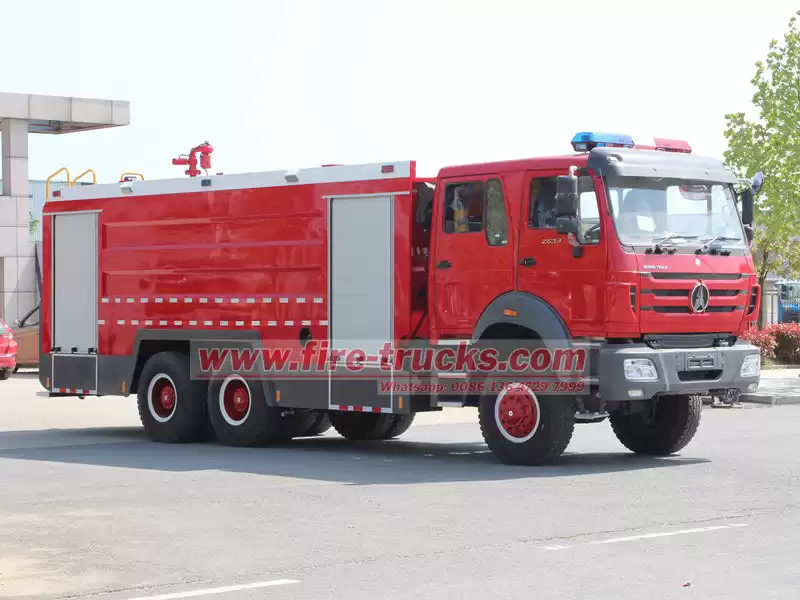

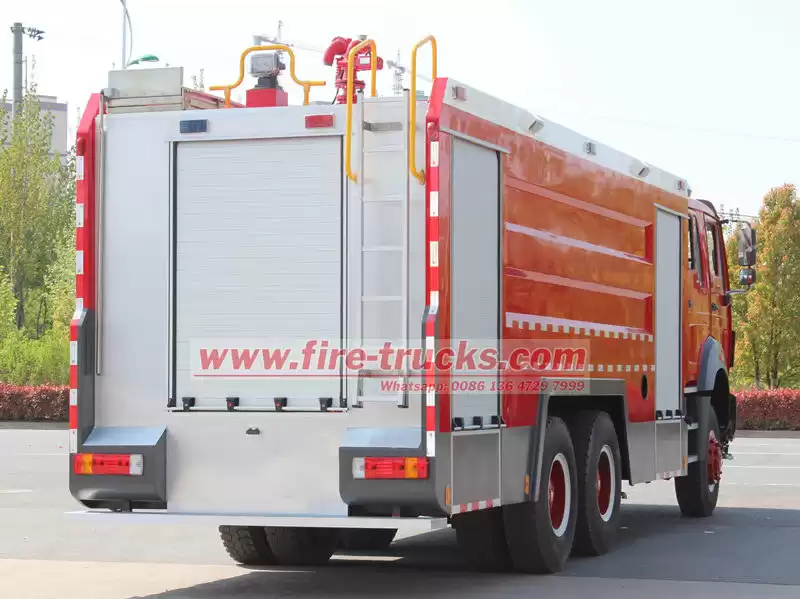

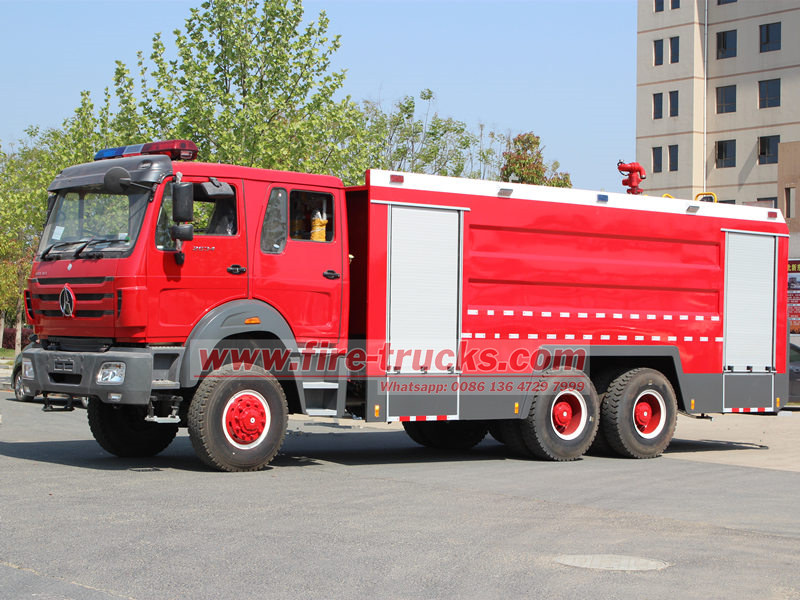

The Beiben 6×4 heavy-duty fire truck is a professional firefighting apparatus integrating large-capacity fire suppressant storage with high-efficiency fire suppression capabilities, specifically designed for combating fires in petrochemical plants, airports, ports, and other specialized environments. Built on the Beiben ND1250 heavy-duty chassis, the vehicle measures 10,110 × 2,550 × 3,800 mm and features a 6×4 drive configuration. Powered by a 340-horsepower Weichai diesel engine paired with a 12-speed transmission, it achieves a maximum speed of 98 km/h. With a gross weight of 31 tons and a load distribution of 7.5 tons on the front axle and 26 tons on the rear axle, the truck delivers exceptional load-bearing stability. A 26° approach angle and 27° departure angle, combined with 12.00R20 large-size tires, ensure superior off-road performance in challenging terrain.
The Beiben 6×4 tanker fire truck is equipped with industry-leading fire suppression systems, including a massive 12,000L water tank and a dedicated 2,000L foam tank. The water tank is constructed from 4mm-thick high-quality carbon steel with special anti-corrosion treatment for long-term durability, while the foam tank is made of 304 stainless steel, offering excellent corrosion resistance to accommodate various chemical foams. The dual-tank independent design allows for rapid switching between water and foam, providing tailored solutions for different fire types.
This Beiben fire tender truck is fitted with a domestically renowned CB10/60 fire pump, capable of delivering a high flow rate of 60L/s at 1.0 MPa working pressure, with a maximum suction depth of 7 meters. Paired with a self-priming sliding vane pump, it can complete deep suction within 50 seconds, ensuring rapid response during firefighting operations. The PL8/48 fire monitor supports dual-mode water/foam operation, with a discharge rate of 48L/s and an ultra-long range of 70 meters (water) and 60 meters (foam), effectively covering large fire zones. Its 360° horizontal rotation and -45° to +70° elevation adjustment enable all-angle firefighting coverage.
● 24 months long guarantee time assurance
● CKD, SKD parts service, Container shipping, Save freight
● OEM customized service, print your company logo
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
● Build strict QC team to guarantee the quality
Product Specifications
|
Vehicle basic specifications
|
|
Gross Vehicle Weight
|
31000 kg
|
|
Curb Weight
|
14800 kg
|
|
Overall Dimension
|
10110x2550x3800mm
|
|
Tank Capacity
|
Water 12000L, foam 2000L
|
|
Engine Output
|
340Hp
|
|
Max Speed
|
98km/h
|
|
Front / Rear Axle Load
|
7.5T / 26T
|
|
Approach / Departure Angle
|
26/ 27°
|
|
Allowable Cab Passengers
|
2+4
|
|
Chassis Specification
|
|
Model
|
Beiben ND1250
|
|
Manufacture
|
Beiben
|
|
Engine brand
|
Weichai
|
|
Engine Model
|
WP10.340E32
|
|
Engine Output
|
340Hp
|
|
Displacement
|
9726 ml
|
|
Emission standard
|
Euro 3
|
|
Wheelbase
|
4450+1450 mm
|
|
Transmission
|
FAST，12 forward and 2 reverse
|
|
Tire specifications
|
12.00R20, 10+1 pcs
|
|
Front wheel track
|
1995 mm
|
|
Rear wheel track
|
1800/1800 mm
|
|
Driving Cab
|
|
Model
|
NG80 long cabin
|
|
Passenger
|
2
|
|
Steering Wheel
|
Right Hand Drive
|
|

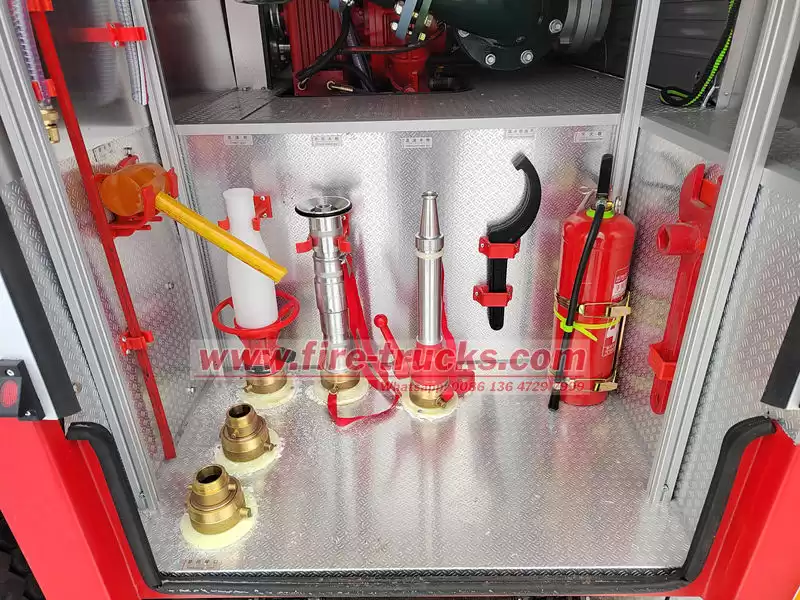

Equipment
|
Control box for alarm and alarm lamp
PTO switch and indicator
Additional power source and air course indicator
Jacklight and strong flashing light indicator
|
|
Body
|
|
Equipment Room
|
Body is made by high quality steel with phosphate treatment. The inner plate and floor is made by anodized aluminum plate.
|
|
Crew room
|
Crew cabin is in the middle of truck
|
|
Equipment room
|
Aluminum alloy structure
|
|
Pedal
|
Every shutter door has an overturn pedal.
Fender can be overturned to be used as pedal.
|
|

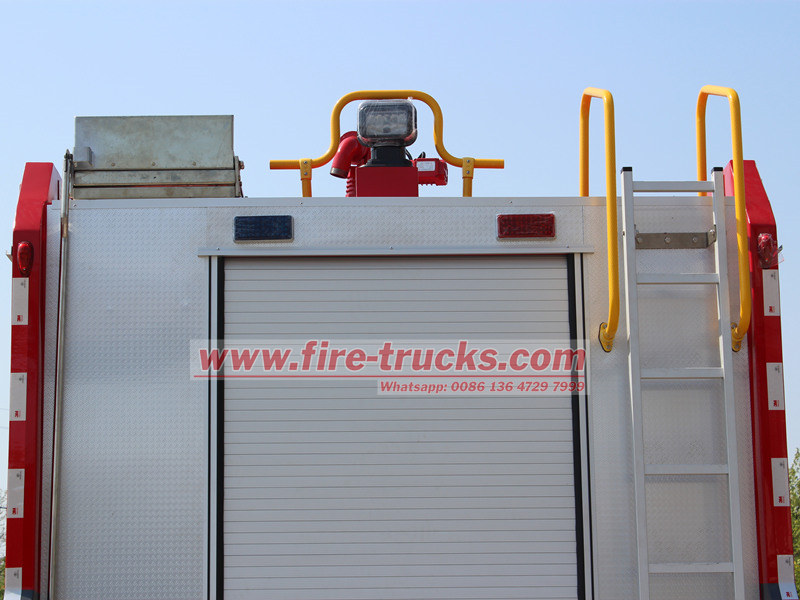

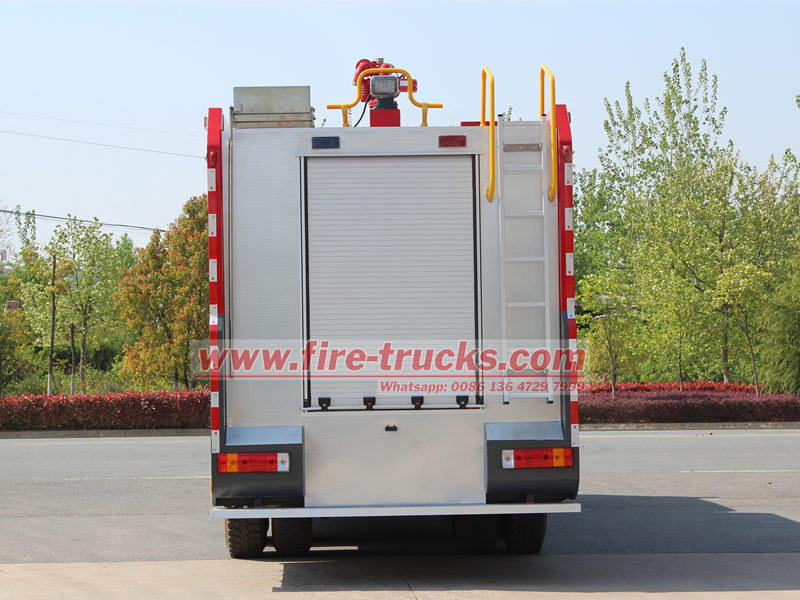

Ladder
|
At rear of the body
|
|

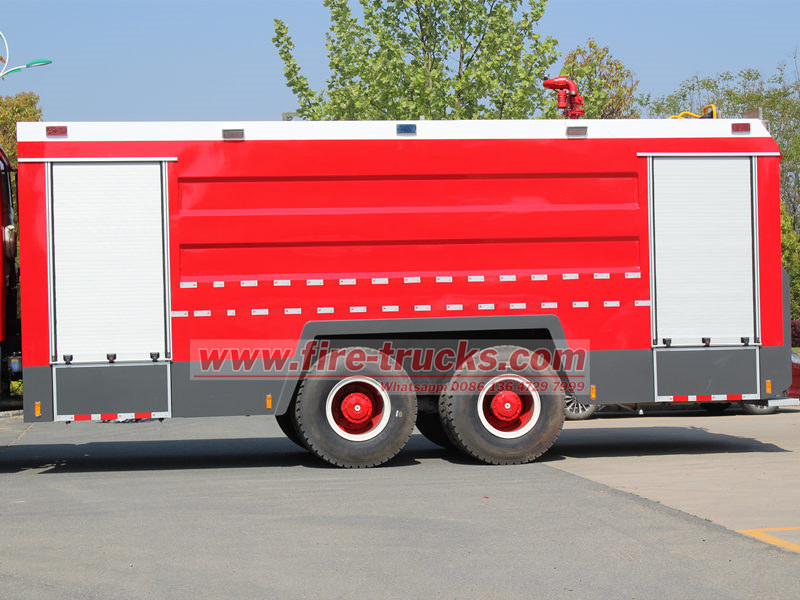

Water and foam Tank
|
|
Tank capacity
|
Water: 12000L, foam: 2000L
|
|
Material
|
Water tank: Carbon steel with 4mm thickness.
Foam tank: Stainless steel 304 material.
|
|
Tank fixing
|
Fixed on chassis frame
|
|
Manhole
|
One manhole with diameter of 500 mm, with quick locking/opening device
|
|

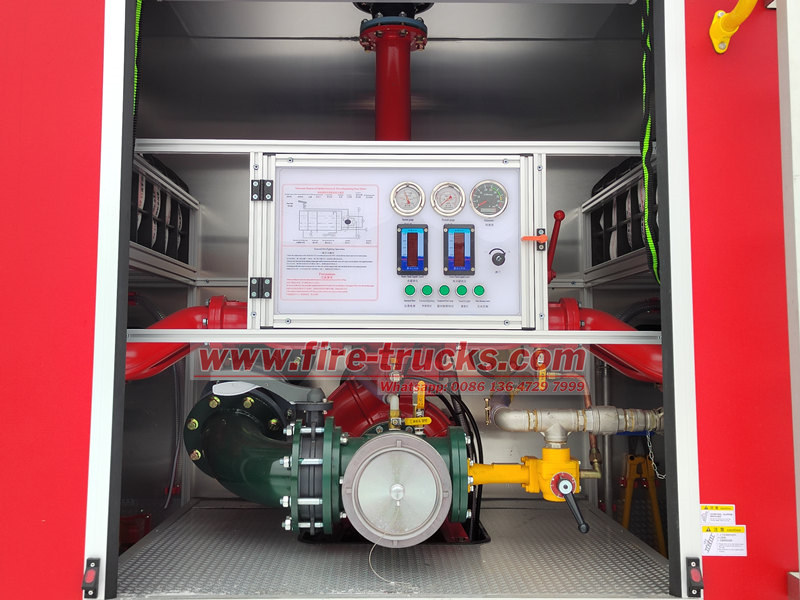

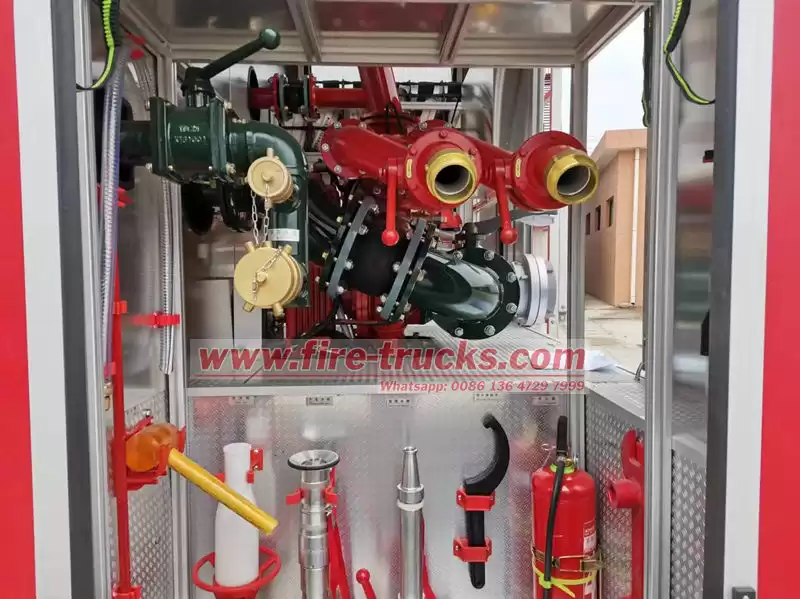

Fire Pump
|
|
Fire pump model
|
CB10/60
|
|
Water flow rate
|
60L/S, 1.0MPa
|
|
Maximum suction depth
|
7m
|
|
Diversion device
|
Self-contained slide pump
|
|
Diversion time
|
Maximum depth of suction < 50s
|
|

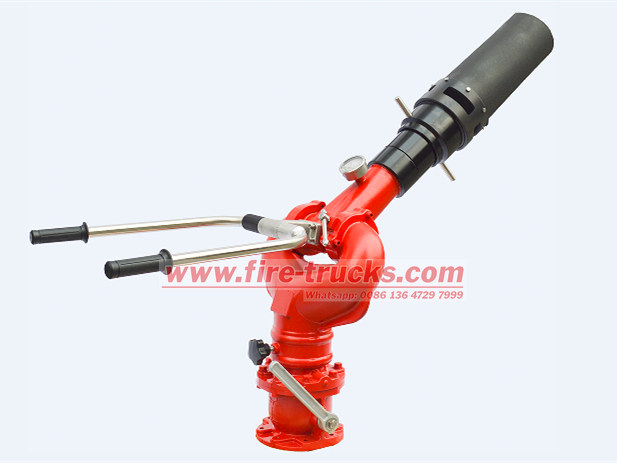

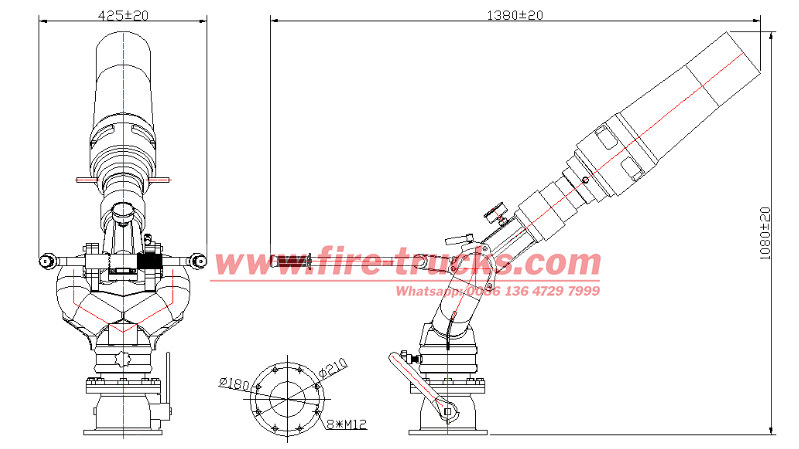

Fire Monitor (water & foam)
|
|
Fire monitor model
|
PL8/48
|
|
Flow rate
|
48L/s, 1MPa
|
|
Covering range
|
water≥70m, foam≥60m
|
|
Rotating Angle
|
360°Horizontal Rotation
|
|
Max. pitch angle
|
-45°~+70°
|

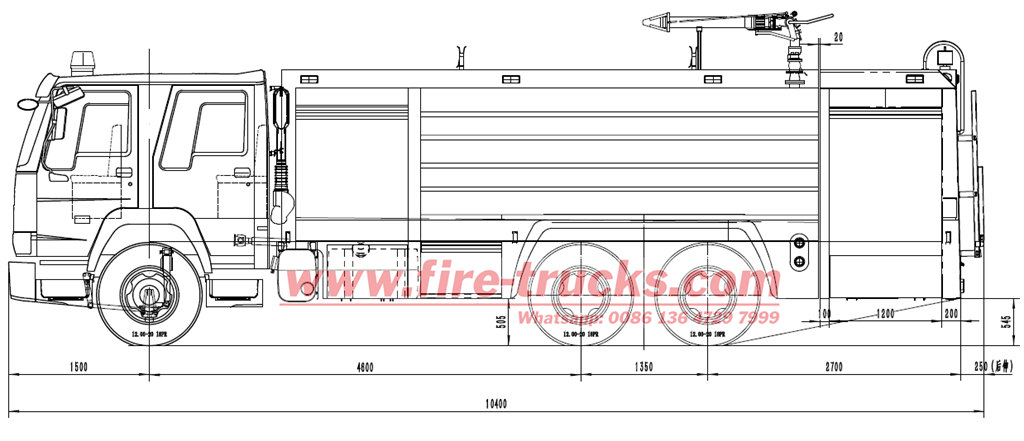

Product Drwaing

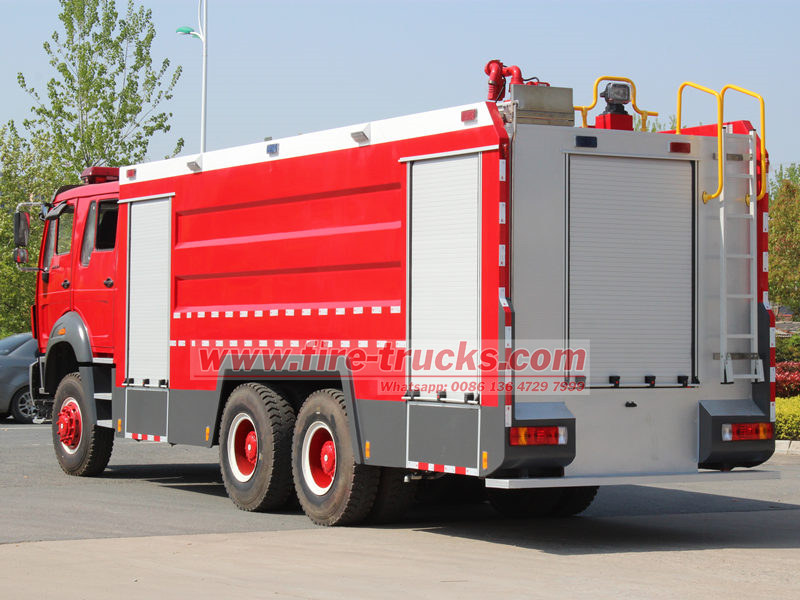

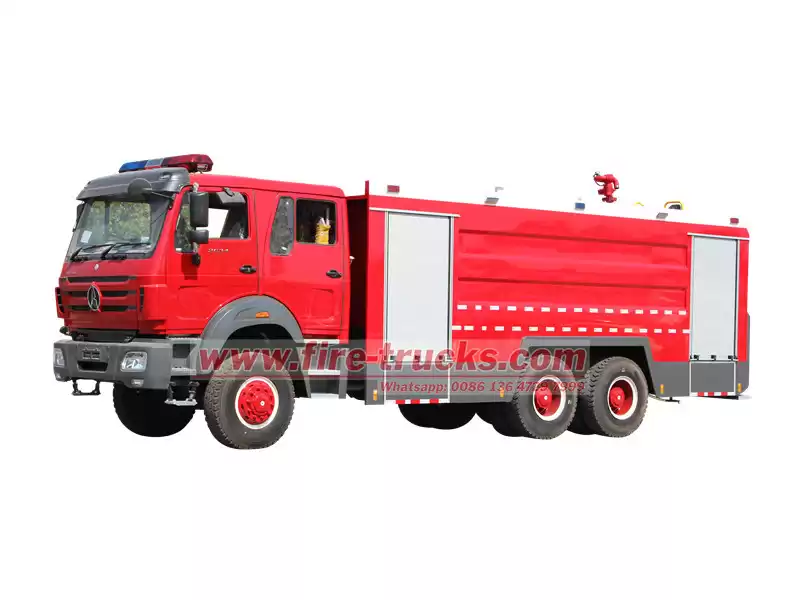

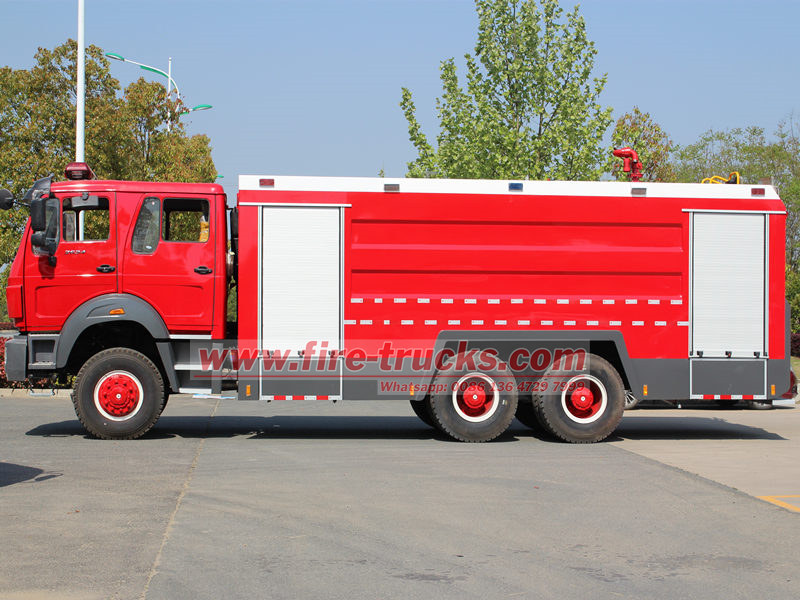

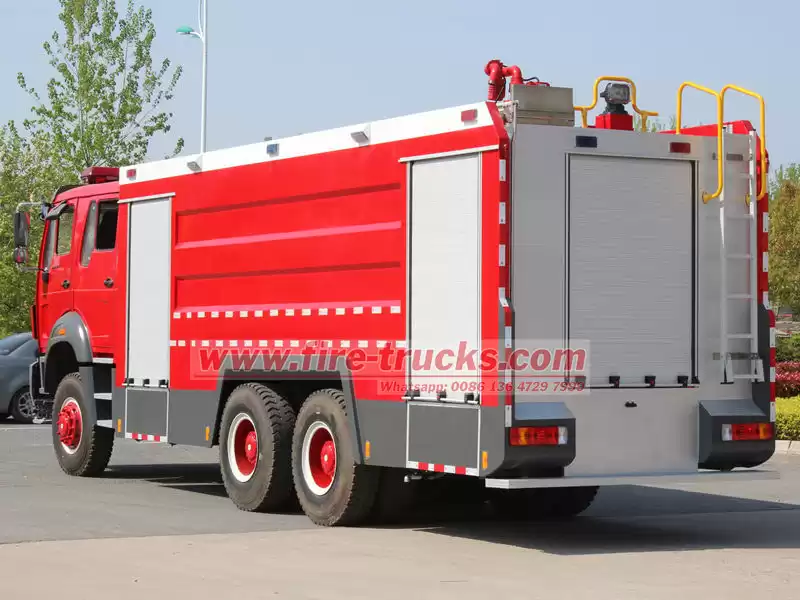

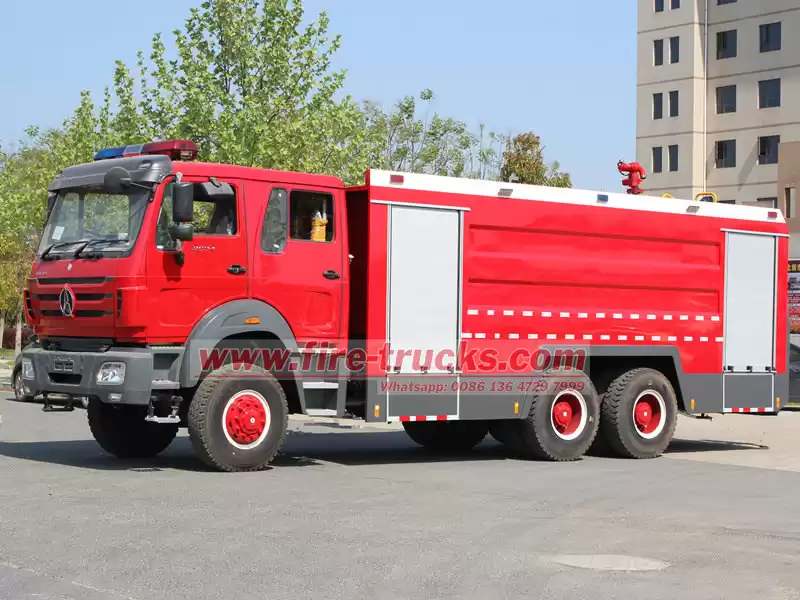

Product Pictures
