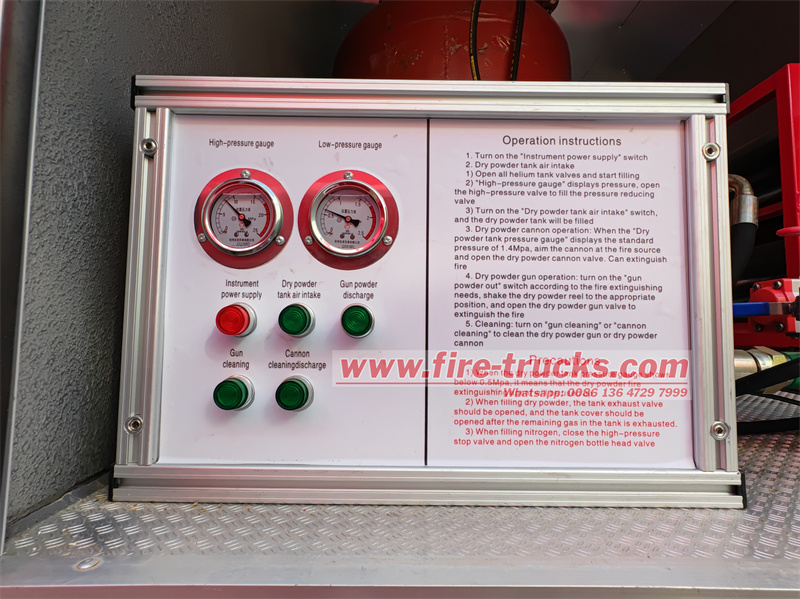

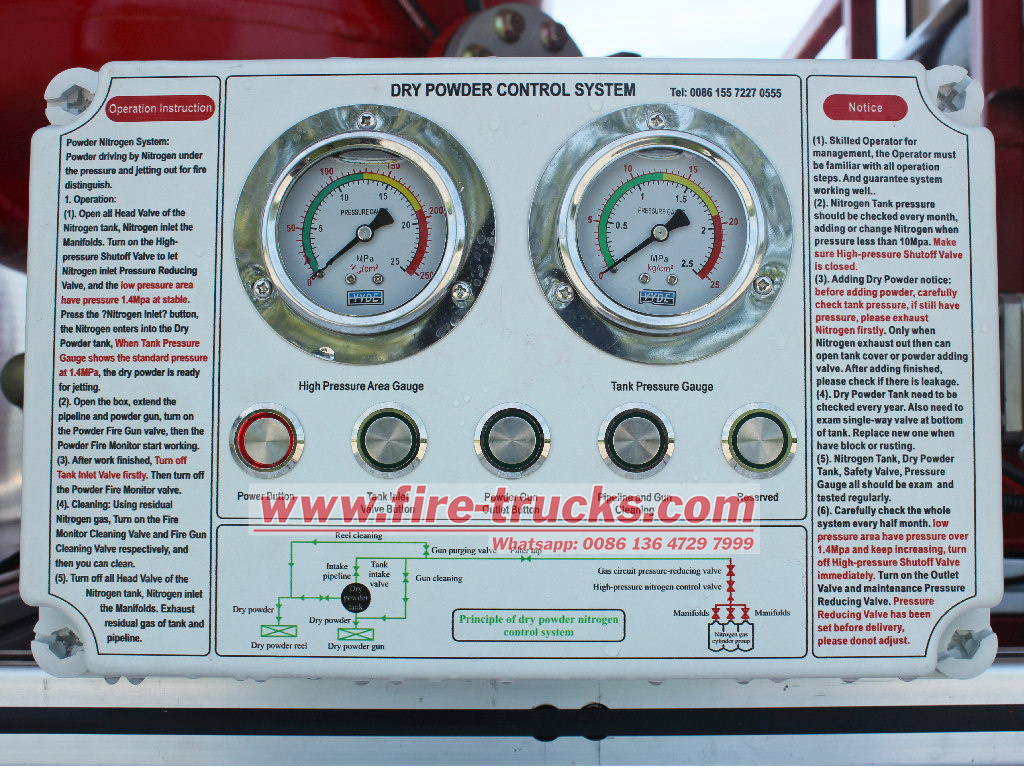

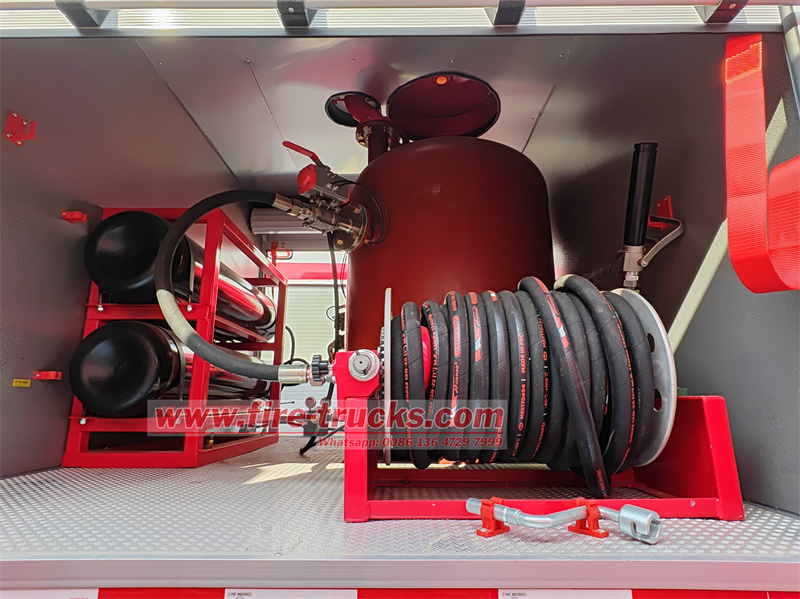

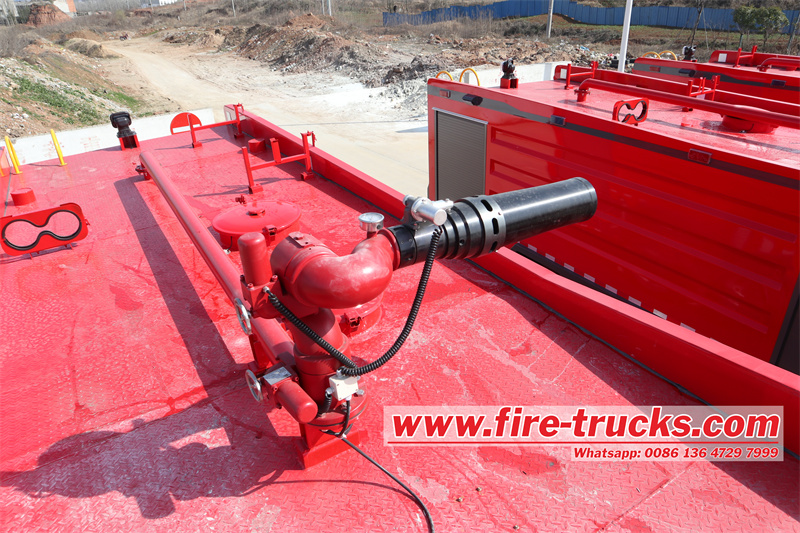

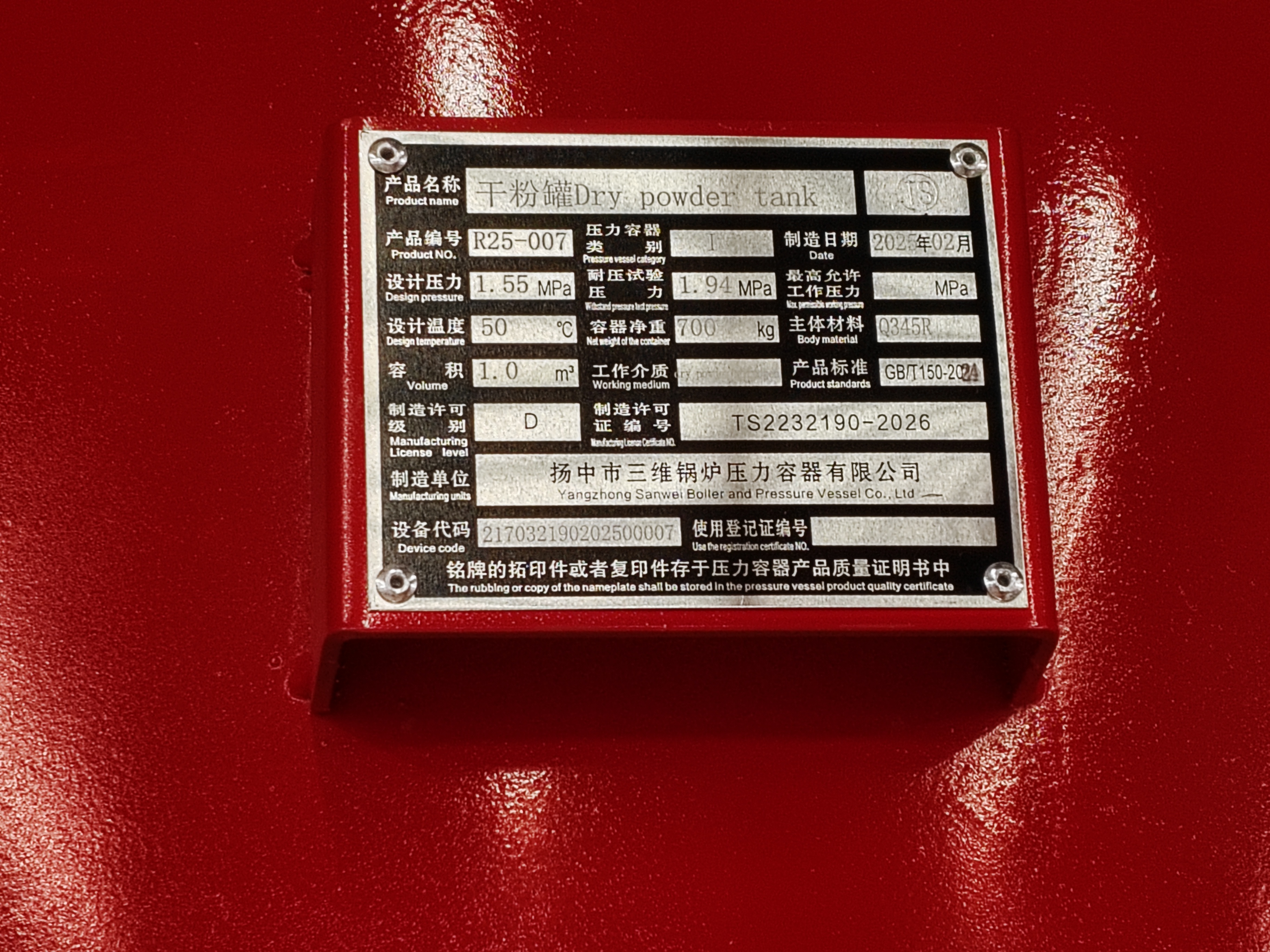

Sitrak 6x4 dry powder foam fire truck adopts Sinotruk Sitrak C7H 460 6X4 chassis, has a double-row cab, a wheelbase of 4300+1400mm, and is equipped with Sinotruk MC11.46-61 460HP engine, inline 6 cylinders, Euro VI emission, HW19710 10-speed gearbox, the front part of the upper body is the dry powder tank room, which is loaded with 1 cubic meter Q345R dry powder tank, equipped with 2 60L nitrogen cylinders, and a 30-meter dry powder reel, and equipped with a dry powder gun. There is a control panel for monitoring the relevant data of the high-pressure gauge and low-pressure gauge. In the middle is a 10cbm carbon steel water tank and 2 cbm of stainless steel foam tanks. The tail is the pump room, equipped with CB10/60 fire pump, control panel (monitoring pressure gauges, water level gauges, foam level gauges, vacuum gauges, tachometers, etc.). The pump room is equipped with some fire-fighting equipment: fire hoses, water collector, water filter, water distributor,water gun, foam gun, Reducing interface, etc. The rest of the fire-fighting equipment is placed in the equipment room under the tank, including fire axes, shovels, pickaxes, wrenches, etc. There are PL48 fire cannons and PF30 dry powder cannons on the roof.
