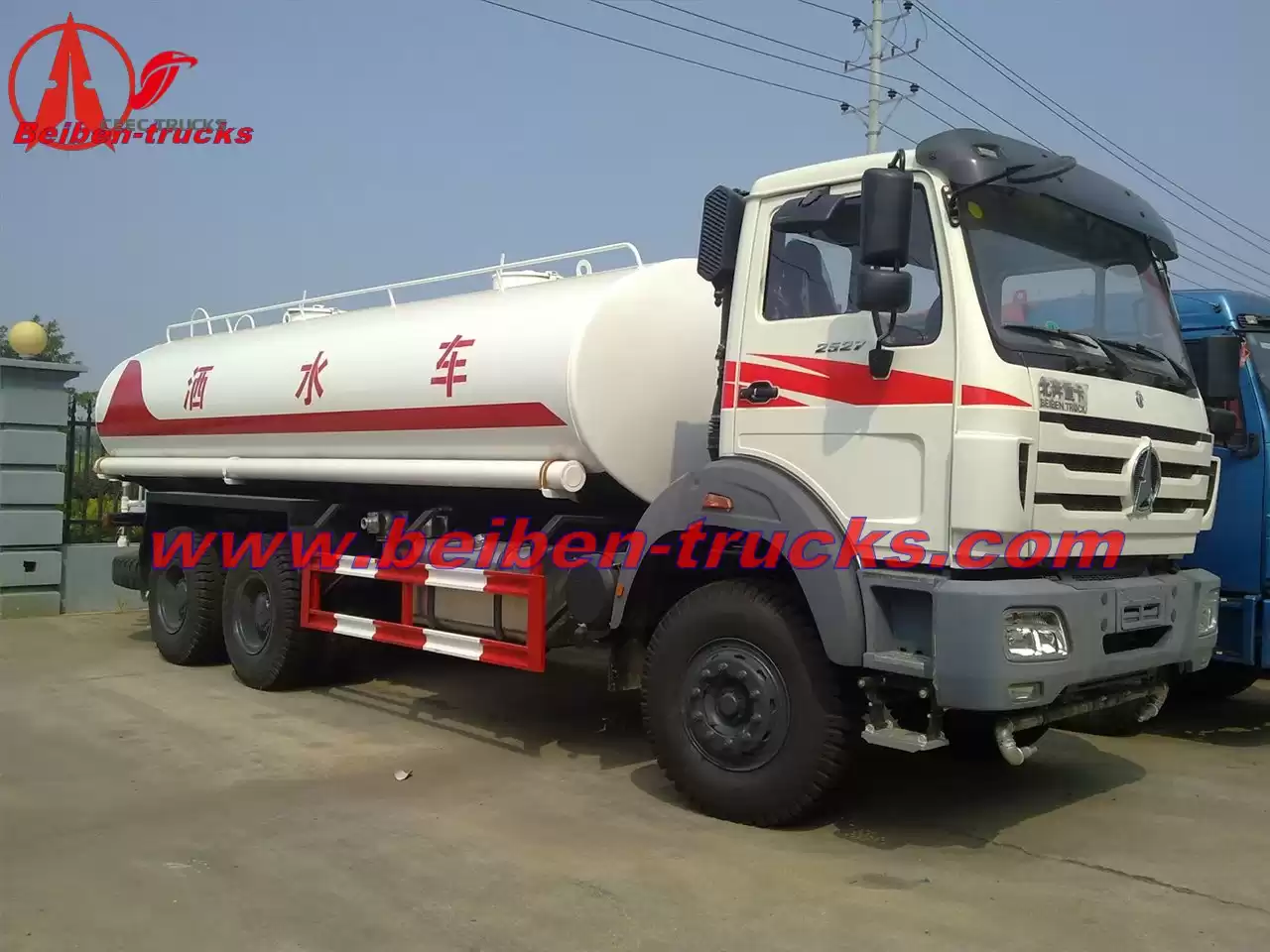

Beiben military quality water tank truck
Cabin / Passenger Capacity
|
One and half row Seat (optional one row cabin), flat top with a bed, tiltable,
|
Chassis
|
Model
|
ND1252
|
Overall dimensions
|
9465*2500*3370 mm
|
G.V.W
|
25000 kg
|
Net weight
|
11800 kg
|
Design load
|
23000 kg
|
Drive type
|
6x4
|
Suspension F/R
|
1410/2205 mm
|
Wheelbase
|
4500+1350 mm
|
Number of axles
|
3
|
Axle-load
|
7000/18000 kg (two rear driving axle)
|
Approach/Departure Angle
|
12/12 °
|
Number of Spring leafs
|
9/10
|
Track F/R
|
2020/1847/1847 mm
|
Tire ( No. & specification)
|
11.00-20, 10pcs+1pc ( optional 11.00R20)
|
Max speed (Km/h)
|
≥ 96 km/h
|
Brake system
|
Pneumatic braking
|
Steering
|
Power steering
|
Transmission
|
DC7J100T, Mechanical 7+1
|
Engine
|
Engine model
|
WP6.240 (EURO 3 emission)
|
Type of fuel
|
diesel
|
Power
|
176 kw ( 240 hp )
|
Exhaust
|
6750 ml
|
Water Tank
|
Tank capacity
|
18000~30000 Liters = 18~30 m3
|
Tank shape
|
Oval shape.
|
Water tanker size
|
6000*2300*1500 mm (18 m3)
|
Tank material
|
Mild steel / stainless steel / aluminum alloy
|
Standard equipment
|
With water pump, water cannon with working platform.
fire valve, water valves, water pipes.
Also could modify in potable or transport water tank.
|
