we the most professional beiben fuel trucks manufacturer,
more than 15 years great experience on manufacturing beiben 2527 fuel
truck, beiben 2529 fuel truck,beiben 2534 fuel truck ,beiben 2538 fuel
tanker truck,beiben 3132 fuel tankers.
The beiben fuel tanker
from us can be beiben 4*2 fuel tanker, beiben 6*4 fuel tanker and beiben
8*4 fuel tankers. All the beiben fuel tanker trucks from ceec trucks
plant can have long guarantee more than 12 months.
Beiben fuel truck 6*4 drive type chassis specification .
|
Truck Chassis Model
|
Beiben ND1251B44(NORTHBENZ)
|
| Engine
|
WP10.270
|
|
Type
|
Vertical ,in line,
Water-cooled,four-stroke cycle diesel engine
|
|
Max Output Power, kw/rpm
|
199 / 2200
|
|
Max Torque,N.m/rpm
|
1100/1200-1600
|
|
Displacement,ml
|
9726
|
|
Emission Standard
|
Euro 3
|
|
Transmission
|
9JS135(FAST)
|
|
Speed No.s
|
9 Forward and 1 Reverse Speed
|
|
Max Output Torque,N.m
|
1350
|
|
Max Output Speed,rpm
|
2600
|
|
Input Power,hp
|
243
|
|
Oilling ,liters
|
12.5
|
|
Gearshift
|
Manual (Mechanical)
|
|
Clutch
|
GFX430
|
|
Type
|
Single-plate dry coil-spring
dry frictional clutch, diameter 430mm, hydraulically operating with air
assistance
|
|
Axle
|
BENZ
|
|
Front Axle
|
Mercedes Benz Technology
|
|
Front Axle Capacity,kg
|
7000
|
|
Front Axle Type
|
Double-shoe pneumatic brake
,driving steering axle
|
|
Middle&Rear Axle
|
Mercedes Benz Technology
|
|
Middle&Rear Axle
Capacity,kg
|
7000/18000
|
|
Middle&Rear Axle Type
|
Double-shoe pneumatic brake
ductile casting casing, with hub redactor, double reduction driving axle
|
|
Rear Axle Ratio
|
5.921
|
|
Brakes
|
|
|
Service brake
|
Brake gap can be adjusted
automatically, double circulation air brake system
|
|
Assistant brake
|
Engine exhaust brake
|
|
Park brake
|
Potential springs pressing on
middle and rear wheels
|
| Sterring
|
TAS85(ZF)
|
|
Drive Side
|
Left hand drive
|
|
Steering Type
|
Hydraulic steering with power
assistance,ZF8098
|
|
Output Torque,Nm
|
5890
|
|
Rocker shaft swing angle,degree
|
90
|
|
Drive Ratio
|
1:160
|
|
Cabin
|
NG80
|
|
Type
|
Forward control, all steel
welded construction, long cab, inner A/C, one bed
|
|
Seat Nos
|
3
|
|
Bunk No.s
|
1
|
|
Wiper No.s
|
2
|
|
Tires
|
12.00-20
|
|
Tire No.s
|
10+1 spare tire
|
|
Type
|
Nylon tires
|
|
Rims
|
8.25-20
|
|
Rim No.s
|
12+1 spare tire
|
|
Type
|
All steel dicasting
|
|
Electrical
|
24V
|
|
Battery Voltage,V
|
2X12
|
|
Battery Ampere,Ah
|
135
|
|
Generator,V,A
|
28,35
|
|
Starter, Kw/24V
|
5.4
|
All the fuel tanker components that we applied on beiben fuel trucks is china famous brand and reliable quality.

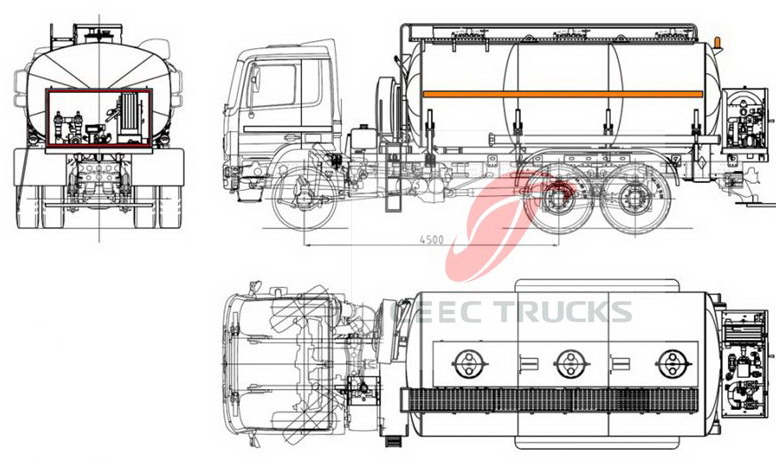

Beiben fuel tanker upper structure technical specification.
|
Beiben Oil Tank Truck Model
|
Beiben 2527 truck chassis .
|
|
General Information
|
|
|
Drive
Mode
|
6x
4
|
|
Wheel
base,mm
|
4450+1450
|
|
Overall
Length,mm
|
9455
|
|
Overall
Width,mm
|
2500
|
|
Overall
Height,mm
|
3375
|
|
N.V.W,kg
|
25000
|
|
Tare
Weight,kg
|
11470
|
|
Max.Traveling
Speed,km/h
|
85
|
|
Front
Overhang,mm
|
1410
|
|
Rear
Overhang,mm
|
2145
|
|
Front
Track,mm
|
1995
|
|
Rear
Track,mm
|
1800
|
|
Min.
Ground Clearance,mm
|
327
|
|
Fule
Tank Capacity,liters
|
400
|
|
Tank Body
|
Tank Shape Ellipse Style
|
|
Capacity
,liters
|
22,000
|
|
Compartments,pcs
|
3
|
|
Pressure,Mpa
|
0.084
|
|
Outlet
Pipe Diameter,mm
|
80
|
|
Baffles,pcs
|
6
|
|
Manhole
No.s
|
3
|
|
Hose,pcs
x m
|
2
x 6
|
|
Filling
Time,min
|
<10
|
|
Drainage
Time,min
|
<22
|
|
Length,mm
|
7400
|
|
Width,mm
|
2380
|
|
Height,mm
|
1550
|
|
Material
Thickness,mm
|
5
|
|
Cover
Thickness,mm
|
5
|
|
Tank
Material
|
Carbon
steel, Q235A 16Mn
|
|
Pump
|
80YHCB-60
|
|
Self-Suction
Depth,m
|
6.5
|
|
Capacity
,liters/h
|
60
|
|
Flow
Length,m
|
20
|
|
Flow
Speed, l/min
|
960
|
|
Shaft
Power,kw
|
22.5
|
|
Inlet
Diameter,mm
|
80
|
|
Outlet
Diameter,mm
|
60
|
|
Pressure,Mpa
|
0.6
|
|
Suction
Time,min
|
<4
|

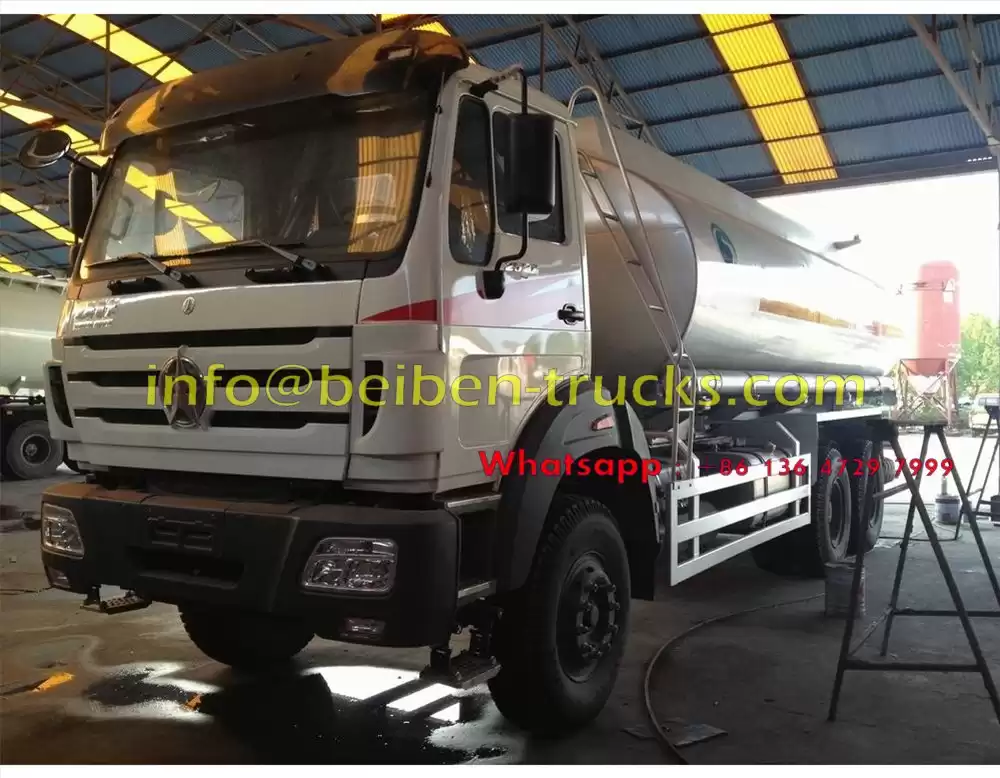

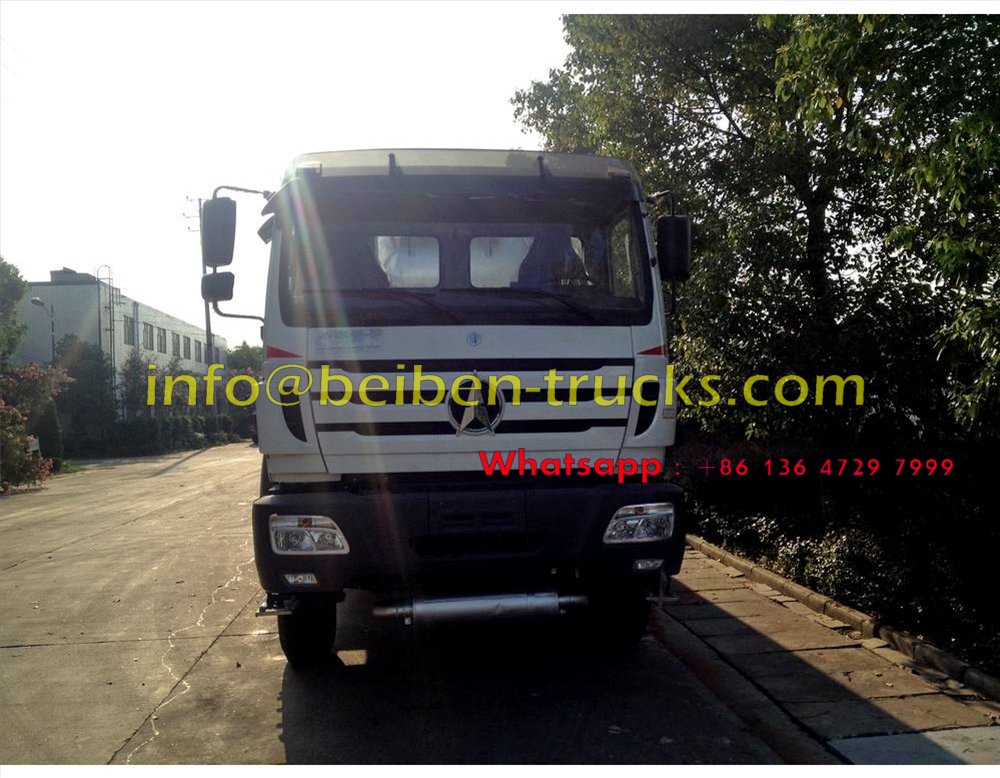

Benz ECR29 standard cabin, beiben NG80B truck cabin, good performance,and high safety.

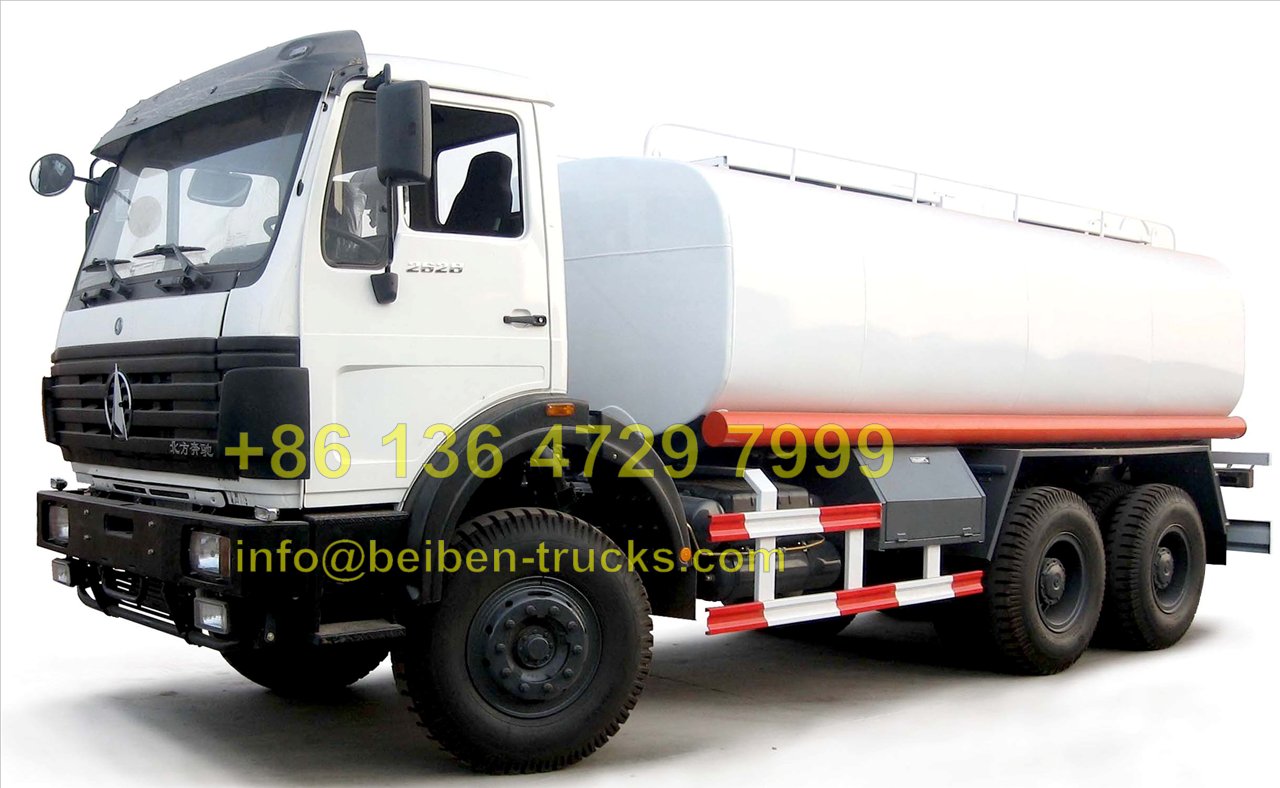

15 years experience on beiben tanker trucks manufacturer, our experienced engineer and worker are familiar with each detail for the beiben 20 CBM fuel tanker truck design and producing.

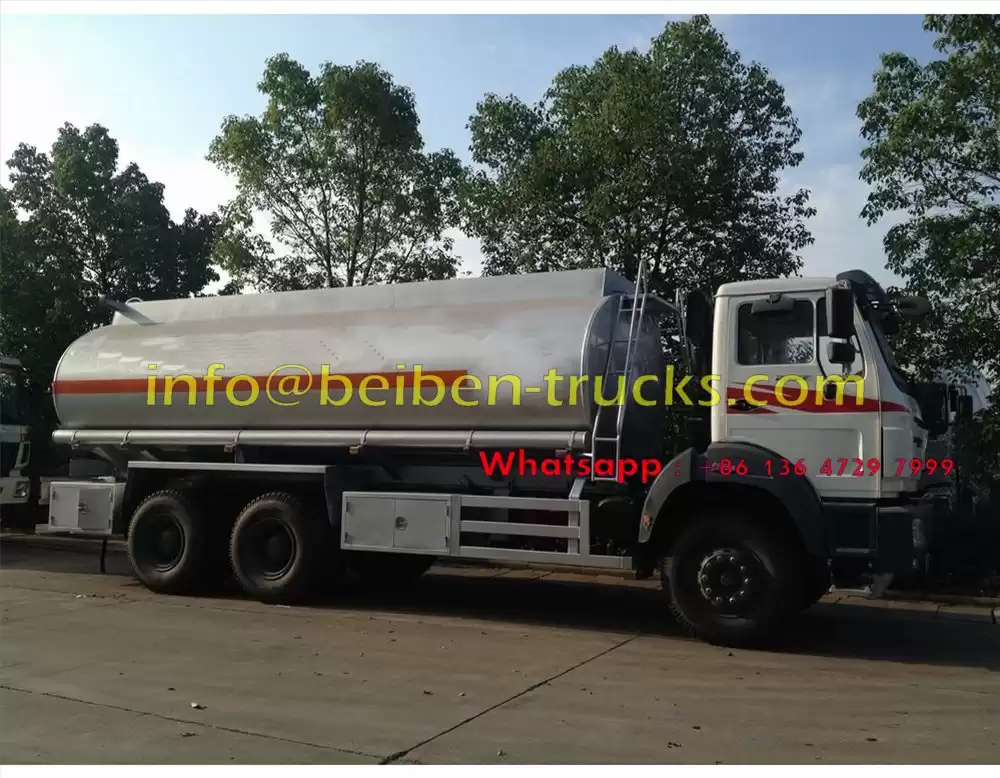

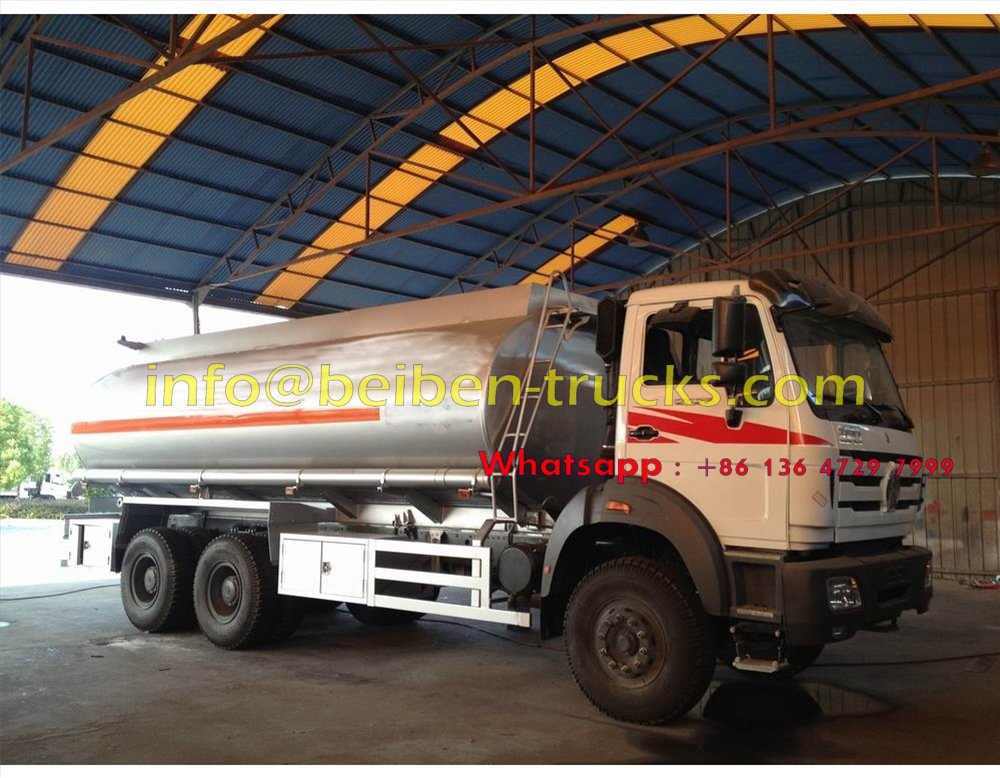

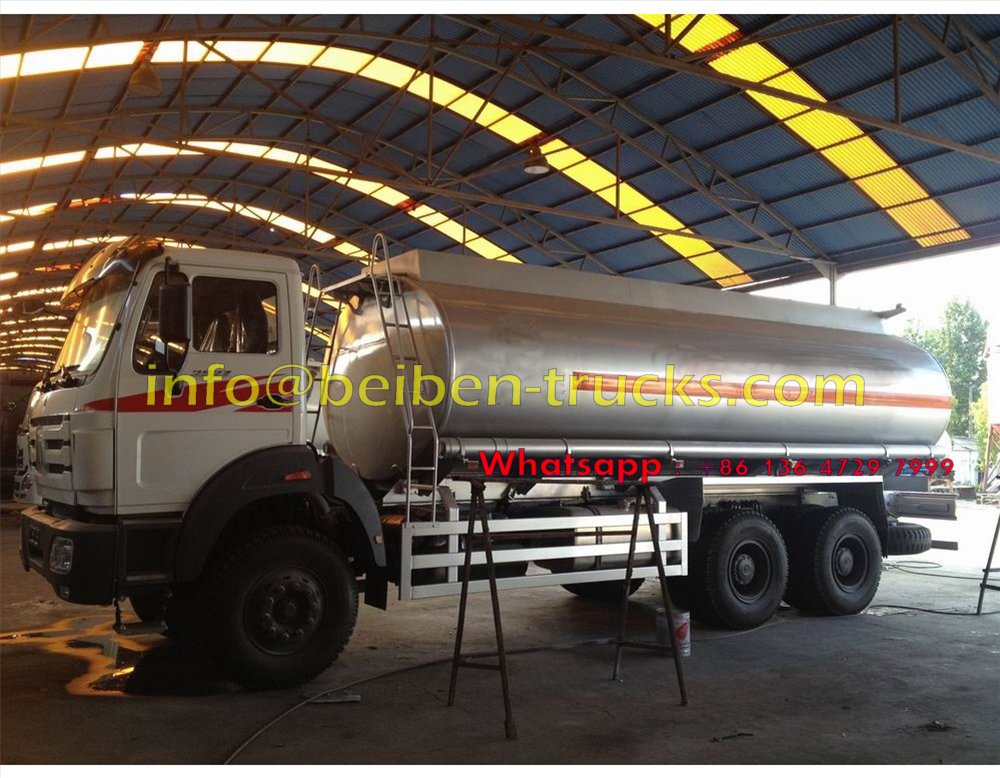

The extremely combination of beiben 2527 truck chassis and CEEC fuel tanker upper structure. Thanks for the great work of our workers.

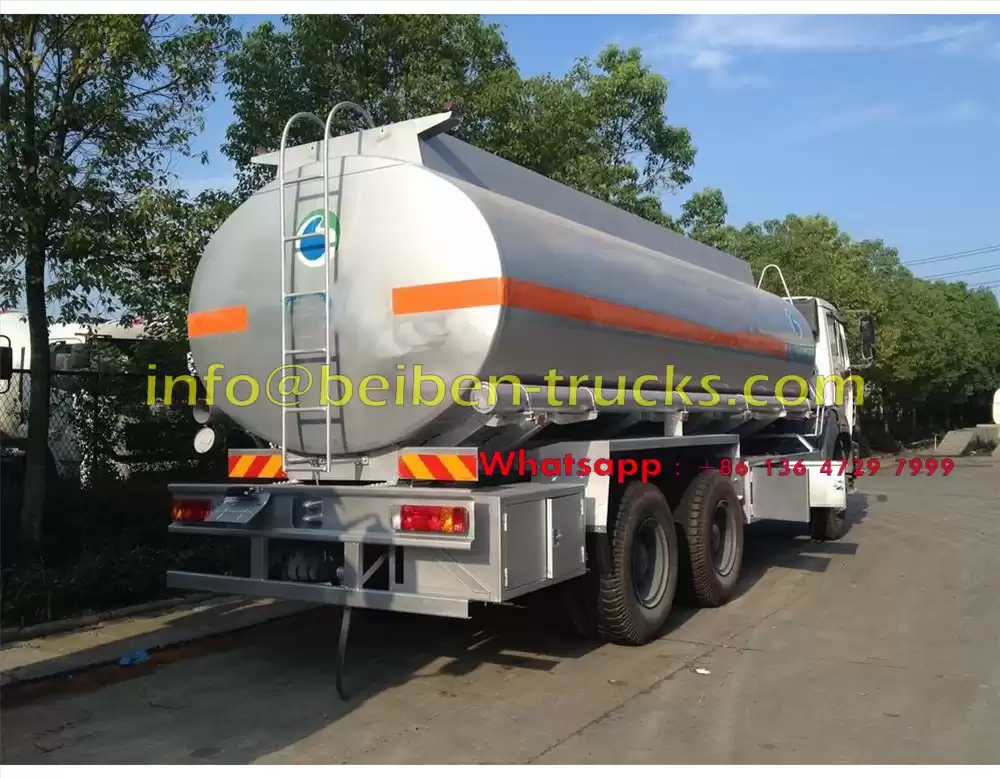

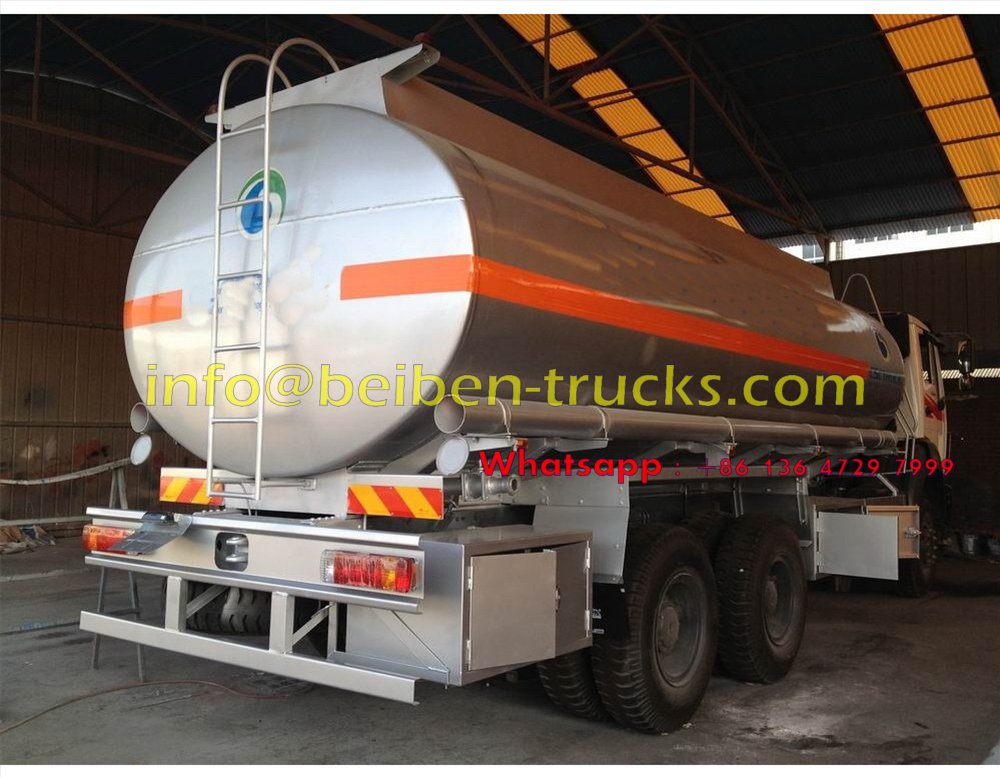

Durable painting for the whole beiben fuel tanker trucks, shiny performance.

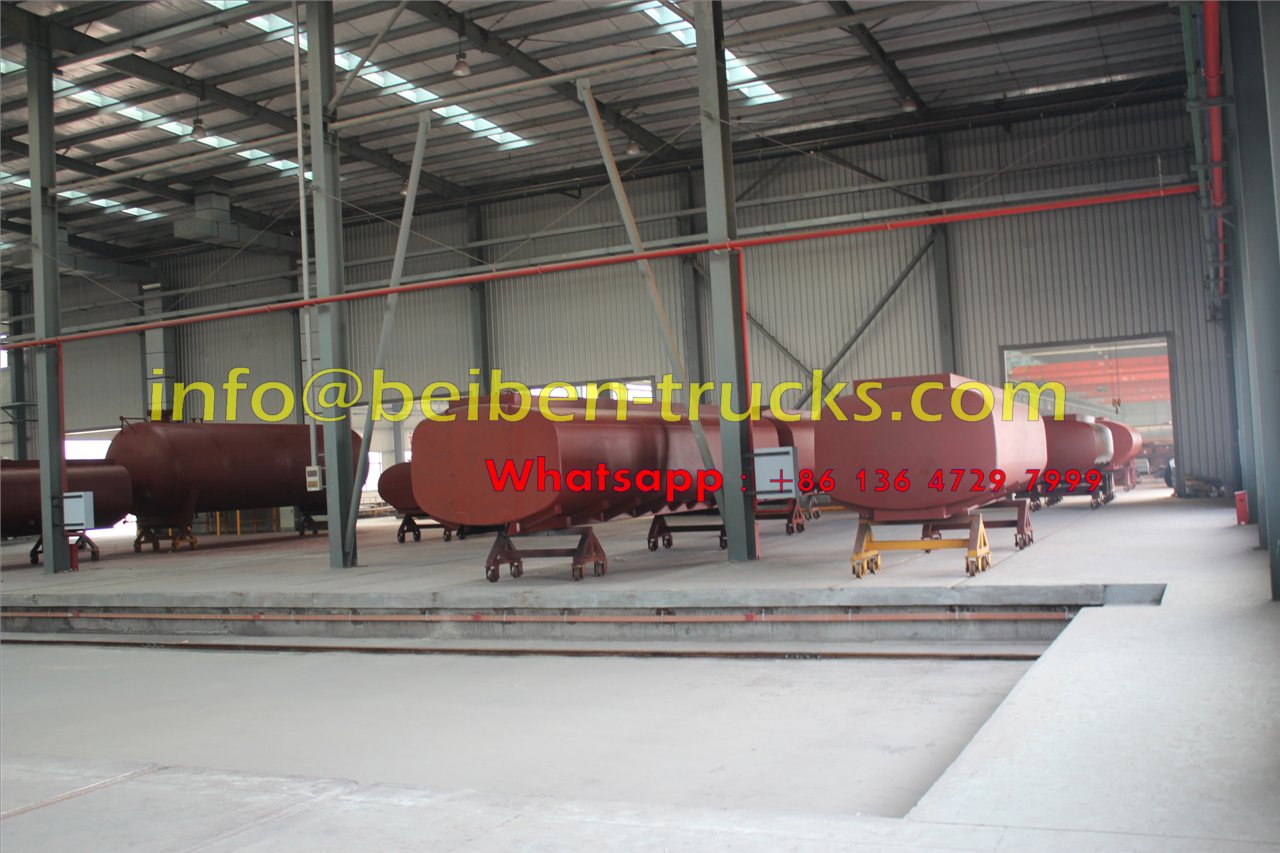

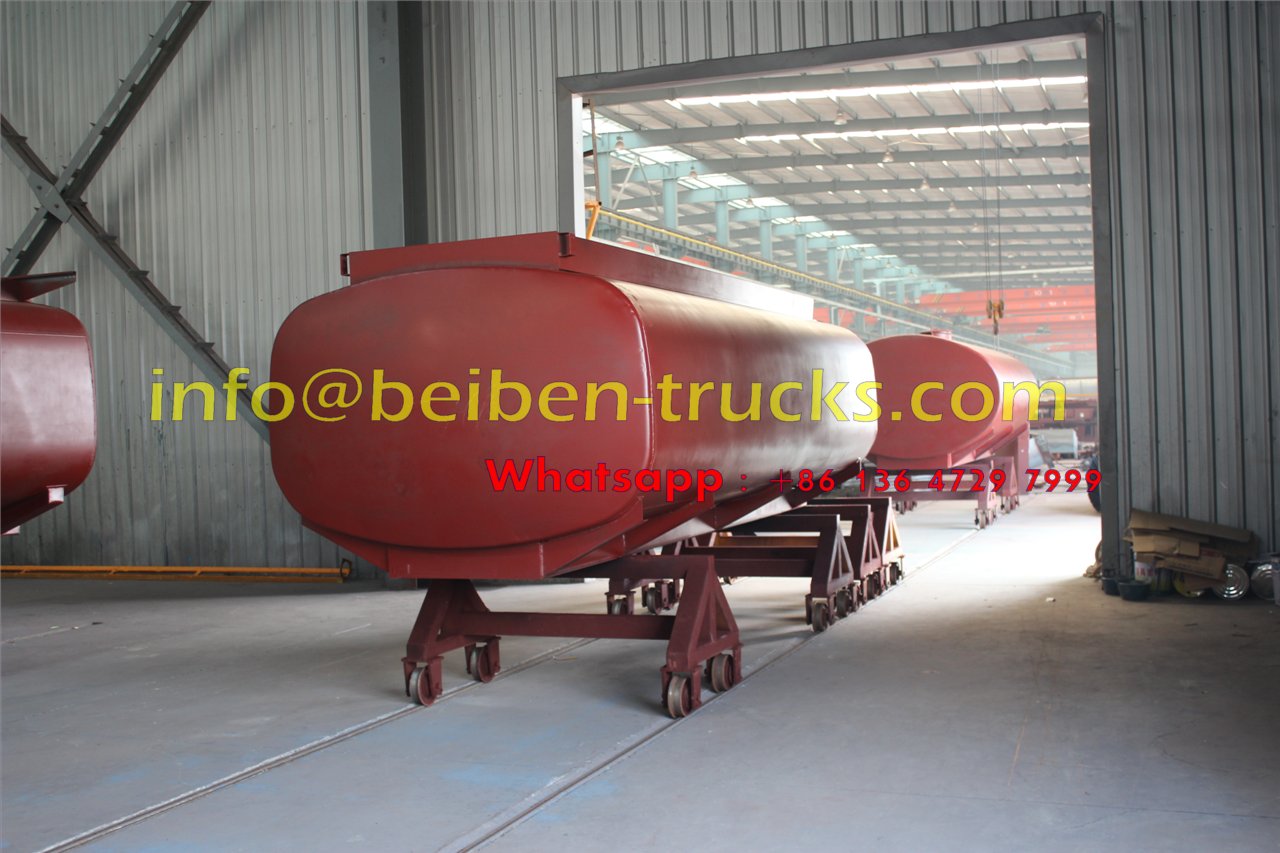

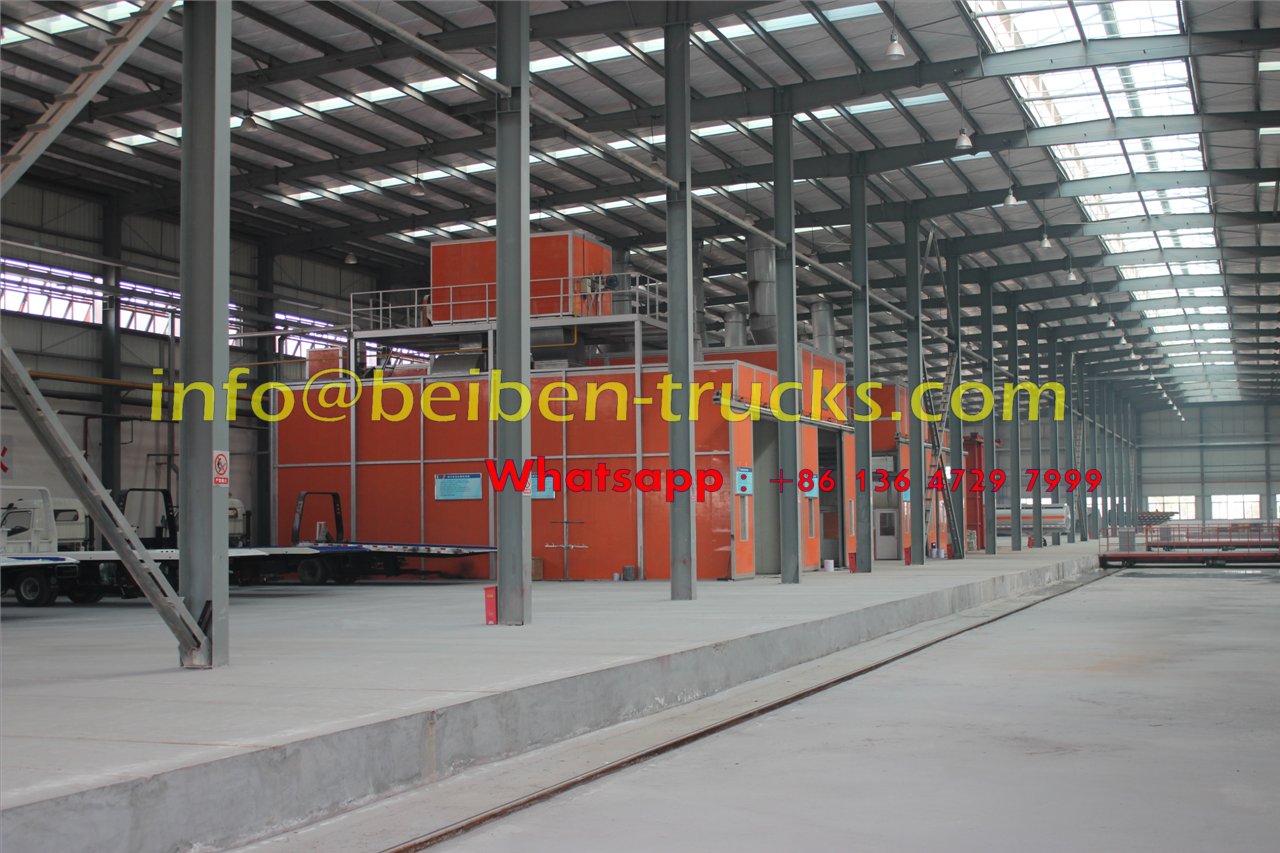

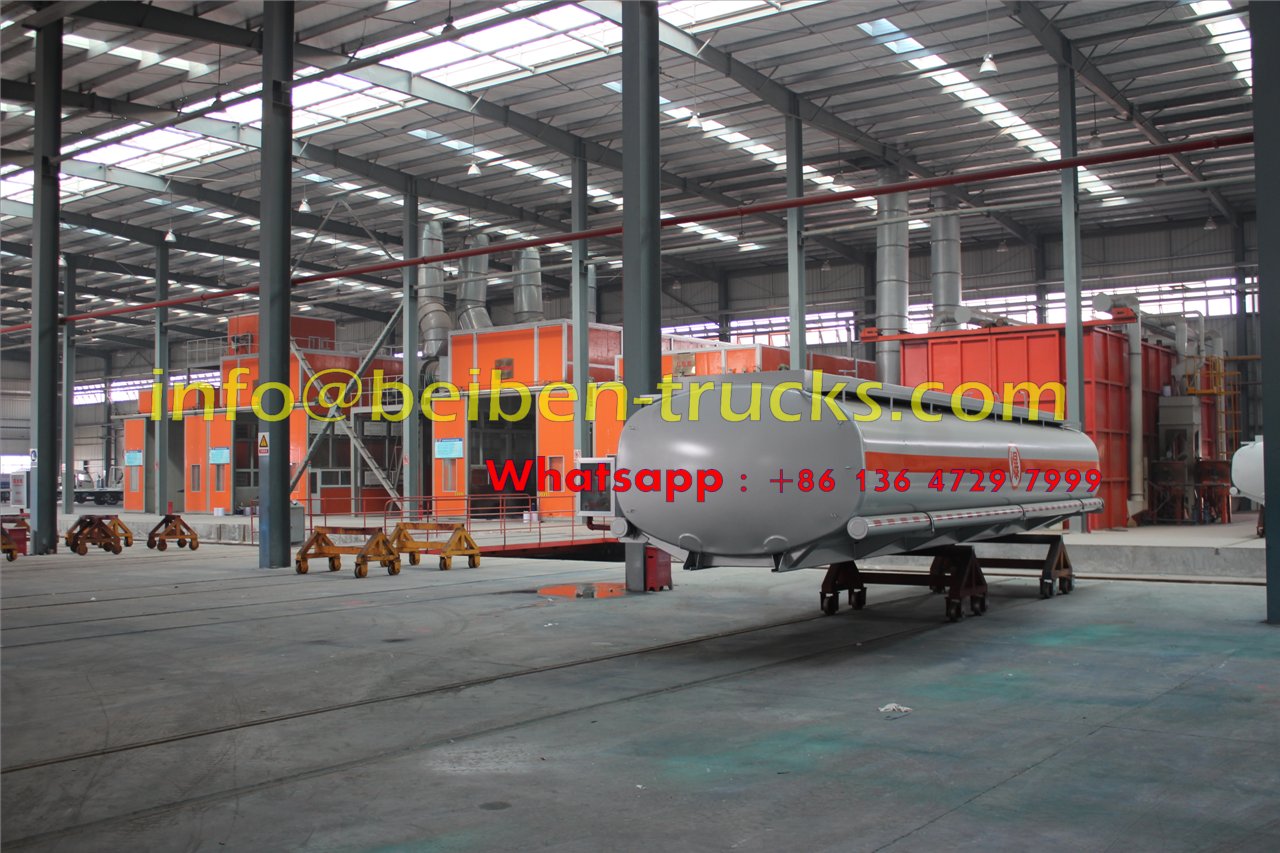

Beiben fuel tanker truck workshop.
