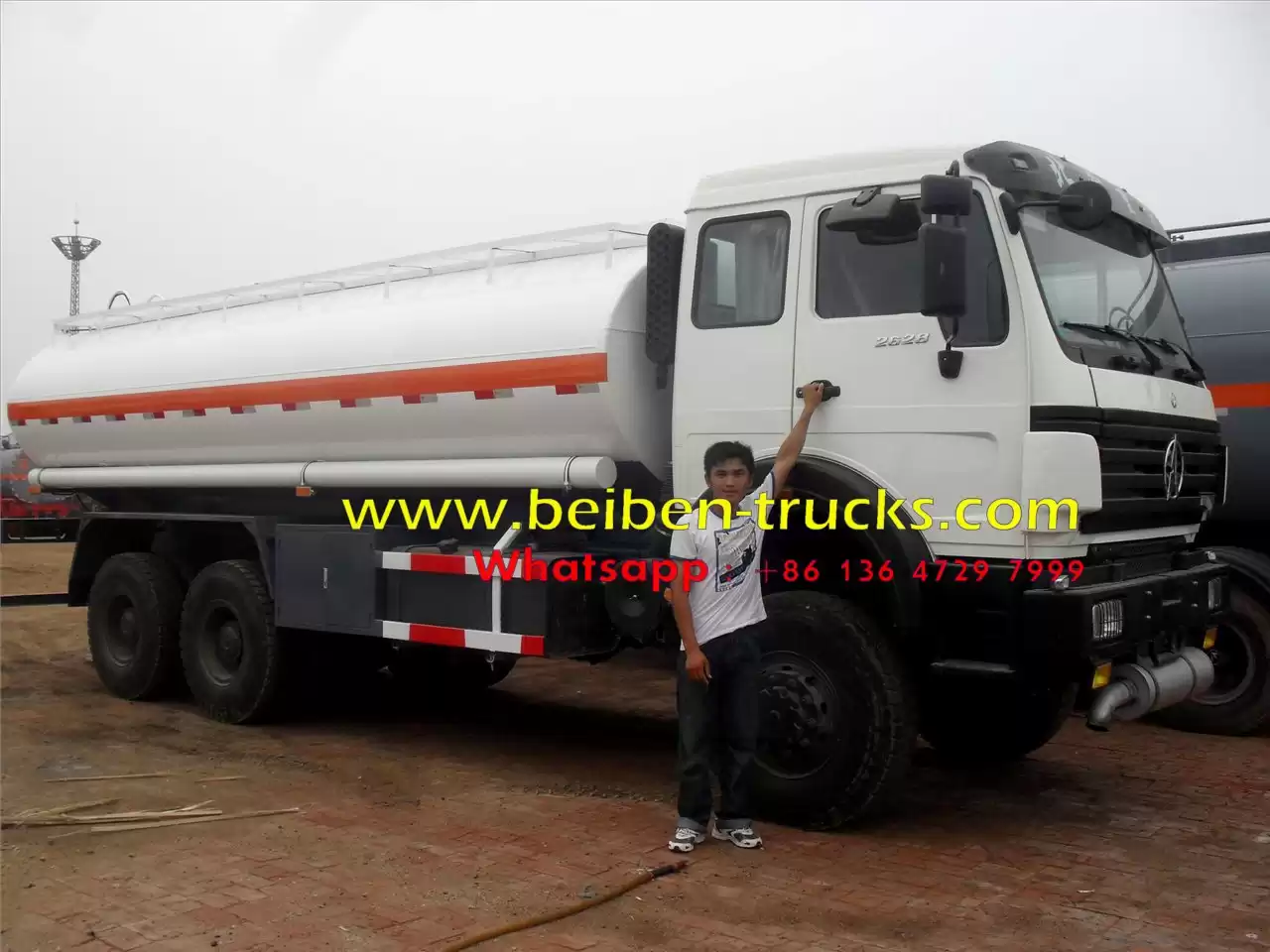

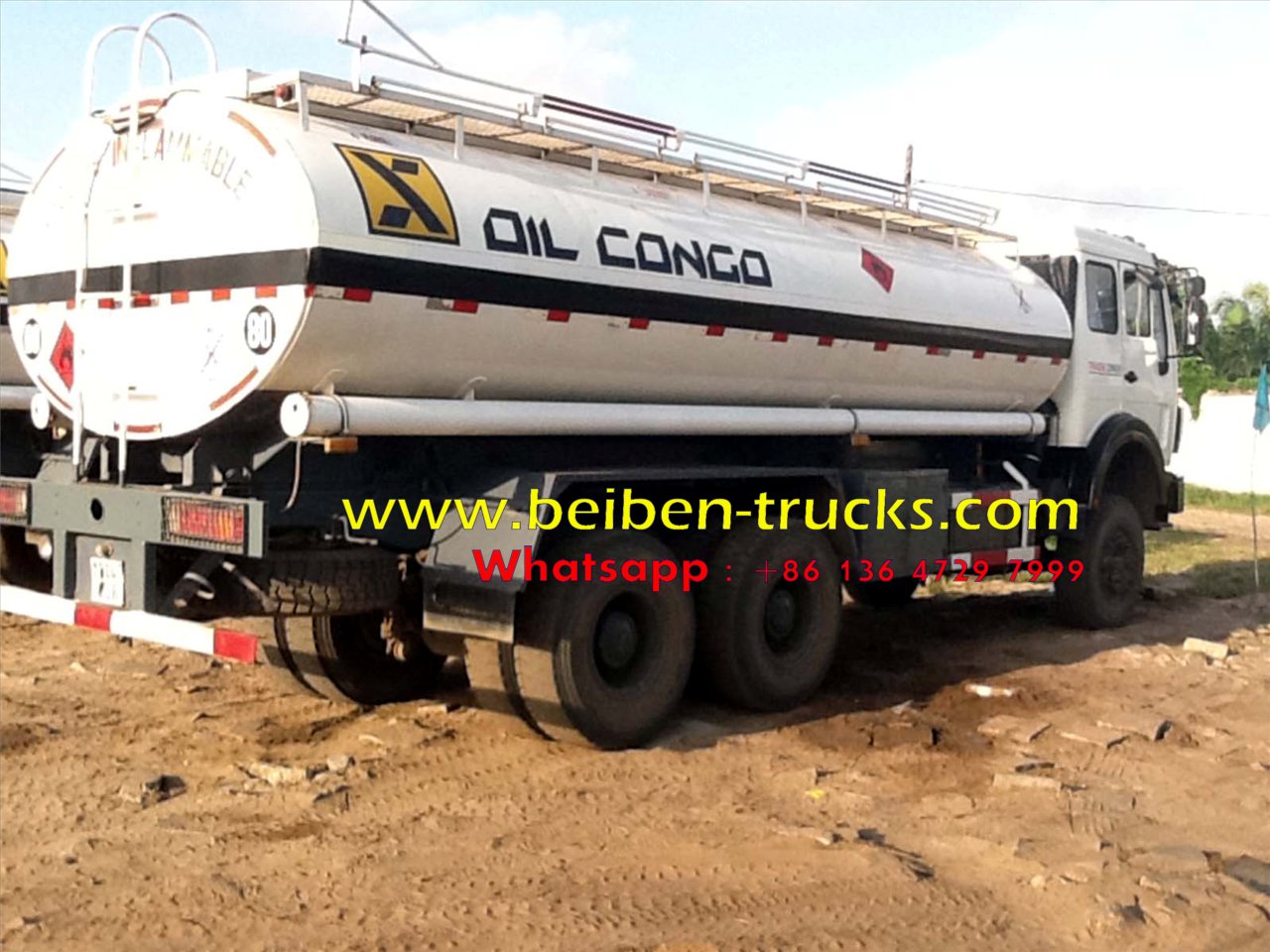

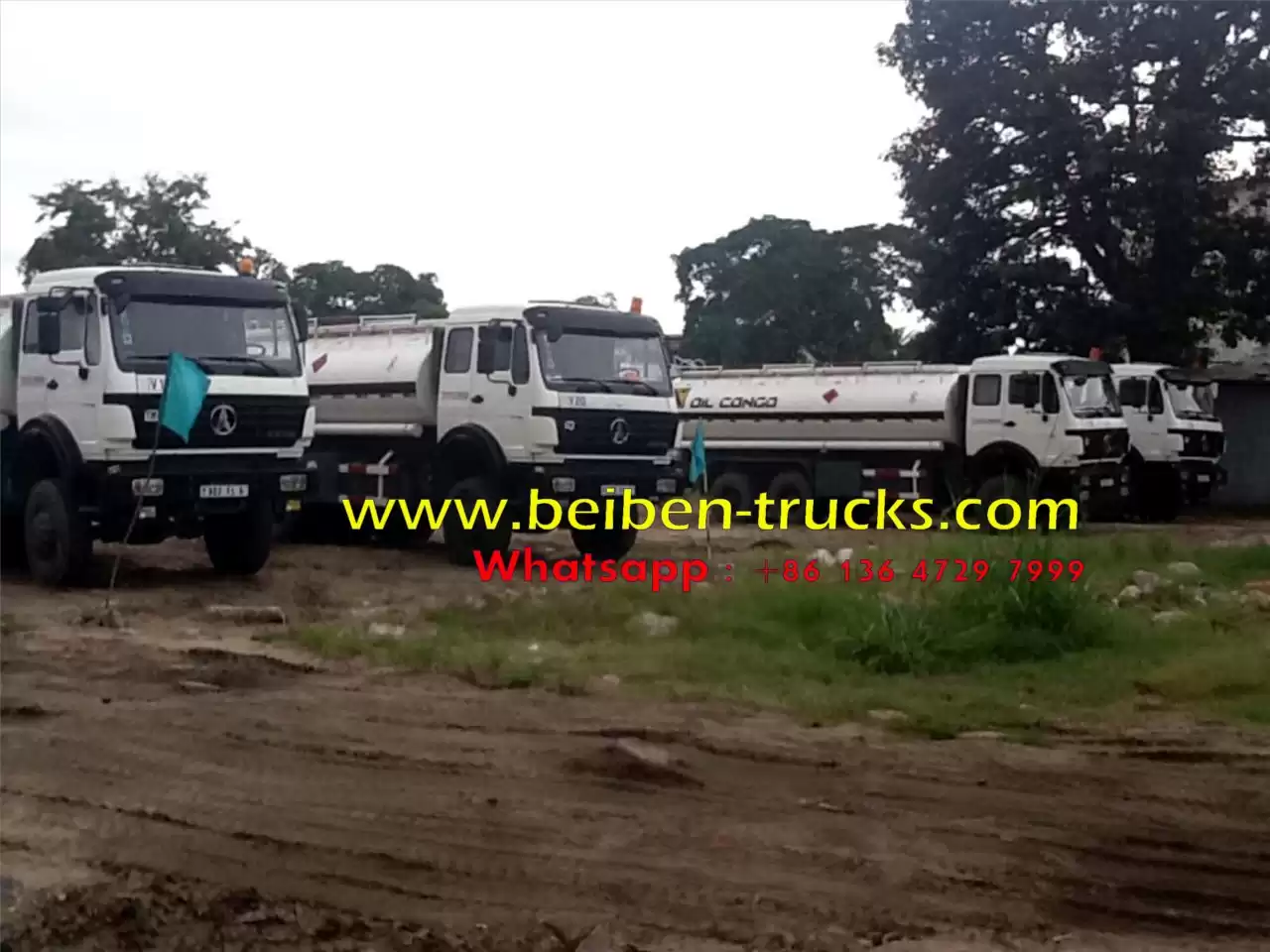

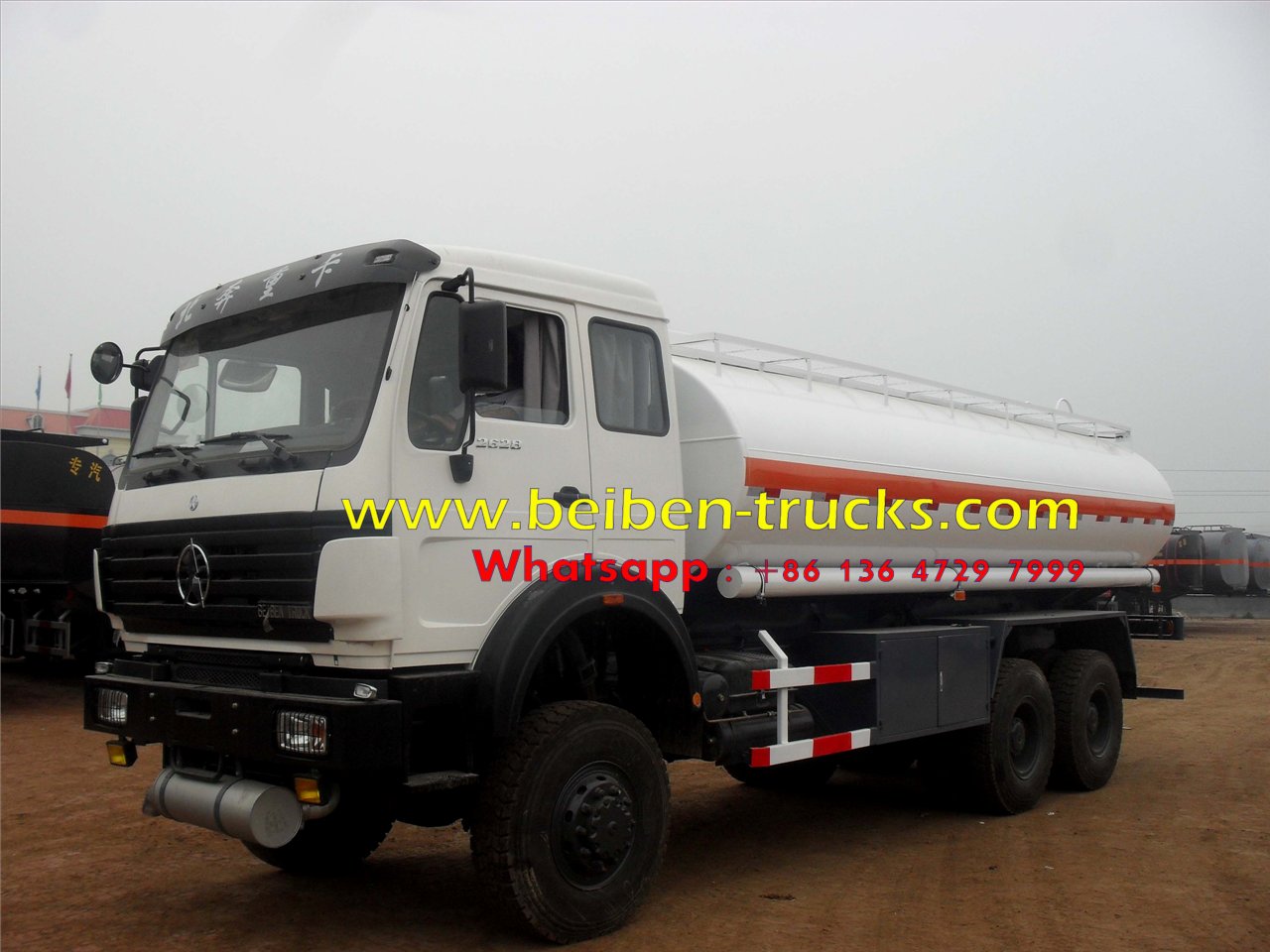

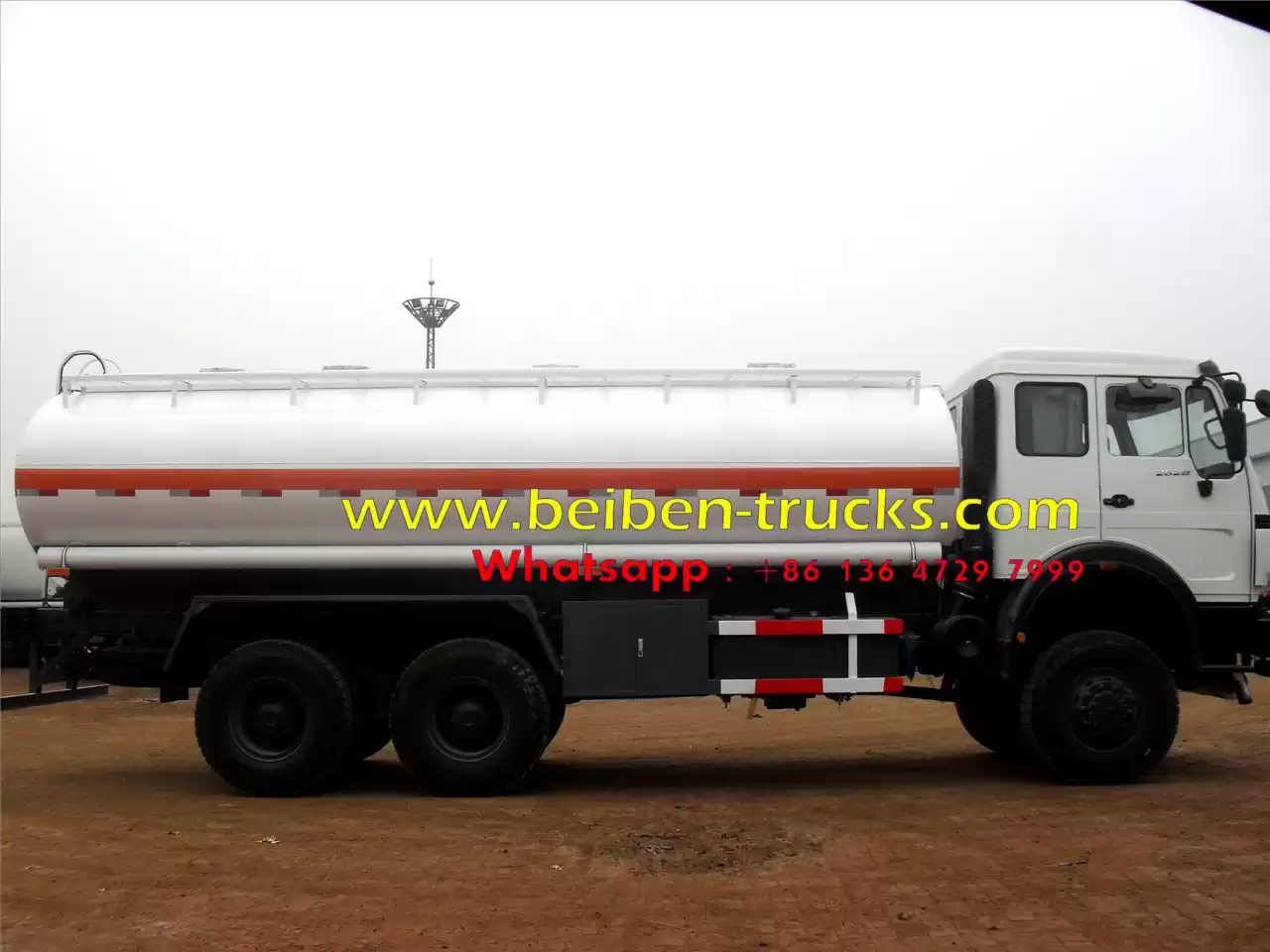

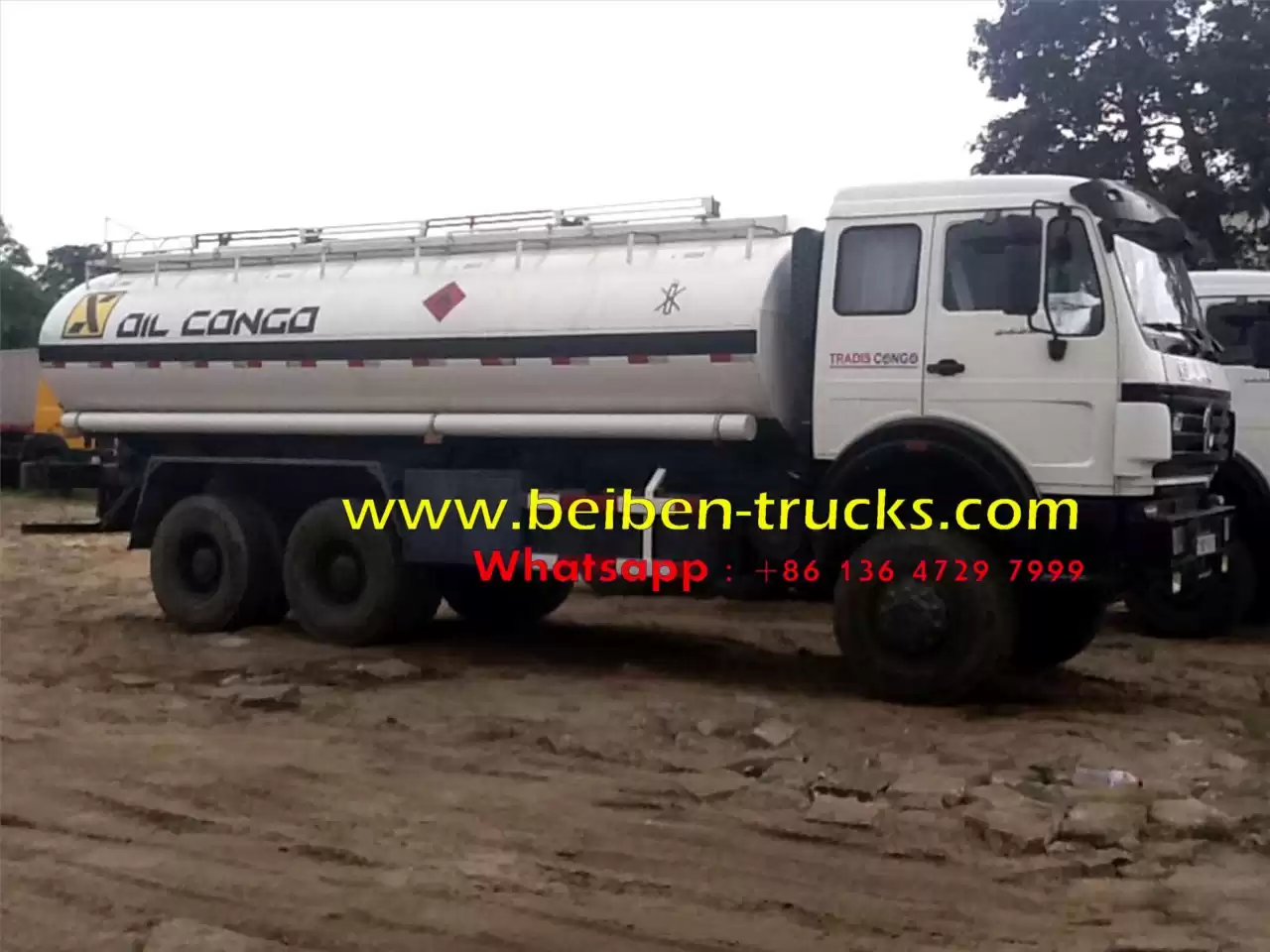

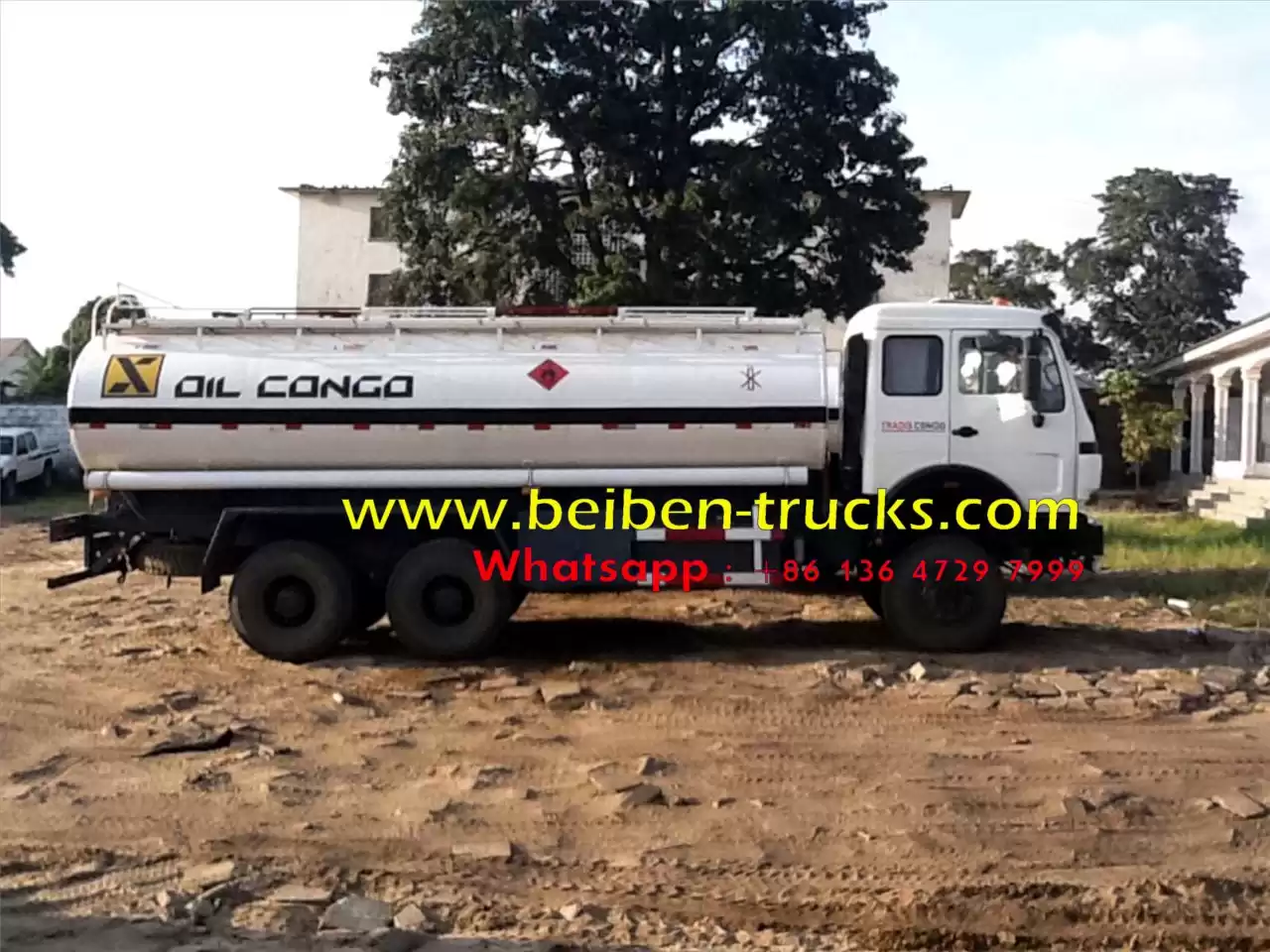

Beiben 2534 fuel tanker truck 6 wheel drive for congo country.
The most professinal beiben 2529,2534,2538,2542 off road fuel tanker truck, water tanker truck, truck mounted crane, fire truck manufacturer in china.

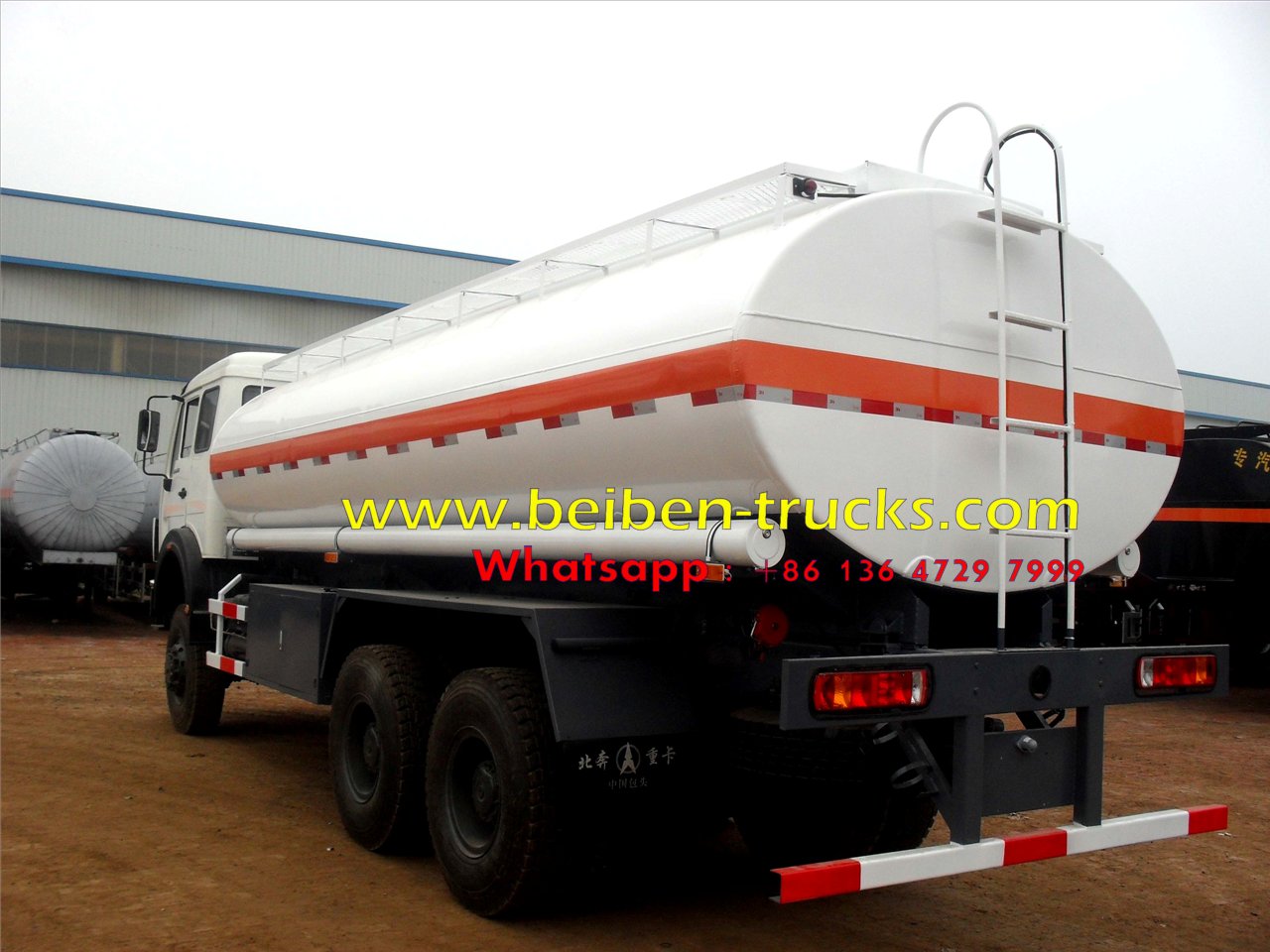

| 16m3 BeiBen 6*6 fuel tanker truck
|
|
| Item
|
Descriptions
|
Spesifications and Types
|
|
| Vehicle
|
Brand
|
CEEC
|
|
| Model
|
CEEC5256GJYZ
|
|
| Overall Dimensions L*W*H
|
10465x2500x3420mm
|
|
| Weights
|
GVW.
|
25,000kgs
|
|
| Curb Weight
|
12,270kgs
|
|
| Rated Payload
|
12,600kgs
|
|

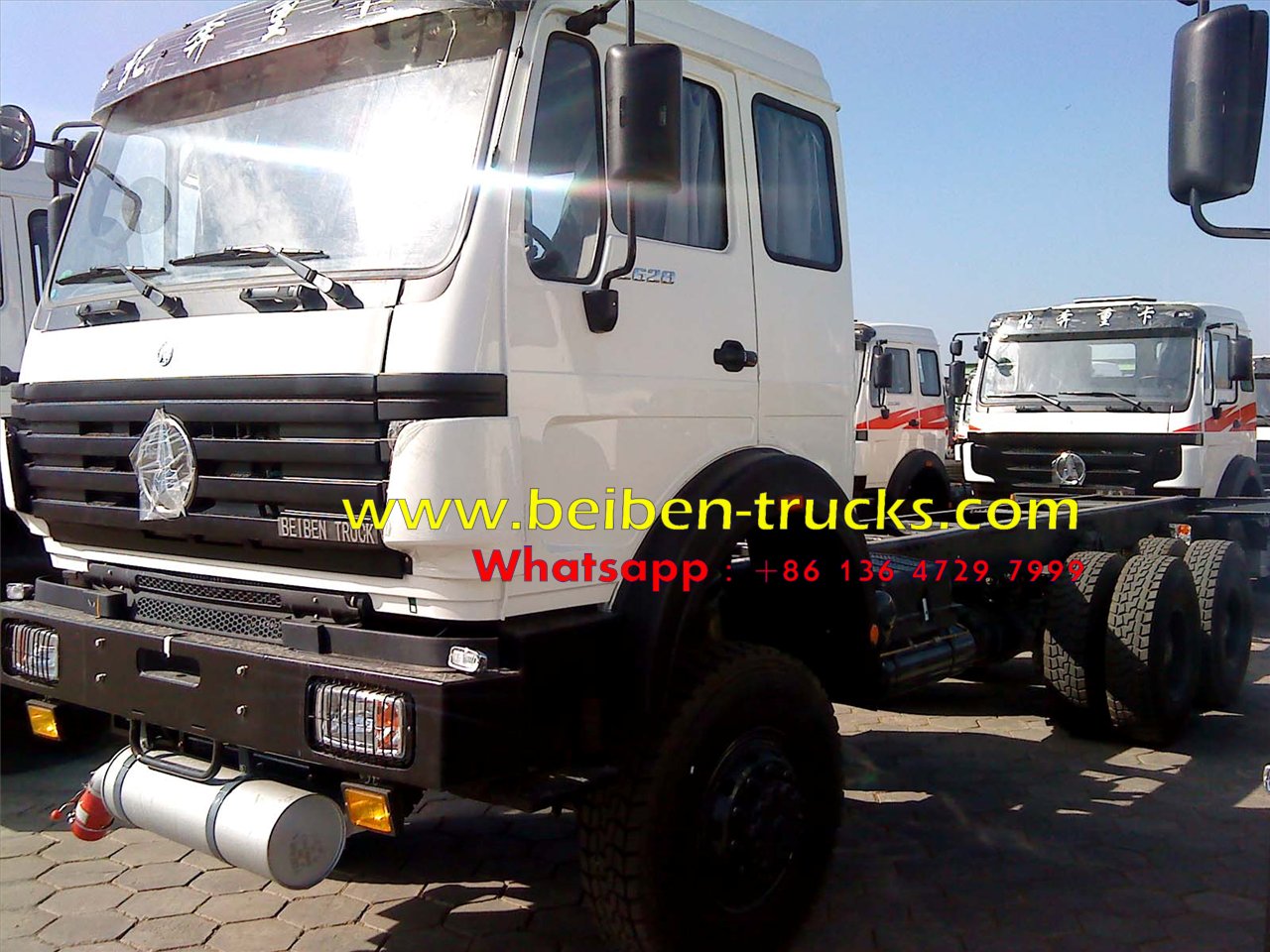

| Chassis
|
Brand
|
BeiBen
|
|
| Model
|
ND1250F50J
|
|
| Drive Type
|
6x6
|
|
| Steering
|
RHD or LHD, power assisted steering
|
|
| Engine
|
Brand
|
WeiChai
|
|
| Model
|
WP10.375
|
|
| Power
|
276Kw /375HP
|
|
| Displacement
|
9726ml
|
|
| Emmission Level
|
EURO 3
|
|
| Max. Torque
|
970Nm at 1400rpm
|
|
| System
|
Inline six-cylinder electronic control system Enhanced high pressure common rail particle filter
|
|
| Performance
|
Max. Speed
|
80km/h
|
|
| Wheel base
|
5050+1450mm
|
|
| Tyre Specifications
|
12.00-20
|
|
| No. of Tyre
|
13pcs (1 spare tyre included)
|
|
| Axle Capacity
|
Front 8 Tons & rear 12Tons
|
|
| Transmission
|
8 forward gears & 1 reverse, Manual
|
|
| Brake
|
Oil brake,drum brake
|
|
| Suspension
|
Leaf spring
|
|
| Electics
|
24V
|
|
| Cab
|
Cab Capacity
|
3 persons allowed
|
|
| Cab Type
|
One and a half row
|
|

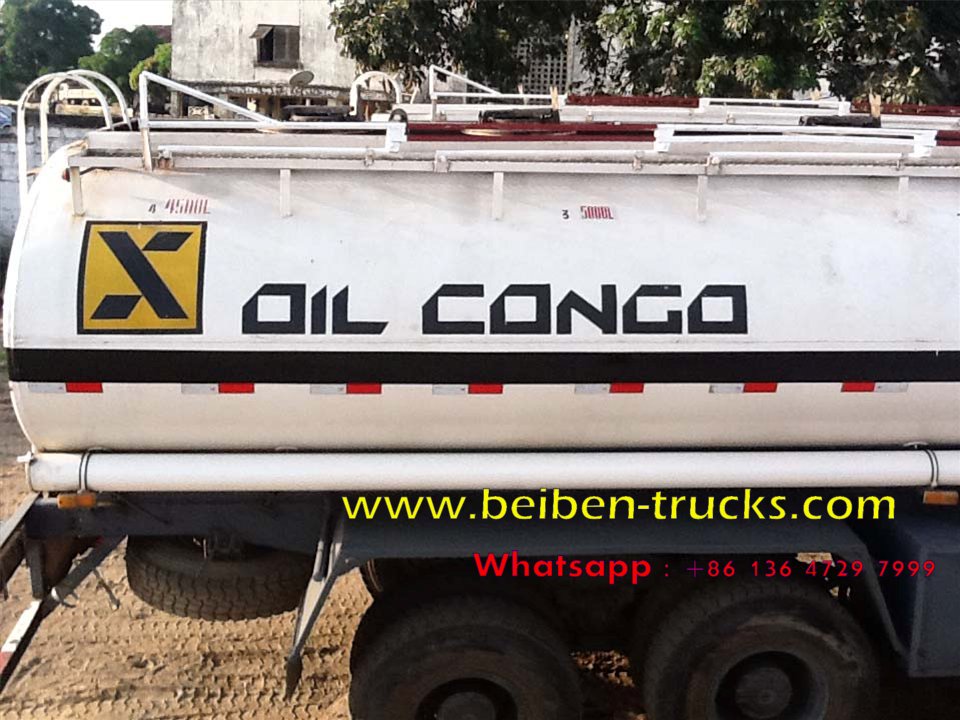

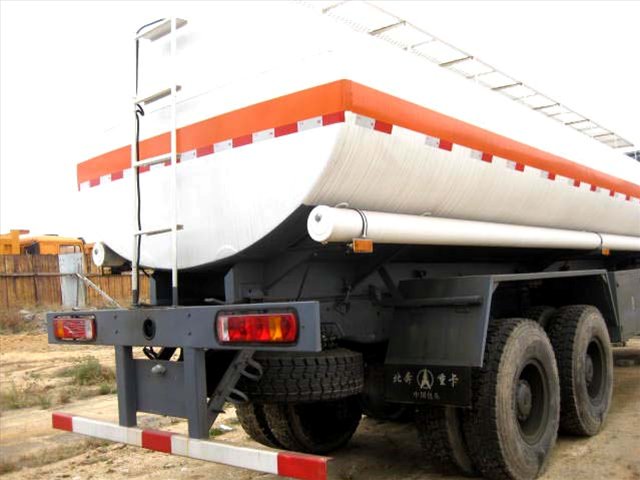

| Body/Superstructure
|
Tank
|
Capacity
|
16 m³
|
|
| Material
|
tank shell 5mm ,dished ends 6mm,compartment boards 5mm,the material is carbon steel
|
|
| Loading System
|
Top filling from manhole or pump fuel into tank from oil inlet valve.
|
|
| Discharging System
|
Pump fuel out from tank or gravity discharge.
|
|
| Basic
Equipments
|
Install fuel pump drive by truck engine through PTO; One manhole, two pcs of fuel hoses (3inches) with complete quick connectors, access ladder, tank top anti-slip steel mesh installed, anti-static device, one fire extinguisher, with two corners’ lights and reflective tape.
|
|
|
|
| Paint
|
Rust proofing primer + undercoat +2 finish coats = 4;
Tank color is according to client’s requirements.
|
|
| Optional Equipments
|
Air Conditioner
|
|
| Tyre type:12.00R20
|
|
| Tank material:Stainless steel
|
|
| The tank thickness :5mm carbon steel
|
|
| Bottom loading
|
|
| Flow meter, rolling hose with nozzle, emergency valve, compartment number, epoxy coating inside tank
|
|
