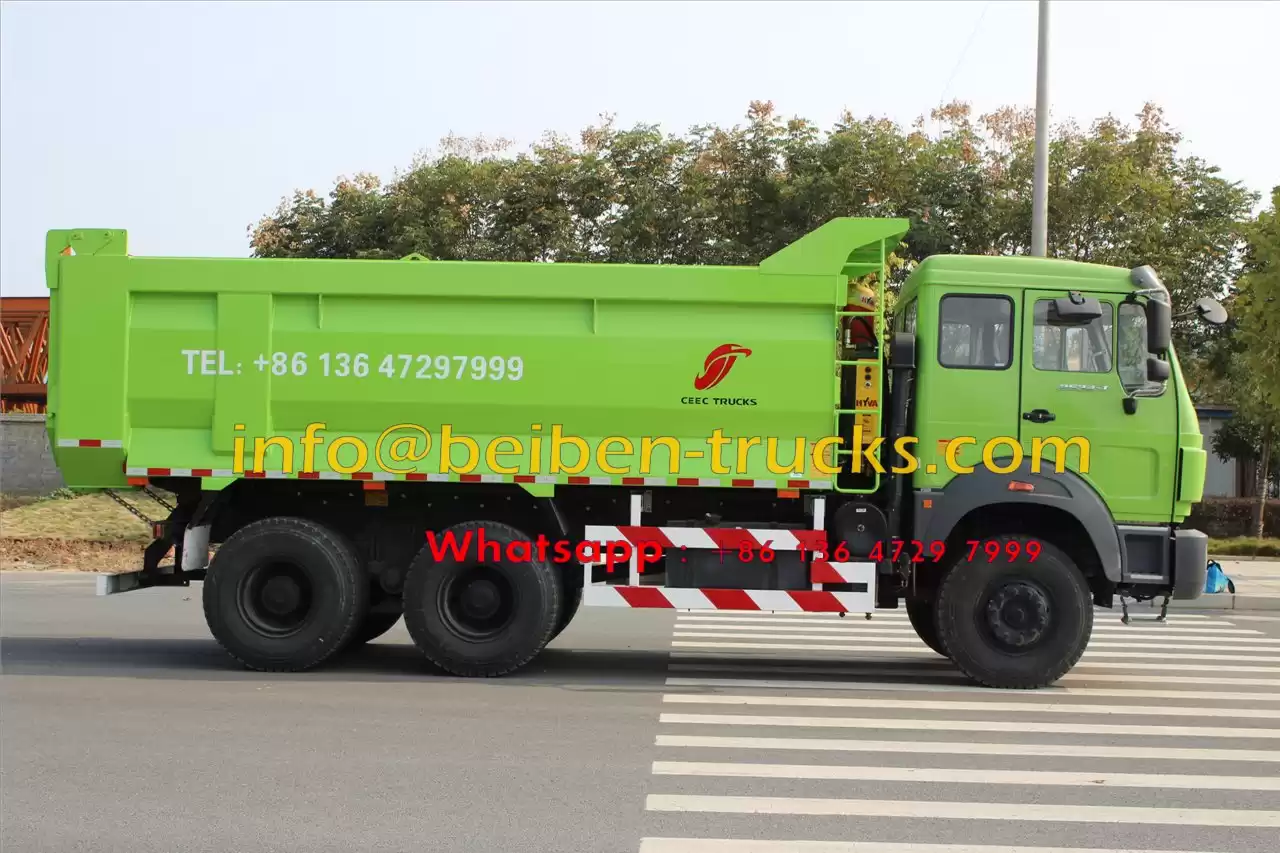

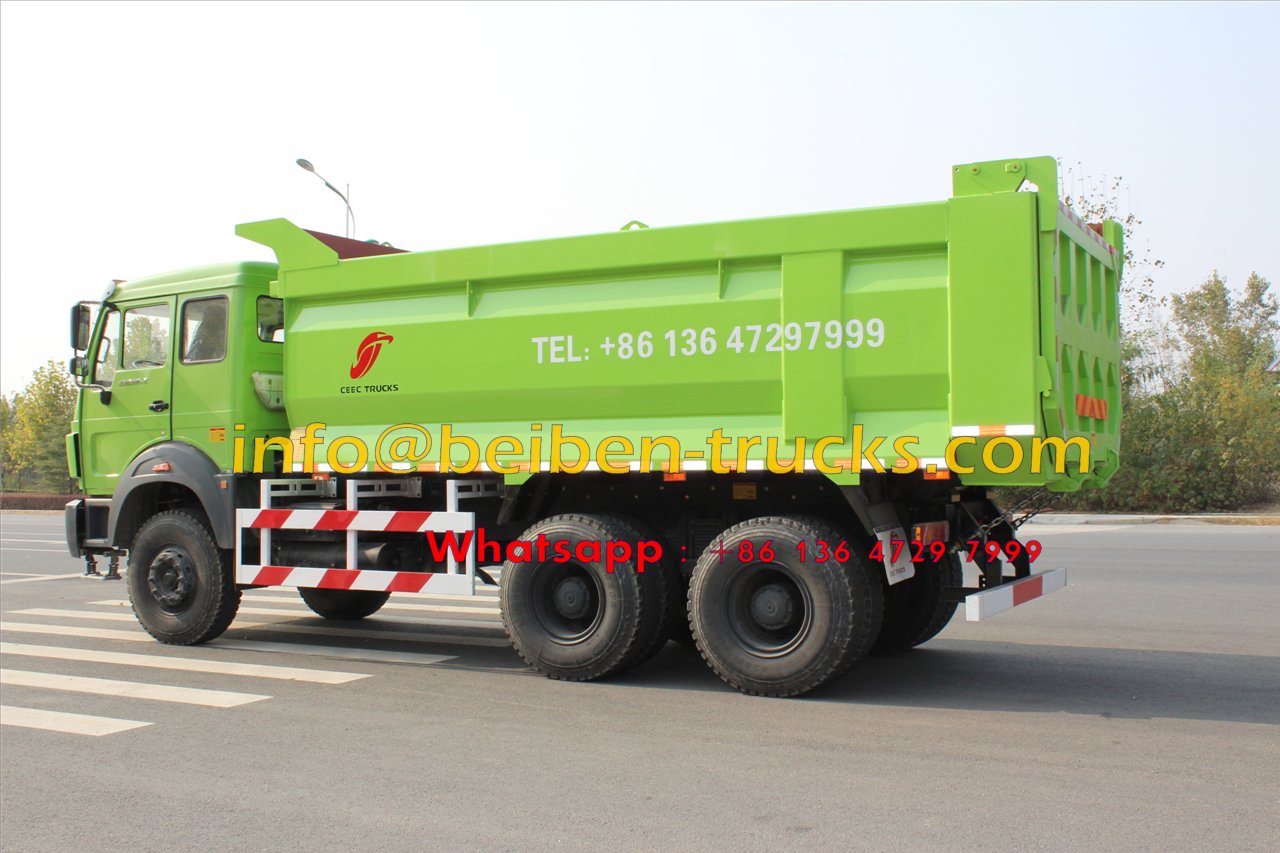

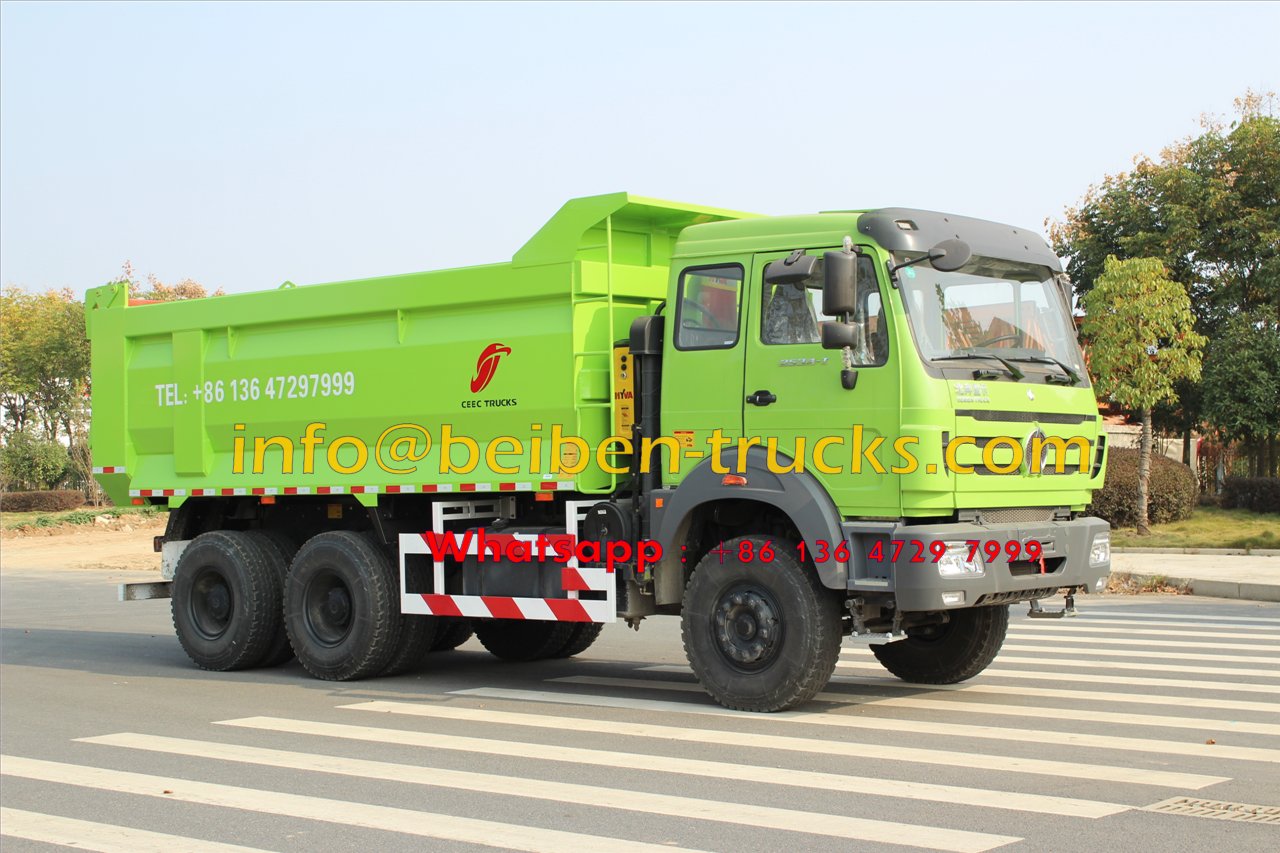

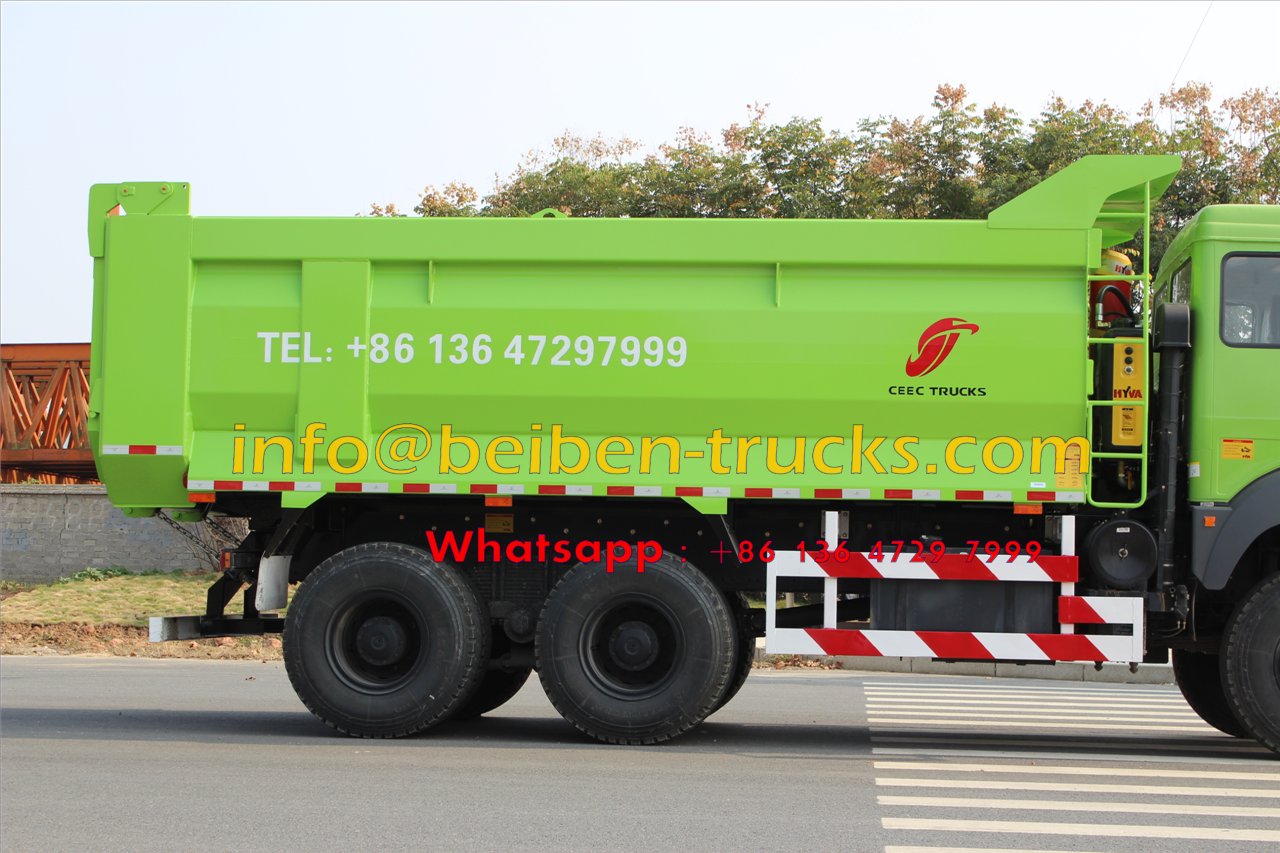

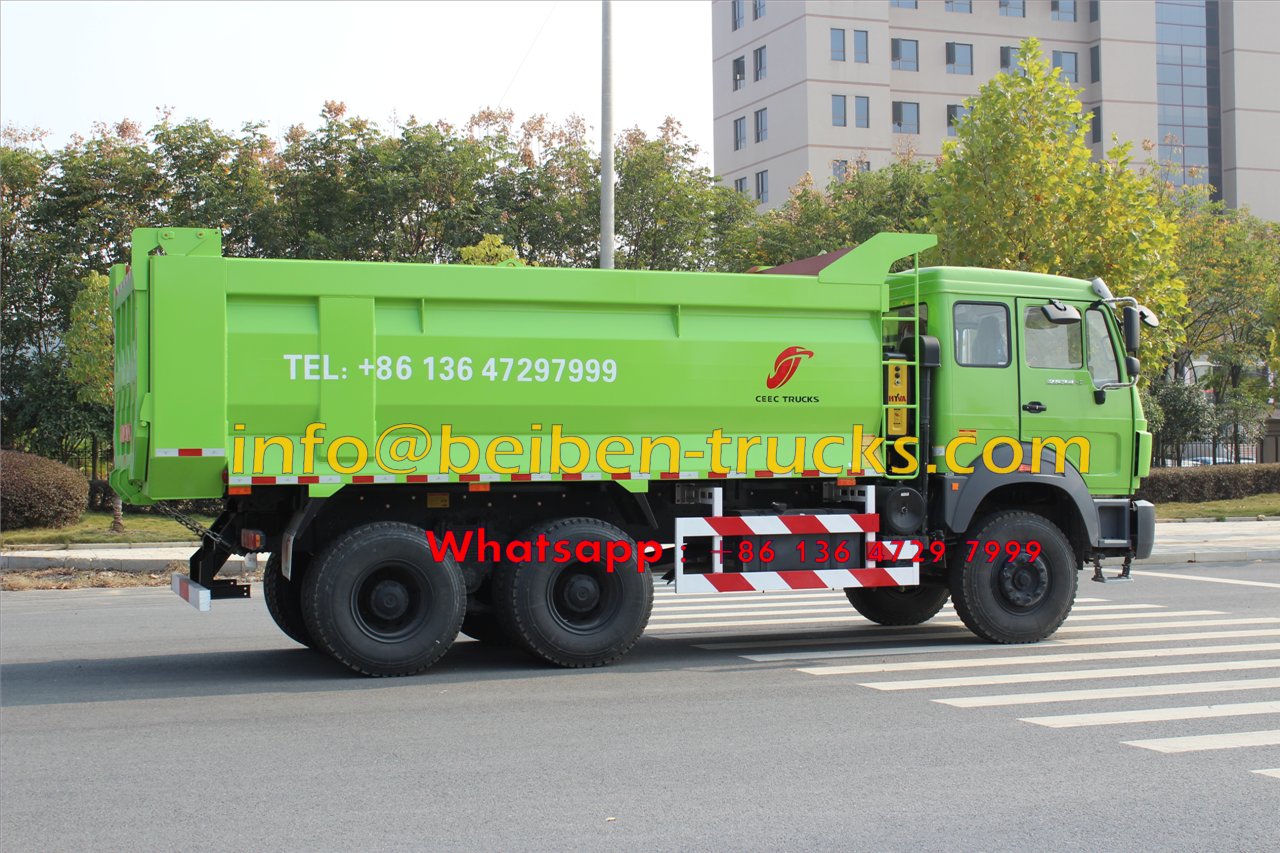

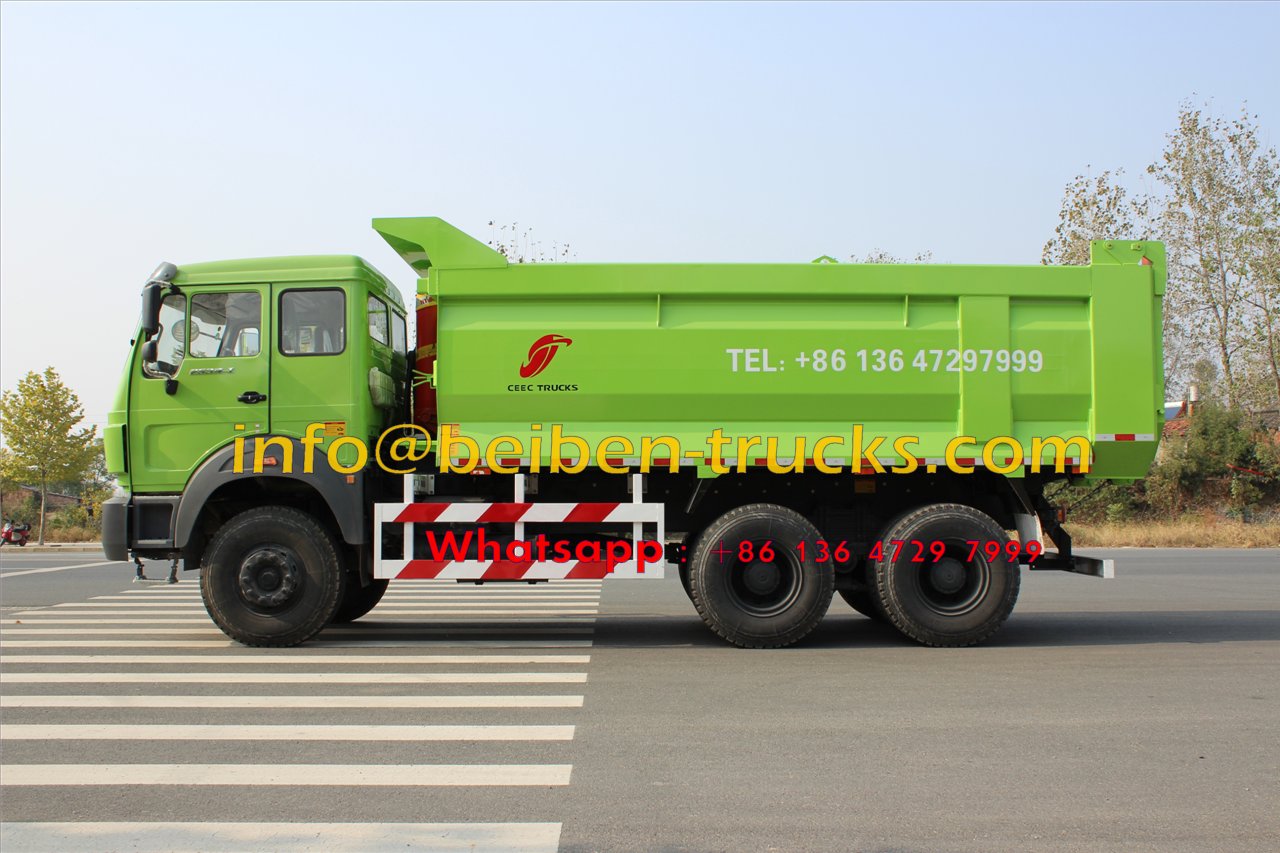

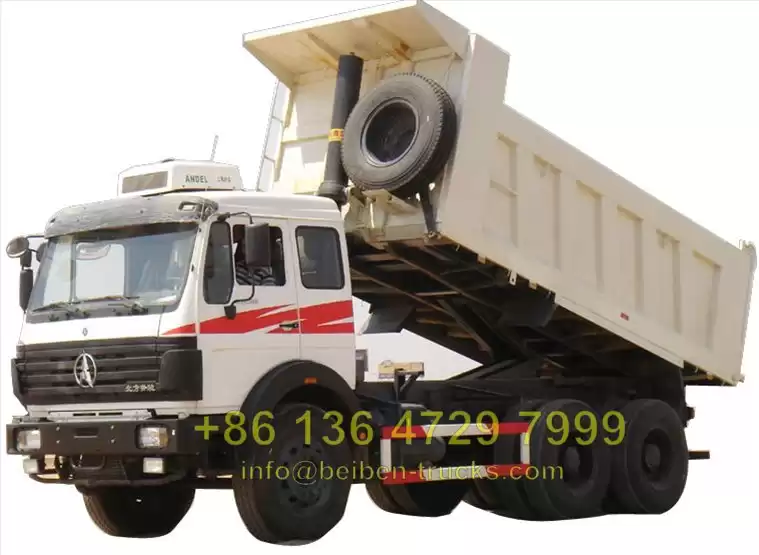

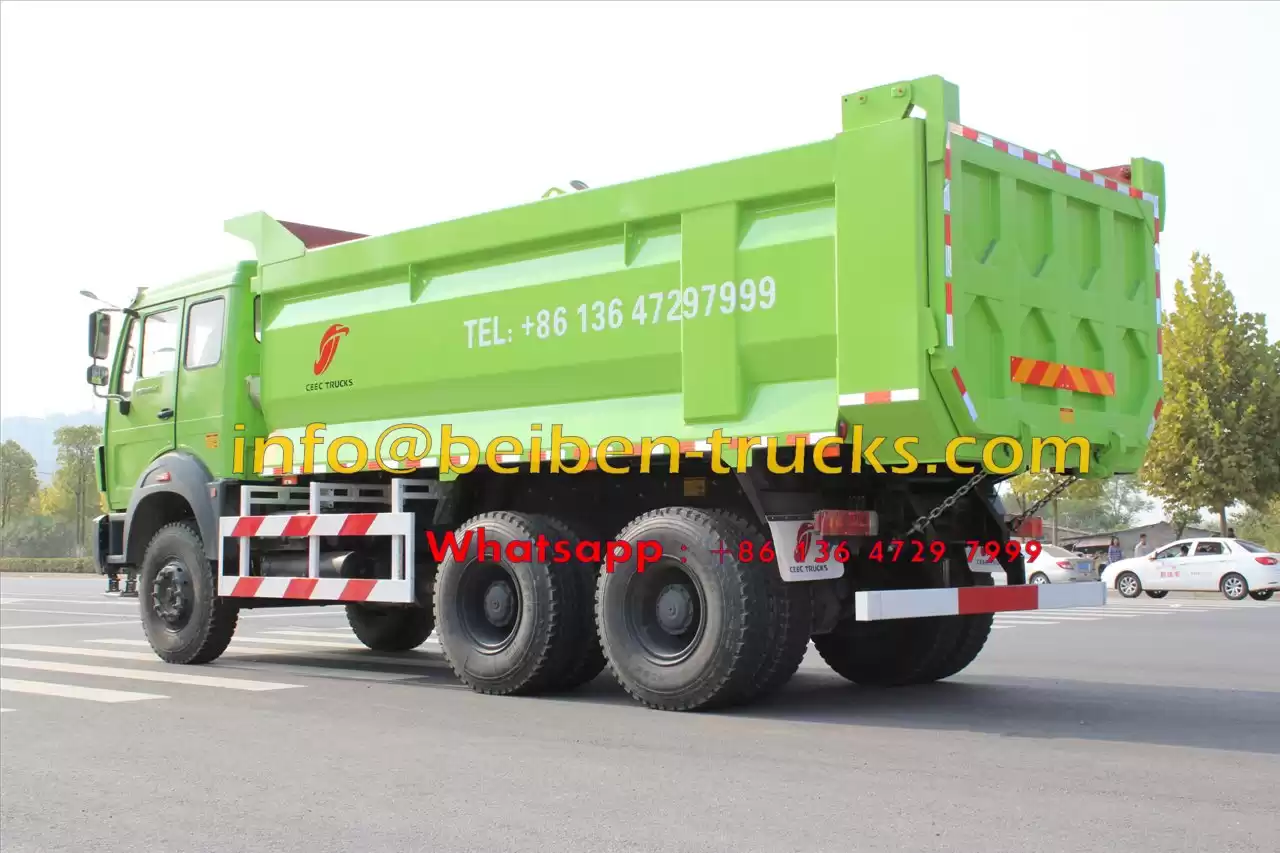

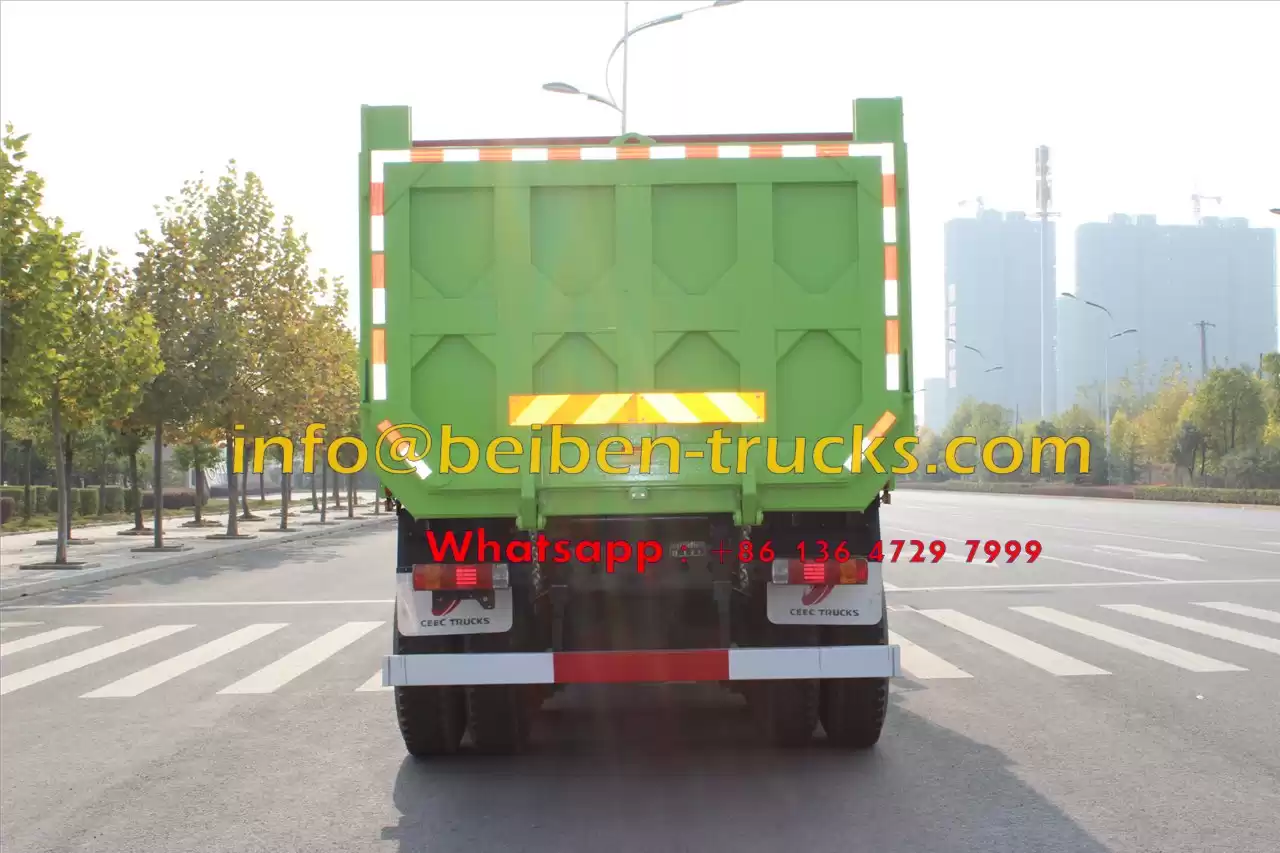

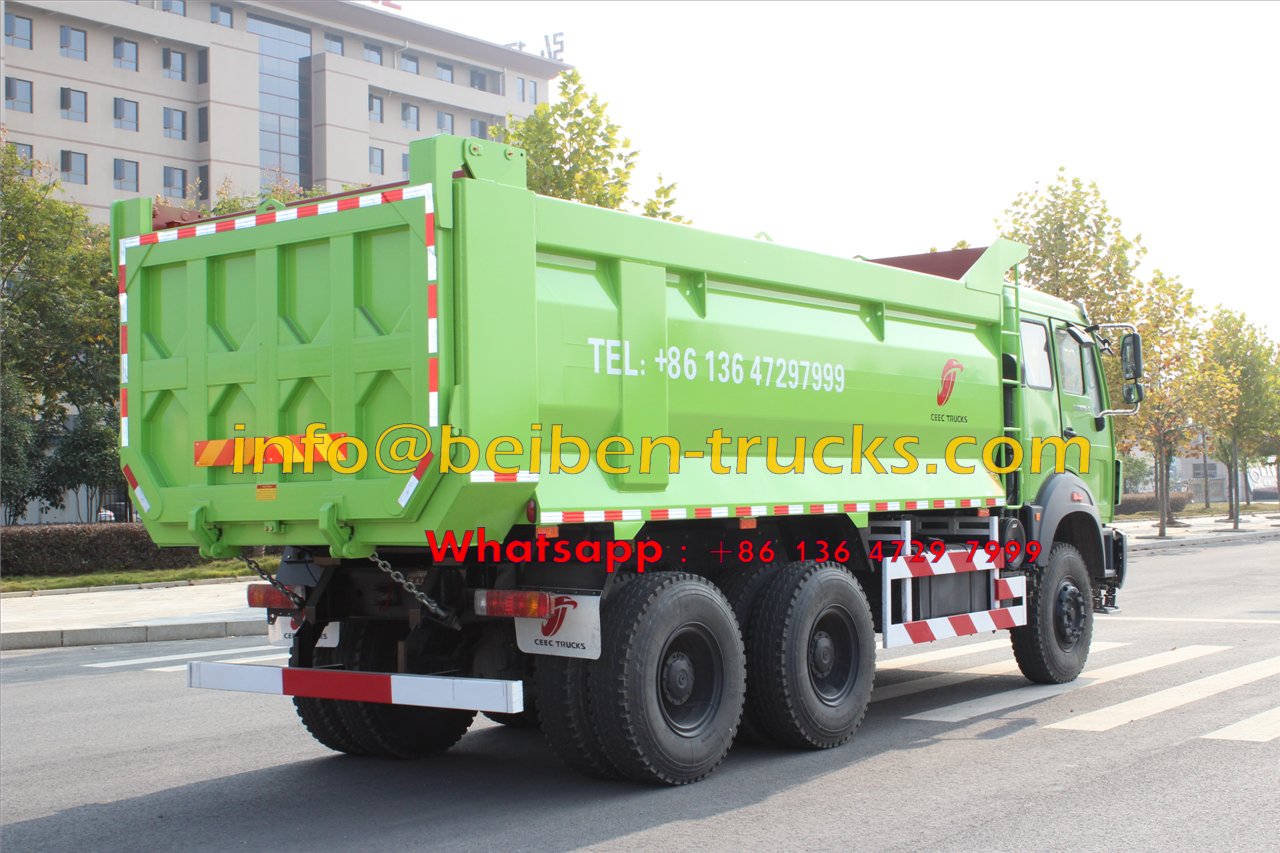

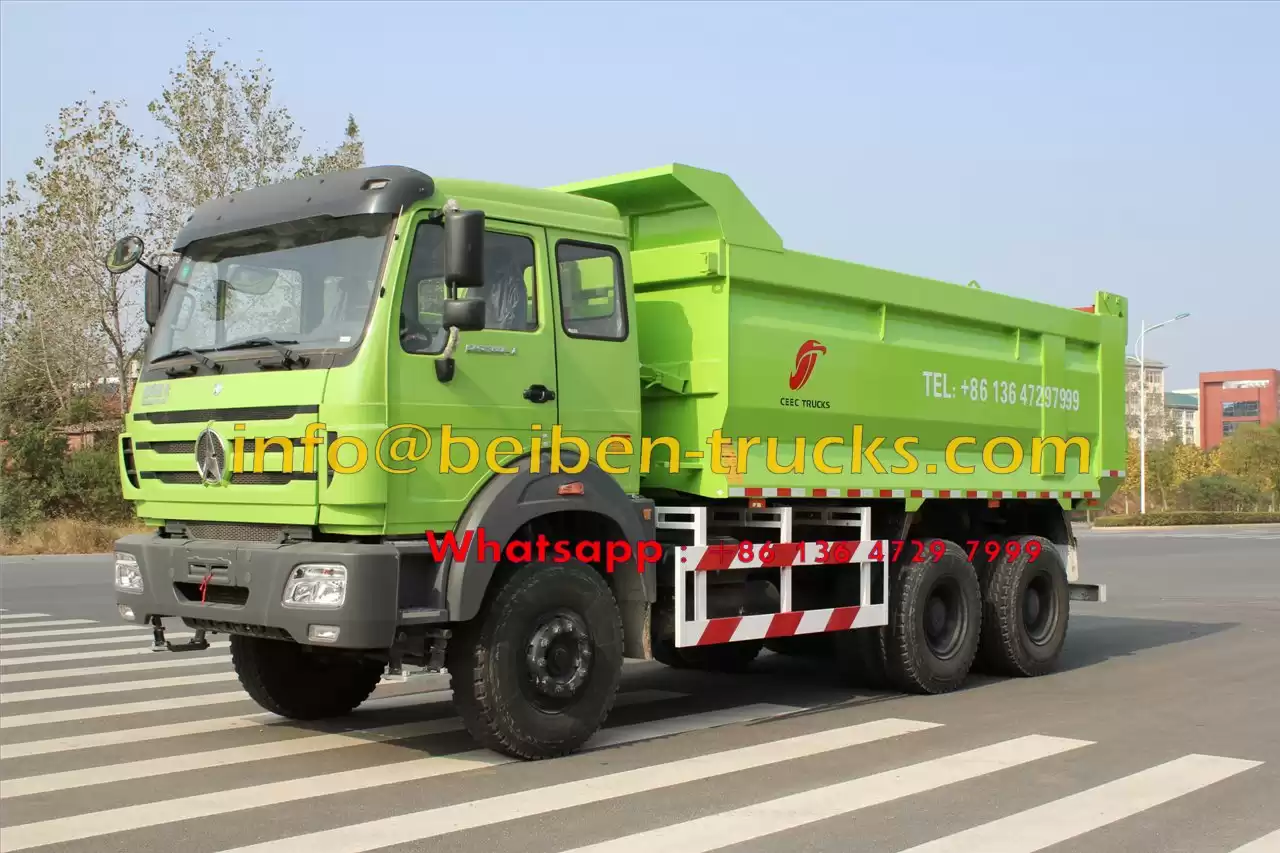

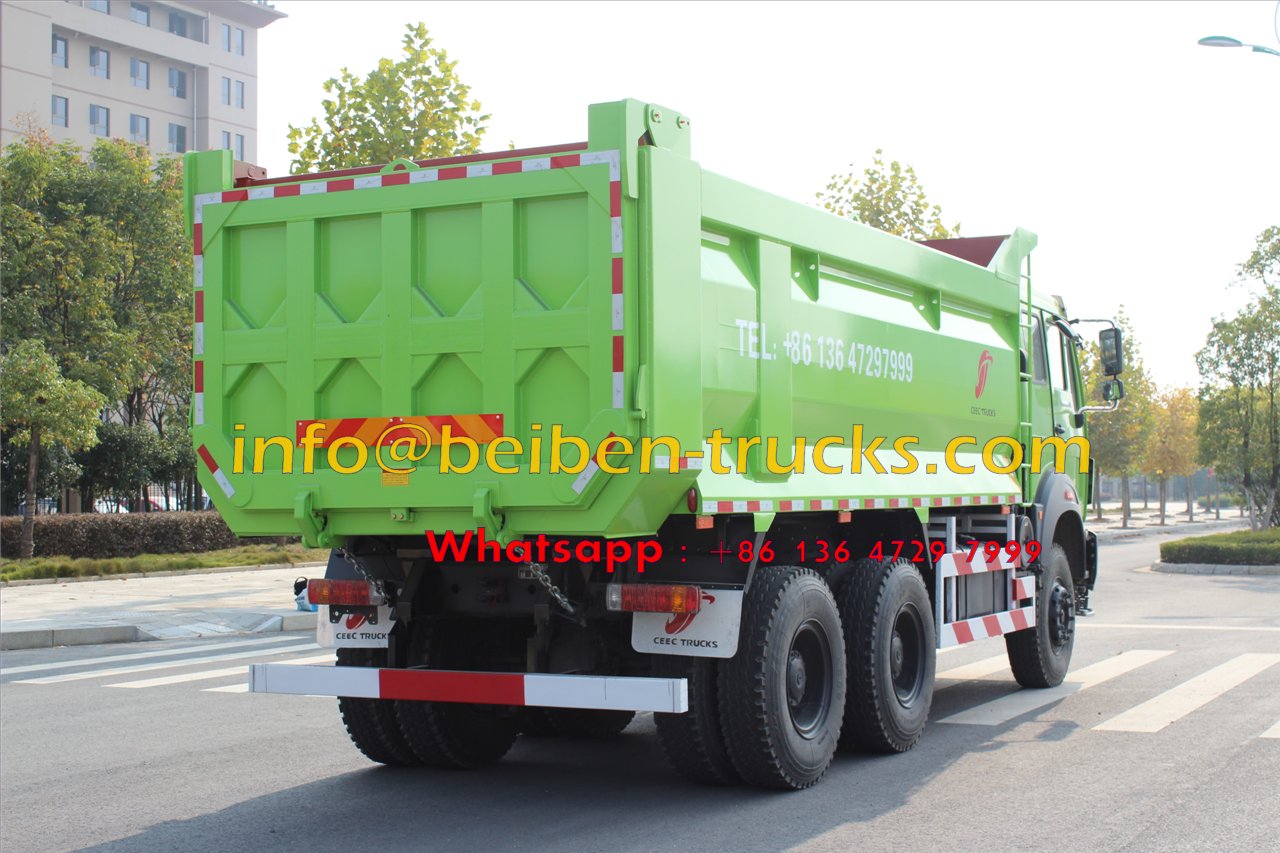

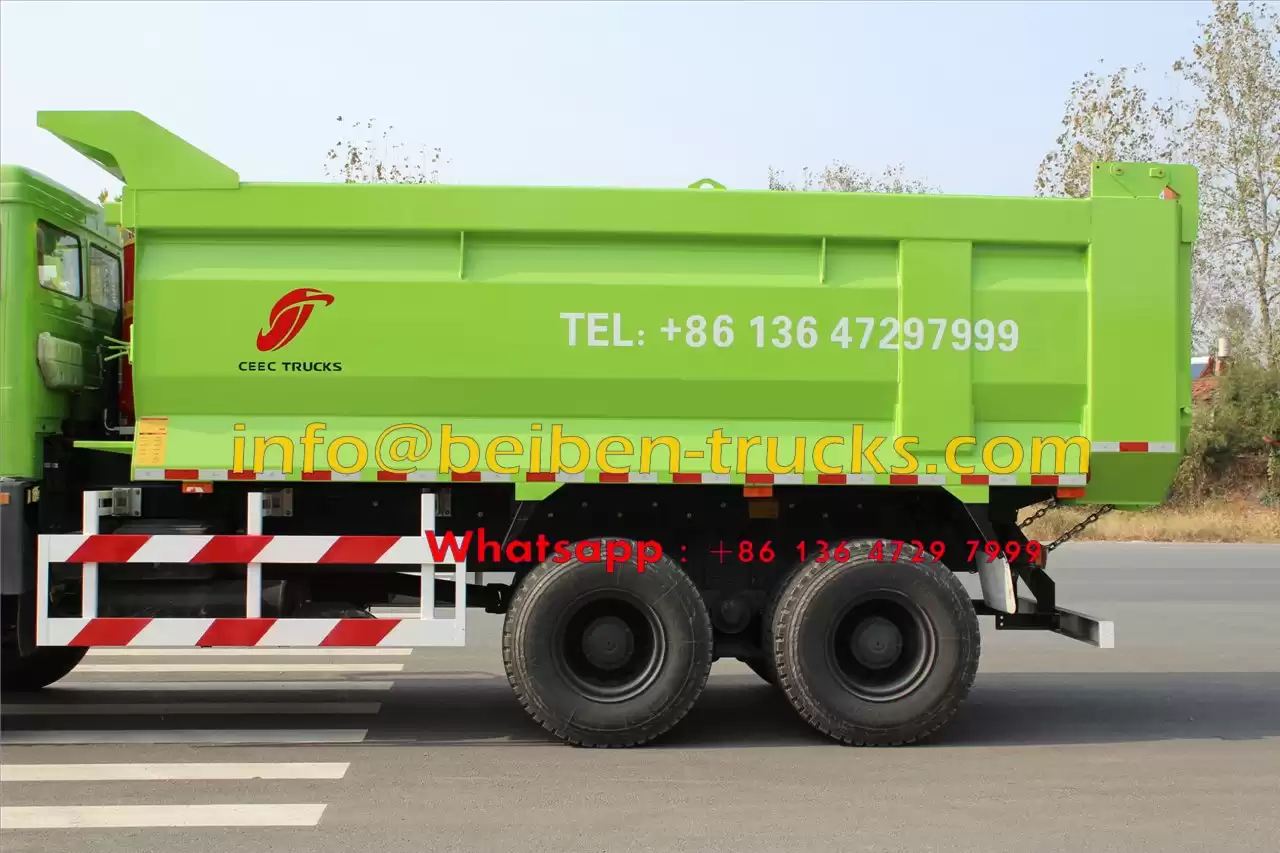

Beiben 2538 dumper 60 T capaicty U type cargo box.
we provides greater durability
and superior performance with its newly Beiben 60 T reinforced heavy-duty trucks of
responding to customer’s needs.

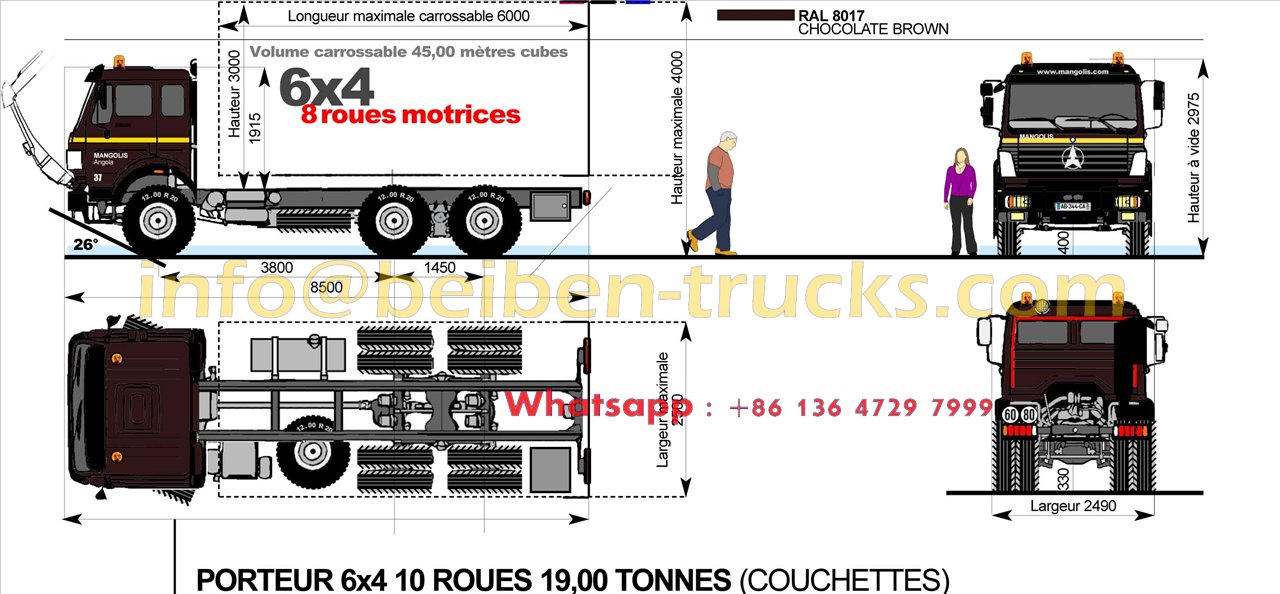

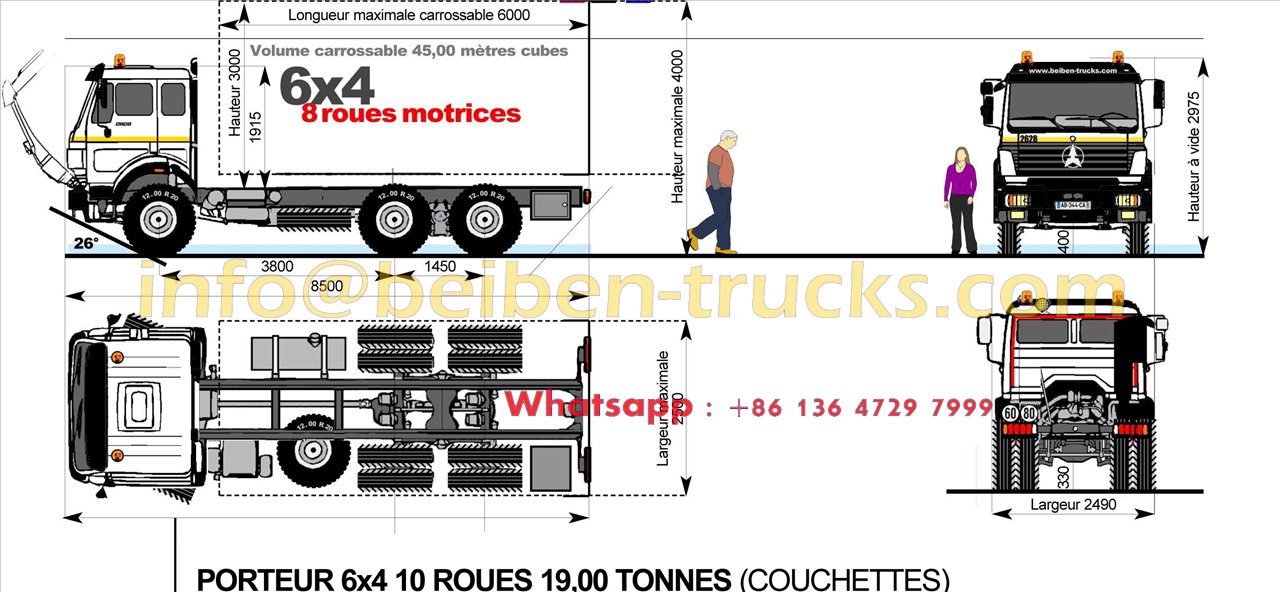

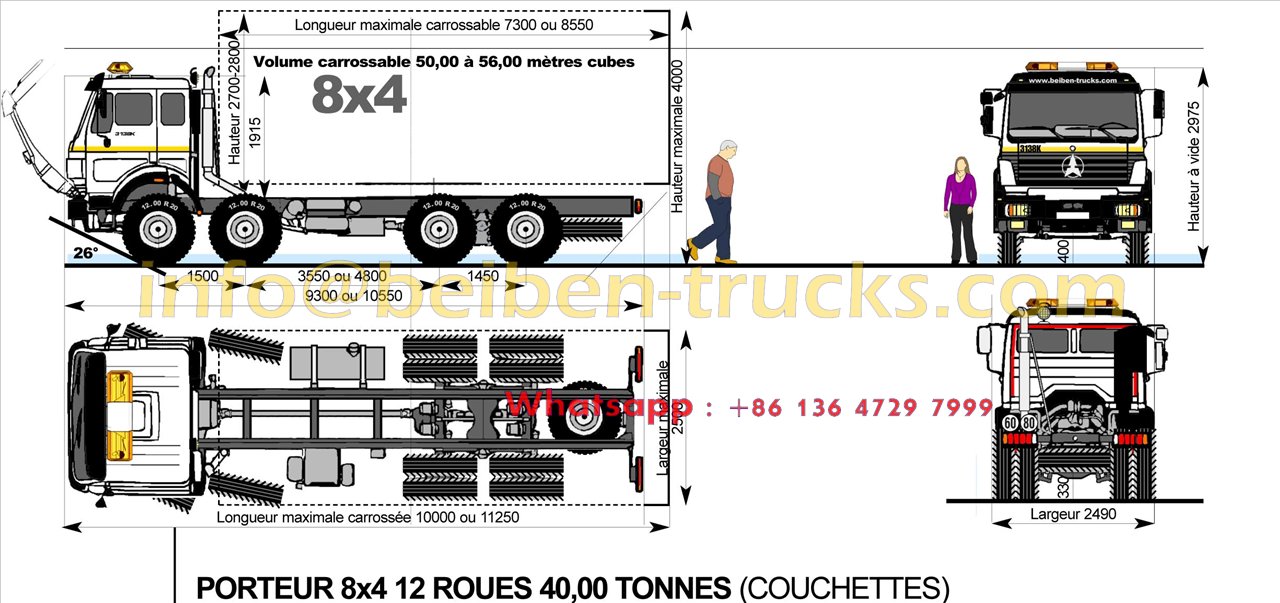

Beiben 2538 heavy duty dump truck chassis drawing.

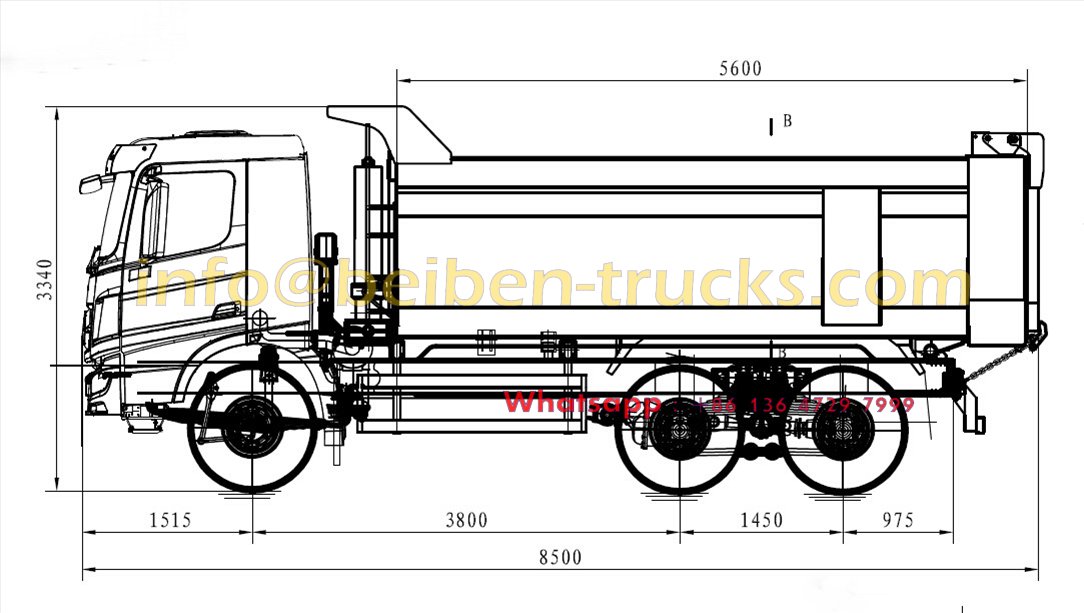

North benz 60 T U type dump truck drawing
Areas of beiben 2538 U type dumper Application and Use:
◆Mining area
◆Construction site
◆Municipal road construction
◆Transport of stone, sand, gravel
Key Features:
◆Germany BENZ technology chassis with high durability and
reliability
◆ Germany BENZ technology engine combined with original rear axle
reducer gear and differential gear

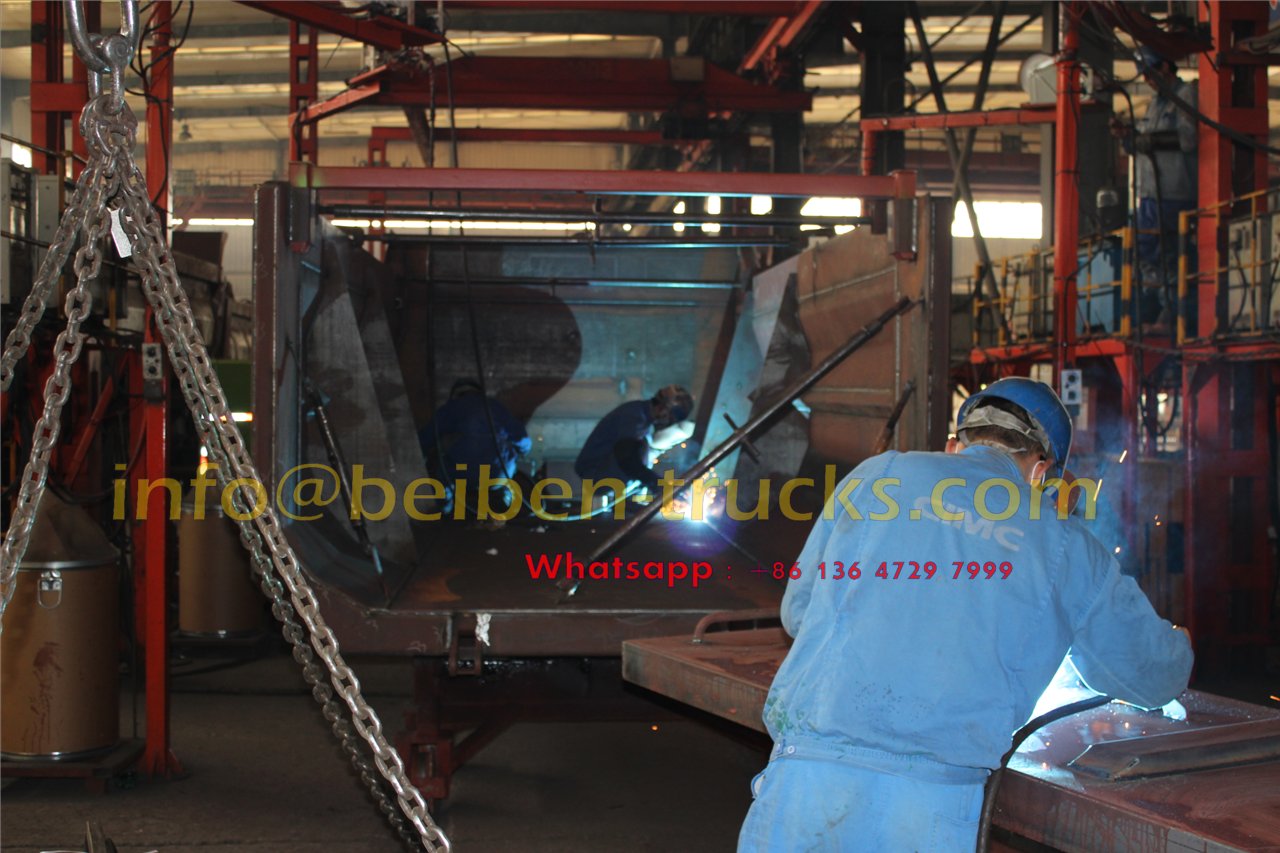

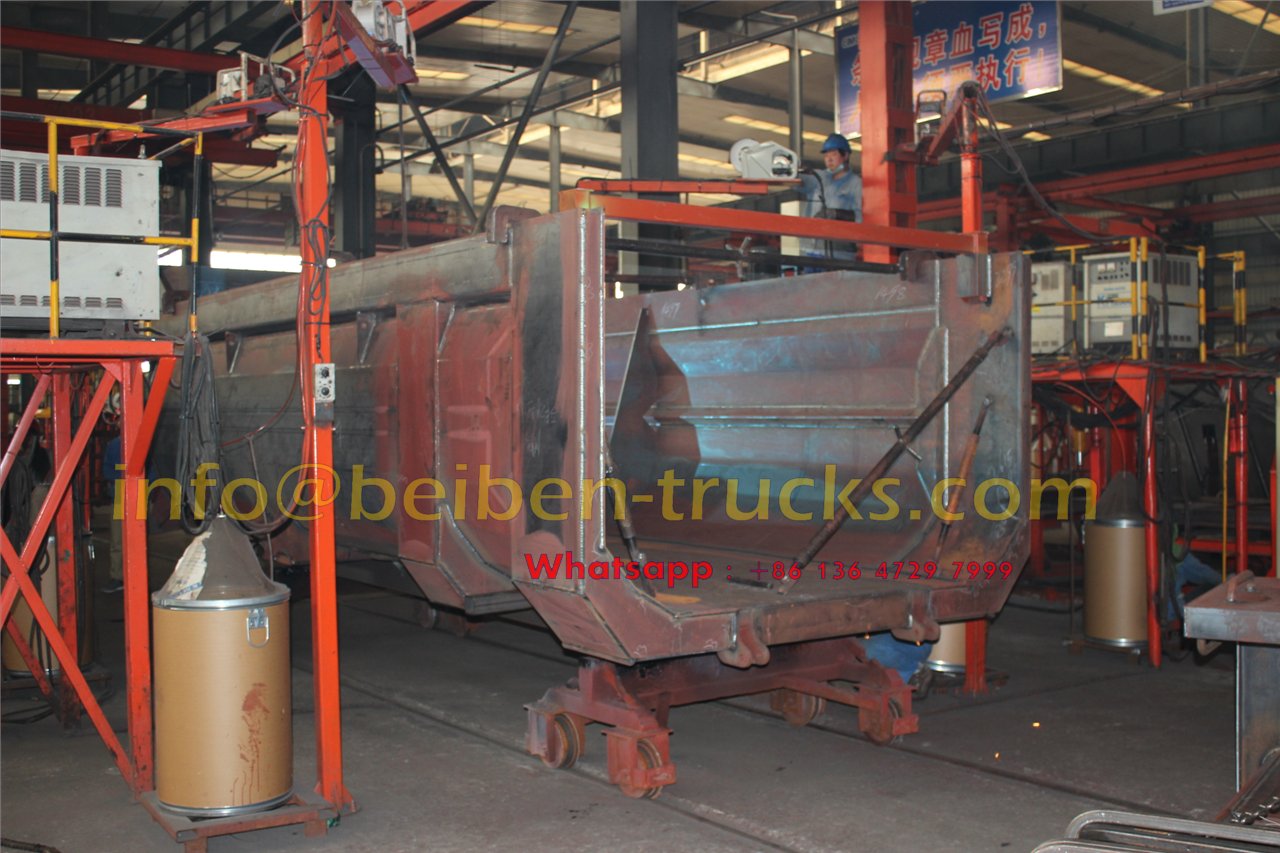

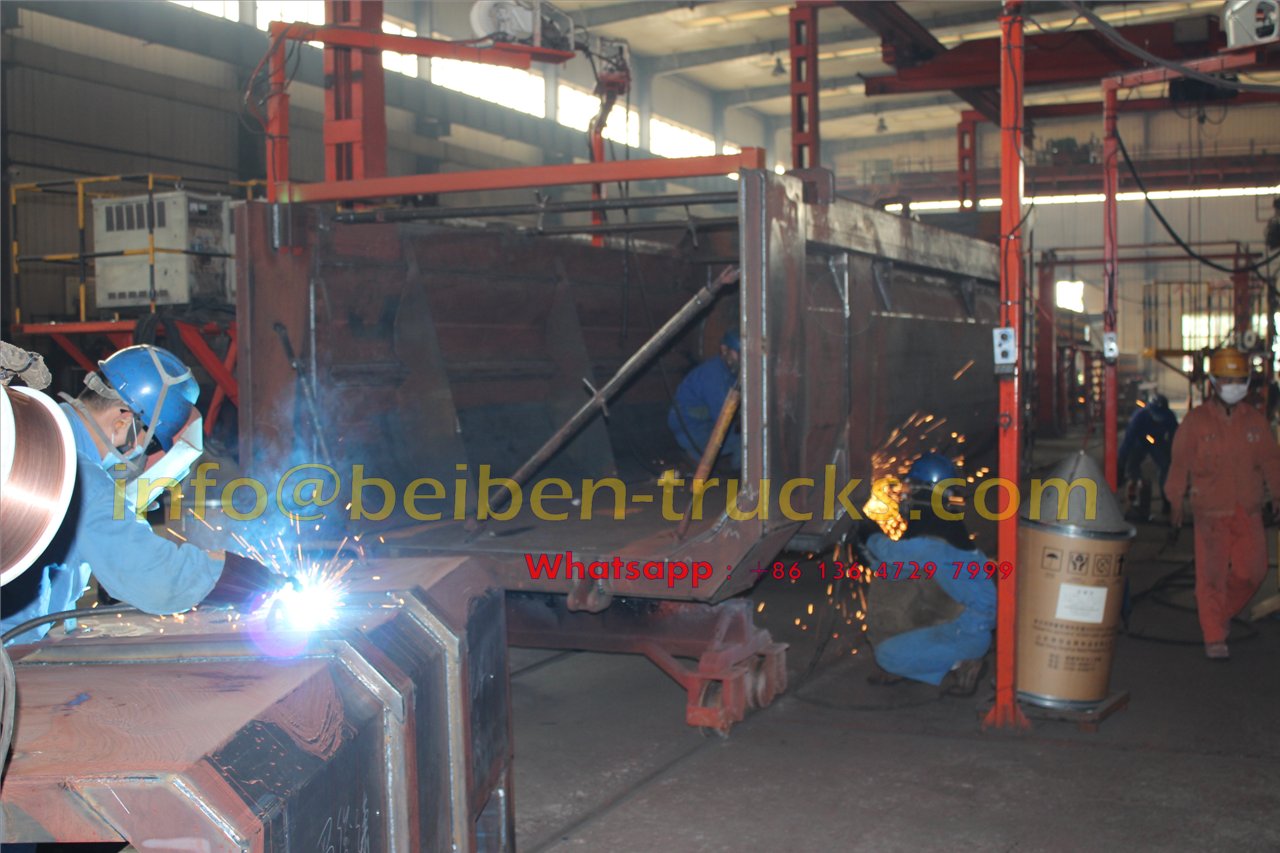

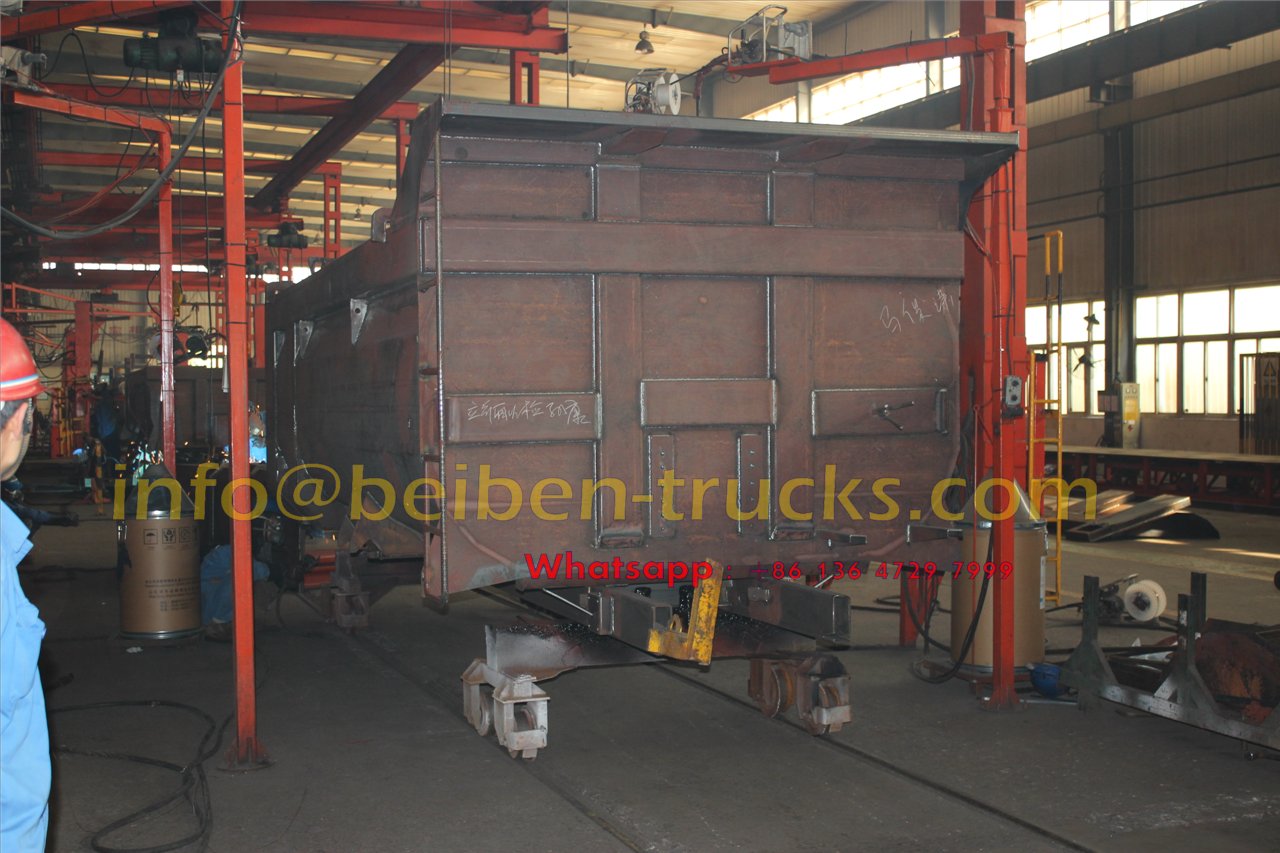

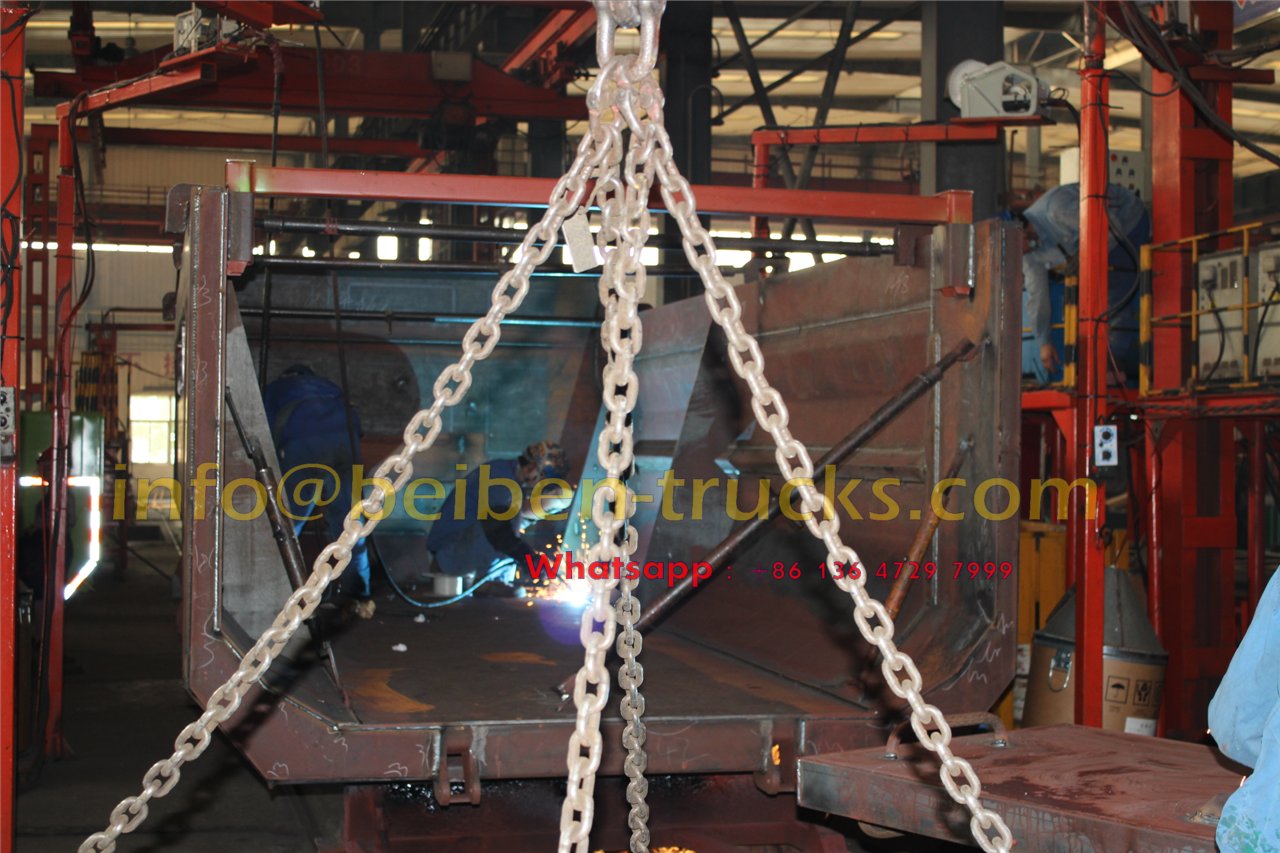

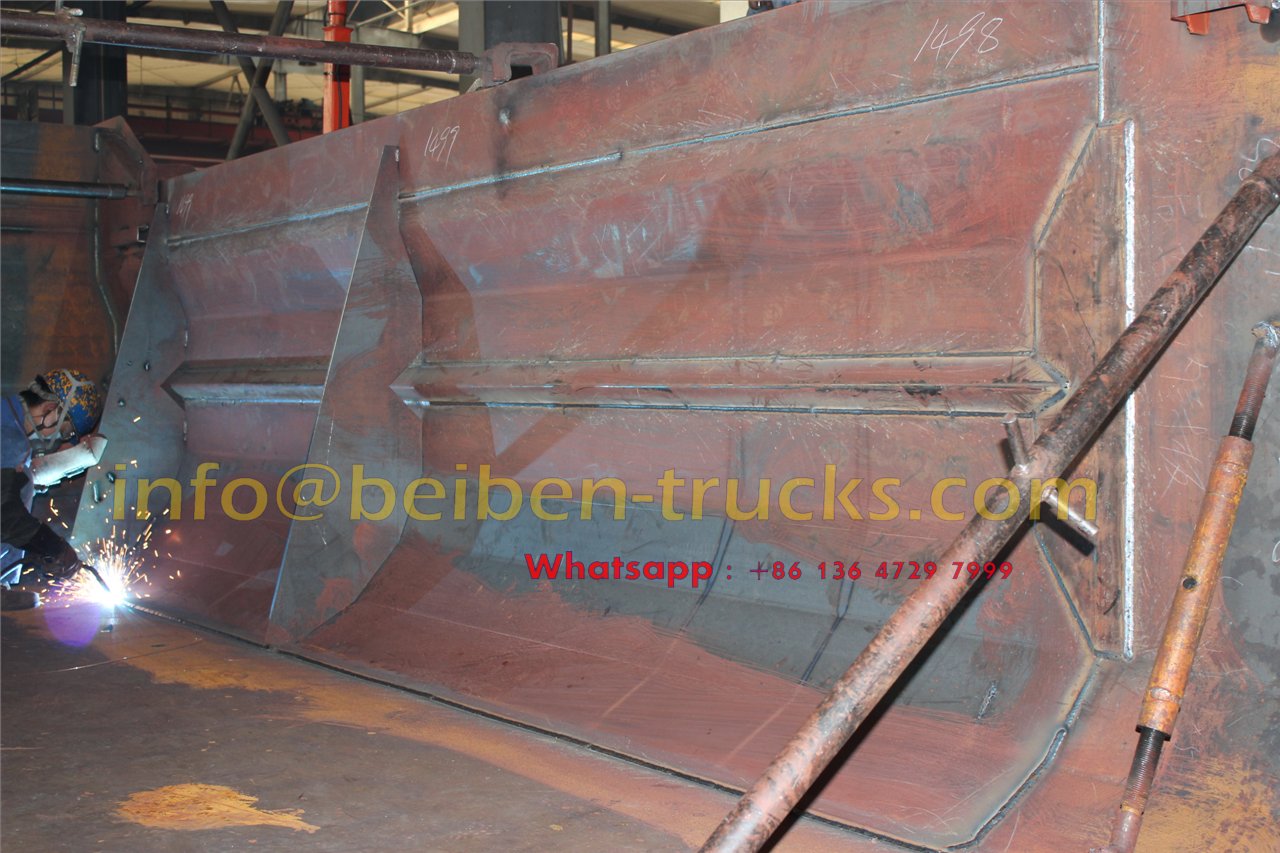

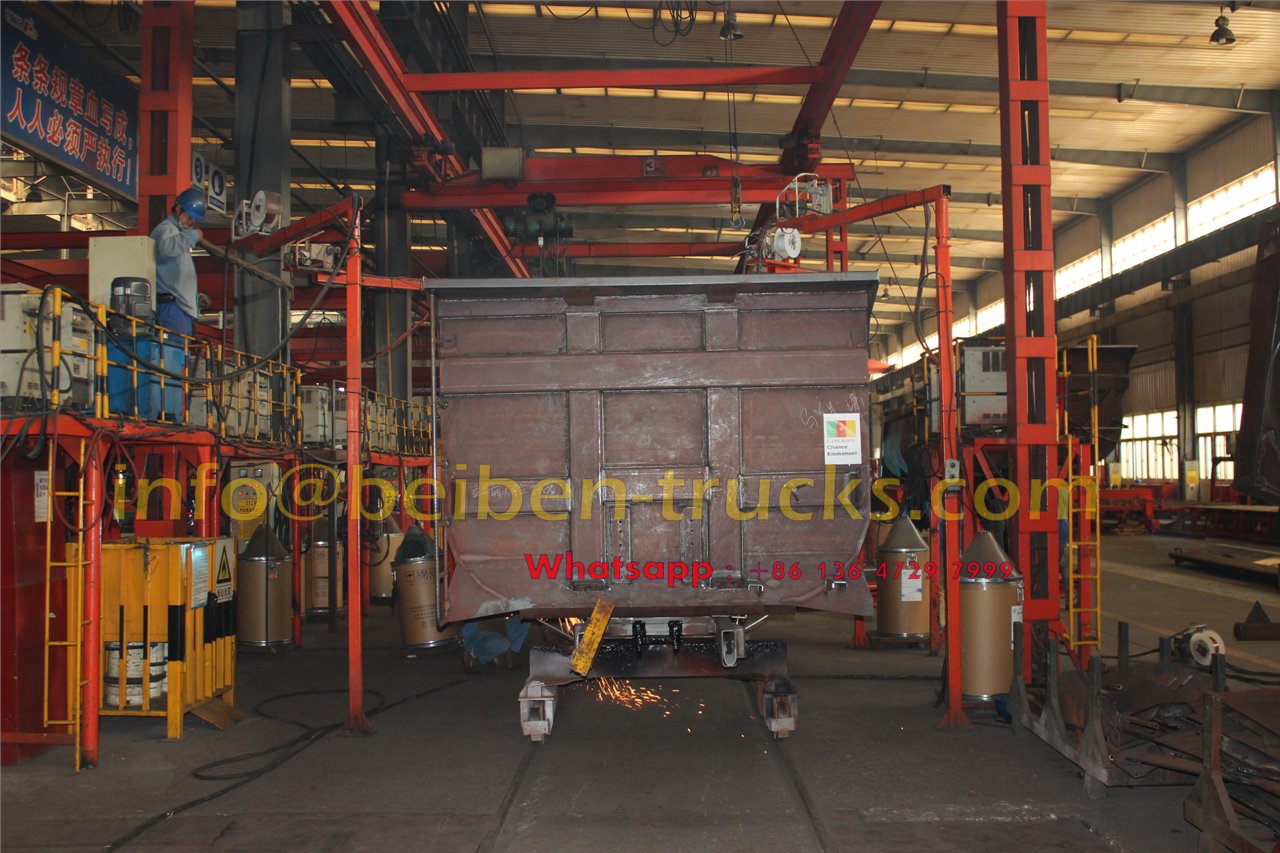

◆Continuous welding throughout body for additional strength, Full
depth rear corner post with full depth rear crossmember.

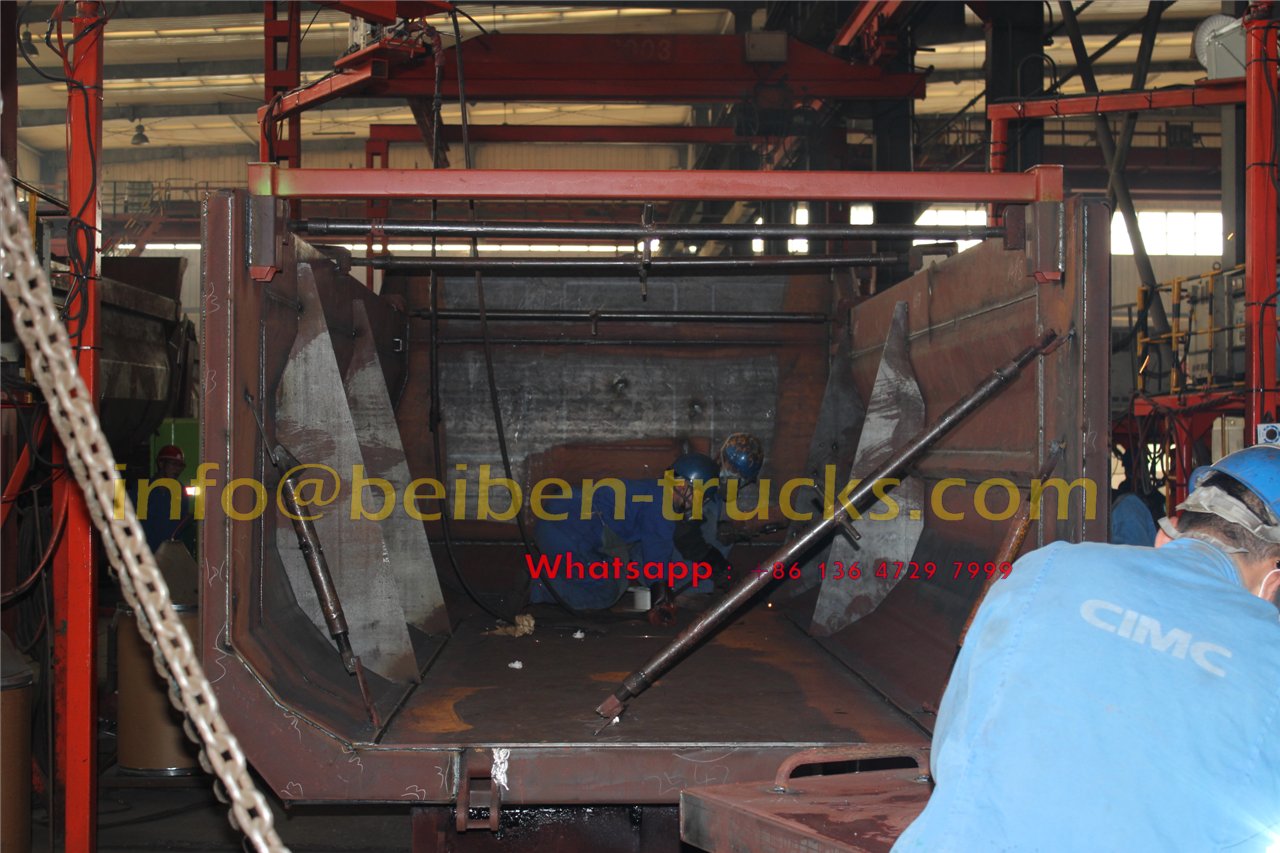

◆ Enhanced body, and the motherboard adopts variable cross-section
beams.
◆Special
beiben 60 t Dump Body Design are optional
◆Other customer requirements are welcome
|
2538K
/6×4/4100+1450/Short Cab/LHD or RHD
|
|
Dimension
|
8880*2500*3430mm
|
|
Cargo
box
|
5600x2300x1350mm,
HYVA hydraulic lifting system; thickness: bottom 8mm, side 6mm
|
|
Approaching
angle/Departure angle
|
26/28°
|
|
Overhang(front/rear)
|
1410/1720mm
|
|
Wheel
base
|
4100+1450mm
|
|
Max
speed
|
85km/h
|
|
Curb
weight
|
12650kg
|
|
Engine
|
Model
|
WP10.380E32,
water-cooled, four strokes, 6 cylinders in line, turbocharged, directly
injection
|
|
Displacement
|
9.726L/Diesel
|
|
Stroke
|
126/130mm
|
|
Max.
power
|
280/2200
(kw/rpm)
|
|
Max.torque
|
1600/1800(N.m/rpm)
|
|
Emission
|
Euro
III
|
|
Fuel
tanker capacity
|
300L
|
|
Clutch
|
∮430,
Single dry frictional disc,Hydraulic boosting
|
|
Gearbox
|
9JS180,
mechanism, 9 forward gears, 1 reverse gear, manual operated
|
|
Gear
ratio of gear box
|
12.65/8.38/6.22/4.57/3.4/2.46/1.83/1.34/1.00
R:13.22
|
|
Suspension
system
|
Front
|
Non-free
standing leaf spring,telescopic shock absorber with stabilizer bar suspension
, 10pcs
|
|
Rear
|
Non-free
standing stabilization spring, balance suspension system, 13pcs
|
|
Brake
system
|
Service
brake
|
Brake
gap can be adjusted automatically, double circulation air brake system
|
|
Assistant
brake
|
Engine
exhaust brake
|
|
Park
brake
|
Potential
springs pressing on middle and rear wheels
|
|
Steering
system
|
ZF8098
hydraulic steering with power assistance
|
|
Frame
|
Strengthened
Straight beam
|
|
Front
axle (Mercedes Technology)
|
Double-shoe
pneumatic brake, non-driving steering axle
|
|
Middle
and Rear axle (Mercedes Technology)
|
Double-shoe
pneumatic brake, ductile casting casing, with hub redactor, double reduction
driving axle
|
|
Tyre
|
315/80R22.5
tubeless tyres
|
|
Electrical
system
|
Battery
|
2X12V/135Ah
|
|
Generator
|
28V-35A
|
|
Starter
|
5.4Kw/24V
|
|
Cabin
|
NG80B
Long cabin one sleeper and inner A/C ;
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;
High back with arm seat for driver, high back seat for co-driver; With inner
A/C
|
|
Dump Body
|
Body
type
|
U type dumper standard body
(more body type refer to using
environment)
|
|
Inner
size
|
5600x2250x1300 mm
|
|
Side/front/tail
plate thickness
|
8
mm Q550 high strength steel
|
|
Deck
plate thickness
|
10
mm Q550 high strength steel
|
|
Lifting
system,
|
China famous hydraulic lifting system
|
|
Lifting
Type
|
Middle
tipping
|
|
Tipper
body lifting time,
|
≤ 20 S
|
|
Tipper
body Falling Time
|
≤ 20 S
|
|
Max.
lifting angle
|
52°
|
FAST PRODUCTION TIME , 15 days for Beiben 60 T u type dump truck manufacturing

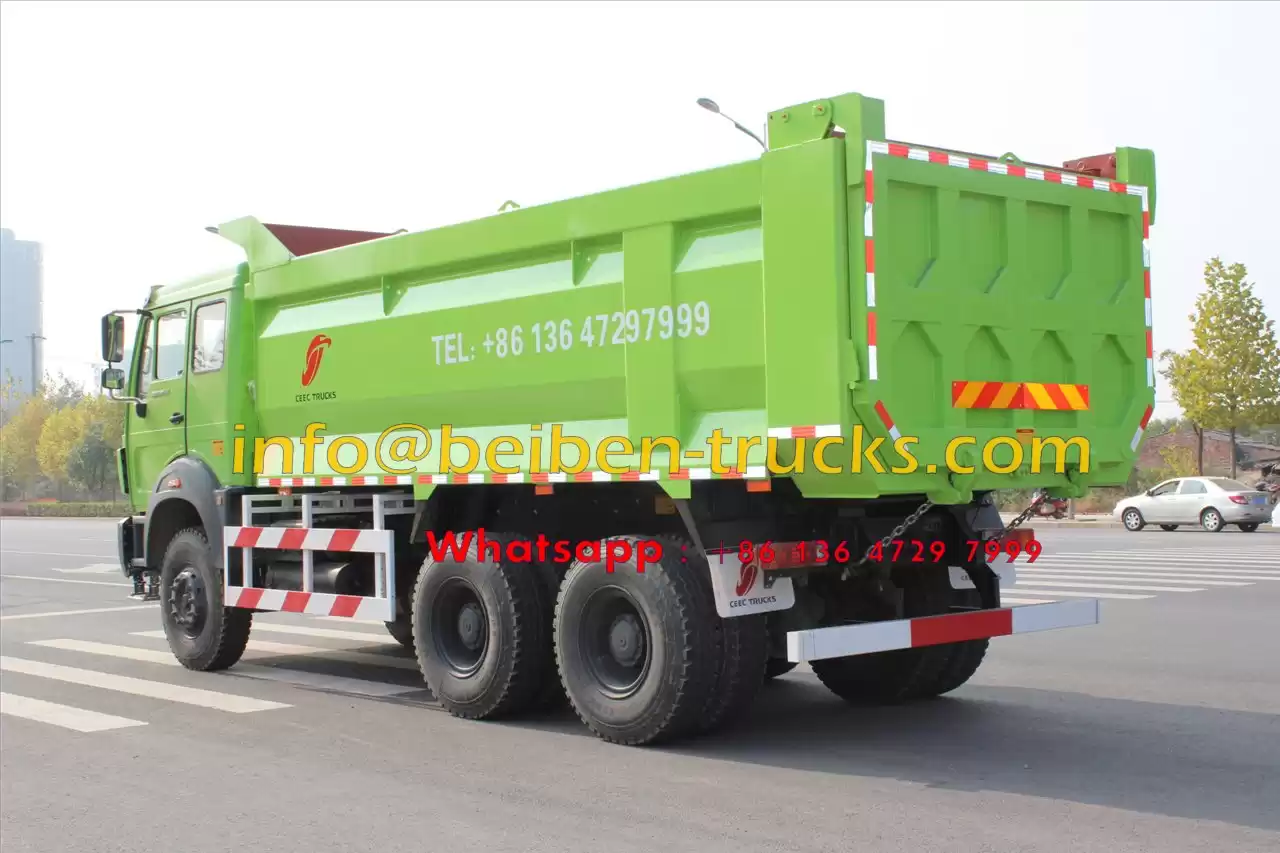

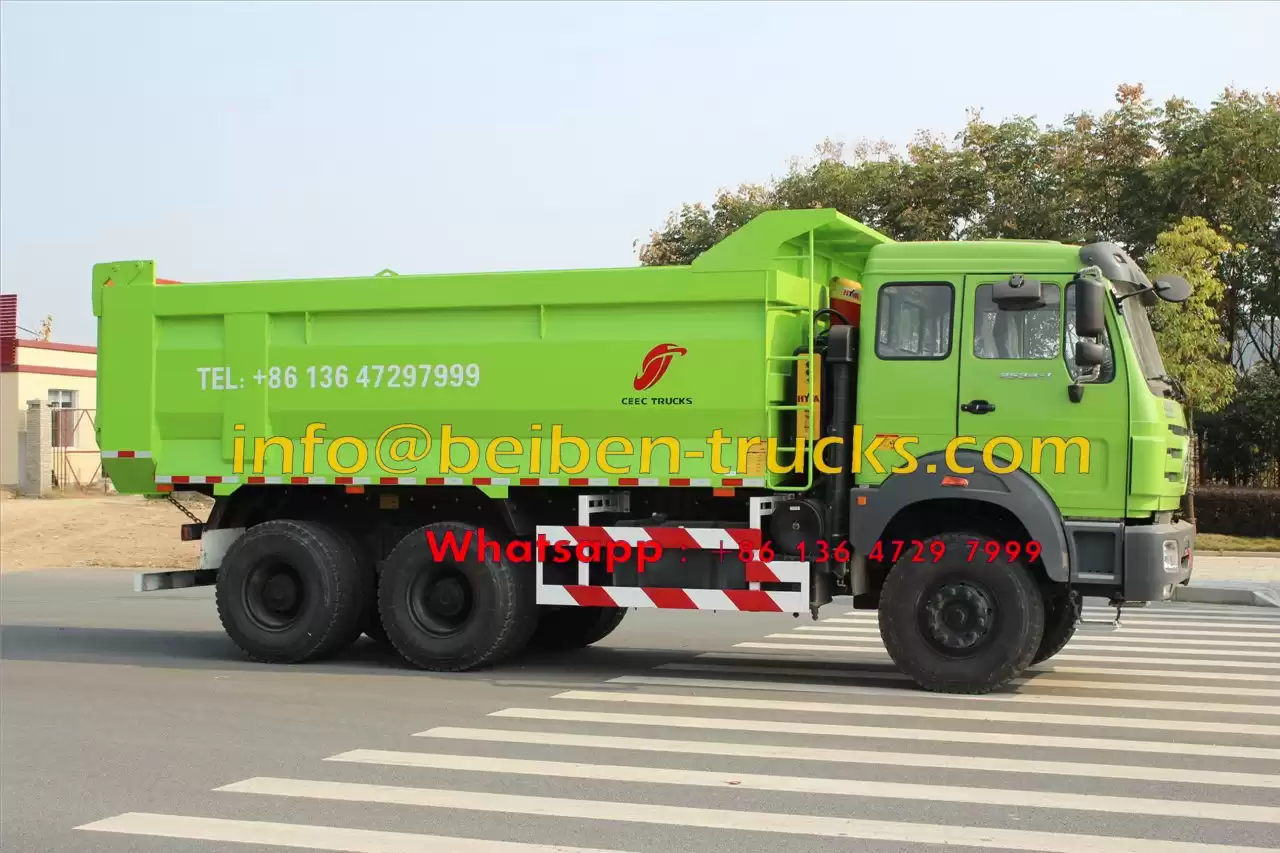

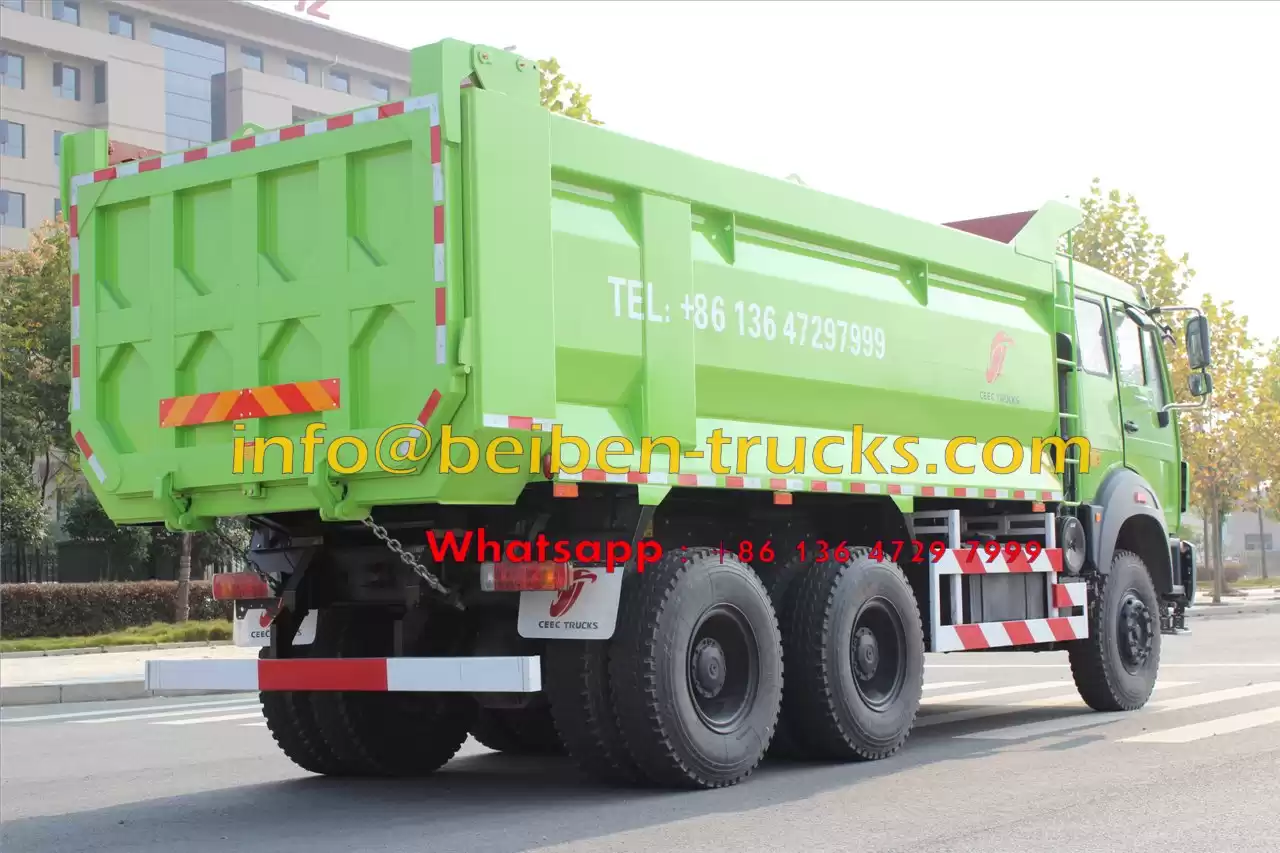

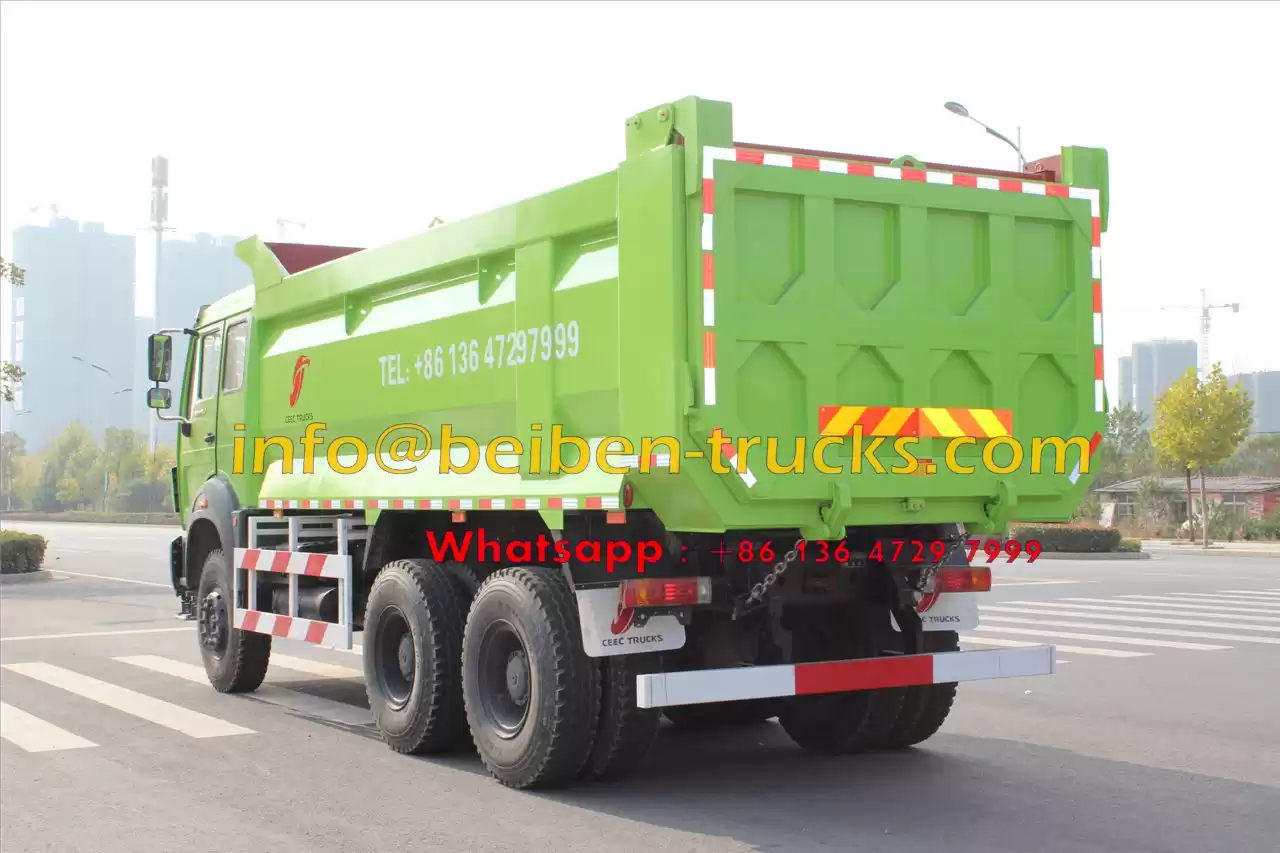

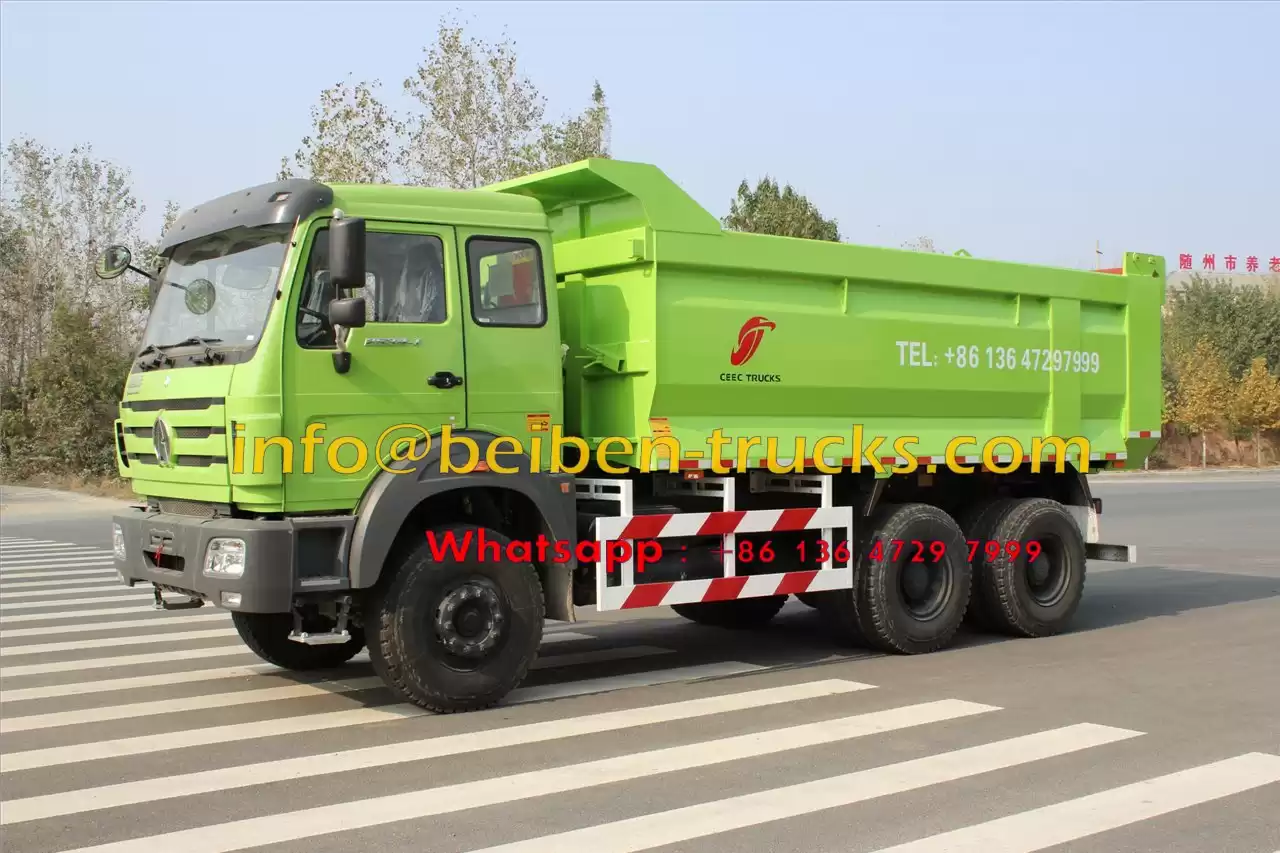

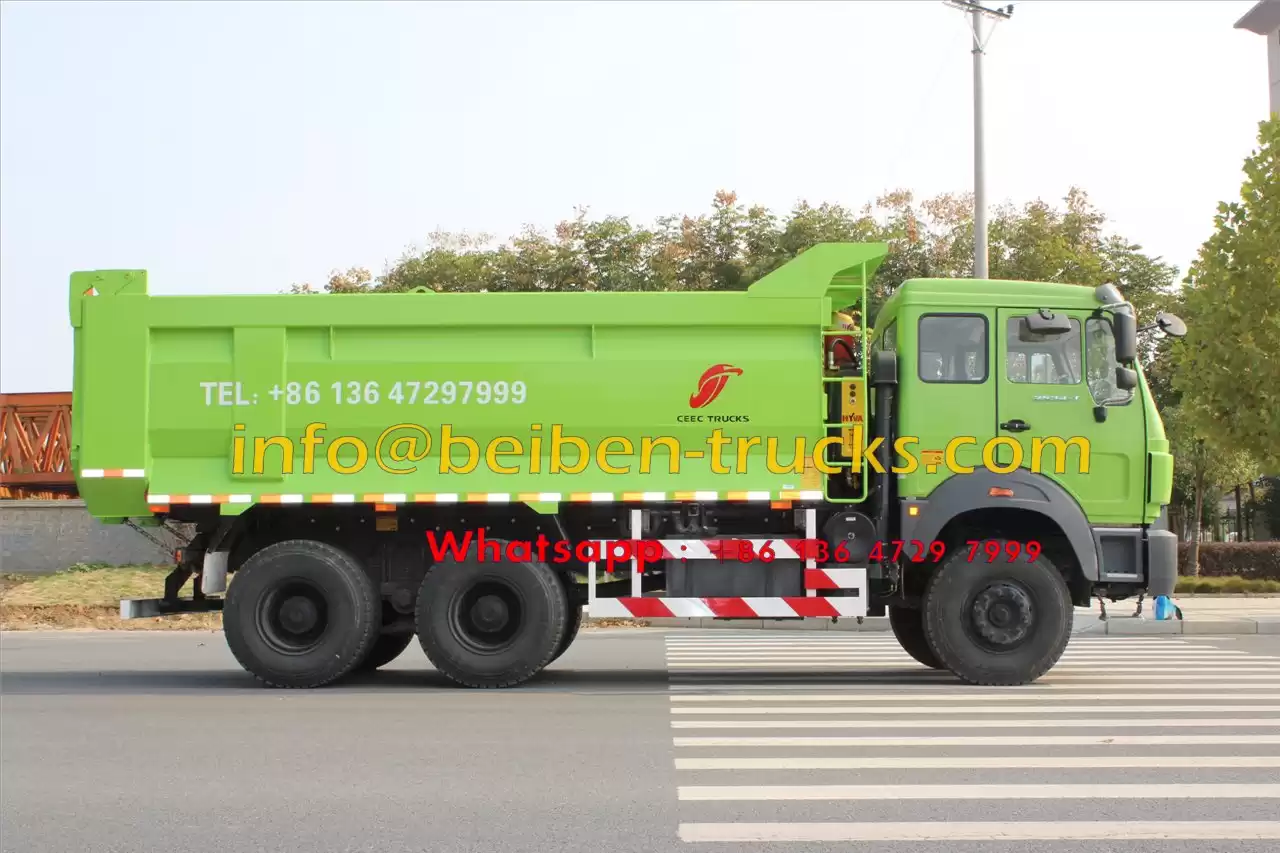

Beiben 60 T U type dump truck for africa cameroon customer
