Beiben 2538 towing truck

Beiben 2538 towing truck for sale EURO II for Africa, FAST 12JS160T manual gearbox, 3450+1450 long cabin, drive type 6*4, total mass 25000kg, curb weight 8800kg, benz 2538 tractor trucks rated towing weight 40000kg

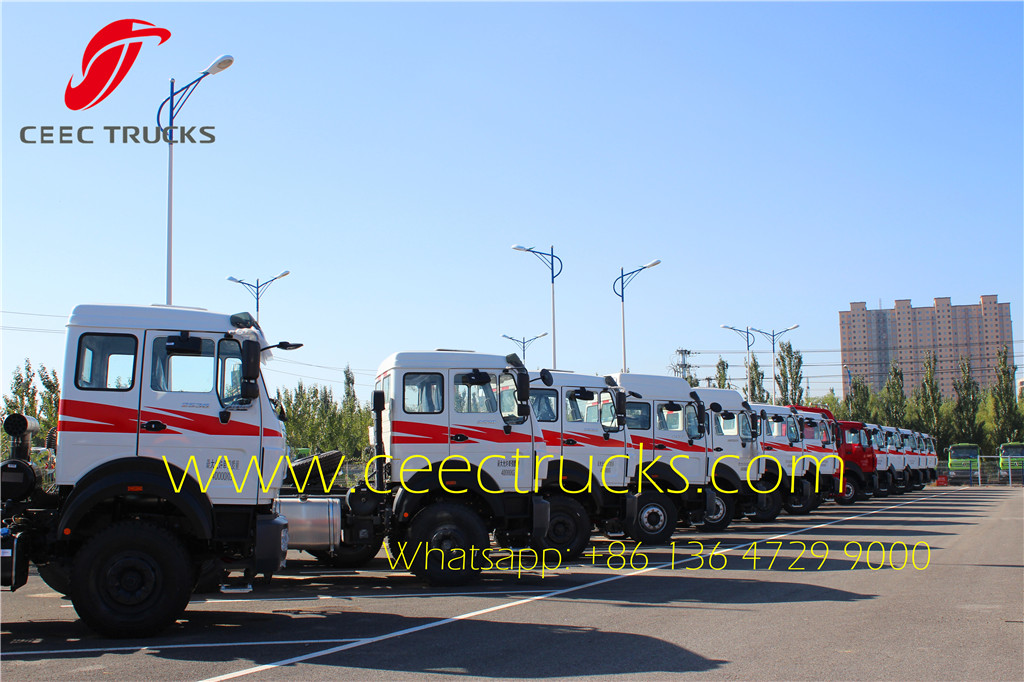

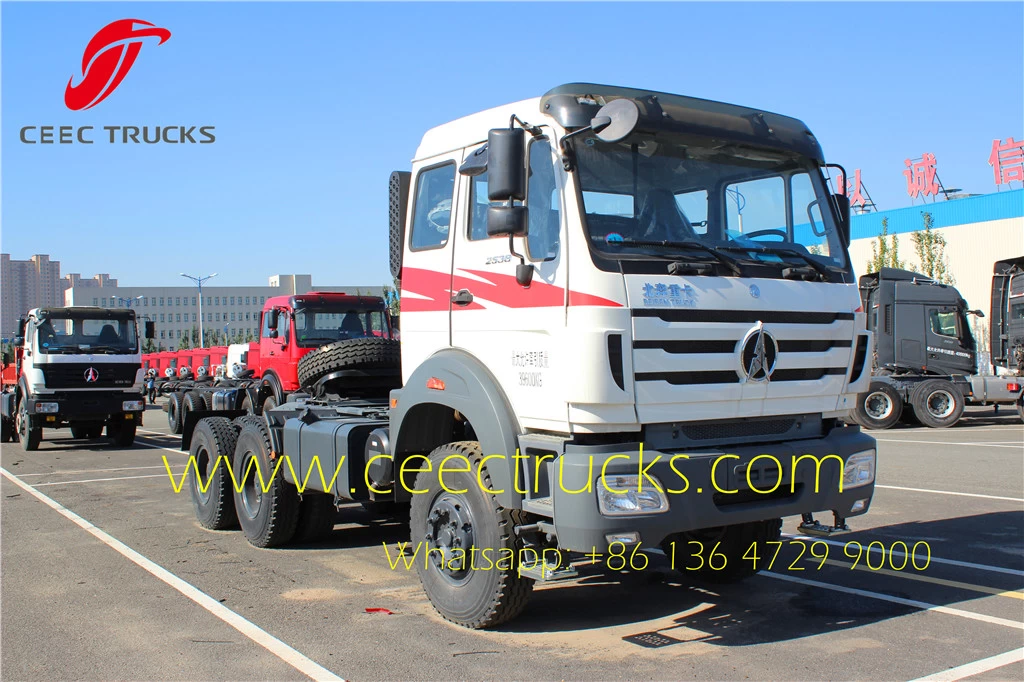

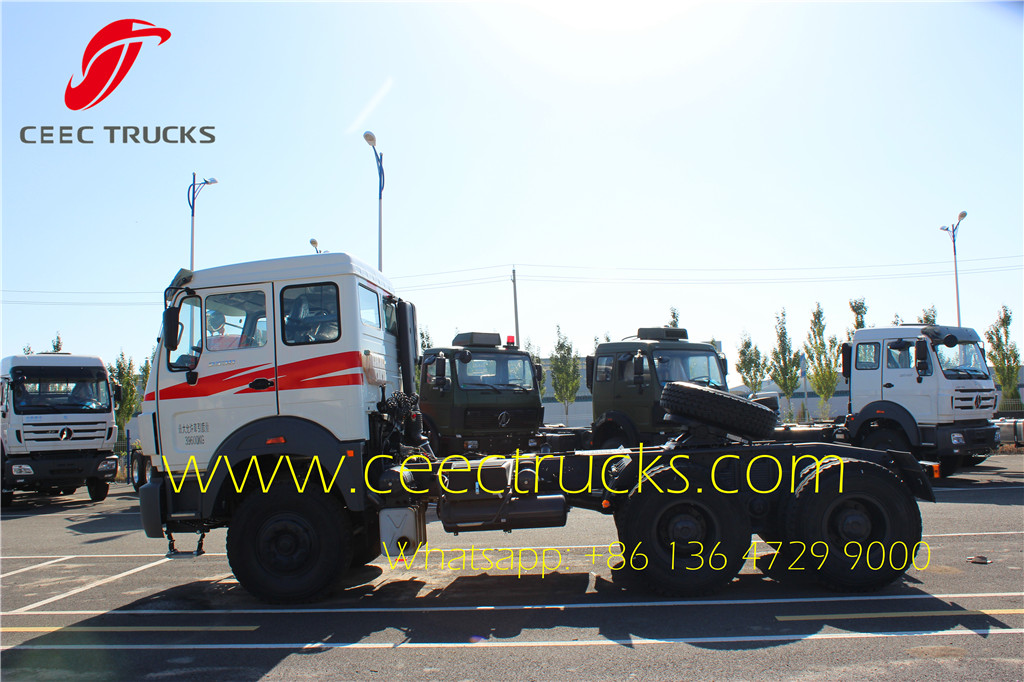

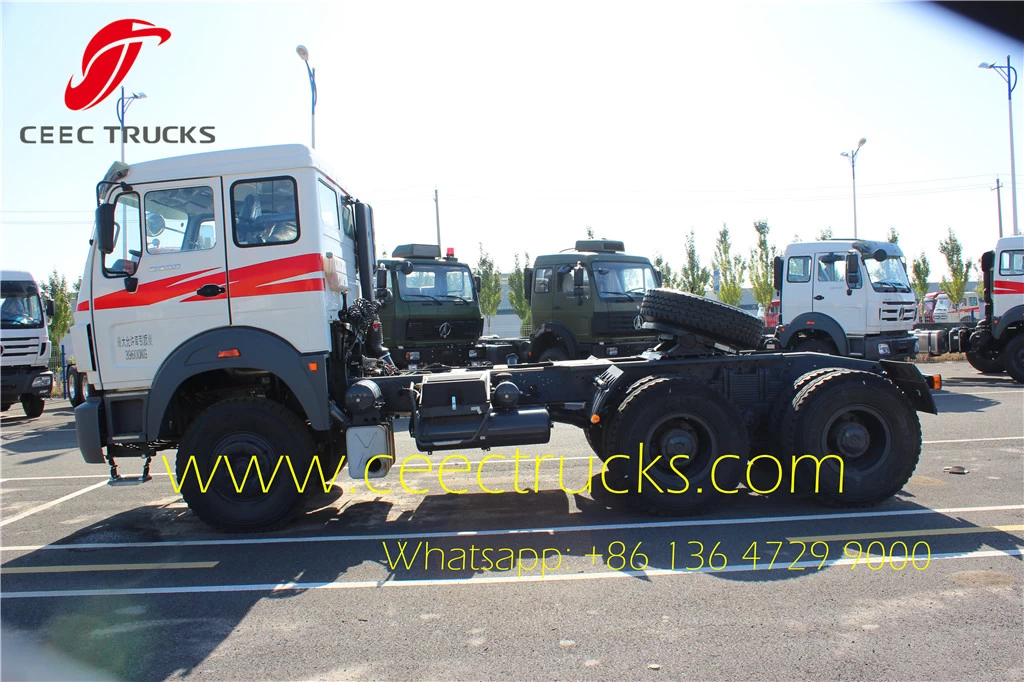

Beiben 2538 tractor trucks



Beiben 2538 tractor truck drawing





Beiben head truck 2538 for Congo, the north benz 380HP 6*4 towing truck are best selling series beiben tractors, customers from Congo, Ghana, Zimbabwe, Kenya, Togo countries prefer to choose beiben 2538 tractor head from CEEC TRUCKS, for we are authorized beiben truck supplier, and the price for beiben 2534, 2538 prime movers are relatively lower than other beiben truck supplier in European and Asia countries. To meet all customer requirement, we provide 4*2 and 6*4 towing head, and rated towing capacity can be 30T, 40T, 50T, 70T, 100T. below is recommend model for beiben tractor head:



Beiben 30T, 40T, 50T, 60T, 70T tractor truck on sale

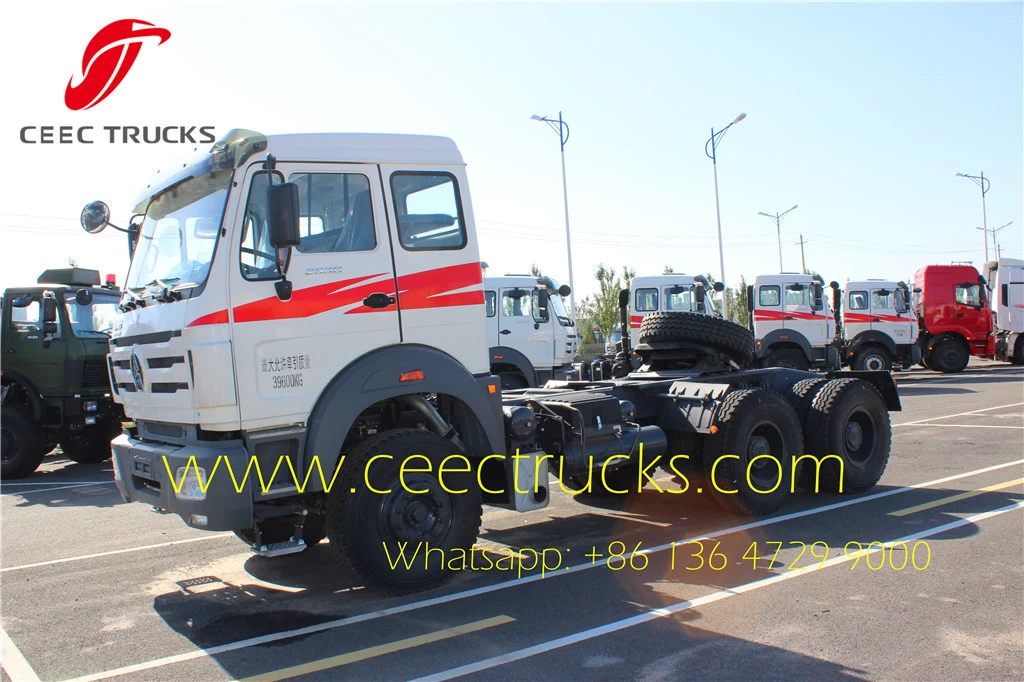

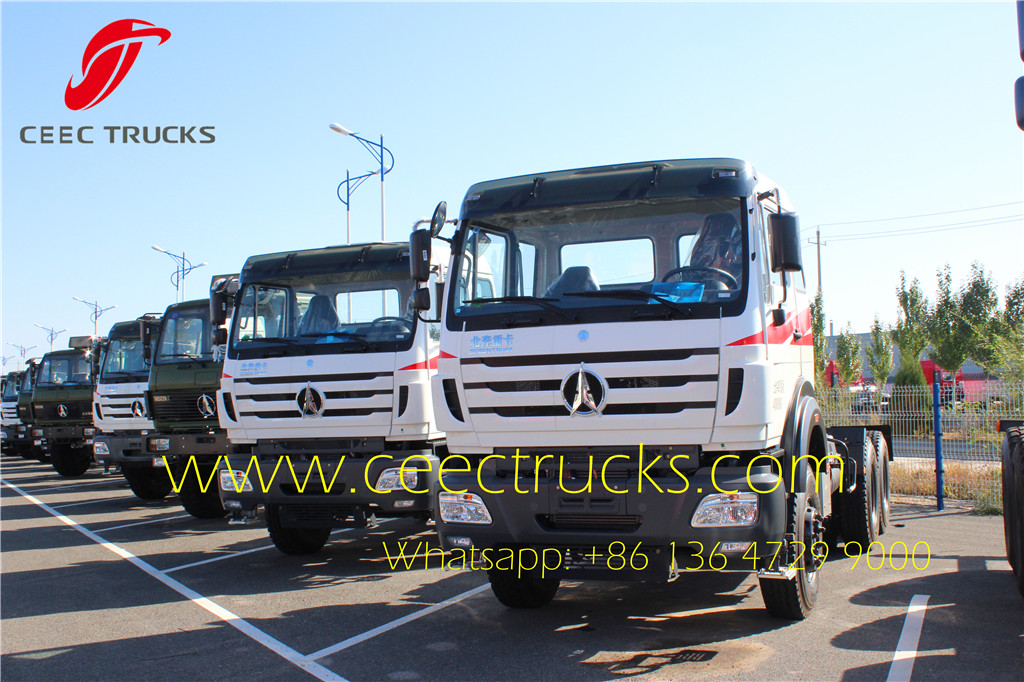

Beiben 2538 tractor head for quick delivery



★ Beiben 2538 tractor trucks provided by authorized Beiben tractor trucks supplier CEEC, with relativerly lower price

★ Beiben 6*4 tractor trucks and Mercedes Benz prime mover share many features such as HL7, HD7 and VL4 axles used in the Actros and Atego models.

★ The gearboxes can be ZF and Fuller Fast, which is same with Germany Mercedes Benz heavy trucks.

★ Mercedes Benz and Weichai WD615, WP10 and WP12. They comply with Euro 2, 3 and 4; have displacements of 10 and 12 liters and HP of 270 to 480.

★ Bosch Common Rail injection, the Euro 2 with linear pump, motor and brake valve MAN Exhaust (Jack-Brake), among other qualities.

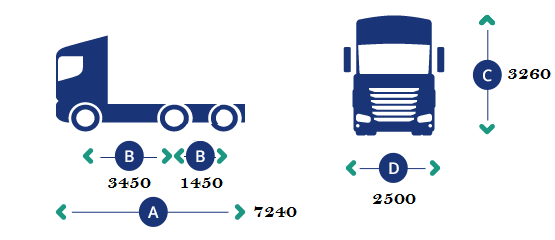

beiben 2538 prime mover dimension

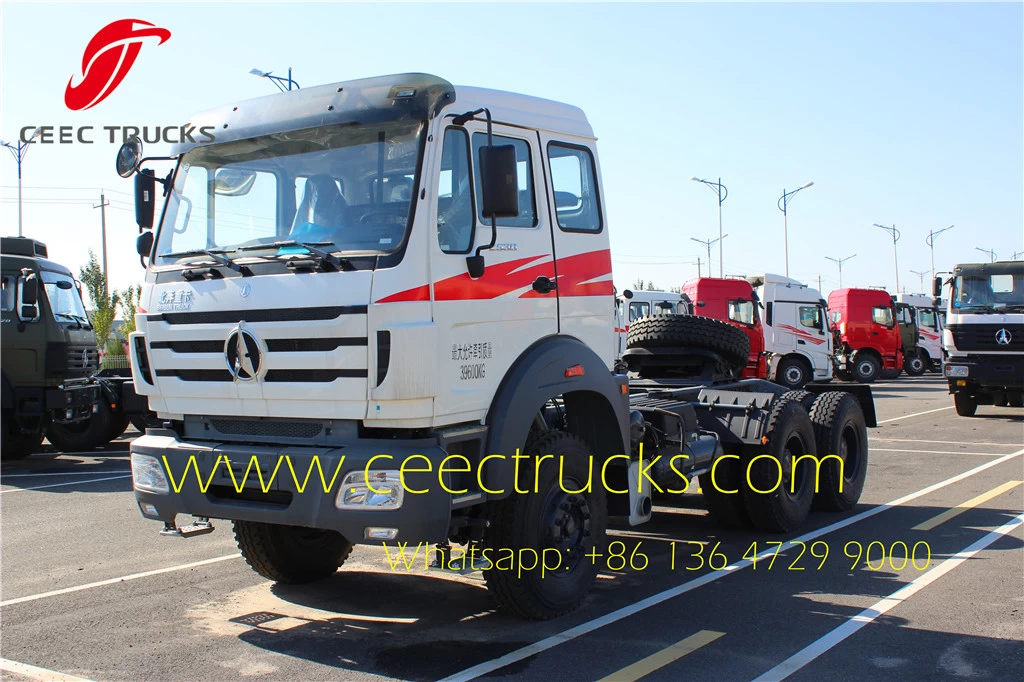

China NO.1 Beiben 50T tractor truck supplier 380HP benz 6*4 prime mover

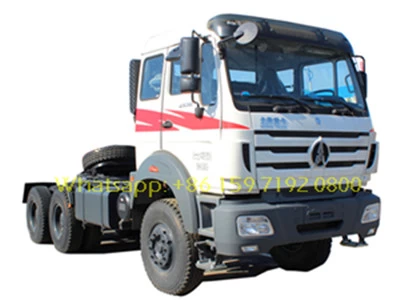

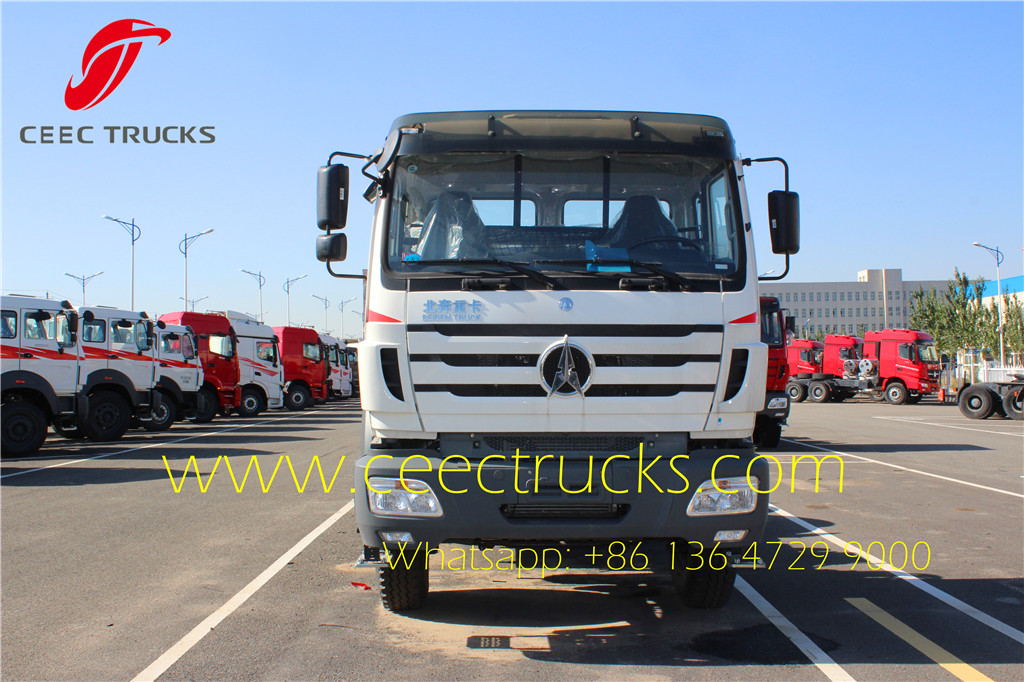

beiben 10 wheeler towing truck

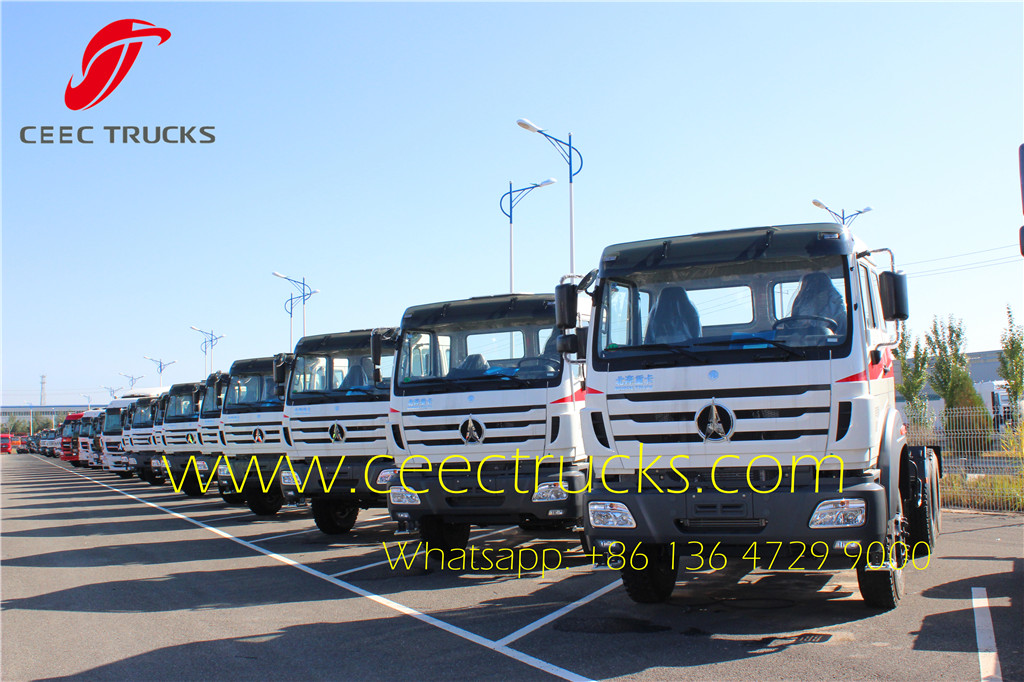

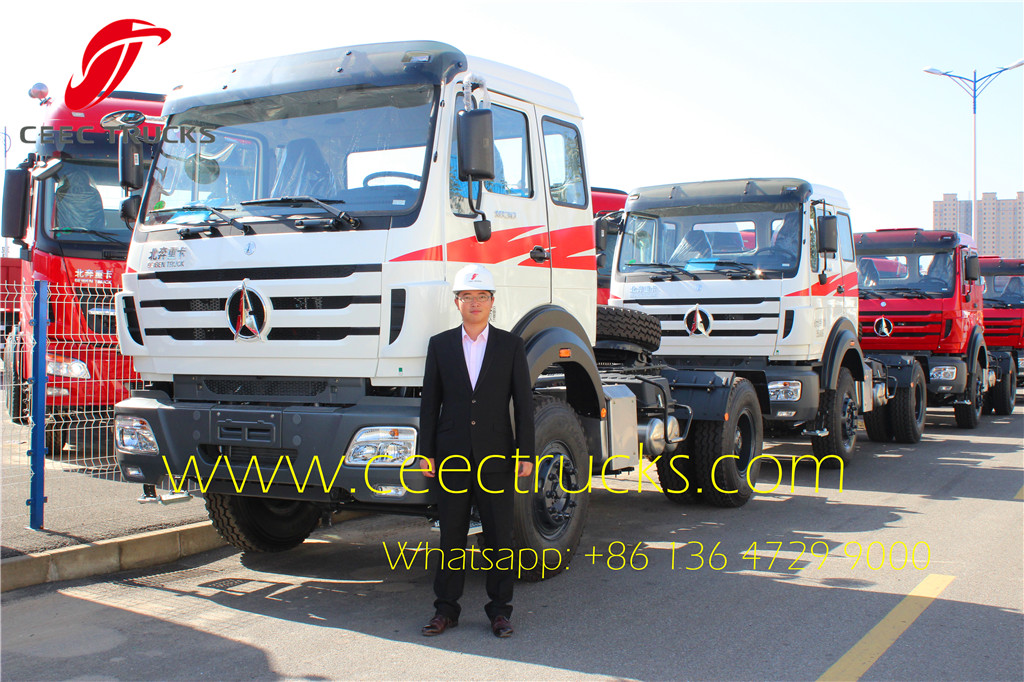

Beiben 2538 tractor head for quick delivery



Beiben 2538 tractor head for quick delivery   Beiben 2538 tractor head for quick delivery



Similar Key Works: Beiben 6*4 towing trucks, Benz 6*4 tractor head, Beiben 2538, 2638 tractor trucks, North benz 2538 tractors, beiben 6*6 all-wheel-drive tractors, beiben 2538 towing trucks.



Model

BEIFANG BENZ 2538 tractor

Wheel base (mm)

3450+1450

Curb weight (kg)

8800

Gross towing trailer weight(kg)

40000

Axles loading(kg)

7000/18000/18000

Dimension

length(mm)

7240

width(mm)

2500

height(mm)

3530,3870,3470,3260

Engine

Model

WP10.336
WP10.375

WP12.375

WP12.440

WP12.480

water-cooled, four strokes,6 cylinders straight in line, turbocharged, directly injection

Rated power(kW)/Rev(r/min)

276/2200

Max. Torque (N*m)/Rev(r/min)

2100/1200-1500

Displacement(L)

11.596 / Diesel

Emission

Euro II and Euro III

Fuel tanker capacity (L)

400

Gearbox

Model

12JS200T (FAST mechanism, 12 forward, 2 reverse, manual, made in China)

Steering system

Model

ZF8098

Leaf spring quantity

13/13

Rear axle (Mercedes Benz Technology)

Double-shoe pneumatic brake, ductile casting casing, with hub redactor, 16tons hud reduction rear axle ,with ABS

Tyre

11.00-20 18PR,11.00R20 16PR,12.00-20 16PR,12.00R20 14PR,315/80R22.5 16PR

Cab

V3 High cab with double sleeper; Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly; with A/C

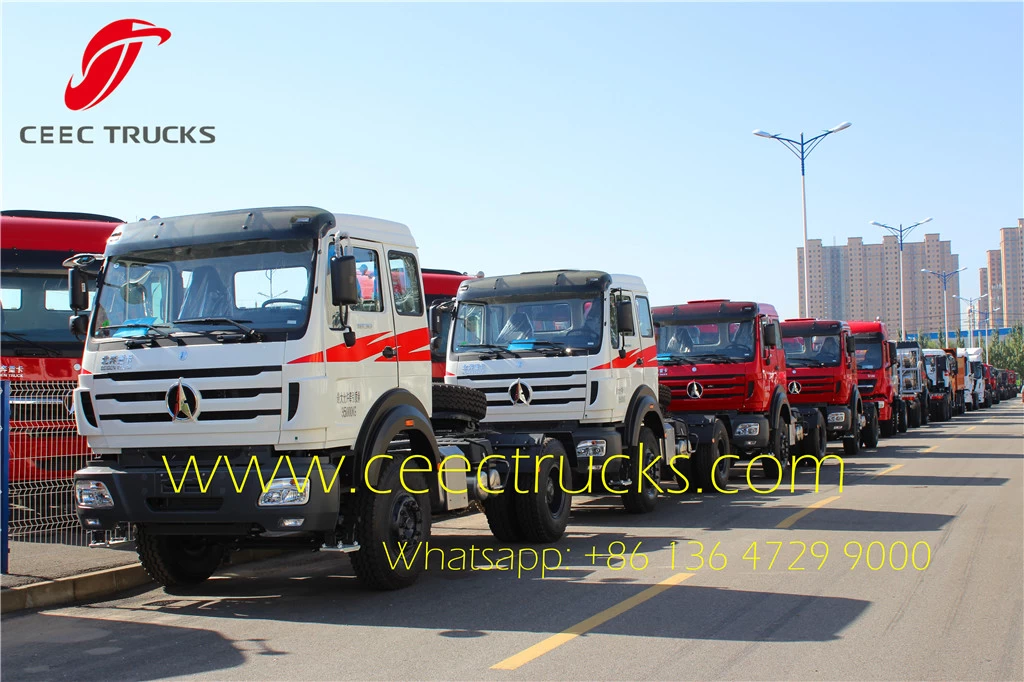

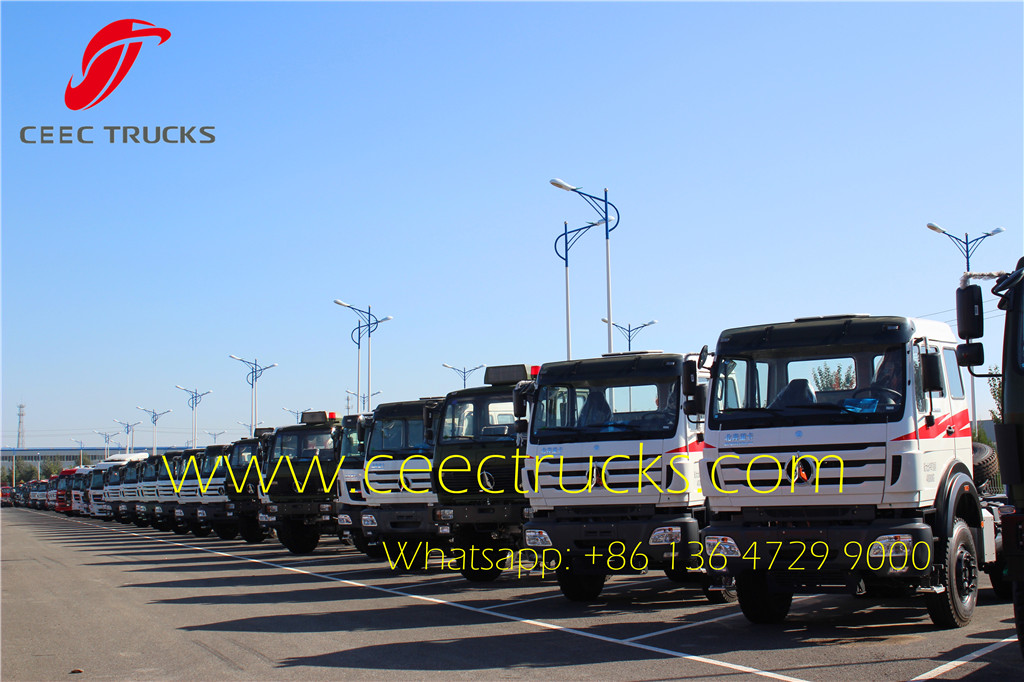

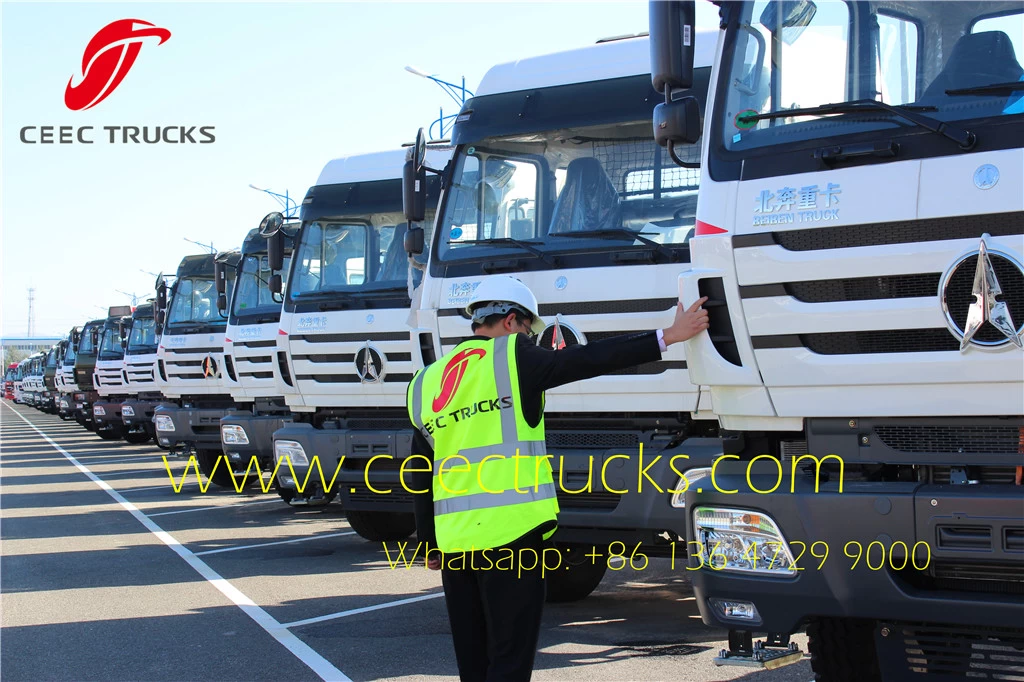

Beiben 2538 tractor head in factory



Beiben 2538 tractor head in factory
