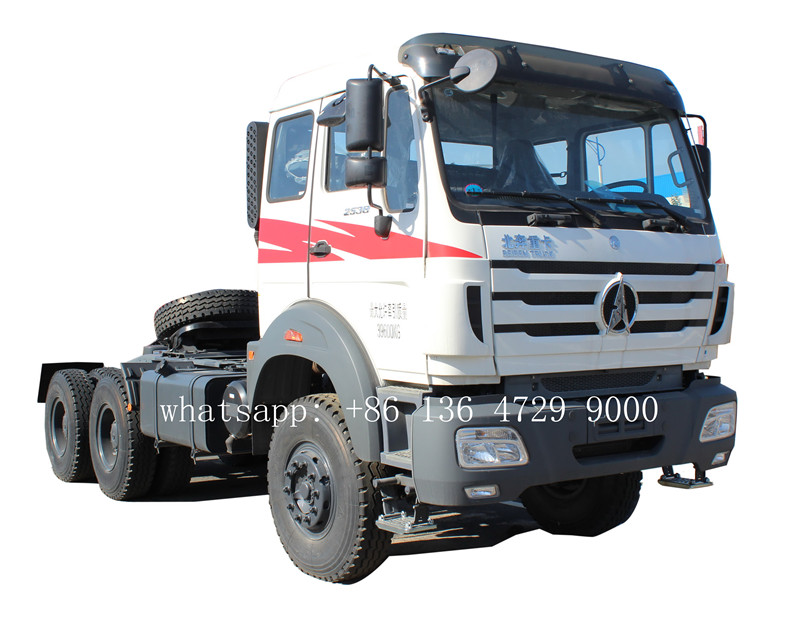

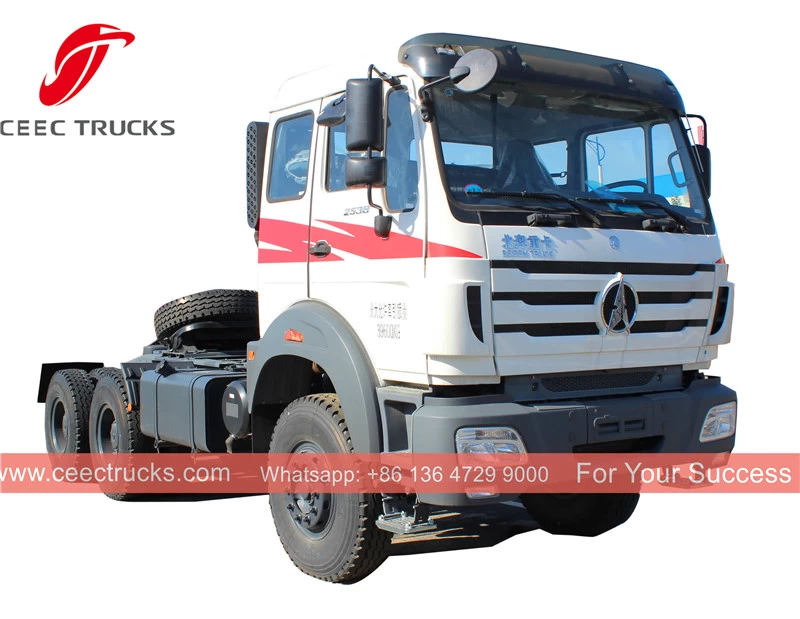

Beiben 2538 tractor truck

Congo beiben 2534 tractor truck with BENZ TECHNOLOGY, this north benz 2534 RHD towing truck with WD615.38 engine with 380HP power, 9200kg curb weight and 40000 kg rated towing weight. overall dimension can be 7280*2500*3450 mm



China Number One beiben 2638 LHD tractor trucks as one of best selling north benz 6*4 towing trucks, which is very popular in Africa and East Asia coutries, and being widely sold in Pakistan, Dominica, Mauritius, Saychelles, Uganda, Zambia, Tanzania and Kenya countries. Because of the original Germany Mecedes Benz technology and ZF gearbox technology, all our Beiben 2638 prime movers have almost same quality than benz tractors. Besides, as the authorized supplier by Beiben Truck Company, we CEEC TRUCKS can provide beiben 4*2, 6*4 heavy duty trucks,  which has relatively 5%~10% lower price than competitor suppliers in European, American and Asia countries.

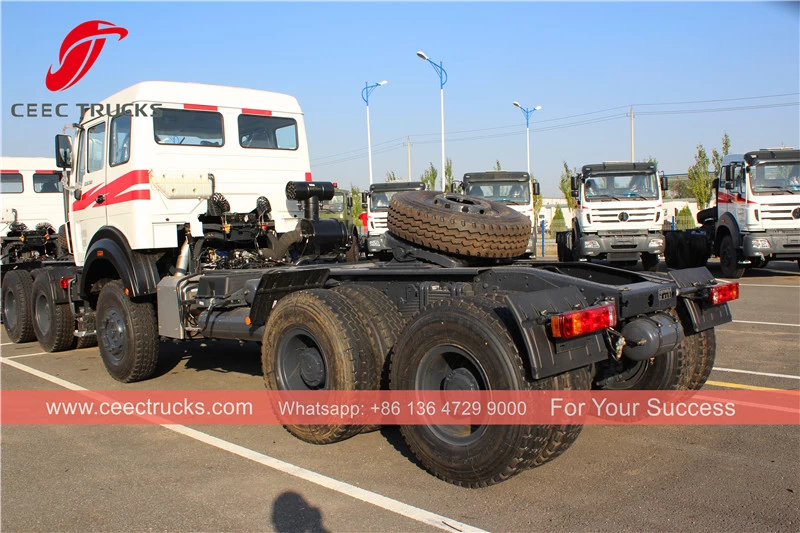

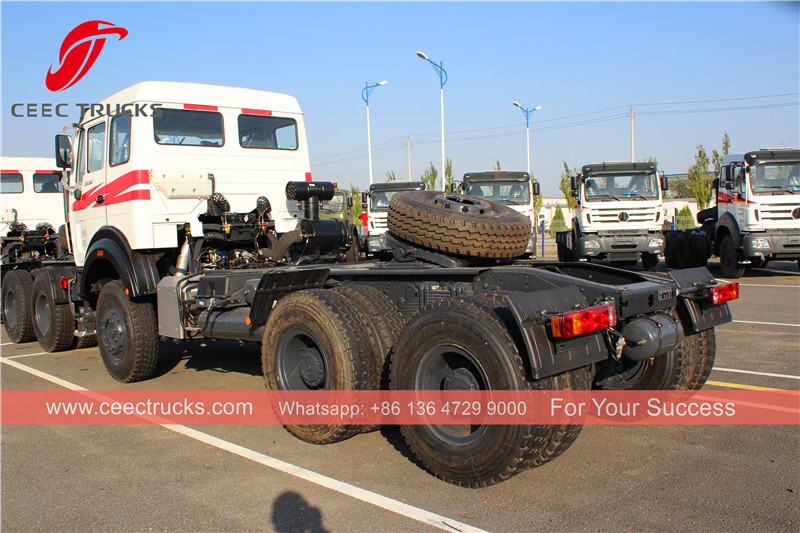

Congo beiben 2534 tractor truck

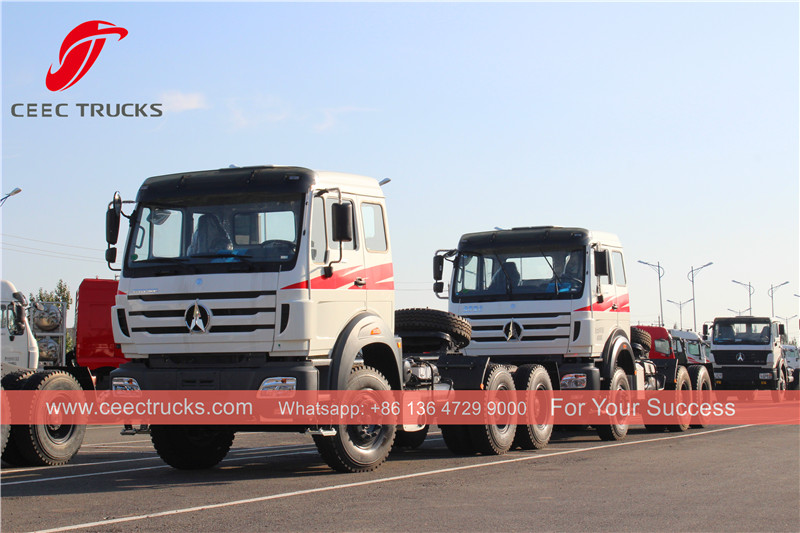

congo beiben tractor truck



★ CEEC TRUCKS are authorized Beiben 2638 RHD tractor trucks supplier in China, who can supplier all kinds of north benz 6*4 prime movers.

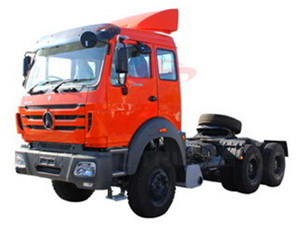

★ Beiben RHD 2638 towing trucks use newly designed NG80B cabin, with air deflector on top of cab, Orange color is for Kenya customer requirement.

★ The price for Benz 2634 towing trucks are relatively at least 10% lower than European and Asian competitors.

★ Beiben truck and benz trucks share familiar gearboxes - ZF and Fuller Fast. mainly 9-shift manual gearbox and 12-sfhit manual transmissions.

★ Equipped with Mercedes Benz tractors used Weichai WD615, WP10 and WP12. They comply with Euro 2, 3 and 4 dimension, have displacements of 10 and 12 liters and HP of 270 to 480.

★ JOST ∮90 single direction towing seat for maximum 60T towing capacity and special used for fuel tanker semitrailer and low bed semitrailer.













Similar Key Works: Beiben 6*4 tractor truck, Beiben 2638 congo tractor head, benz 2638 towing trucks, Beiben 6*4 prime mover, Beiben 2538, 2638 tractor trucks, North benz 2542 towing truck, beiben 6*6 tractor trucks



Wheel base (mm)

3450+1450

Curb weight (kg)

9200

Max Speed:(Km/h)

≥90

Engine

Model

WD615.38, 380HP, water-cooled, four strokes, 6 cylinders straight in line, turbocharged

Fuel type

diesel

Min rate of consuming fuel(g/(kW.h))

≤198

Rated Power / rotating

(KW/(r/min)

280Kw/2400rpm

Emission

EURO â…¡

Maximum Torque

rotating speed(N.m/(r/min))

1460Nm/1400-1600rpm

Displacement(ml)

9726

Fuel tanker capacity (L)

400

Clutch

Model

#430, Single dry frictional disc, Hydraulic boosting

Gearbox

Model

12JS200T, mechanical type,12 Forward speed gear, 2 reverse gear

Gear ratio

12.1/9.41/7.31/5.71/4.46/3.48/2.71/2.11/1.64/1.28/1.00/0.78R1: 11.56   R2: 2.59

Brake system

Service brake

Brake gap can be adjusted automatically, double circulation air brake system

Assistant brake

Engine exhaust brake

Park brake

Potential springs pressing on middle and rear wheels

Steering system

Model

ZF8098,  whole circulation in ball type, hydraulic boosting

Suspension system

Front Suspension

Non-free standing leaf spring,telescopic shock absorber with stabilizer bar suspension

Rear Suspension

Non-free standing stabilization spring, stabilization suspension

Frame

Fish belly shape, variable width, variable sections

Cross section dimension of frame(mm)

317×70×8.5+7+8

Front axle

Double-shoe pneumatic brake, non-driving steering axle AL7/1DS-7/5.263

Middle and Rear axle

Double-shoe pneumatic brake, ductile casting casing,

with hub redactor, double reduction driving axle

Middle axle: HD7/016DGS-13/5.263

Rear axle: HL7/015DS-13/5.263

Tire

12.00-24 (one spare tire)

Electrical system

Battery

2X12V/135Ah

Generator

28V-35A

Starter

5.4Kw/24V

Cab

Short cab, Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly; with Air deflector

Interior trimming: Integral interior trimming, Integral instrument, digital instrument, inner A/C, radio  (with USB interface), high back/shock absorption seat for driver, high back seat for co-driver. Steering wheel can be adjusted.

Exterior trimming: Single layer road bumper, three steps, with new mirror. with outer sun visor
