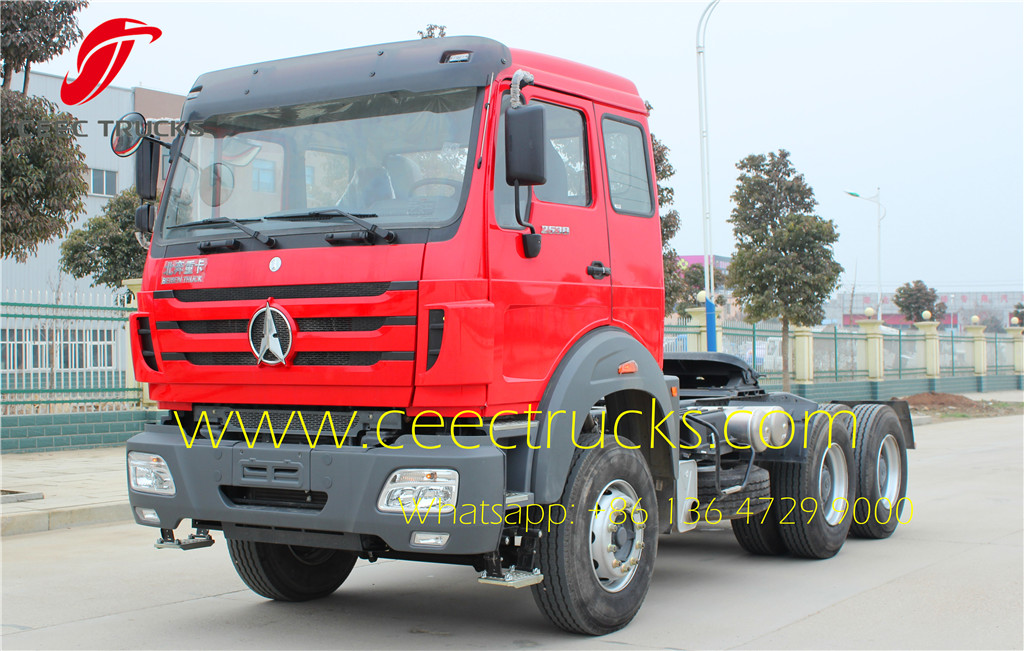

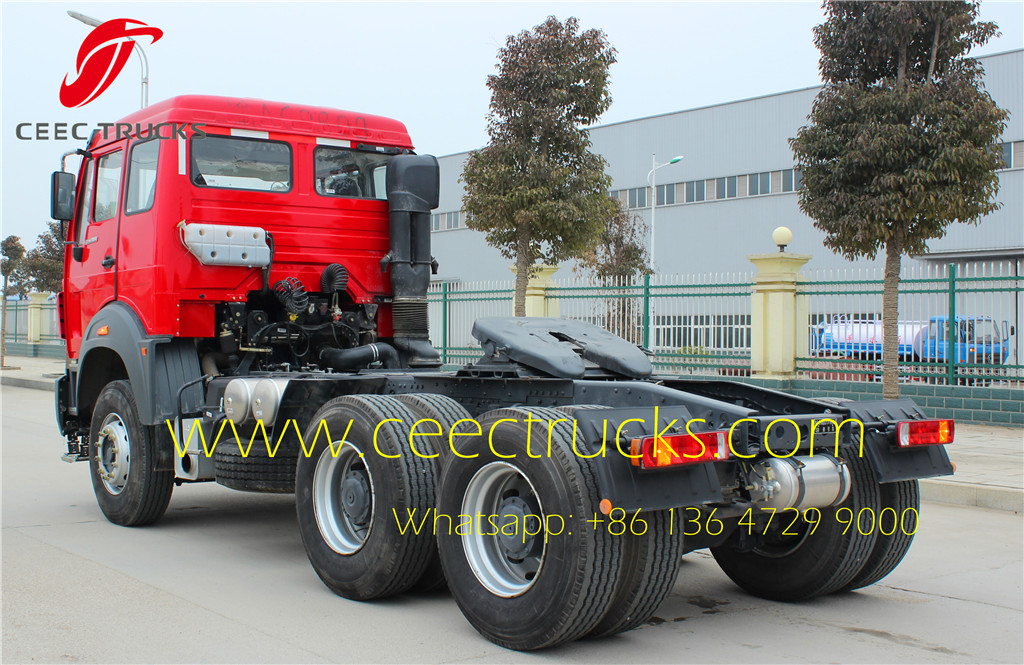

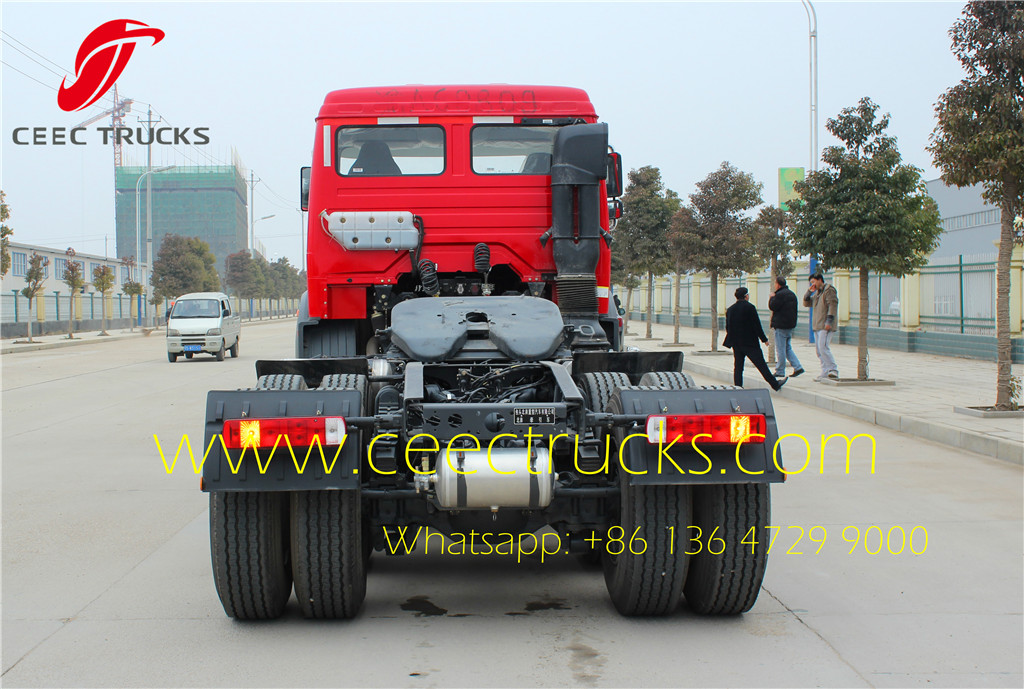

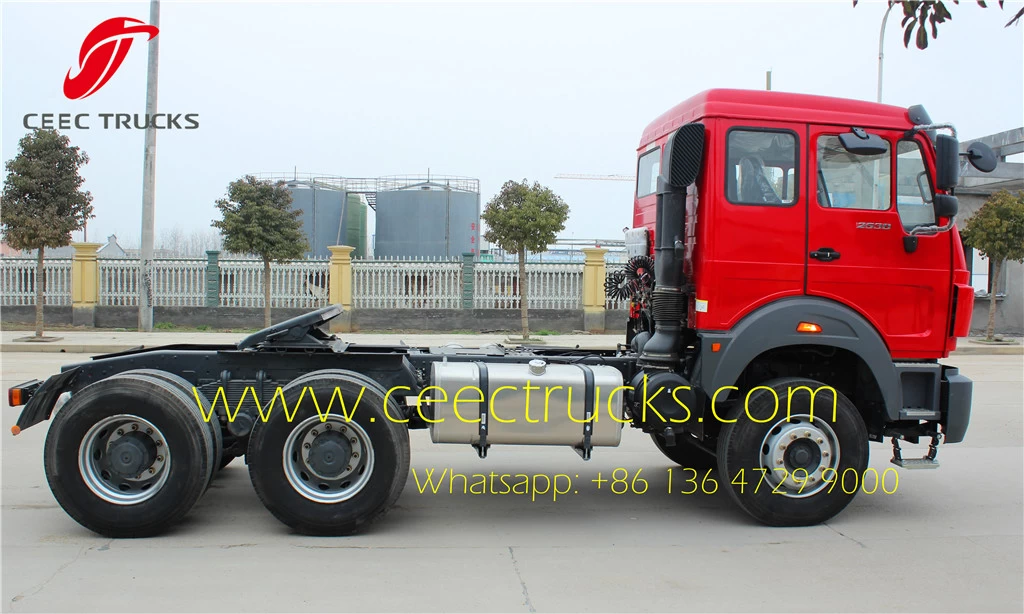

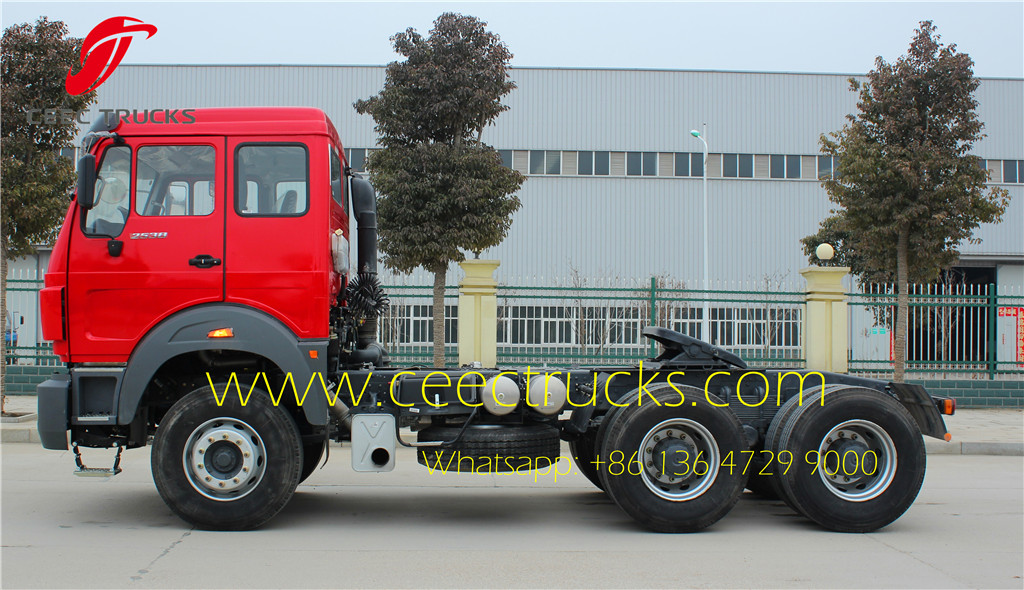

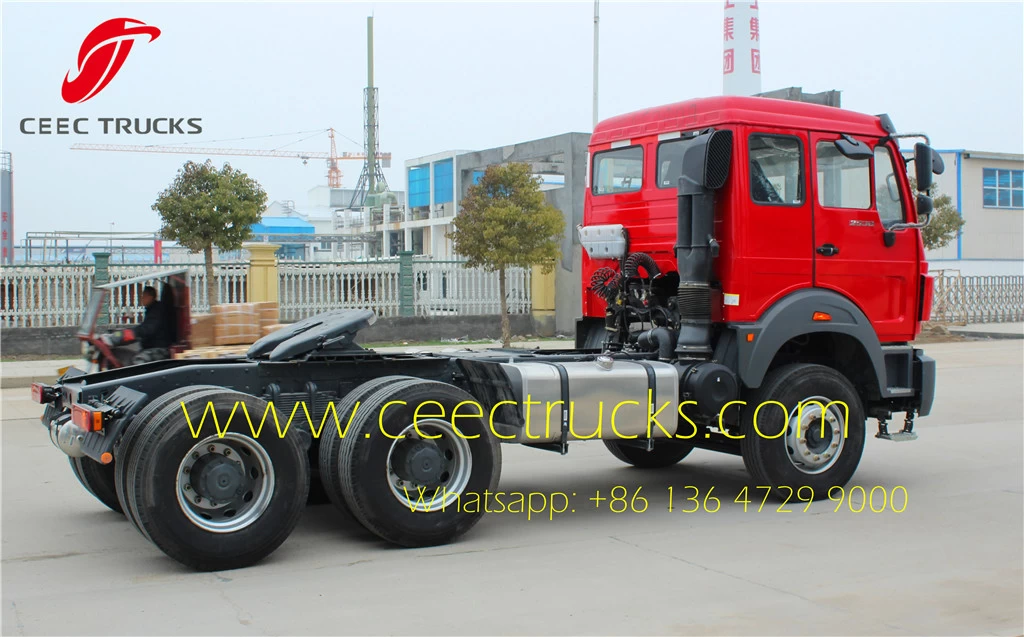

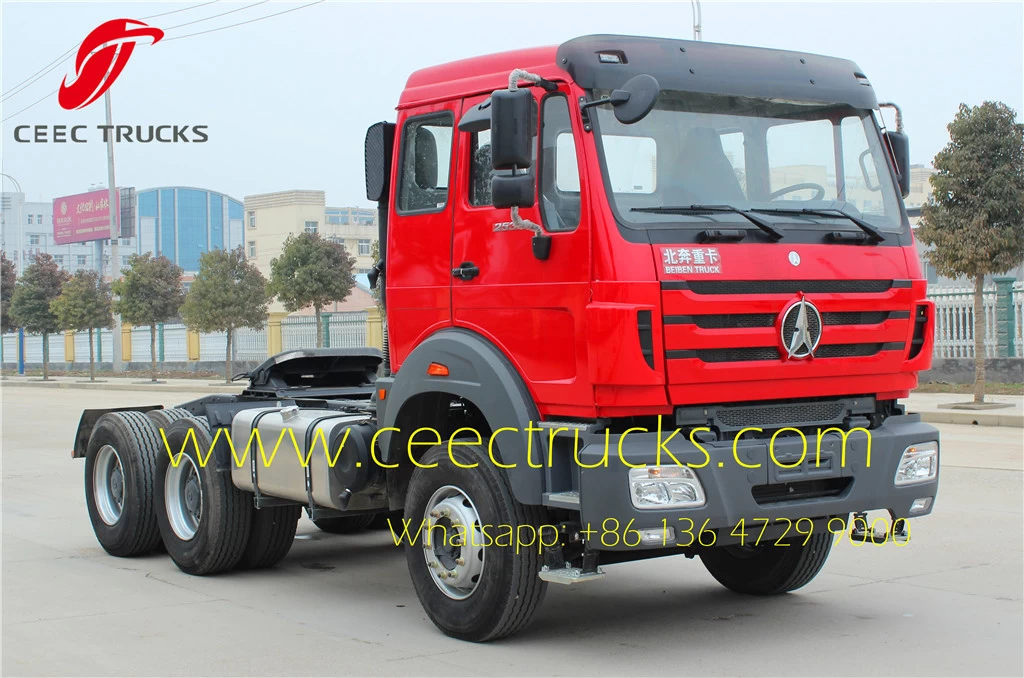

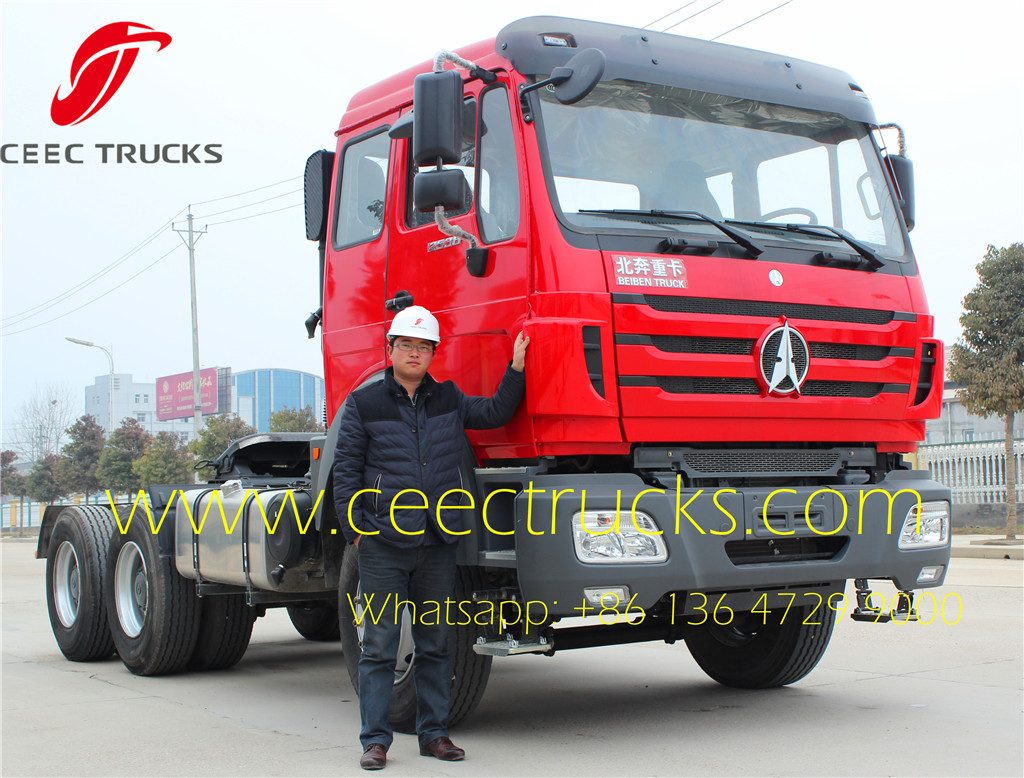

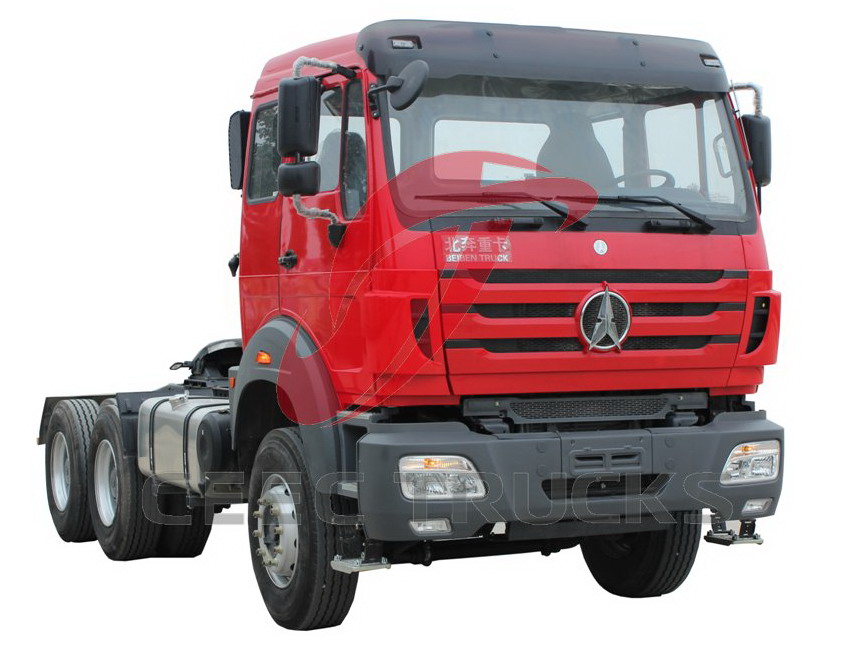

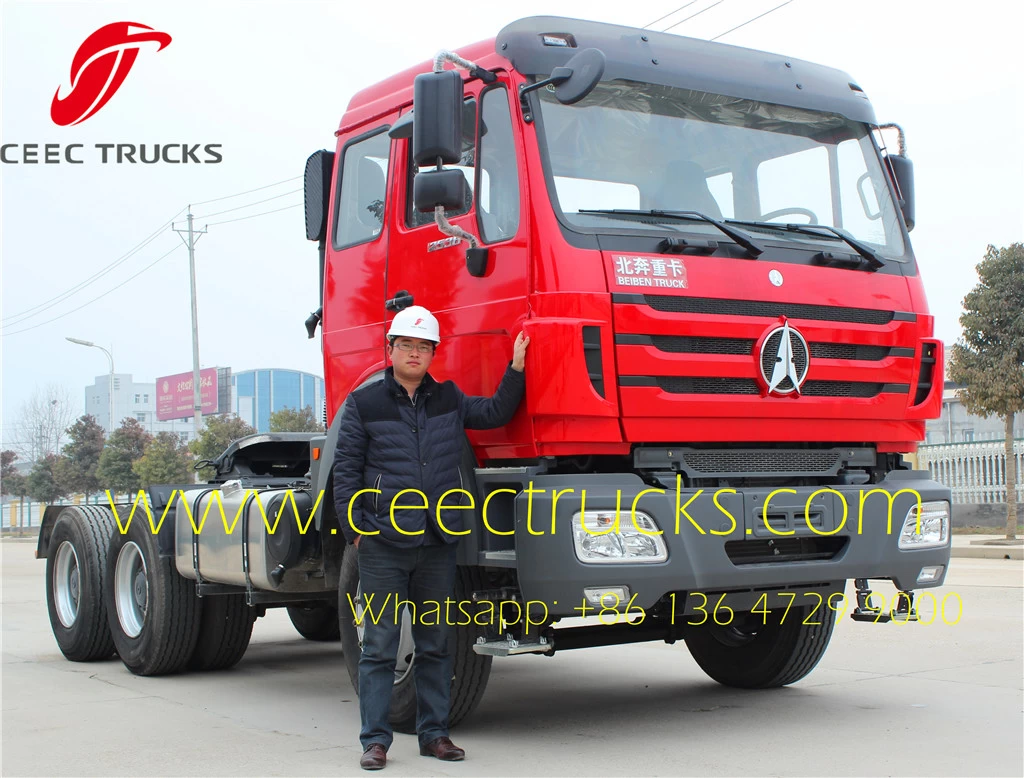

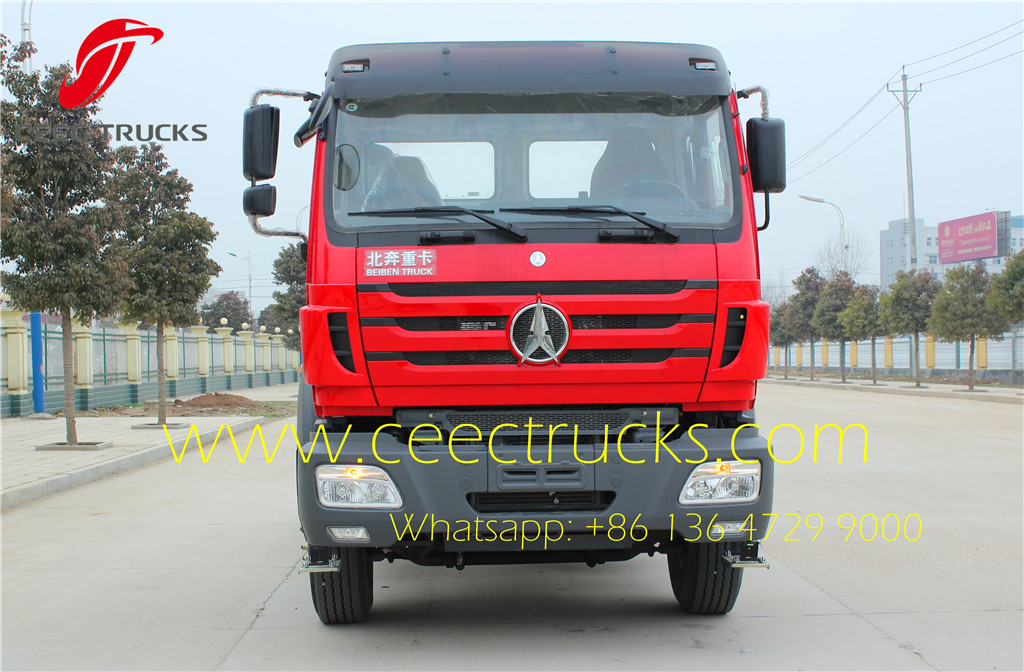

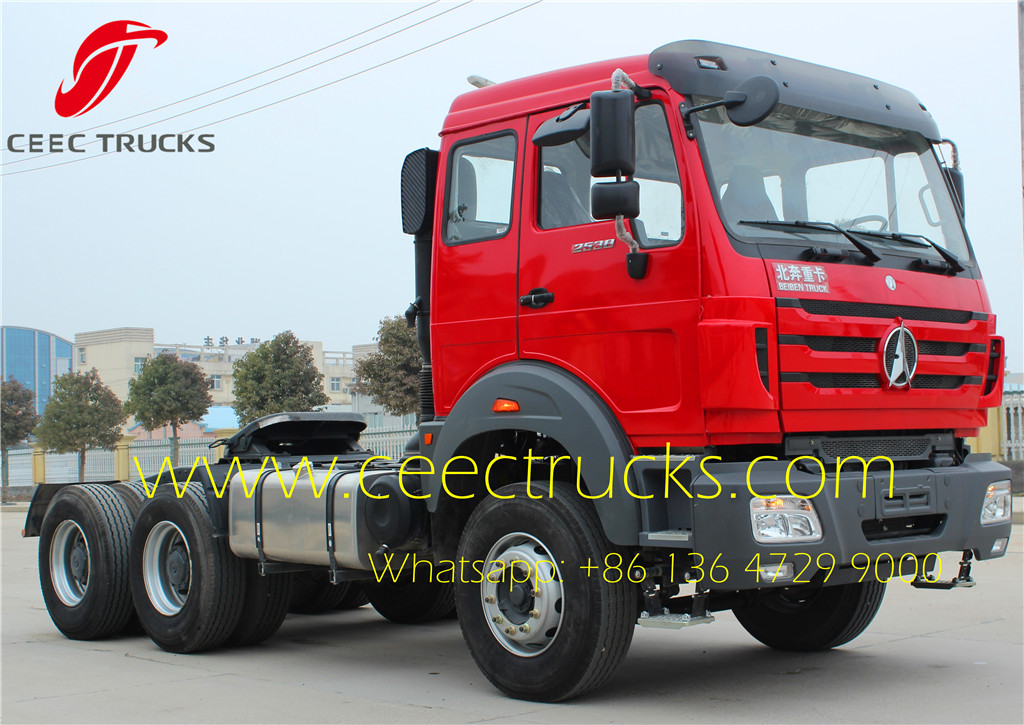

North Benz 2542 Tractor Trucks
Functions:
★ Beiben 2542 heavy duty tractor truck, mining and quarries
★ Heavy duty material transportation
★ Dry bulk, building material, waste, wooden transportation
★ Agrivulture, Freight, Plant Hire, Military
Feature:
★ CEEC TRUCKS are authorized Beiben 2542 tractor trucks, north benz 6*4 prime movers supplier in China
★ All Beiben trucks share same features with Mercedes Benz tractors, like HL7, HD7 and VL4 axles used in the Actros and Atego models.
★ Same features and quality with Benz truck, but beiben 2542 towing trucks are 30% cheaper than it.
★ Beiben truck use WP10.420E32 EURO 3 model engine, which has emission 10 liters and HP can be up to 420PS.
★ FAST 12JS200T manual machanism transmission gearbox, 12 forward and 2 reverse manual
★ High quality guarantee, massive, durable, perfect performance and prolonged service life.
Parameters:
Similar
Key Works: Beiben 2542 tractor truck, beiben 6*4 prime mover, north benz 2542 tractors camions, beiben 2642 towing truck, Benz 2542, 2546 tractor head, beiben 6*4 tractors

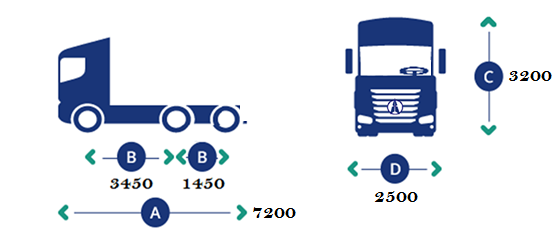

| 2542S /6×4/3450+1450/Long Cab/LHD |
| Dimension |
7200*2500*3200mm |
| Approaching angle/Departure angle |
26/64° |
| Overhang(front/rear) |
1410/825mm |
| Wheel base |
3450+1450mm |
| Max speed |
90km/h |
| Curb weight |
9200kg |
| Max towing weight |
40000kg |
Max loading on fifth wheel, Permitted(kg)
|
15670kg
|
| Slope climbing capability |
Max.40% |
| Engine |
Model |
WP10.420E32，water-cooled，four strokes，6 cylinders in line，turbocharged, directly injection |
| Displacement |
9.726L/Diesel |
| Stroke |
126/130mm |
| Max. power |
280/2200 (kw/rpm) |
| Max.torque |
1460/1200-1600（Nm/rpm） |
| Emission stantard |
Euroâ…¢ |
| Fuel tanker capacity |
400L |
| Clutch |
∮430, Single dry frictional disc，Hydraulic boosting |
| Gearbox |
12JS200T, mechanism,12forward gears,2 reverse gear, manual operated
|
| Gear ratio of gear box |
15.53/12.08/9.39/7.33/5.73/4.46/3.48/2.71/2.1/1.64/1.28/1.00 R: 14.86 3.33 |
| Suspension system |
Front |
Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension , 13pcs |
| Rear |
Non-free standing stablization spring, balance suspension system, 13pcs |
| Brake system |
Service brake |
Brake gap can be adjusted automatically, double circulation air brake system |
| Assistant brake |
Engine exhaust brake |
| Park brake |
Potential springs pressing on middle and rear wheels |
| Steering system |
TAS85,whole circulation in ball, hydraulic booster |
| Frame |
Fish belly shape, variable width, variable sections |

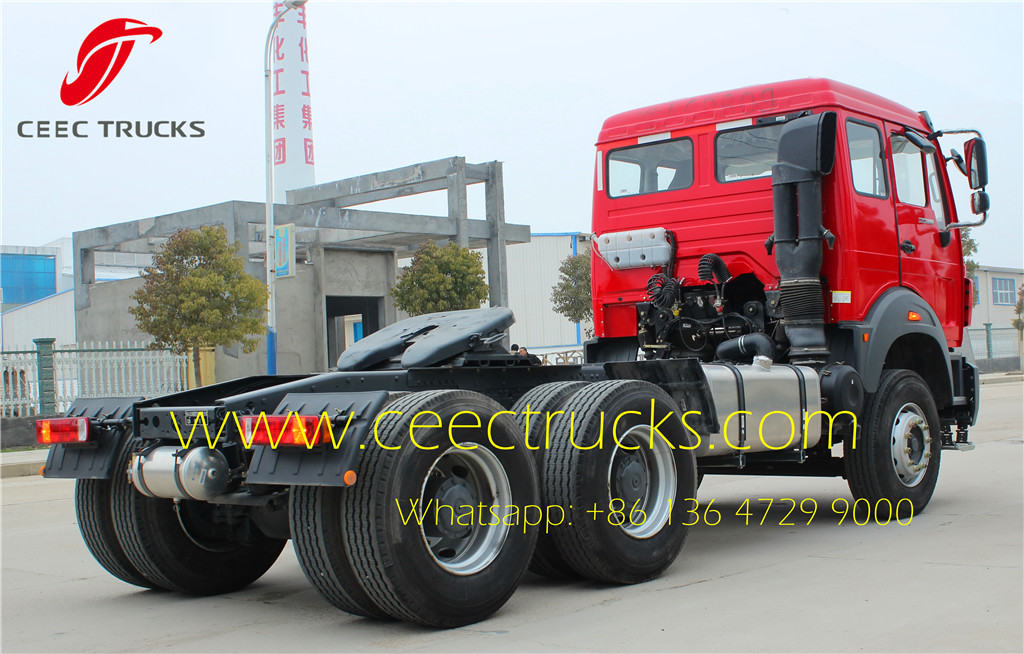

Model
|
JOST ∮90 single direction
|
Height of fifth wheel(mm) (unload)
|
1410
|
Radius of front gap (mm)
|
2300
|
Radius of rear slew (mm)
|
2600
|

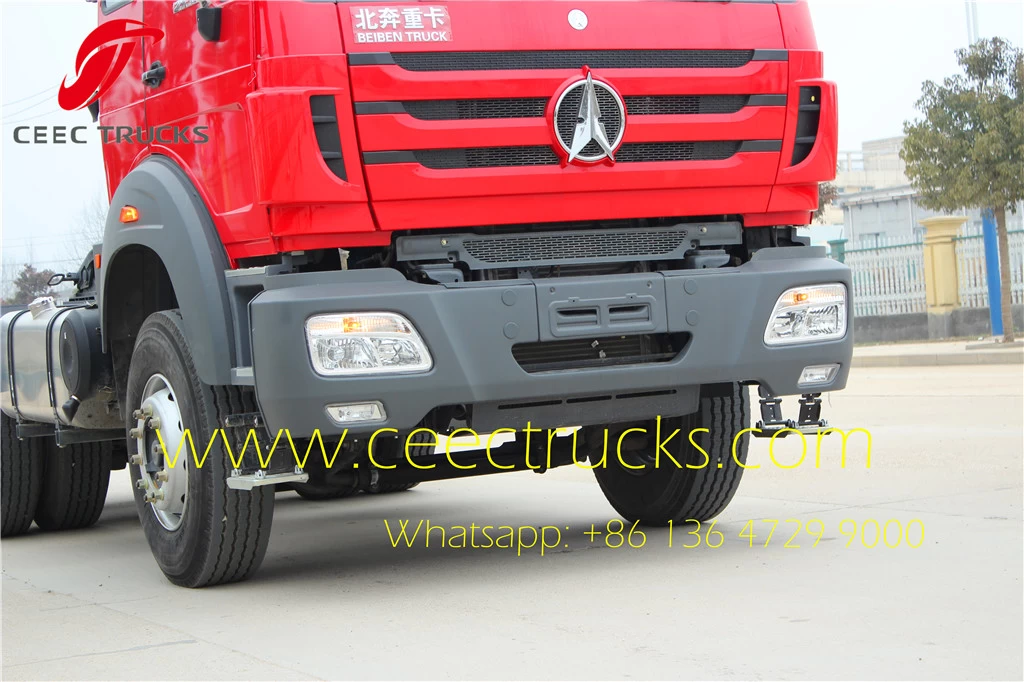

| Front axle (Mercedes Technology) |
Double-shoe pneumatic brake, non-driving steering axle |

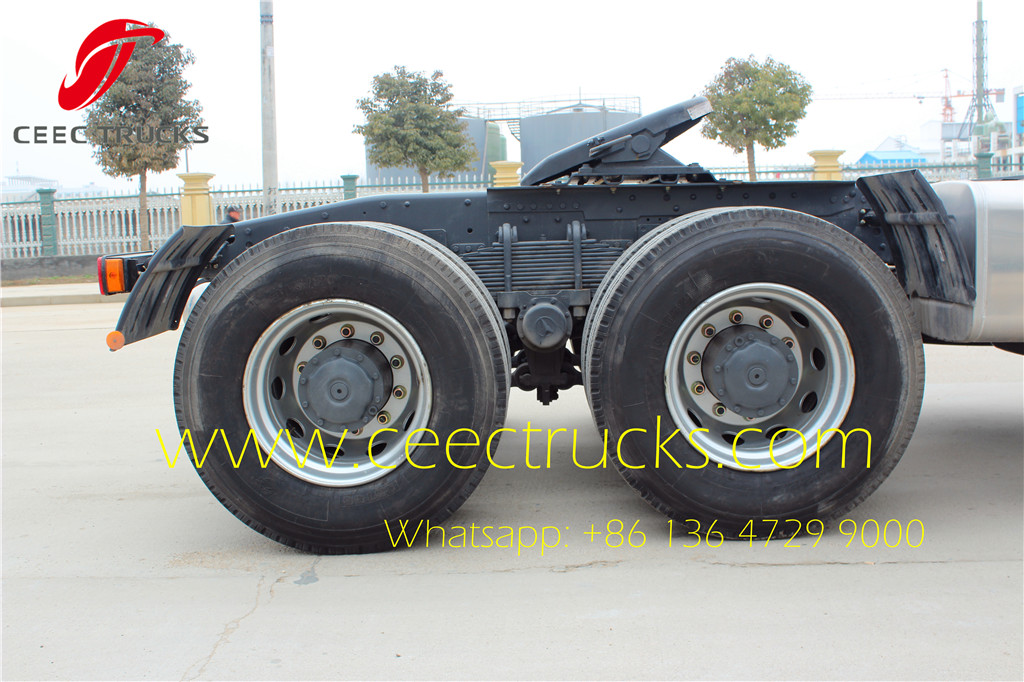

| Middle and Rear axle (Mercedes Technology) |
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle |
| Tyre |
12.00-R20 |
| Electrical system |
Battery |
2X12V/135Ah |
| Generator |
28V-35A |
| Starter |
5.4Kw/24V |

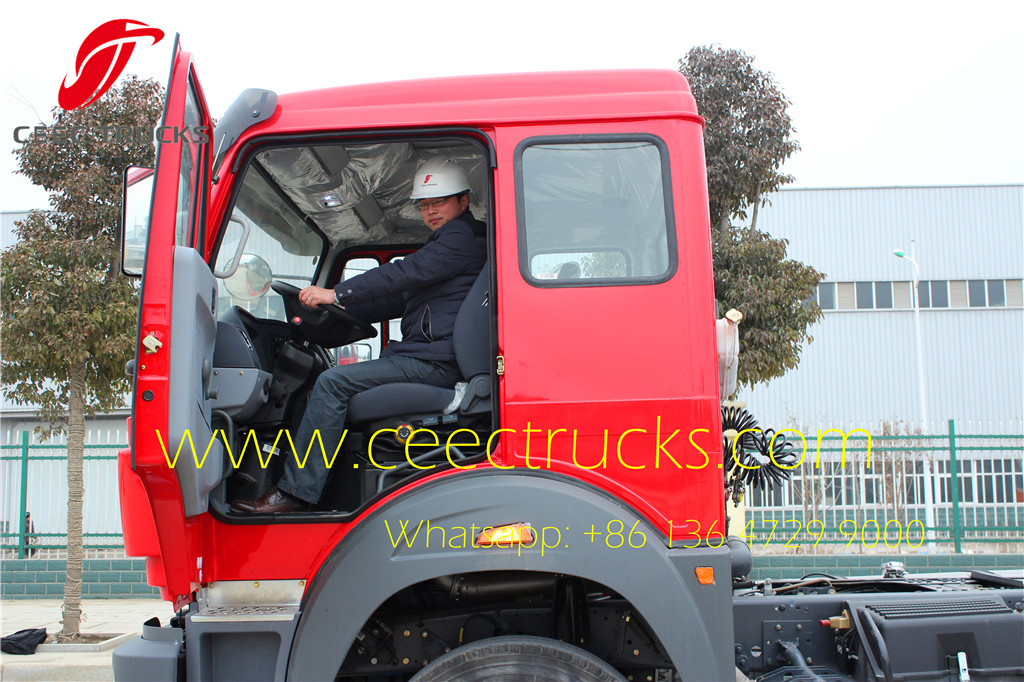

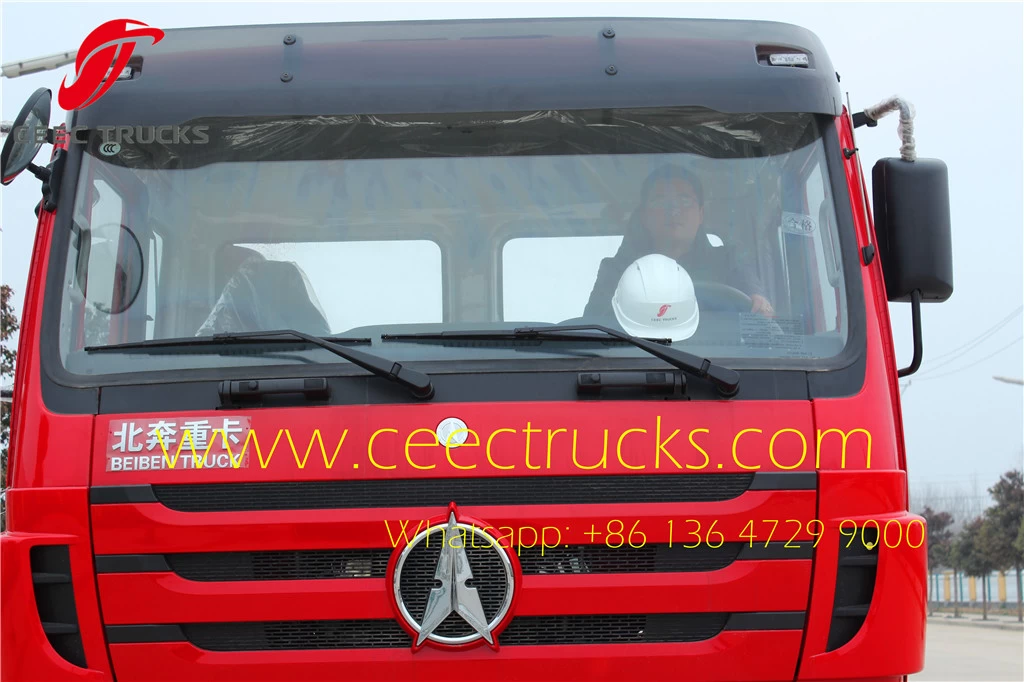

| Cabin |
NG80B Long-Flat roof cabin with single sleeper
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;
High back seat for driver;Electric lifting window ;
With inner A/C |

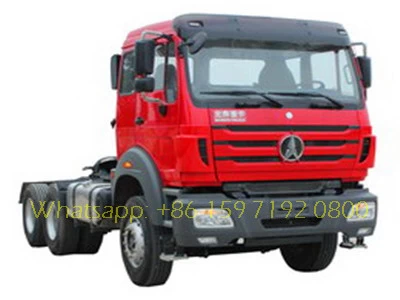

Beiben 30T, 40T, 50T, 60T, 70T tractor truck on sale
Other beiben trucks display
