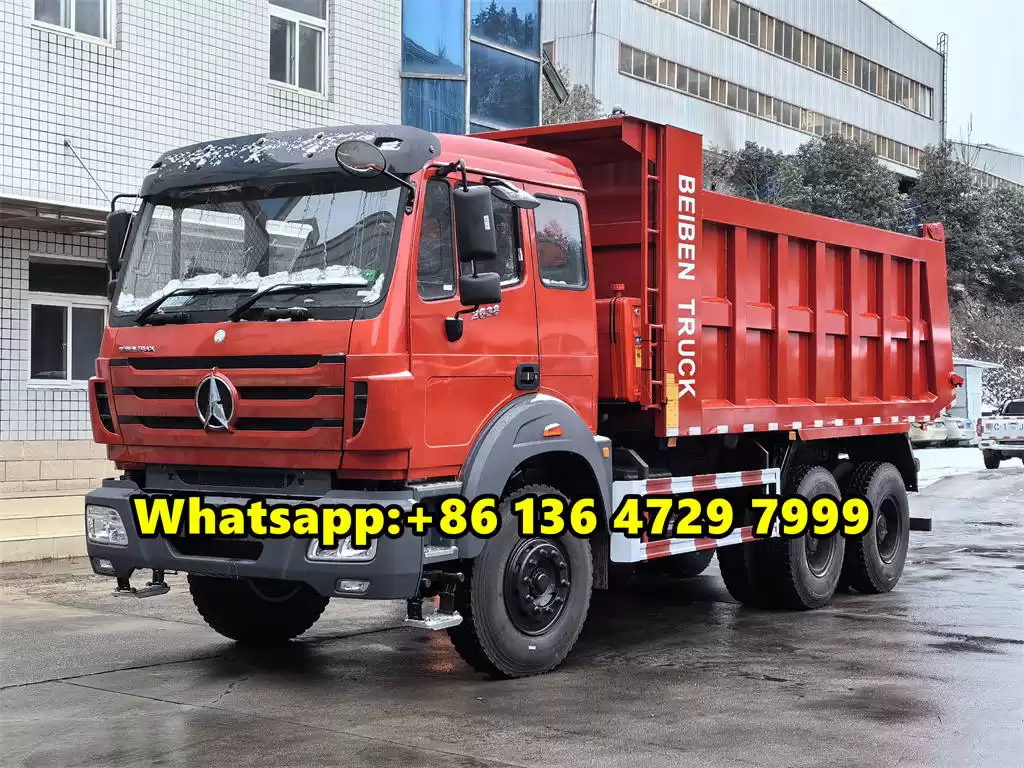

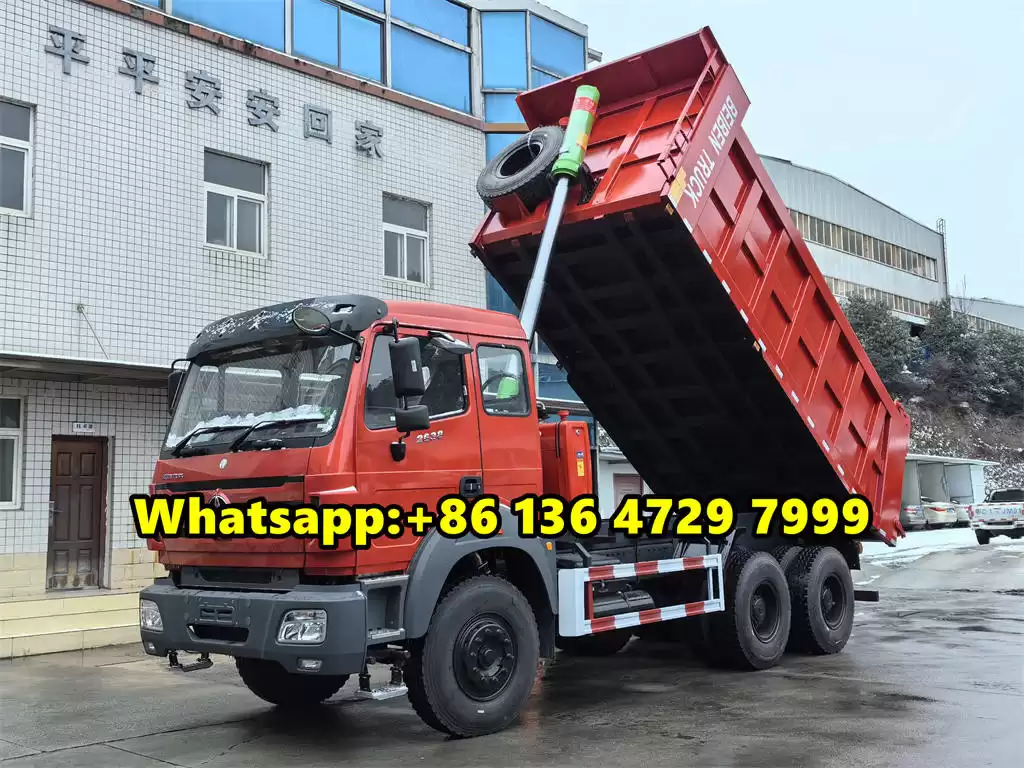

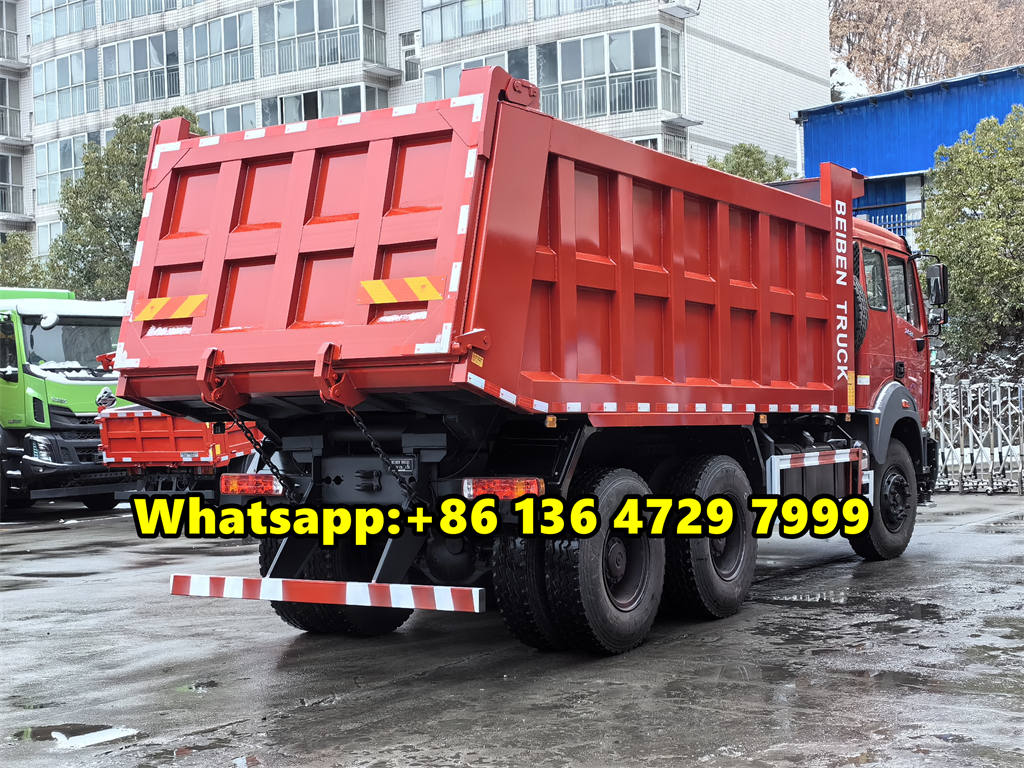

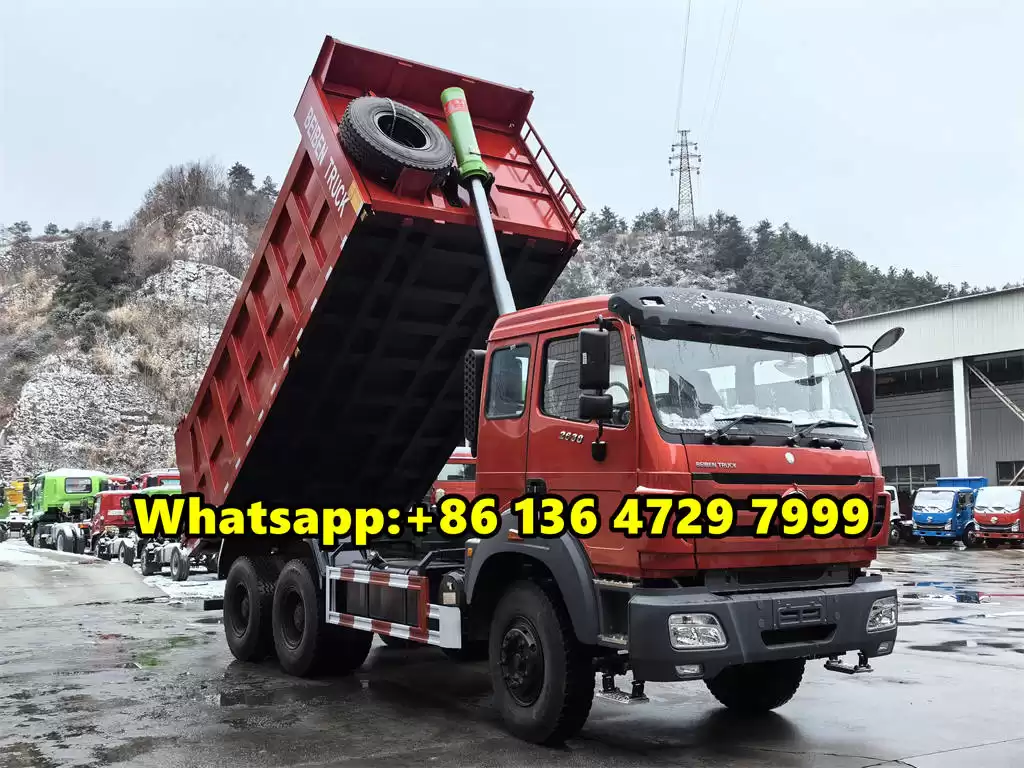

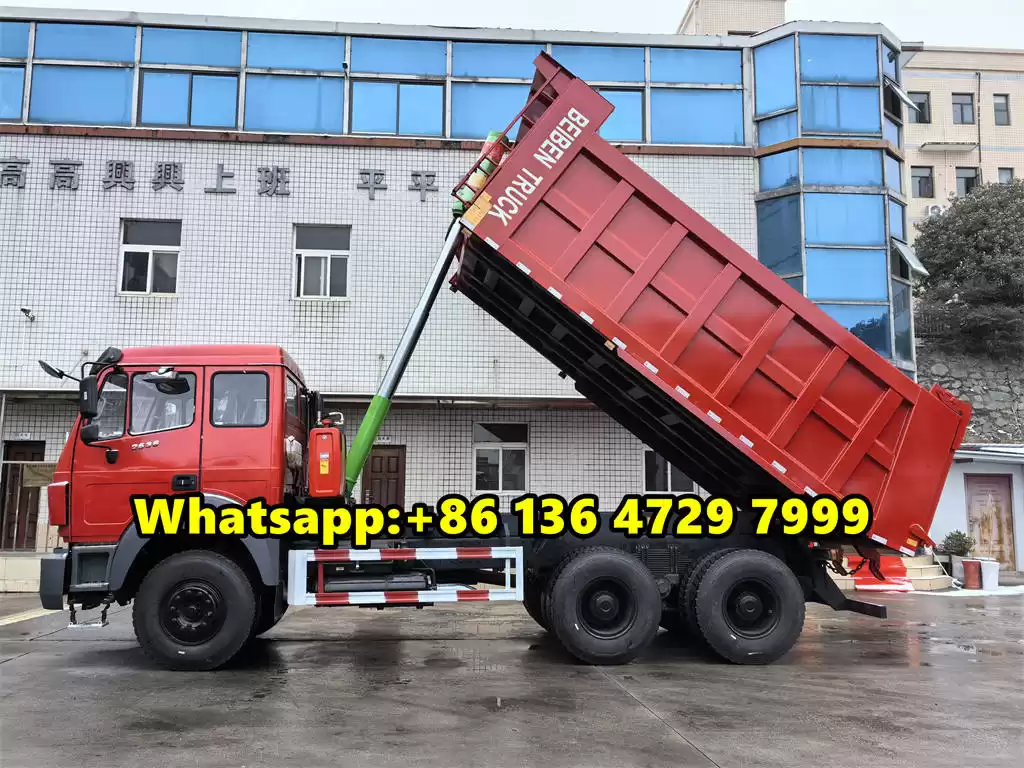

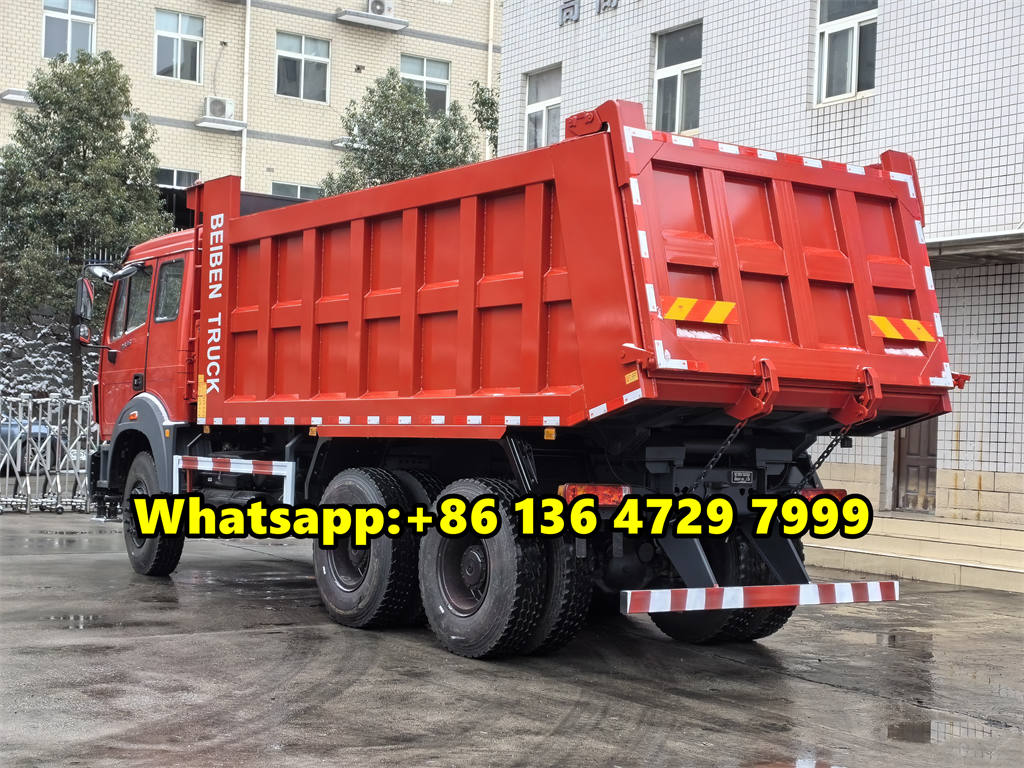

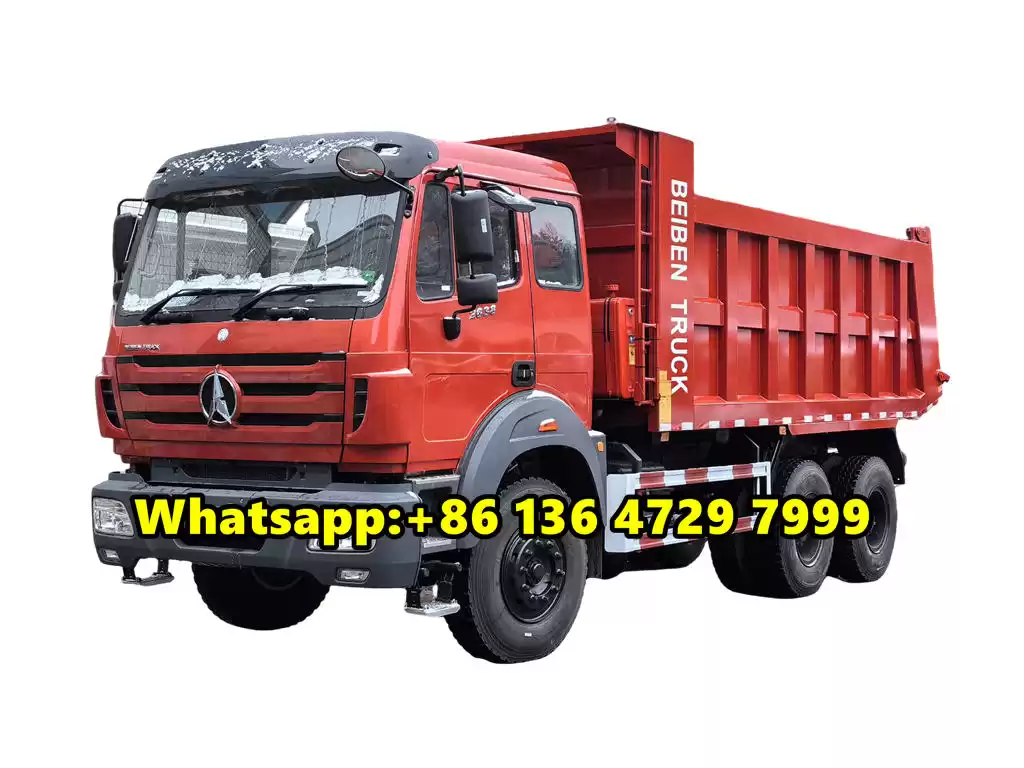

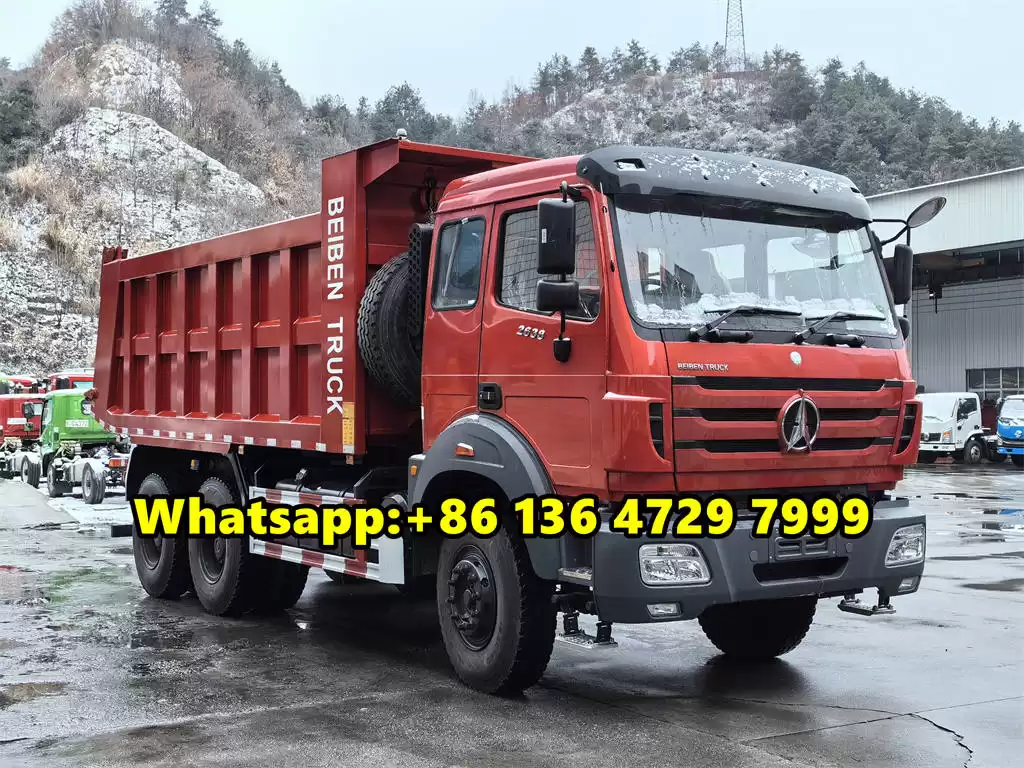

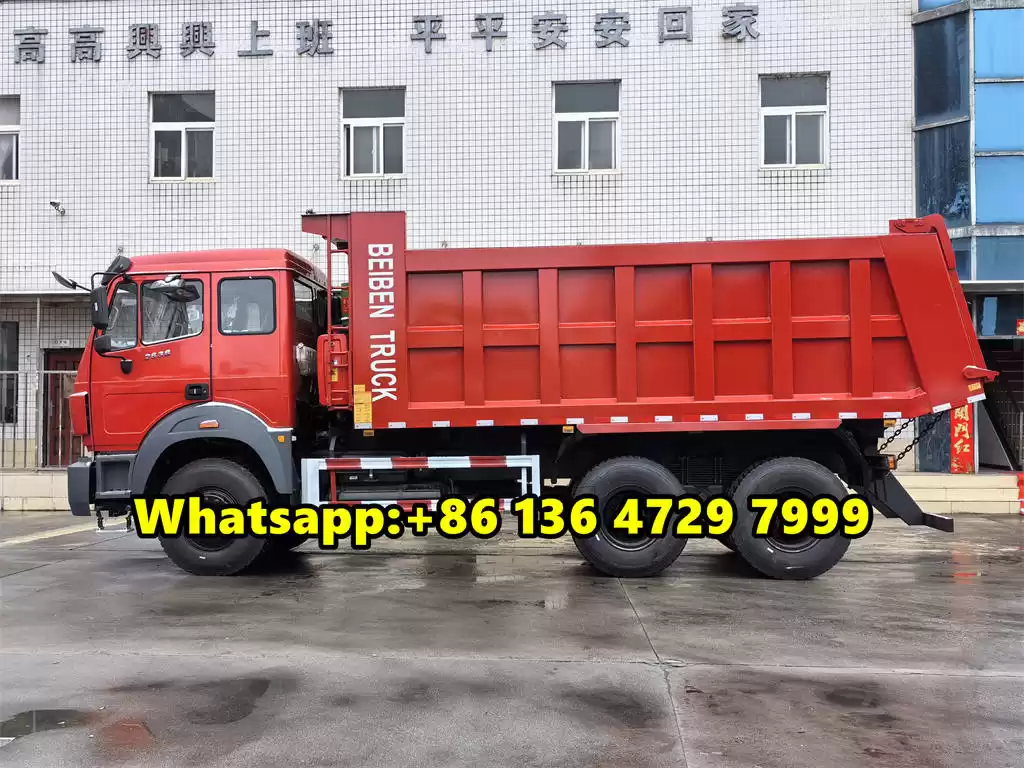

Beiben 2638 RHD tipper truck
|
|
SPECIFICATIONS
|
|
Dimension
|
8290*2500*3310mm
|
|

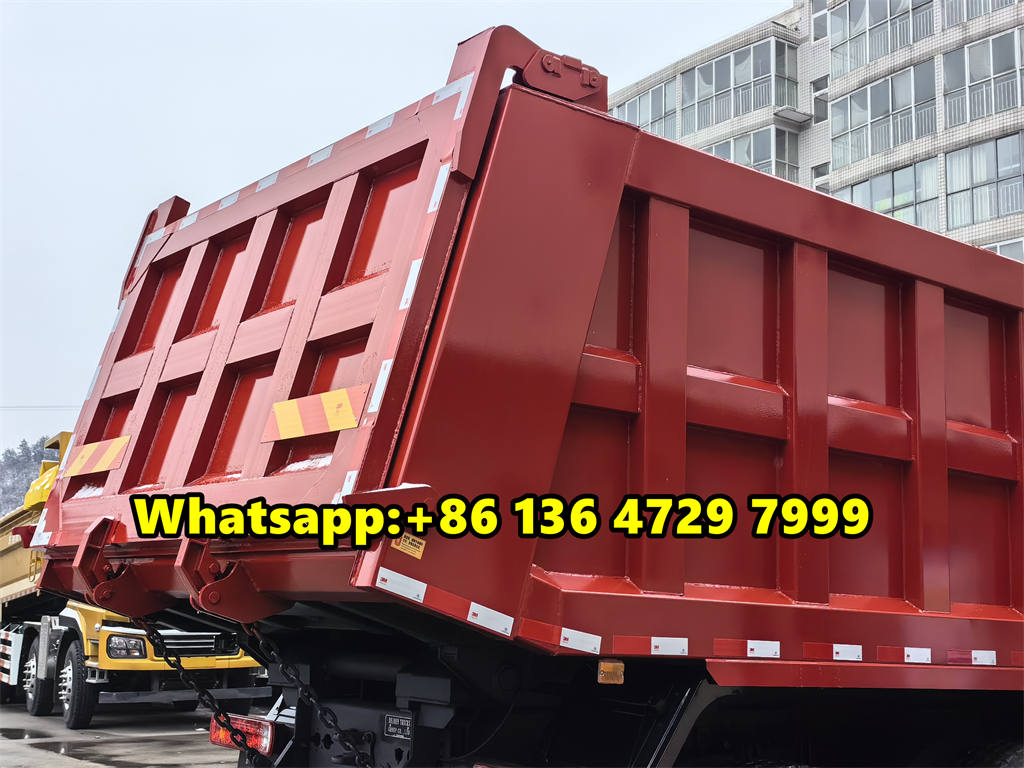

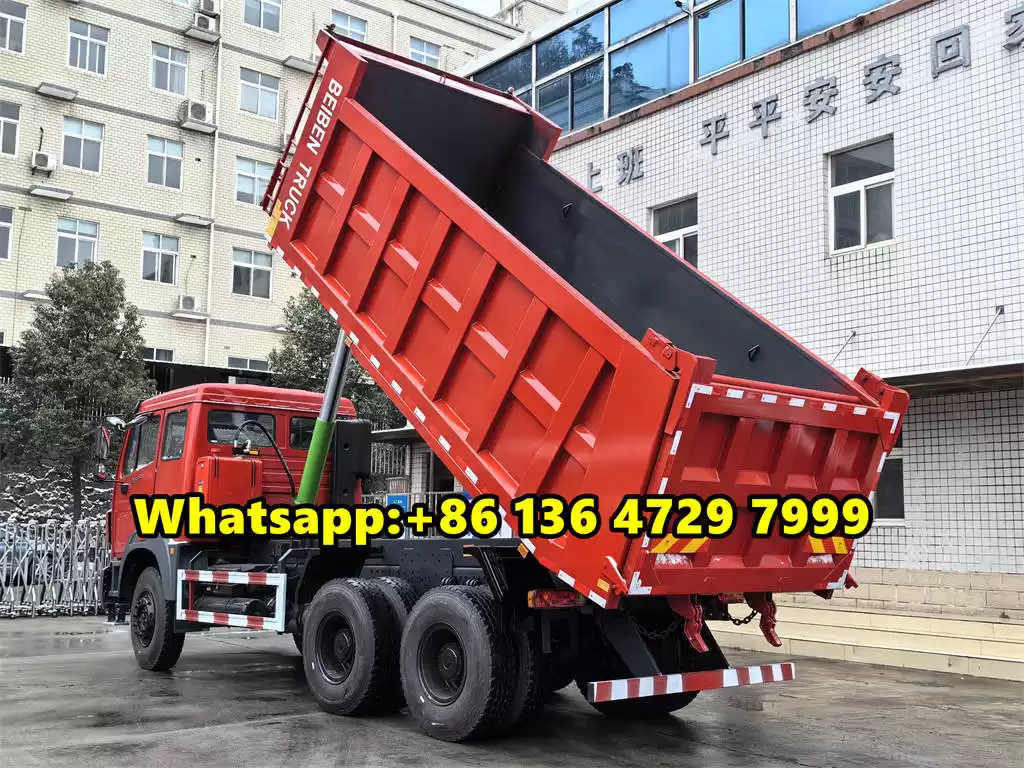

Cargo box inner dimension
|
5600X2300X1500mm bottom 8mm side 6mm middle lifting
|
|
Approaching angle/Departure angle
|
26/32°
|
|
Overhang(front/rear)
|
1410/1630mm
|
|
Wheel base
|
3800+1450mm
|
|
Max speed
|
85km/h
|
|
Curb weight
|
12200kg
|
|
Loading capacity
|
12670kg
|
|
Slope climbing capability
|
Max.30%
|
|
Engine
|
Model
|
WP10.380E32, water-cooled, four strokes,6 cylinders in line, turbocharged, direct injection
|
|
Displacement
|
9.726L/Diesel
|
|
Stroke
|
126/130mm
|
|
Max. power
|
280KW (380HP)
|
|
Max.torque
|
1600 N.m
|
|
Emission standard
|
Euro III
|
|
Fuel tanker capacity
|
400L Steel
|
|
Clutch
|
∮430, Single dry frictional disc, Hydraulic boosting
|
|
Gearbox
|
9JS150A, mechanism,9 forward gears,1 reverse gear, manual operated
|
|
Gear ratio of gear box
|
13.04/8.48/6.04/4.39/13.43/2.471.76/1.28/1.00 R: 11.77
|
|
Suspension system
(Mercedes Technology)
|
Front
|
Non-free standing leaf spring, telescopic shock absorber with stablizer bar suspension, 10pcs
|
|
Rear
|
Non-free standing stablization spring, balance suspension system, 13pcs
|
|
Brake system
|
Service brake
|
Brake gap can be adjusted automatically, double circulation air brake system
|
|
Assistant brake
|
Engine exhaust brake
|
|
Park brake
|
Potential springs pressing on middle and rear wheels
|
|
Steering system
|
ZF8098, whole circulation in ball, hydraulic booster
|
|
Frame (Mercedes Technology)
|
Fish belly shape, variable width, variable sections,317X70X8.5+7+8mm
|
|
Front axle (Mercedes Technology)
|
Double-shoe pneumatic brake,7.5 Ton non-driving steering axle,7.5
|
|
Middle and Rear axle
(Mercedes Technology)
|
13 ton double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle 13
|
|
Tyre
|
12.00R20
|
|
Electrical system
|
Battery
|
2X12V/135Ah
|
|
Generator
|
28V-35A
|
|
Starter
|
5.4Kw/24V
|
|

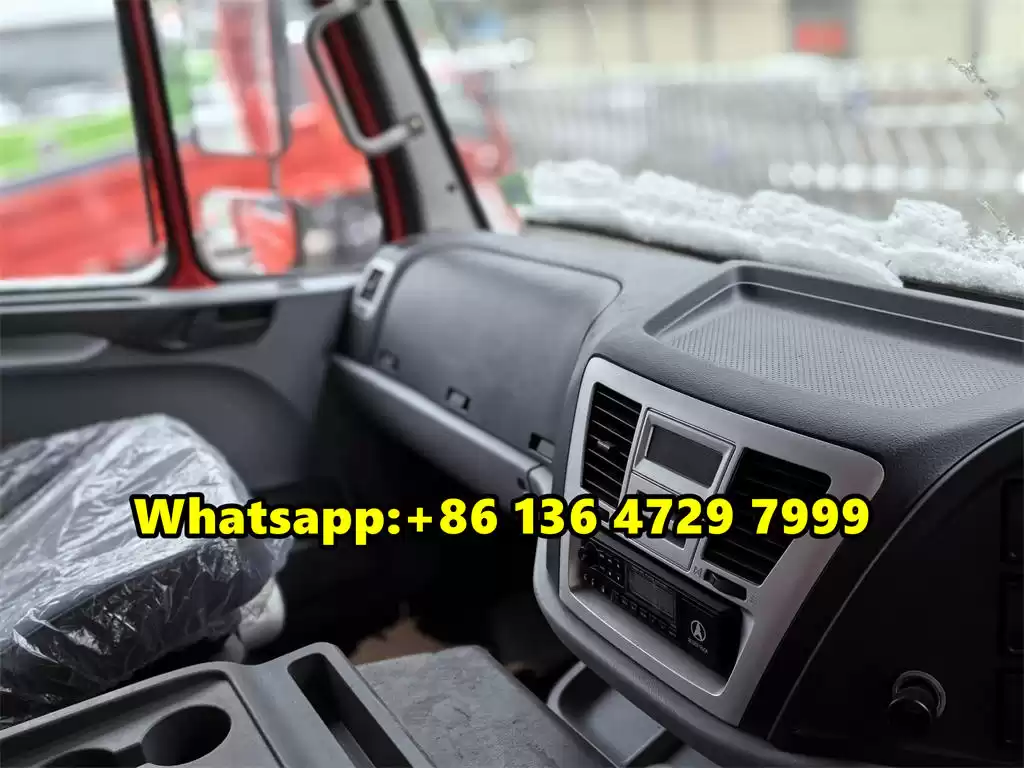

Cabin
|
NG80B long cabin with one sleeping bed;
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly; High back with arm seat for driver, high back seat for co-driver; With inner A/C
|
