Beiben truck manufactured underthe license of Mercedes Benz technology, which has excellent performance withreasonable price.
| Vehicle Name:
|

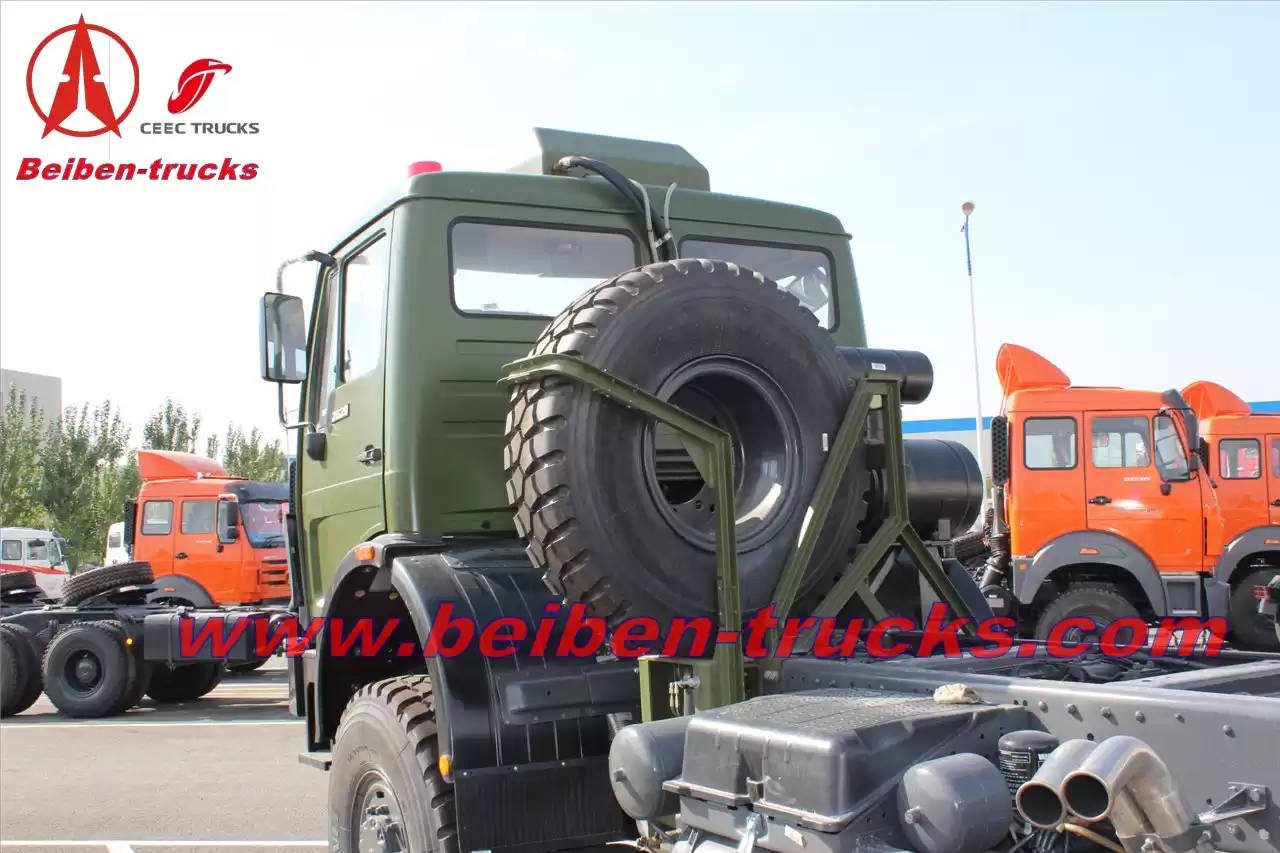

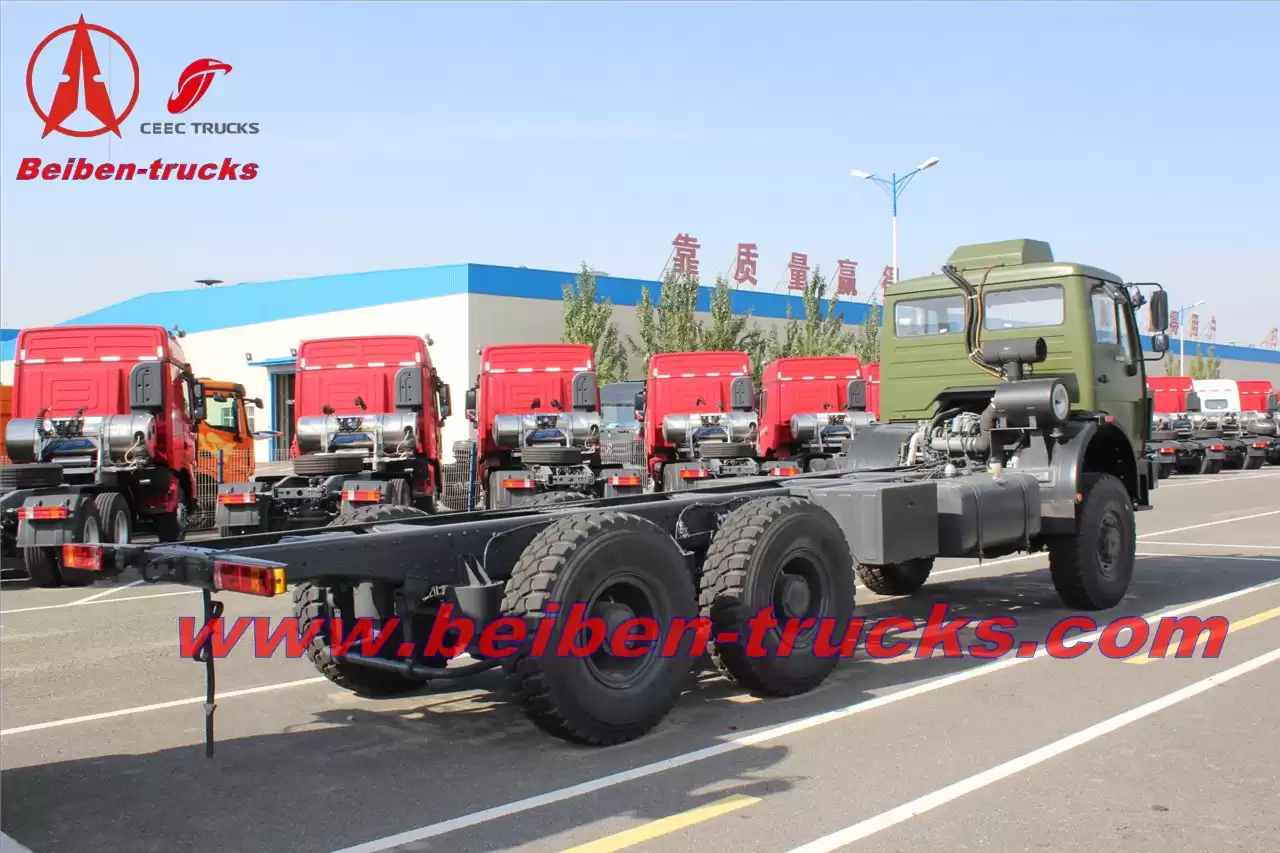

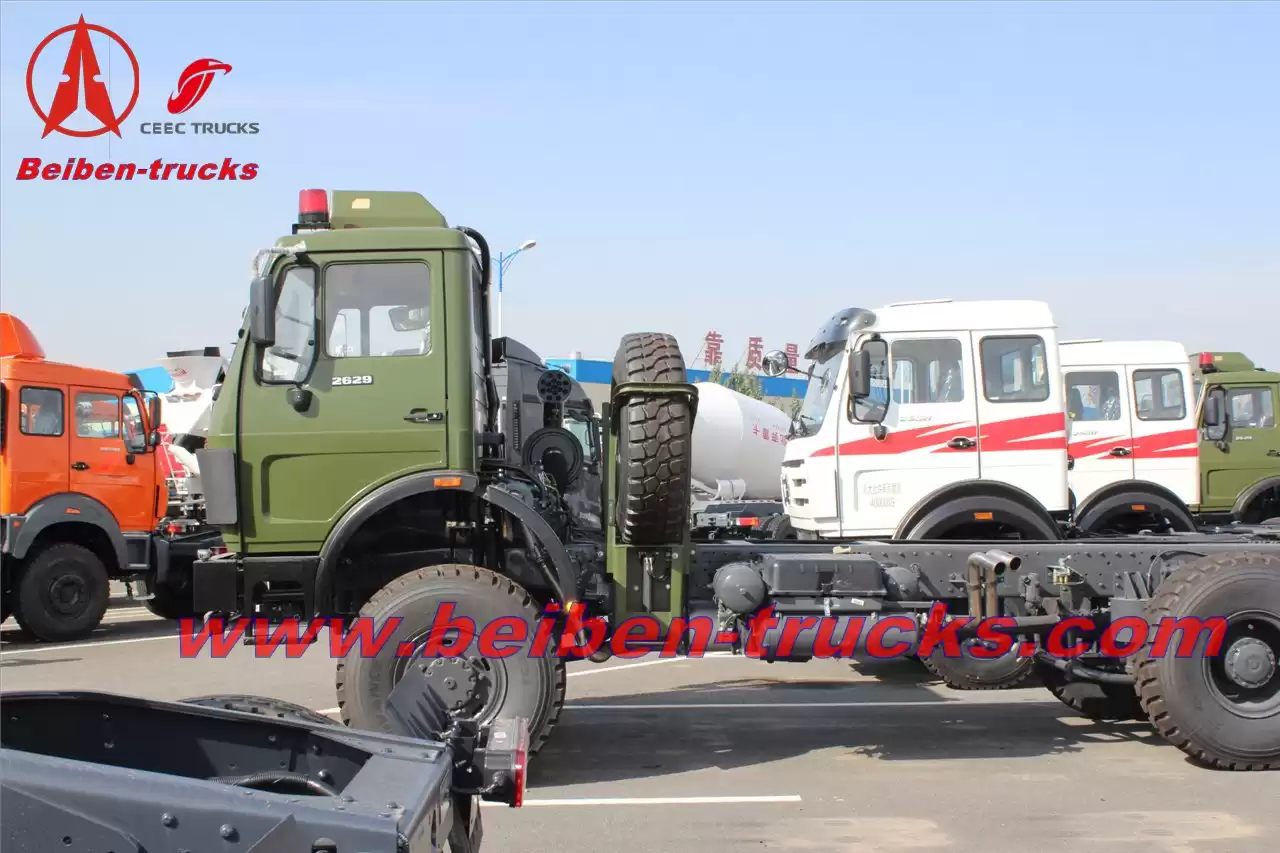

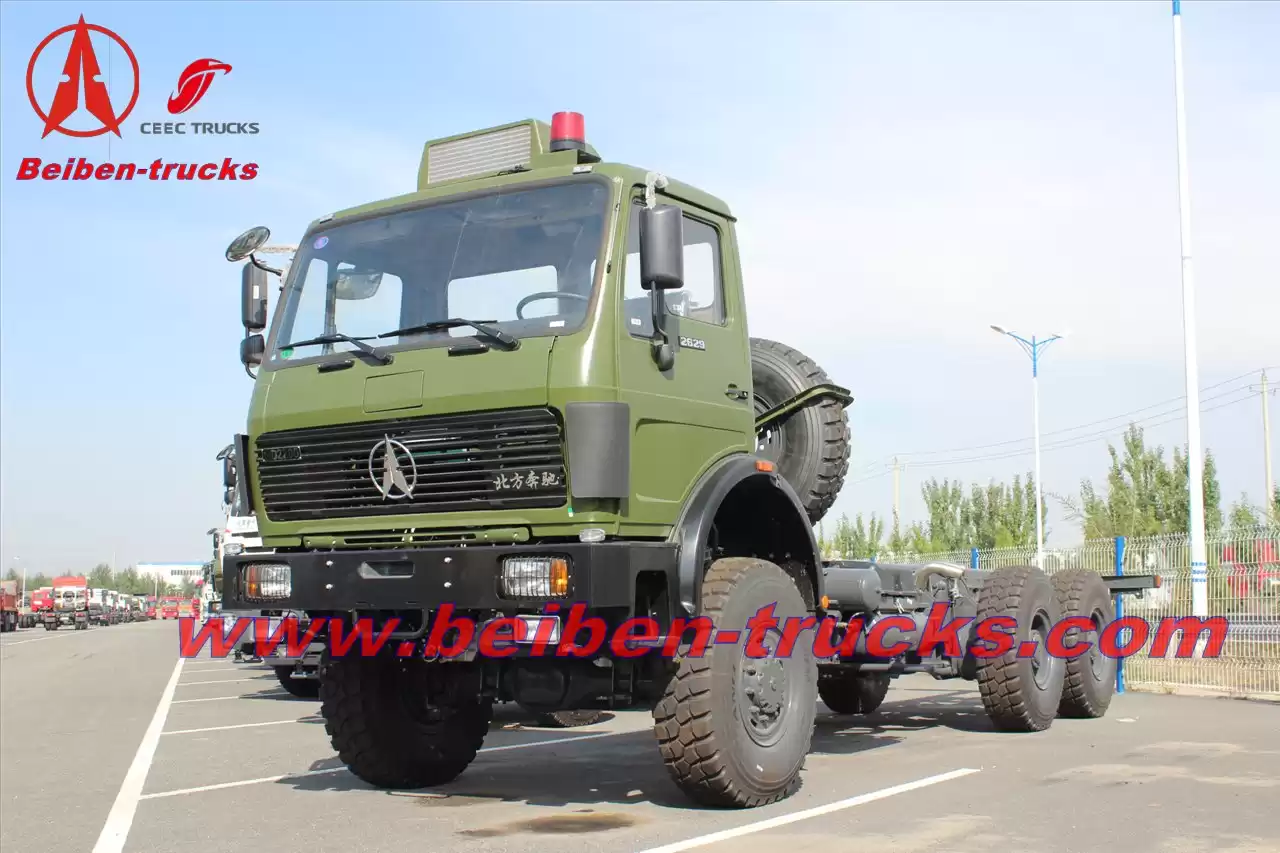

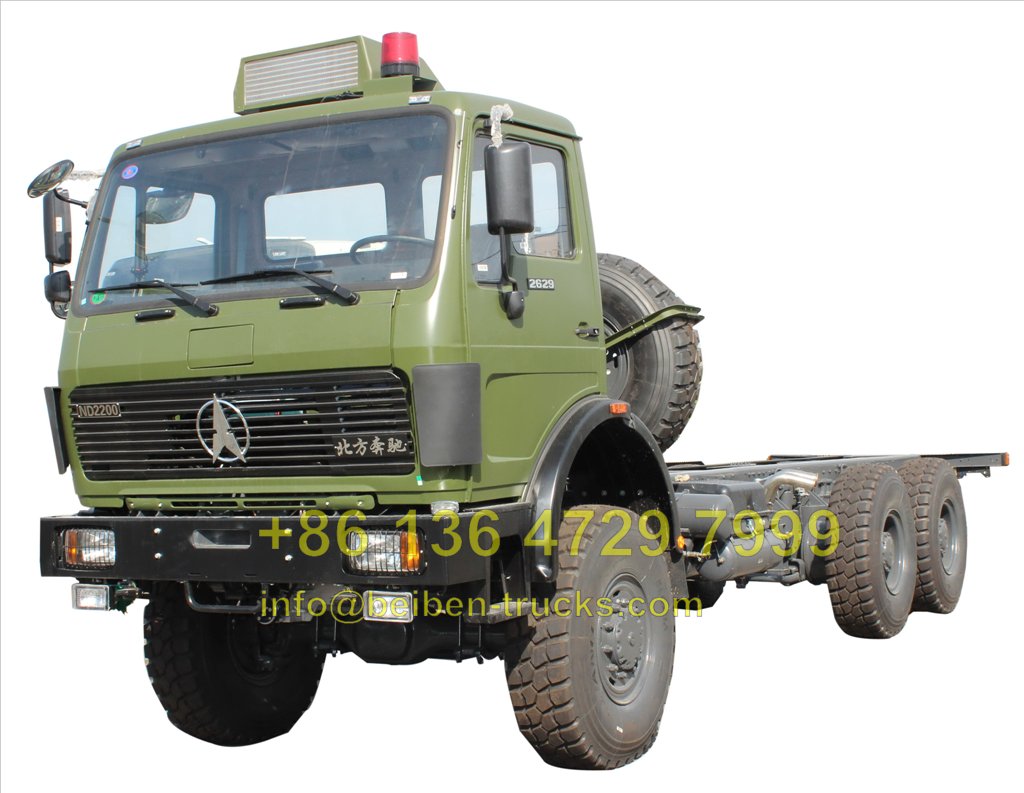

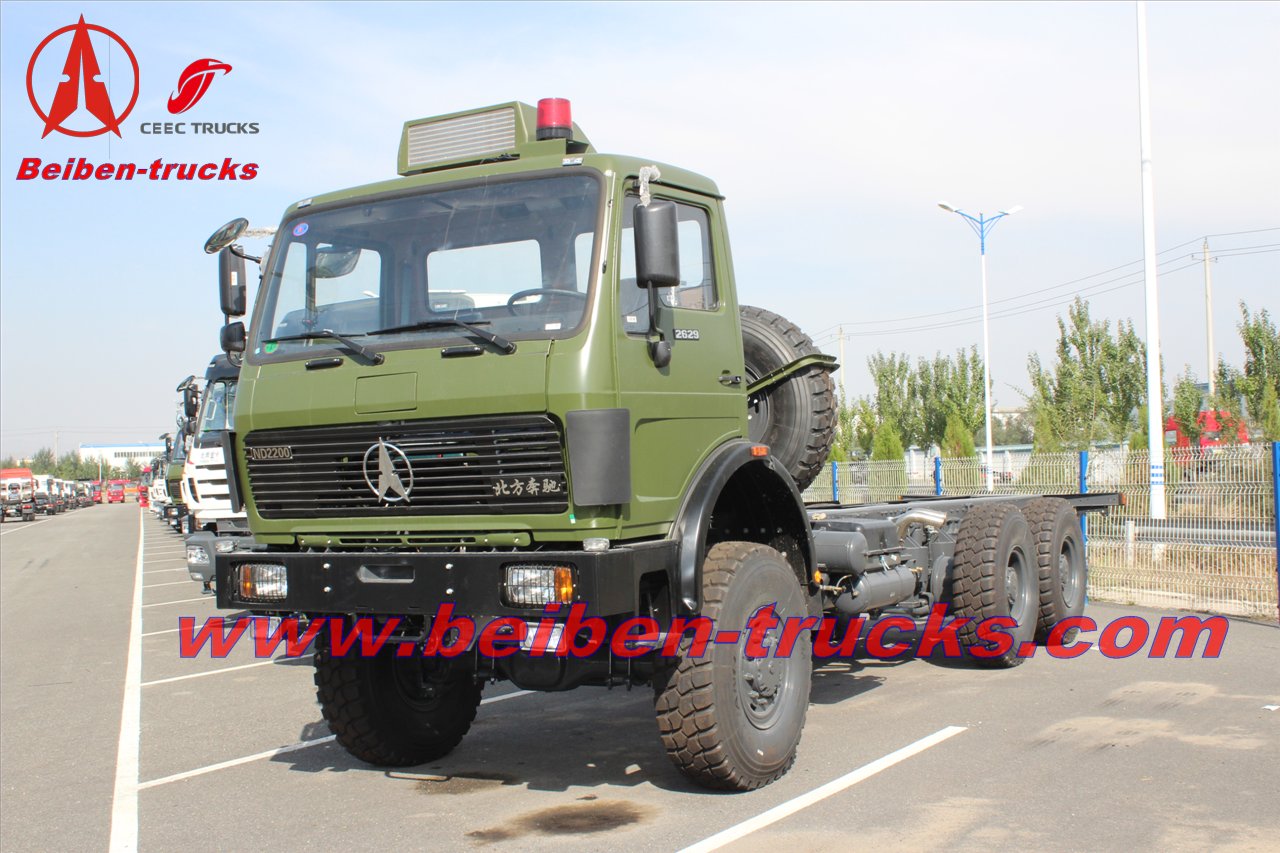

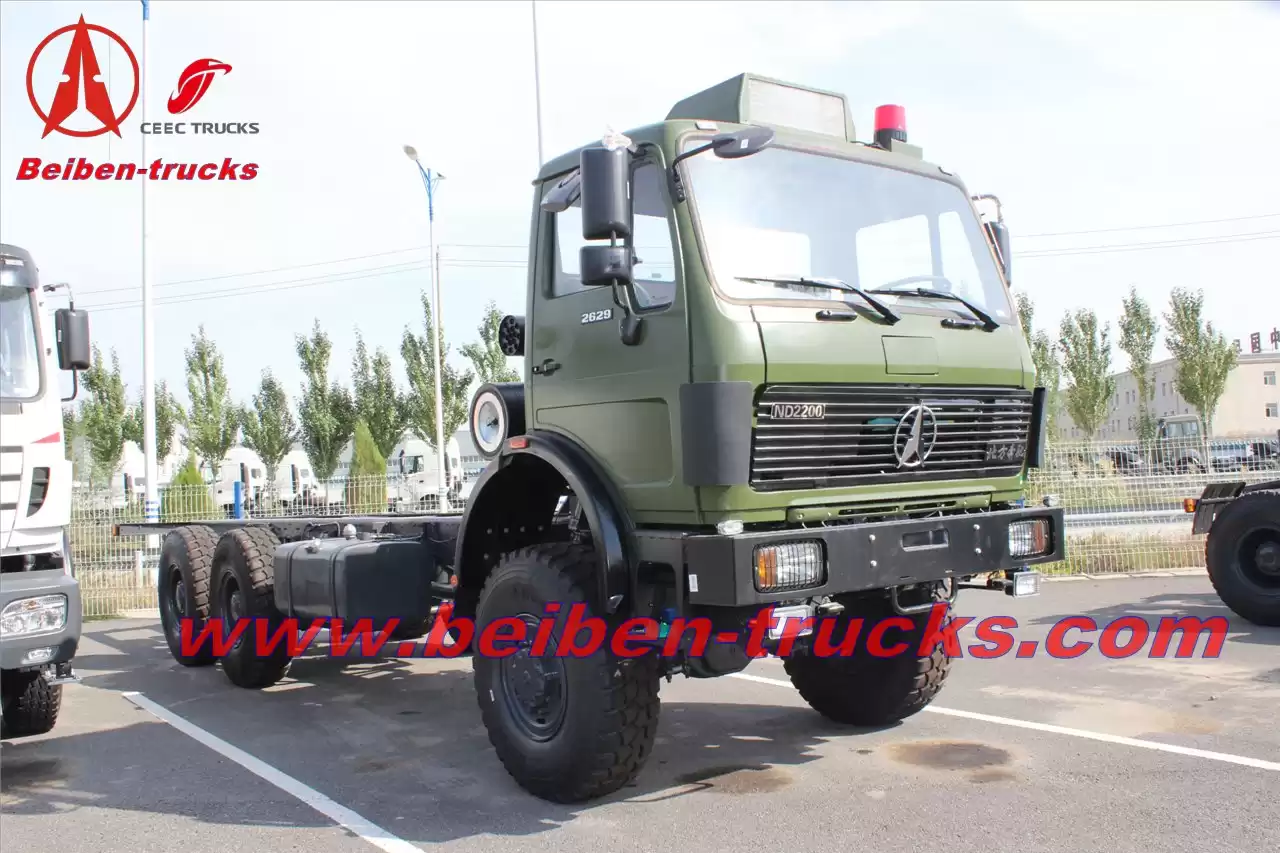

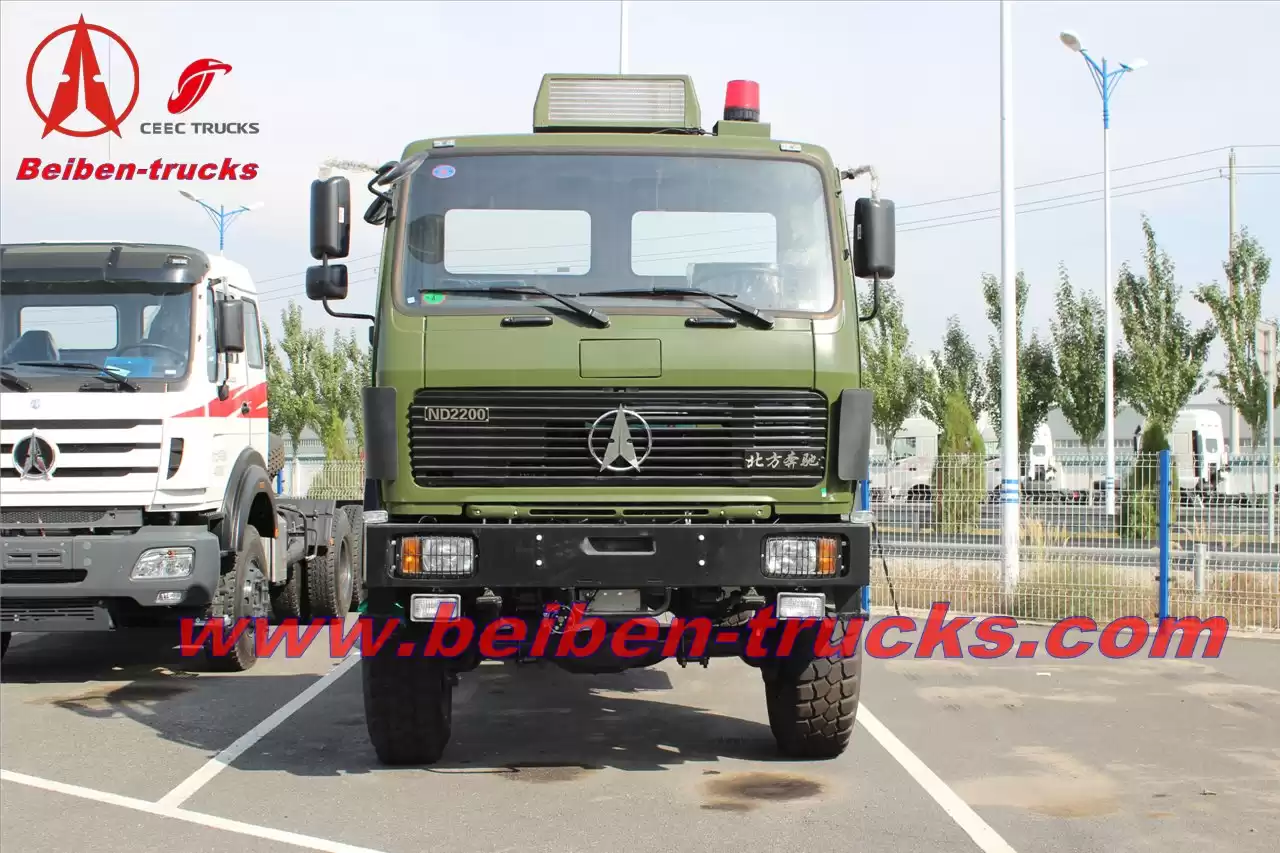

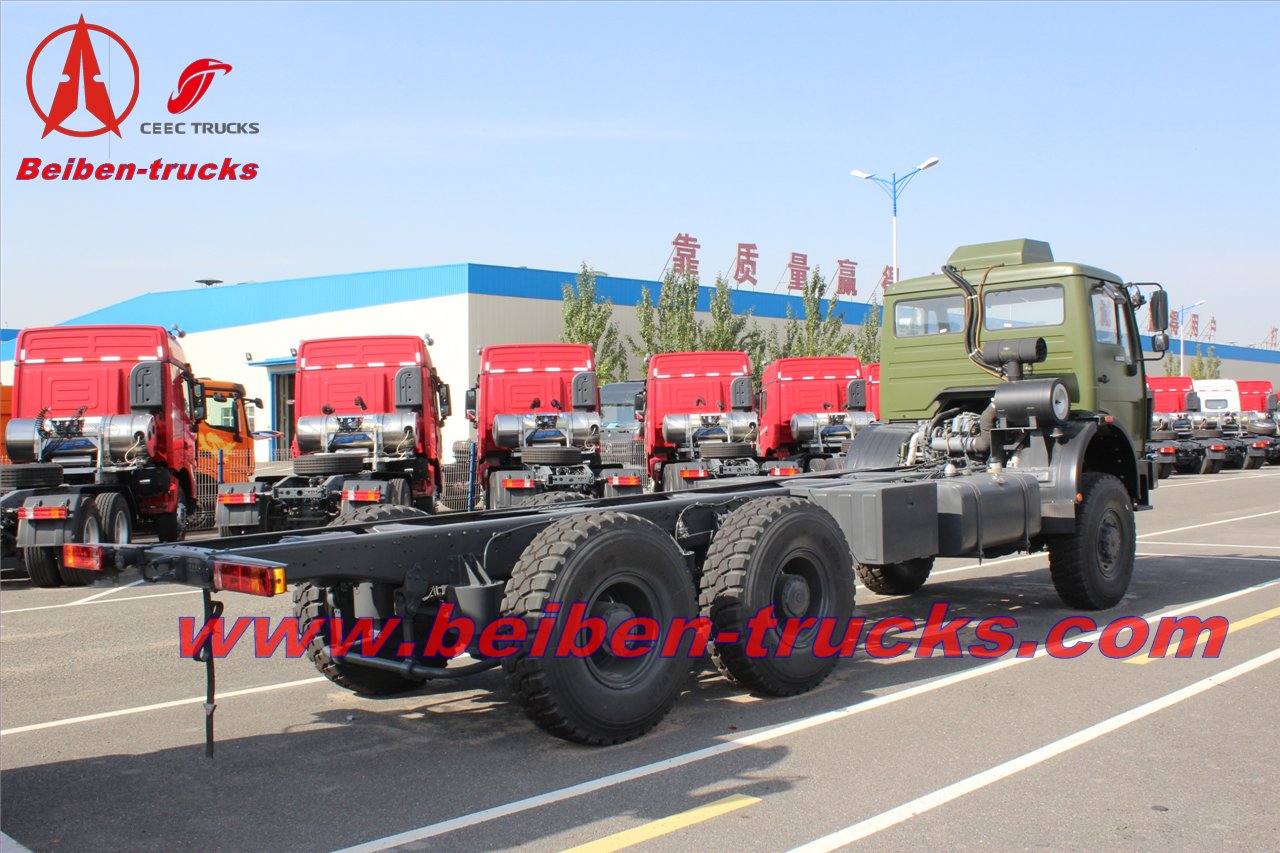

Beiben 6*6 truck chassis
|
| Types of drive
|
Left hand drive (LHD )
|
| Truck model number
|
2538S
|

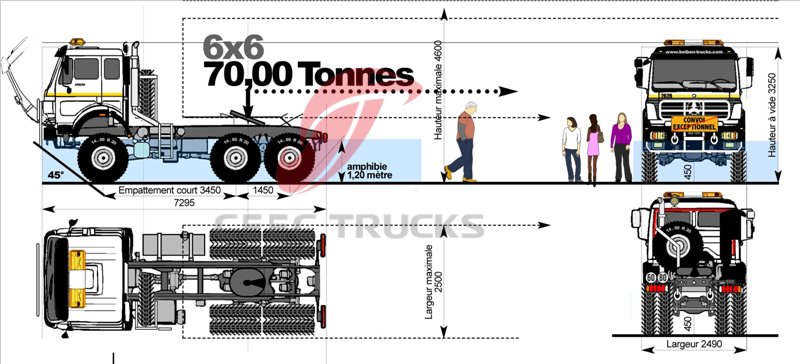

| Dimension ( mm)
|
9365*2495*3130
|
| Curb weight (kgs)
|
9900
|
| Drive wheel
|
6×6
|
| Engine model
|
WD10.380 Diesel 4-stroke direct injection engine, 6-cylinder in-line with water cooling, turbo-charging & intercooling
|
| Horsepower(hp)
|
380
|
| Bore*stroke (MM)
|
126*150
|
| Displacement (L)
|
9.726
|
| Rated speed (R/min)
|
2200
|
| Max torque (Nm)
|
1460
|
| Max Torque speed( R/min)
|
1200-1600
|
| Lowest fuel consumption (G/kw.h)
|
< 198
|
| Net weight (KG)
|
900
|

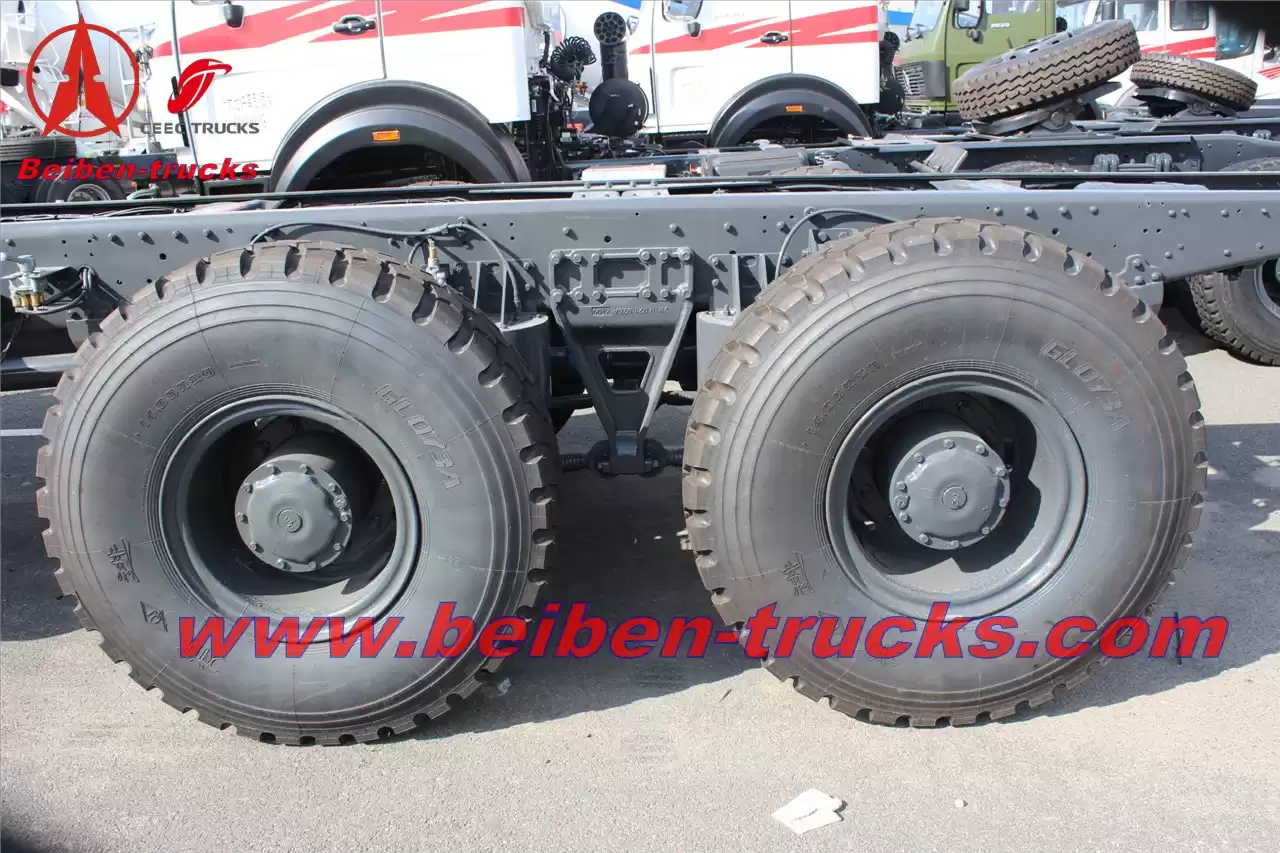

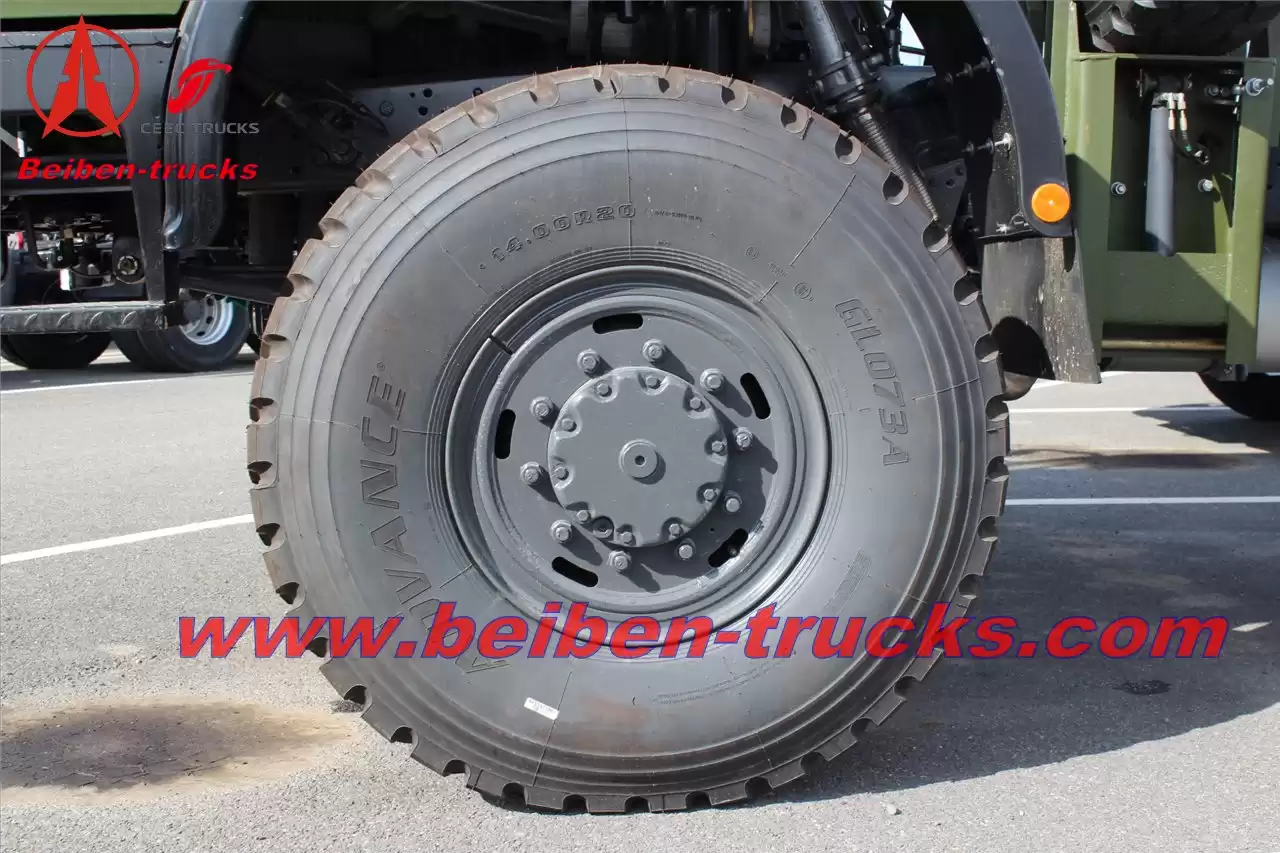

| Meridian tire
|
12.00-20
|
| Number of tires
|
10 + 1(spare wheel)
|
| Saddle types
|
None
|
| Transmission types :
|
9JS180 , 9 shift transmission, FAST technology
|
| Steering mechanism:
|
TAS85
|
| Wheelbase (mm)
|
44500+1450
|
| Approach/departure angle
|
33/32
|
| Cab style
|
Long with beds, Benz technology
|
