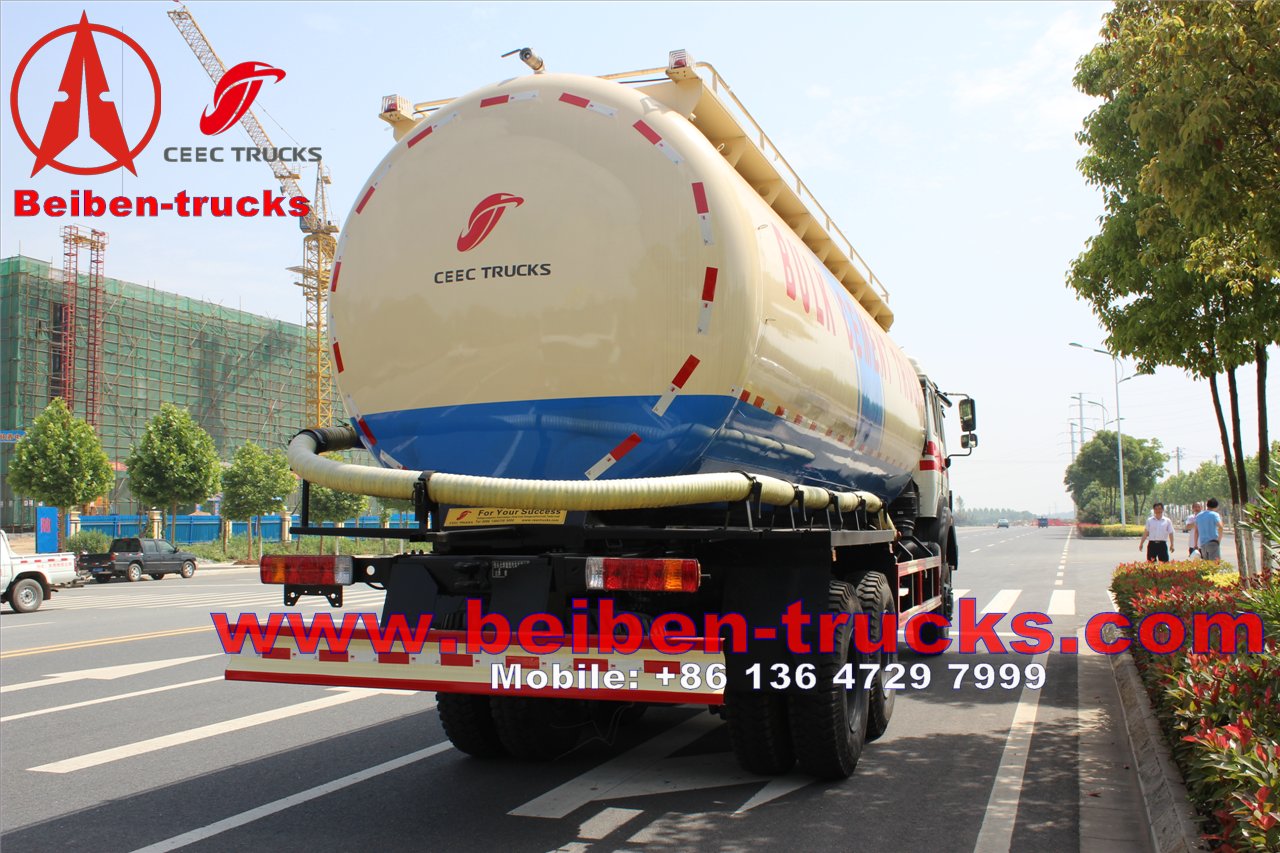

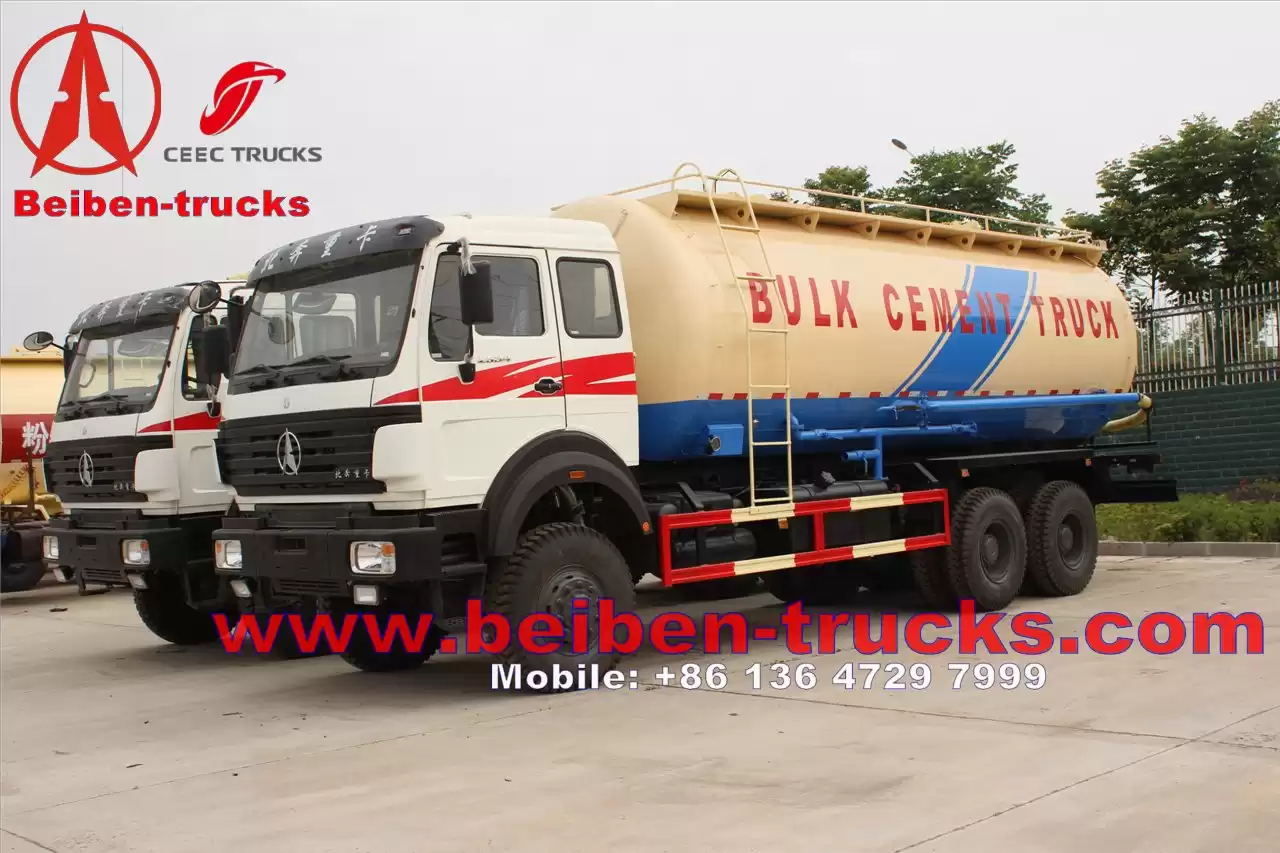

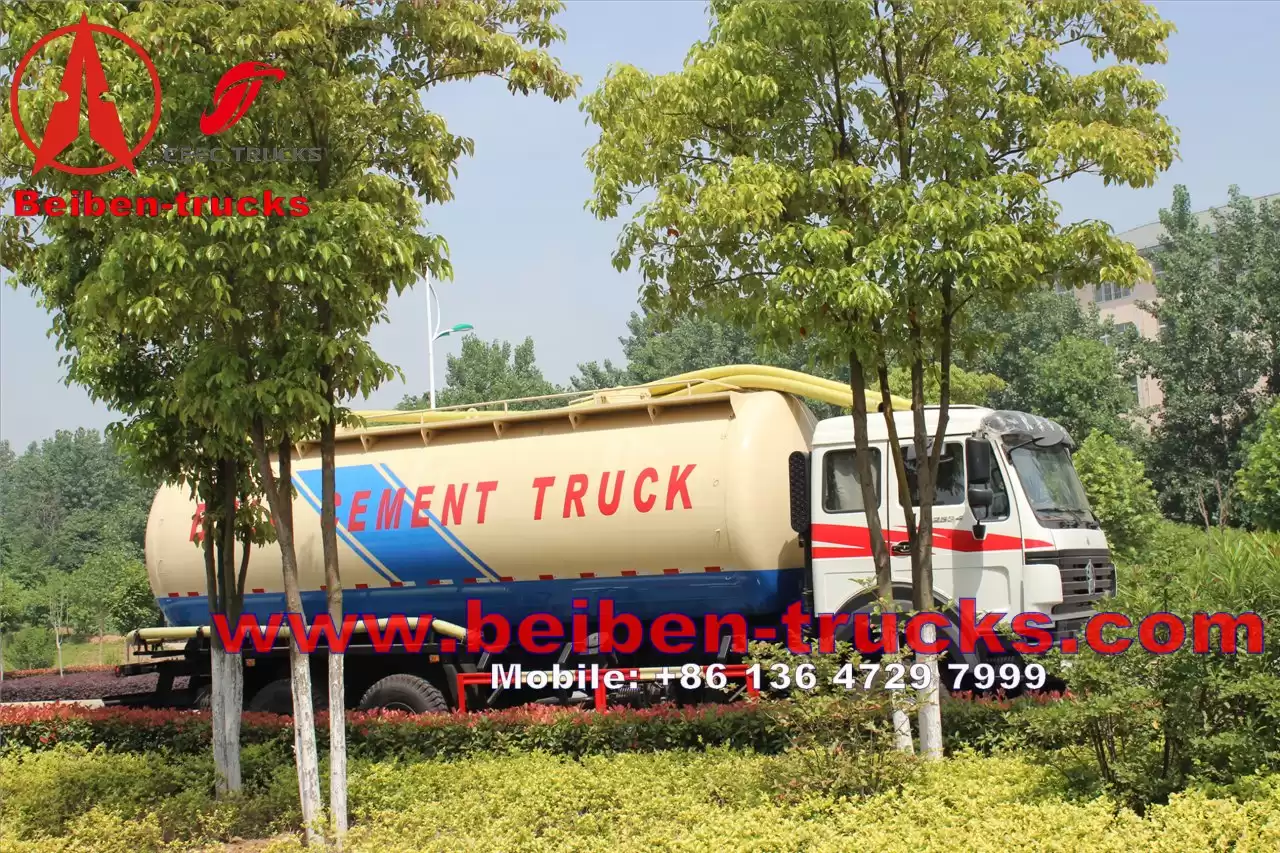

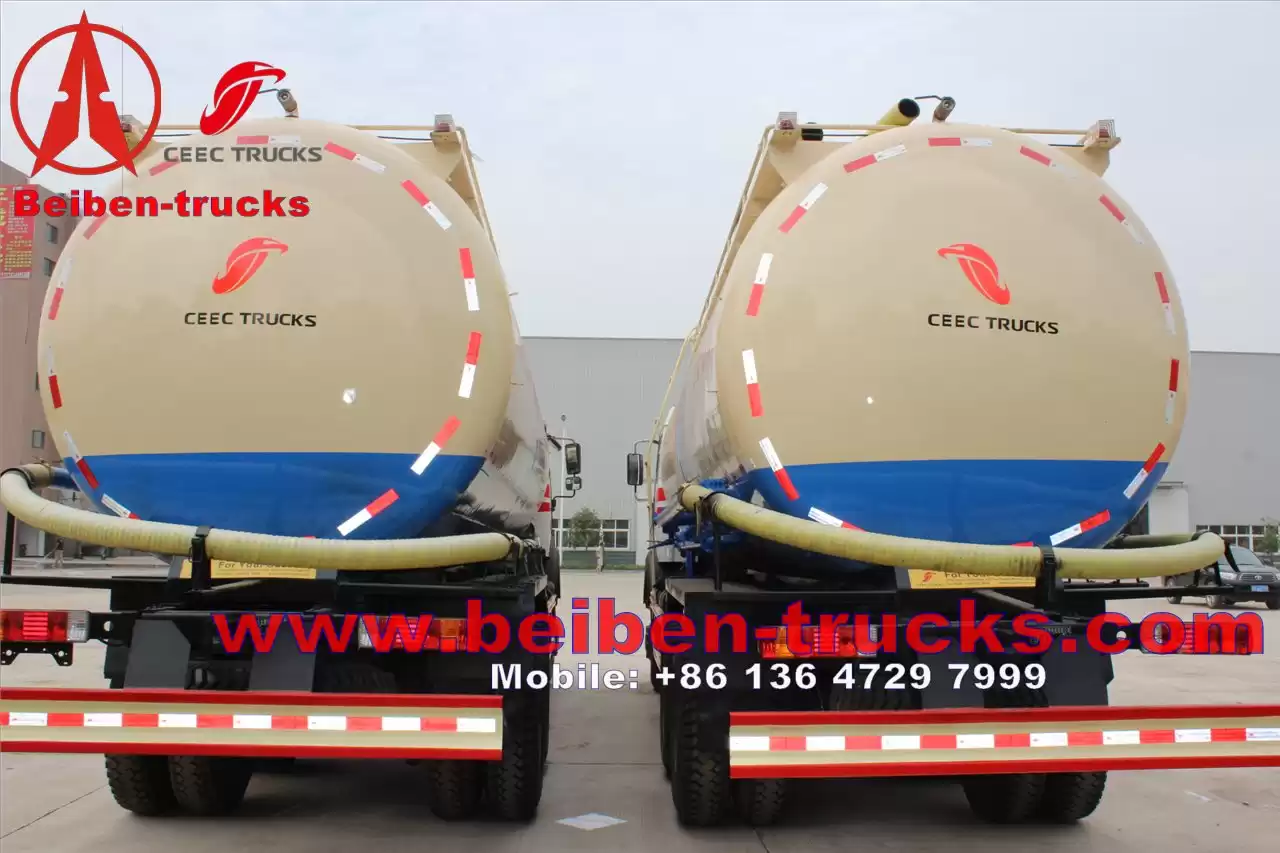

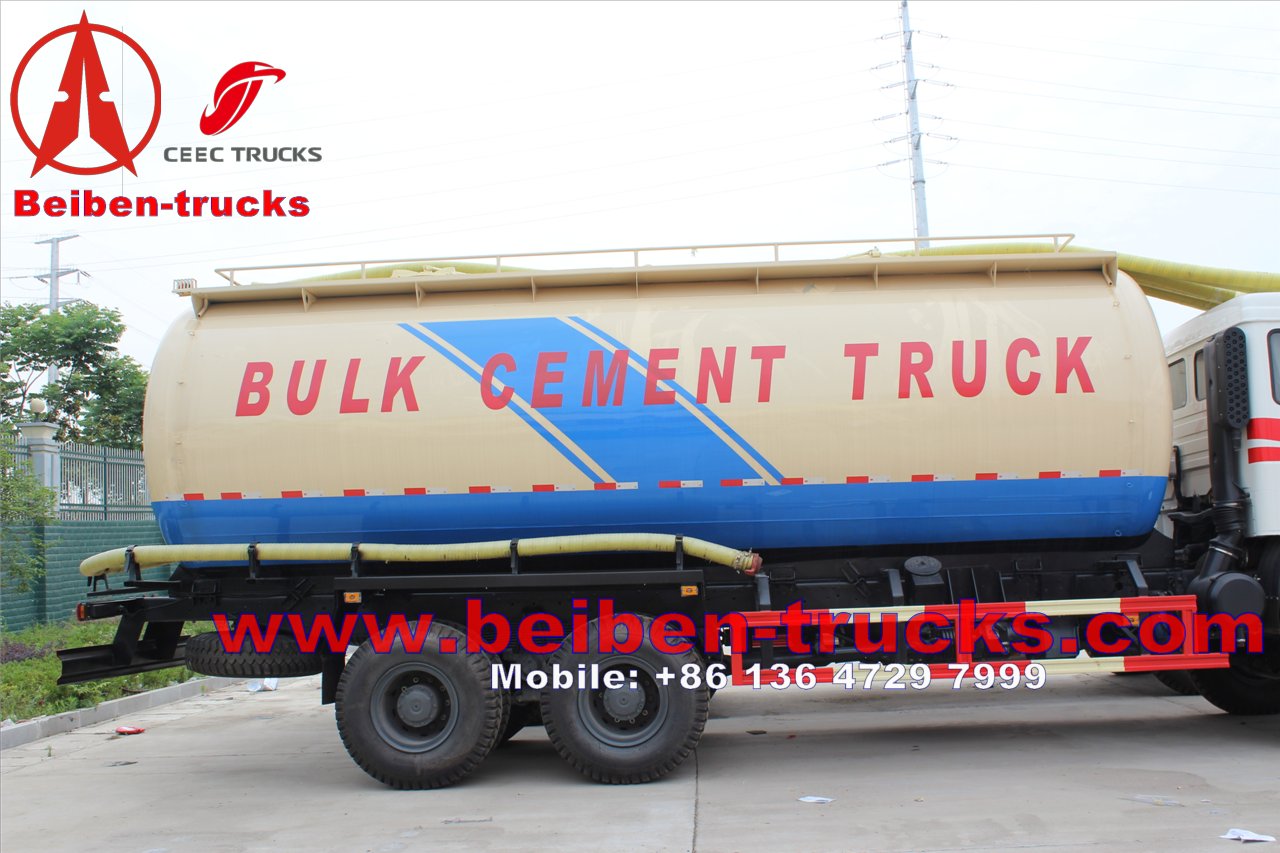

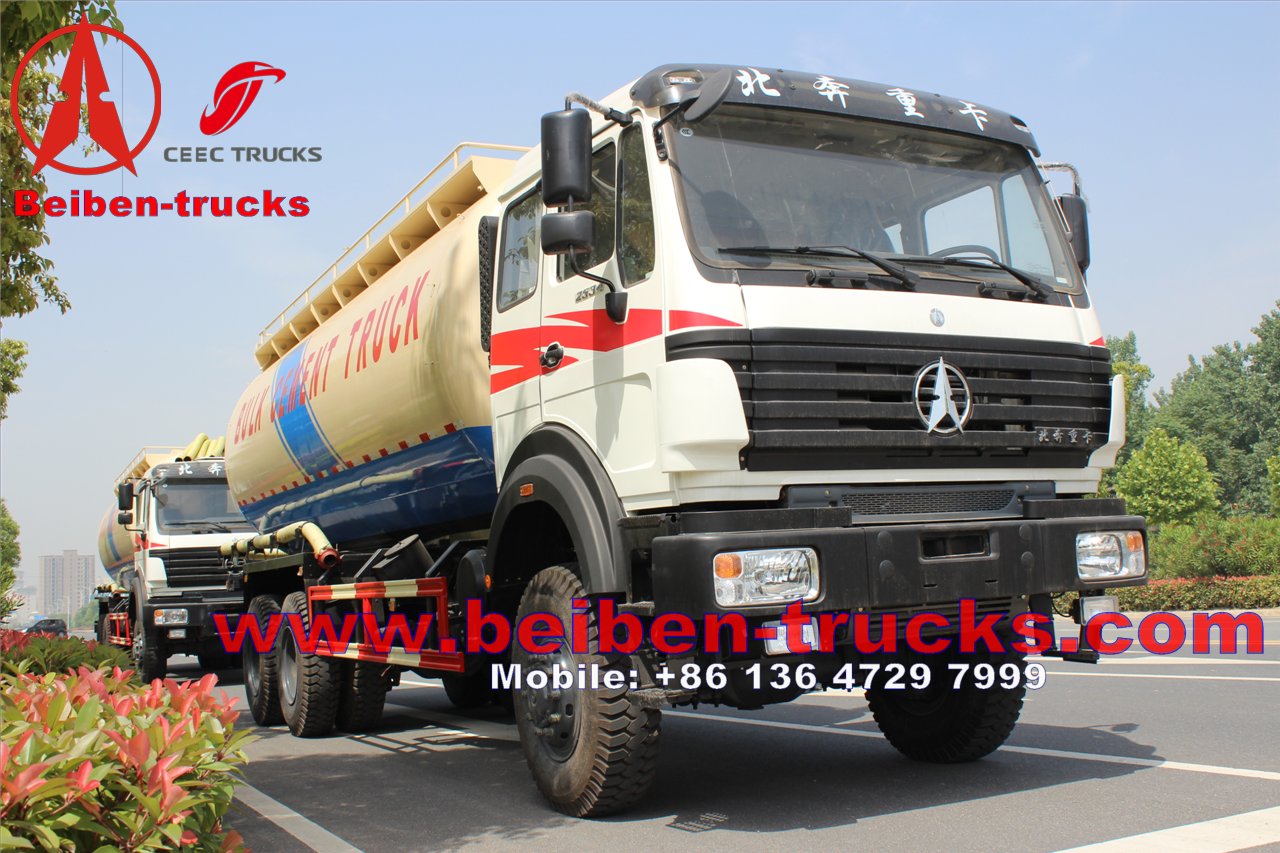

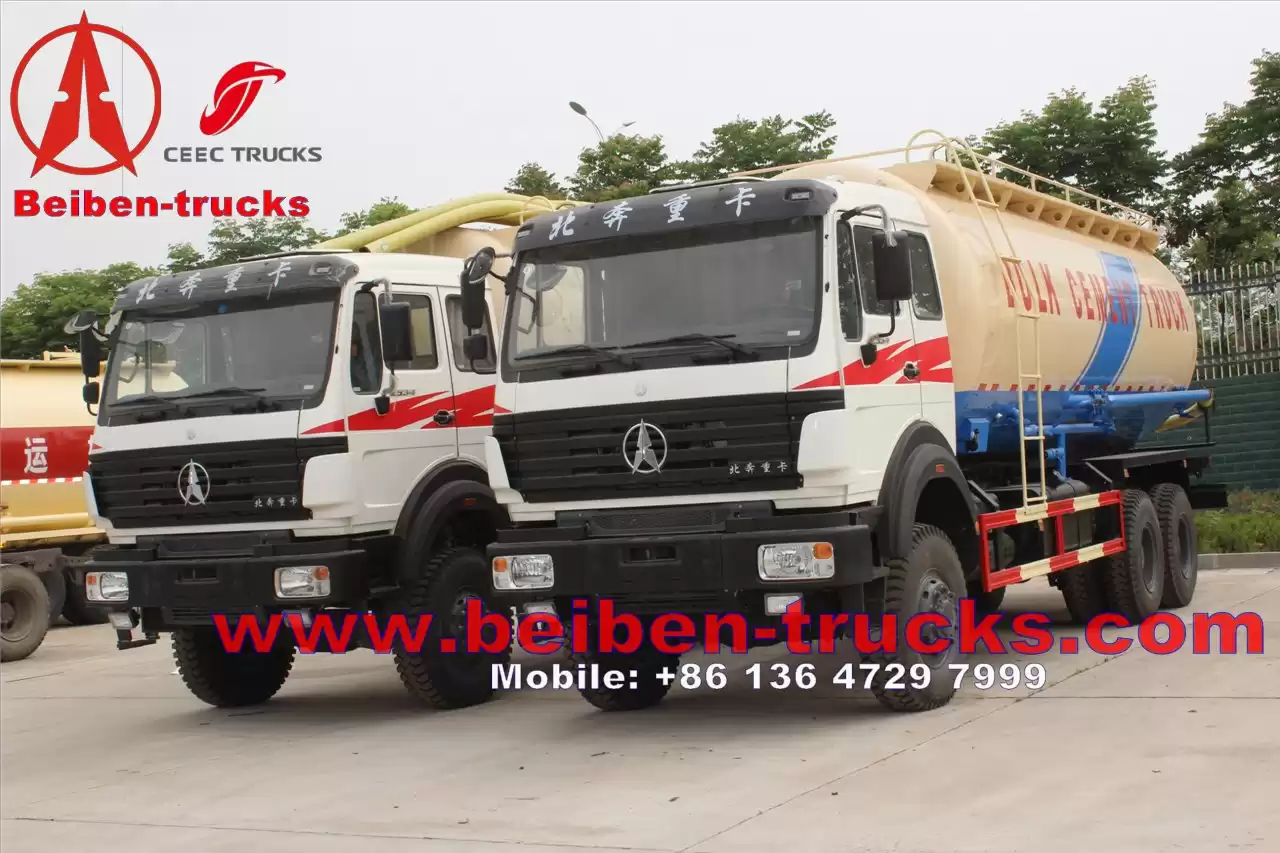

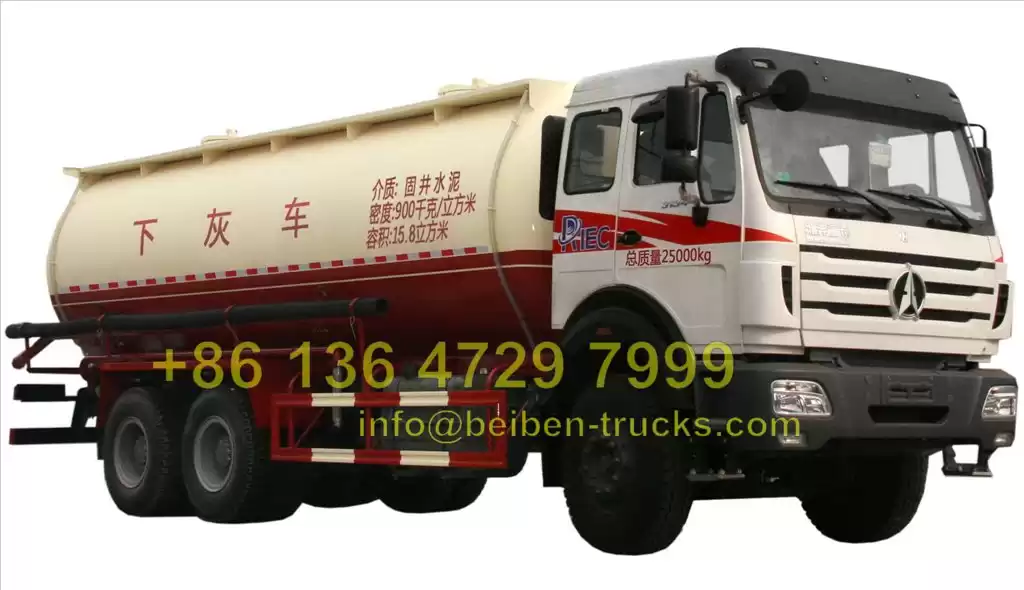

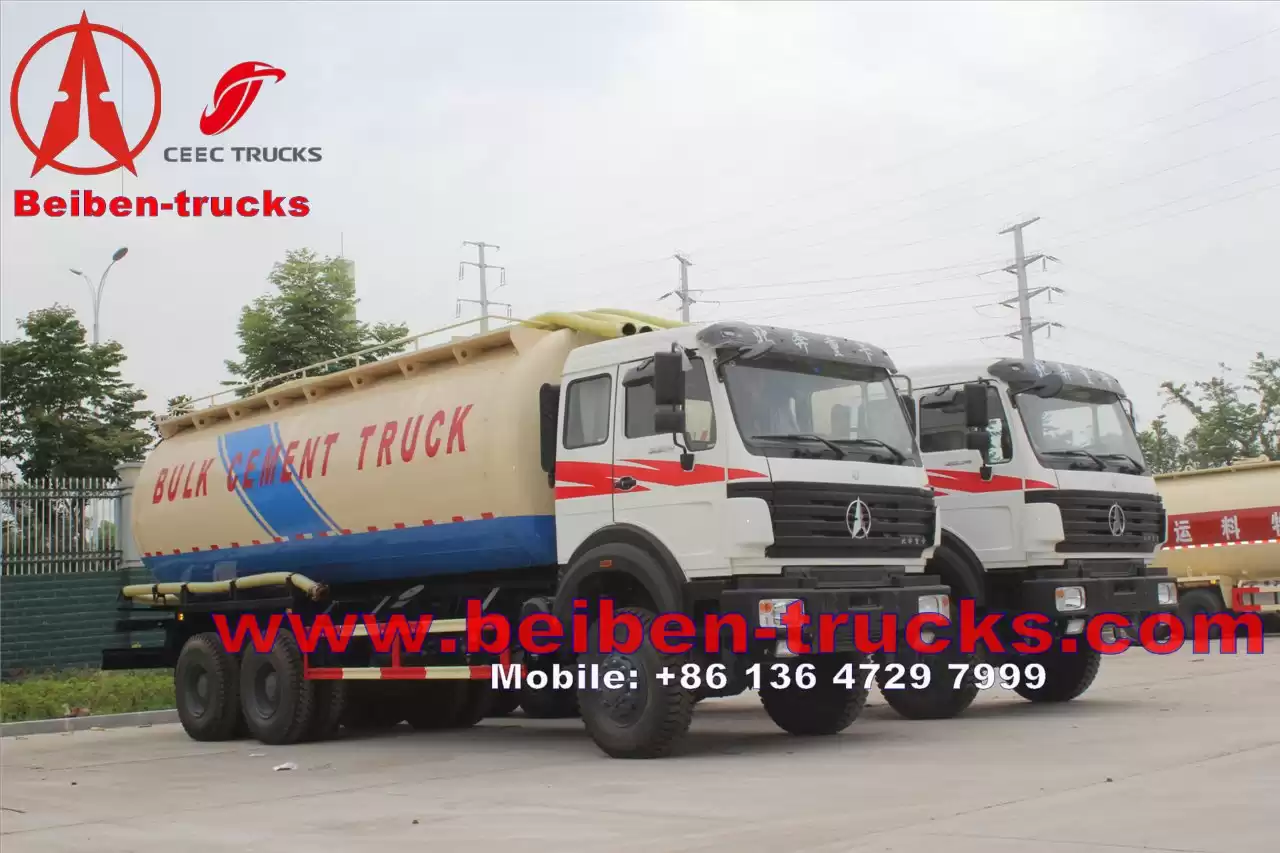

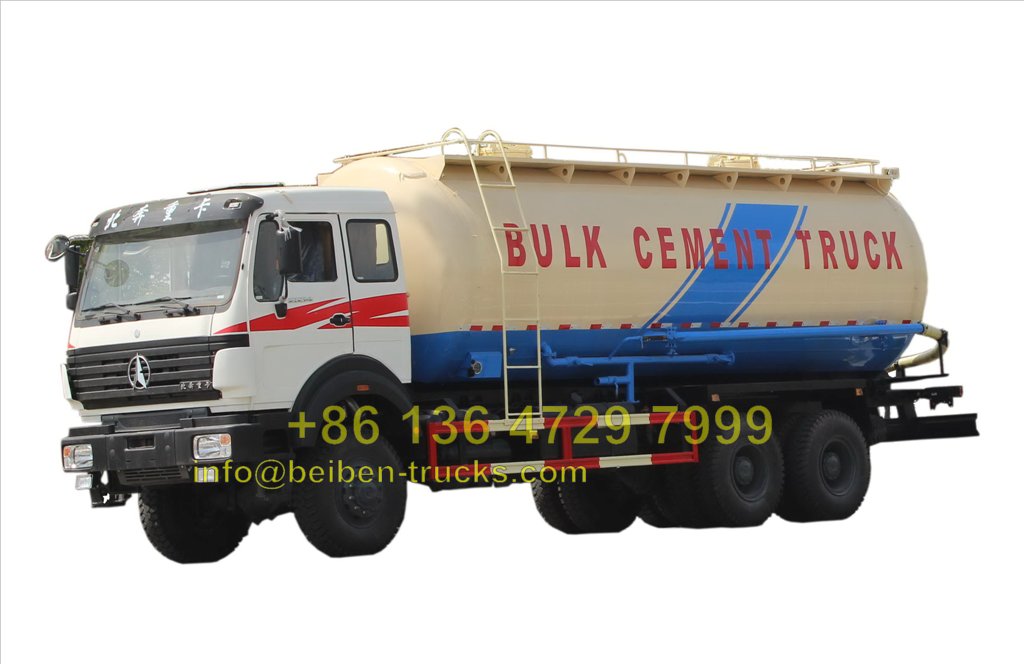

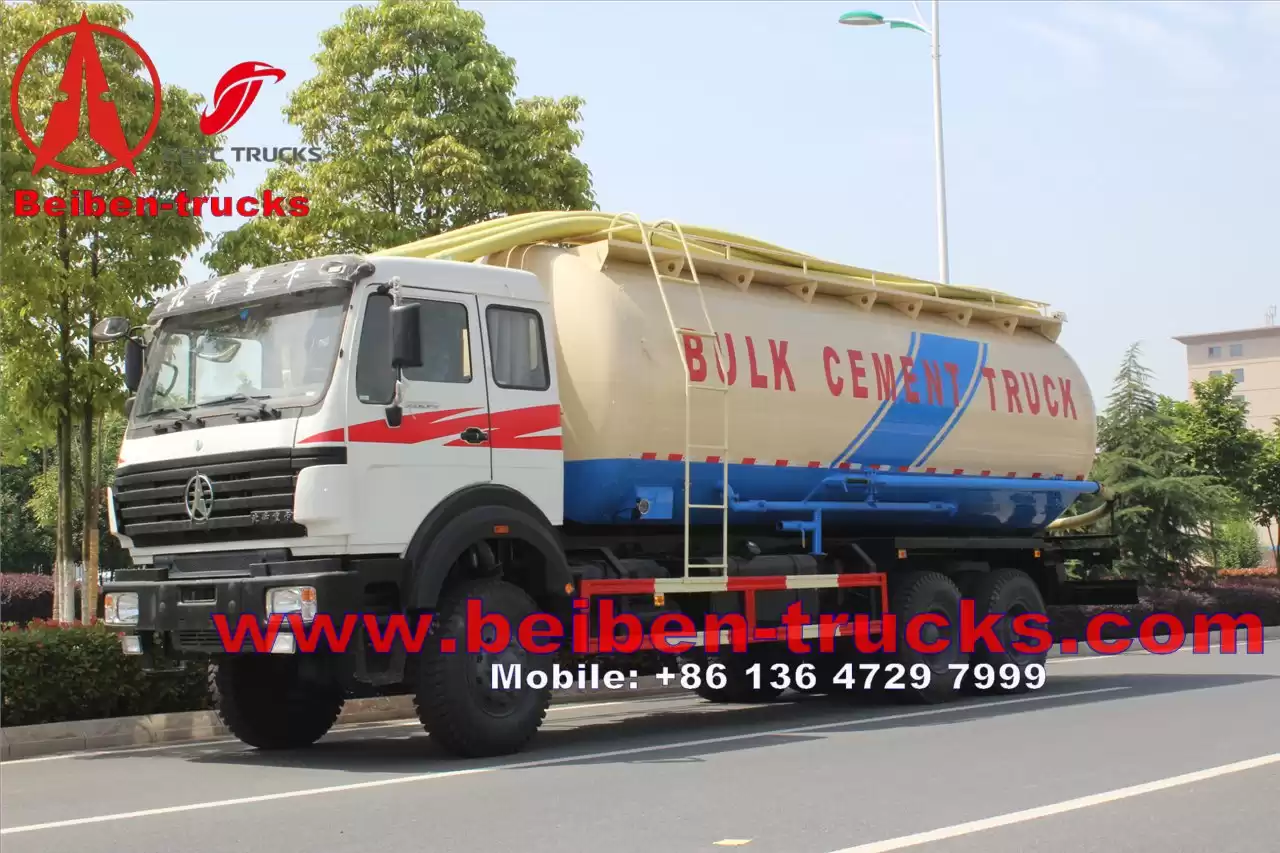

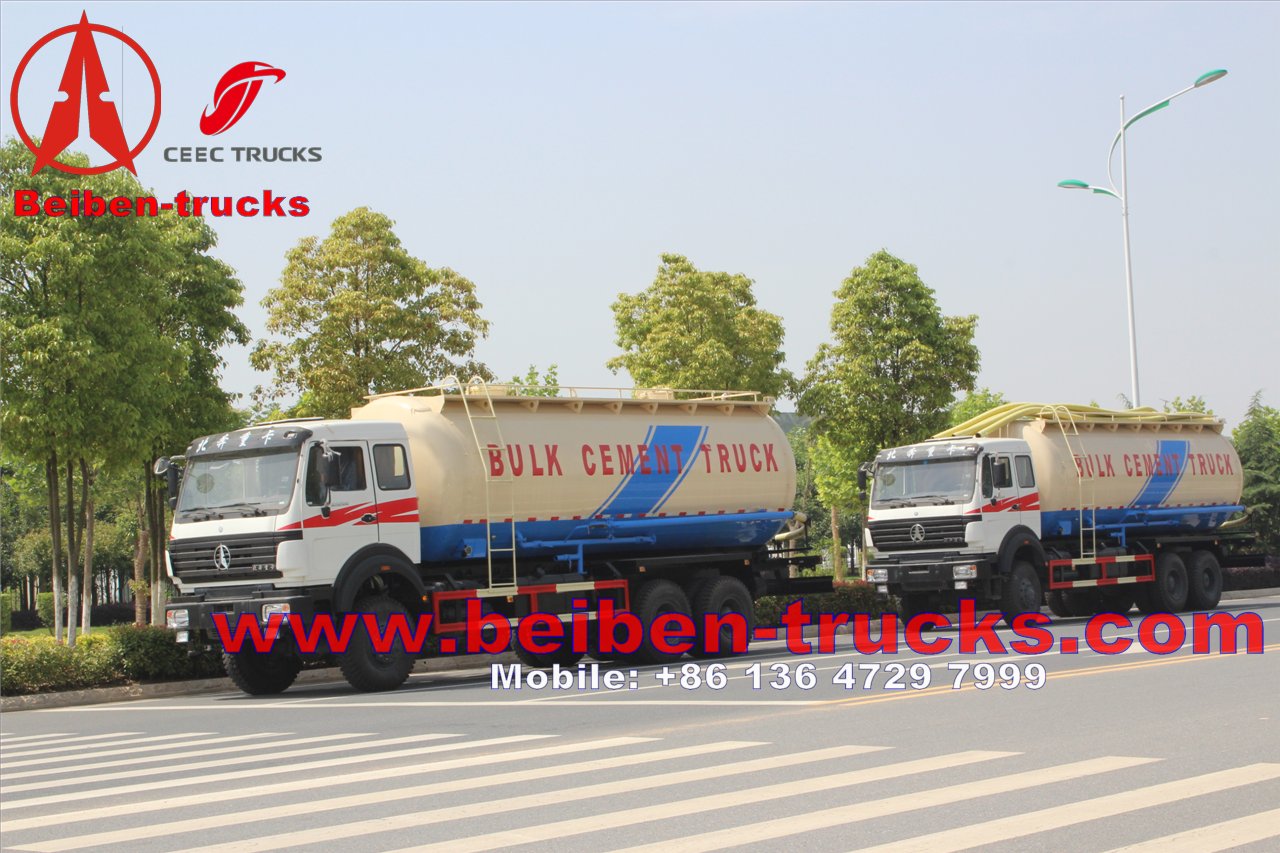

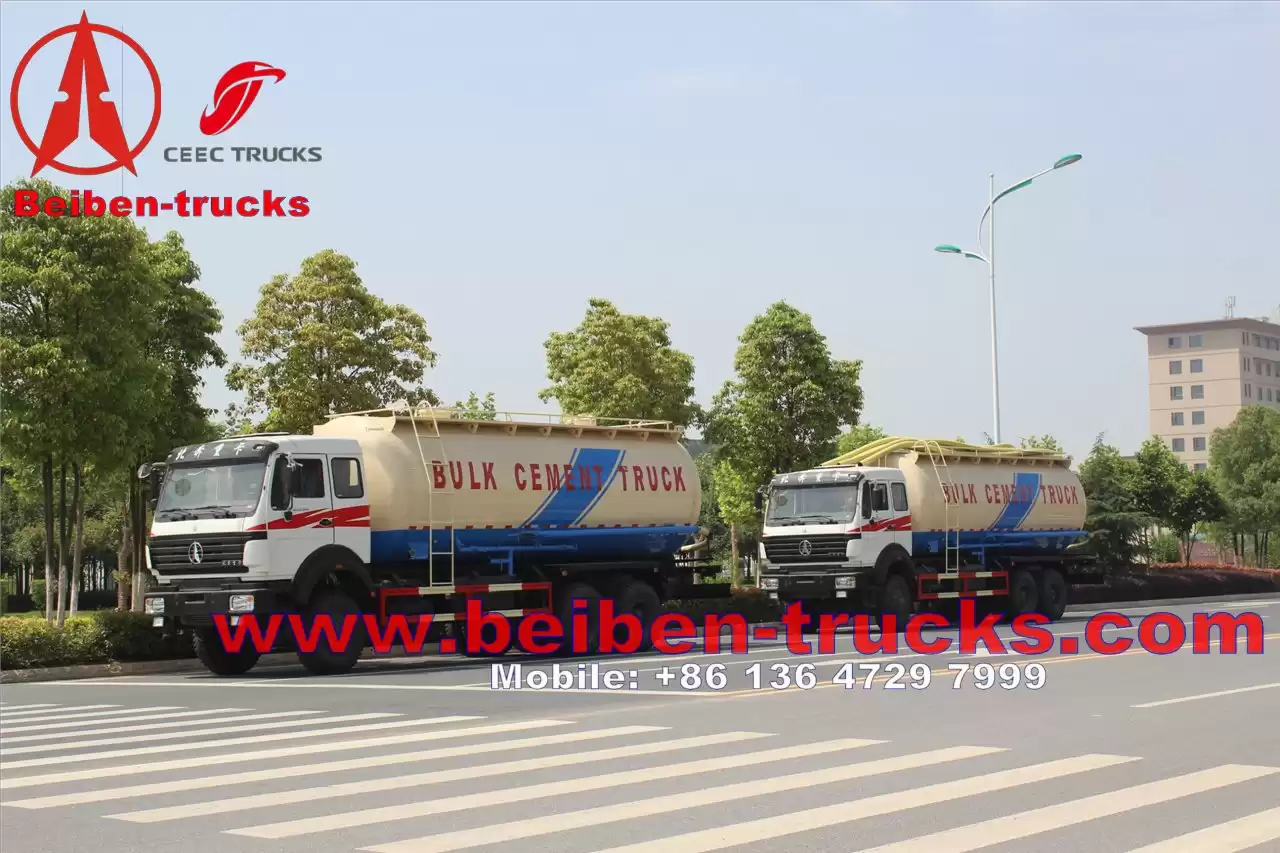

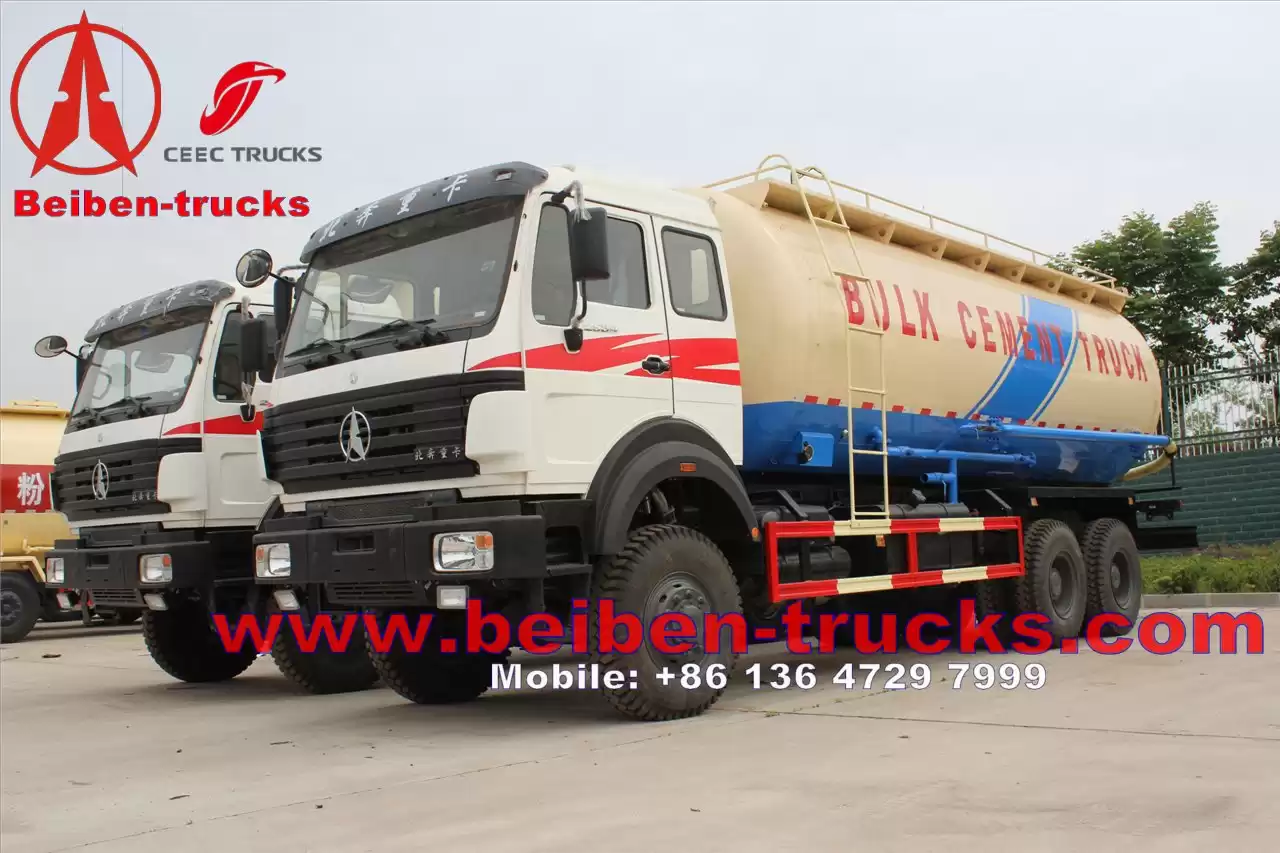

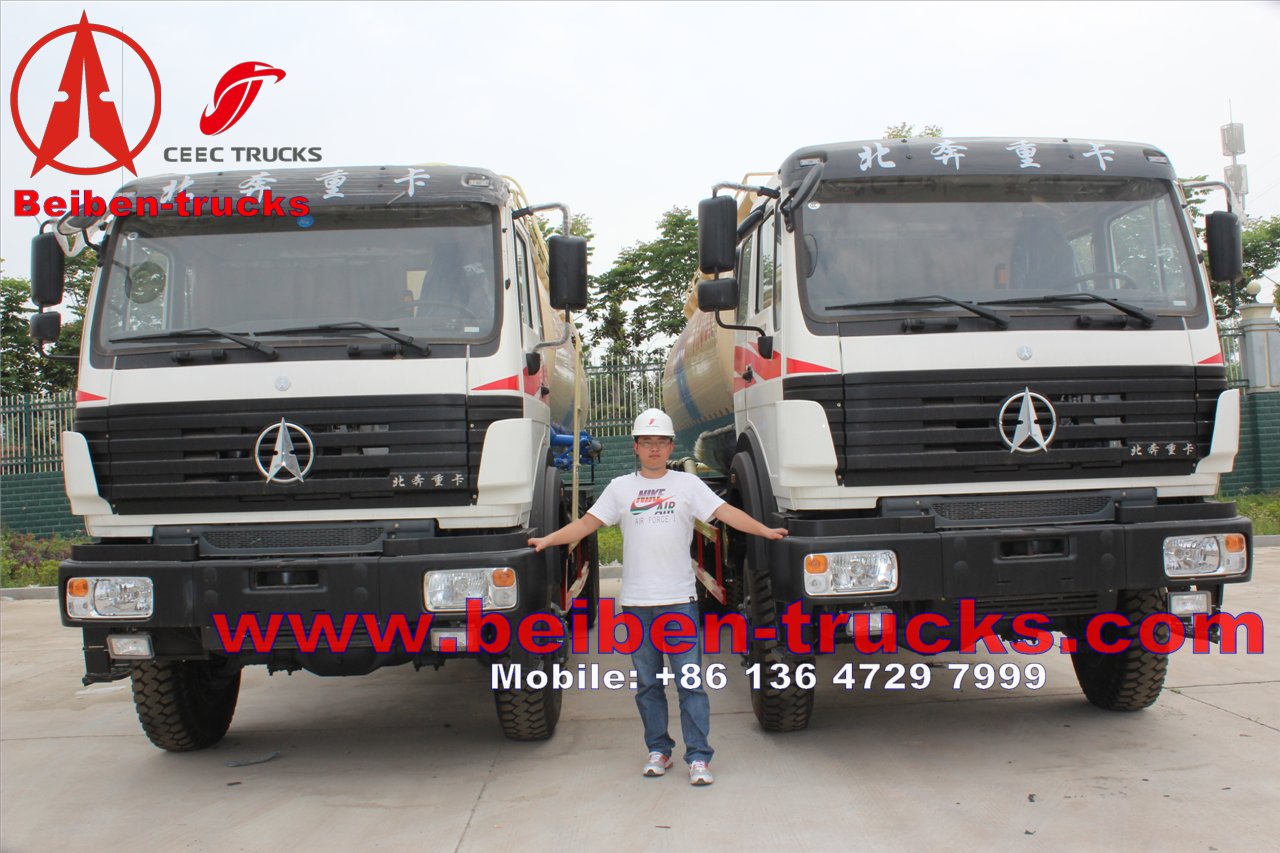

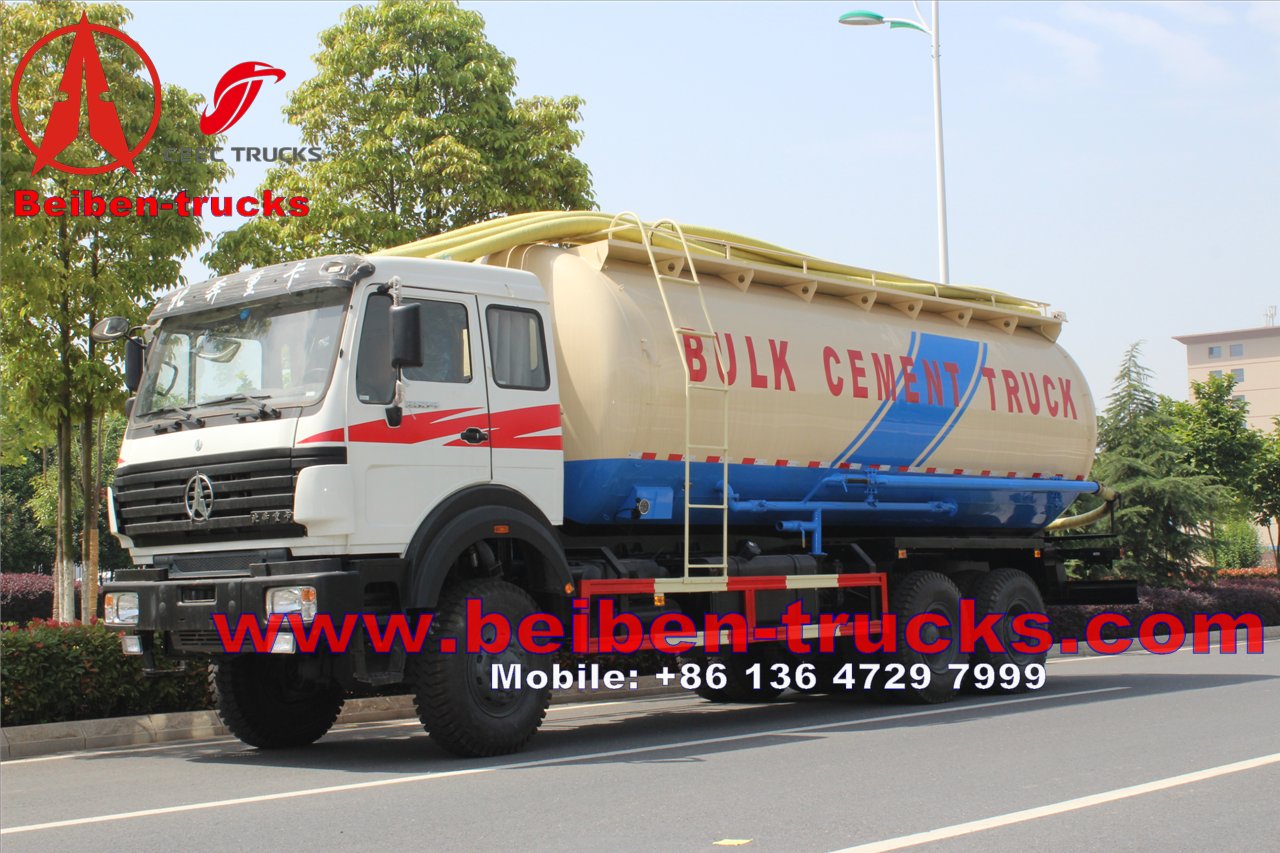

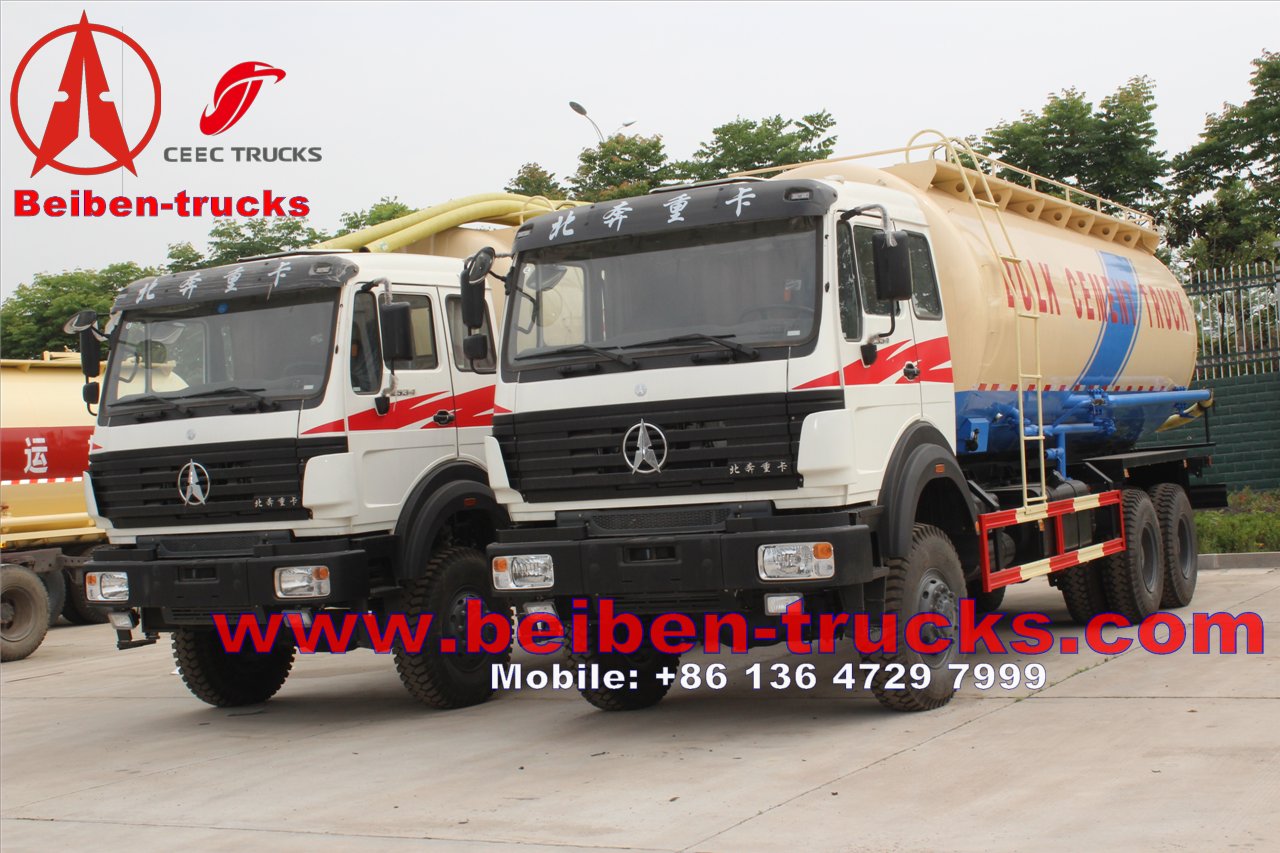

CEEC beiben25 CBM bulk cement truck are equipped with chinese weichai engine and TAS steering. With outstandingperformance and high quality, they are widely used in industries and sectors,such as national defense, aviation, postal service, railways, highways, harborsand earthmoving projects.
MODEL CEEC1259FJ ( 20-25 T )
Drive System 6X6
SIZE
Volume(m3) 20~25
Dimension(mm) 10500×2500×3690mm
Wheelbase(mm) 5050+1450
WEIGHT
G.V.W(kg) 25000
Payload(kg) 16000
Kerb (kg) 9980
Max.Traveling speed 78km/h
Min.turning diameter 18.8 m
Grade ability 48%
Approach angle 33°
Departure angle 40°
Fuel consumption 33L/100km
Ground clearance 285 mm
ENGINE
Engine Model WEICHAI336 HP
Engine Type weichai
Max Power(hp) 336
Emission(ml) 9726
TRANSSITION
Gearbox fuller FAST 9 shift , forward 9, reverse 1
Axle Number 3
Front Axle(kg) 8000 Stub axle with double T-cross section

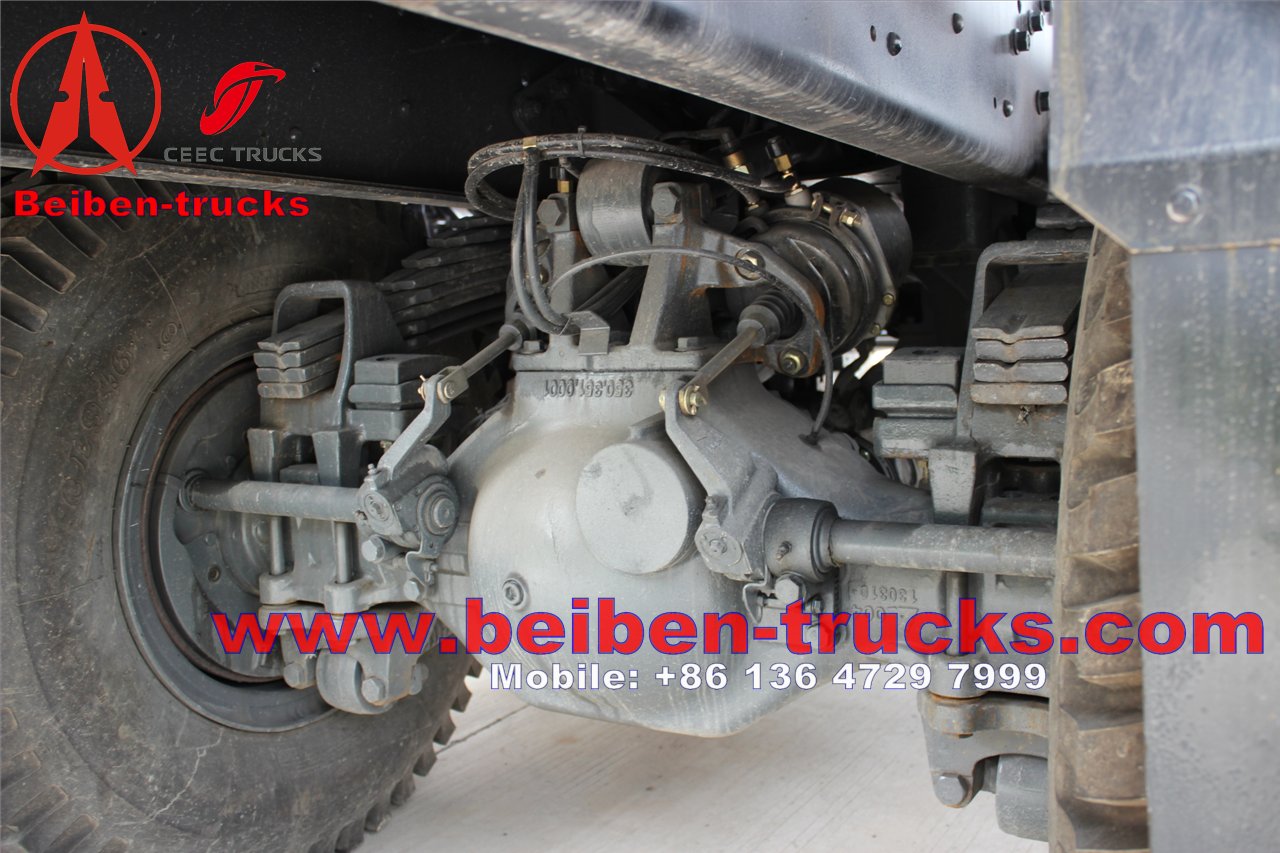

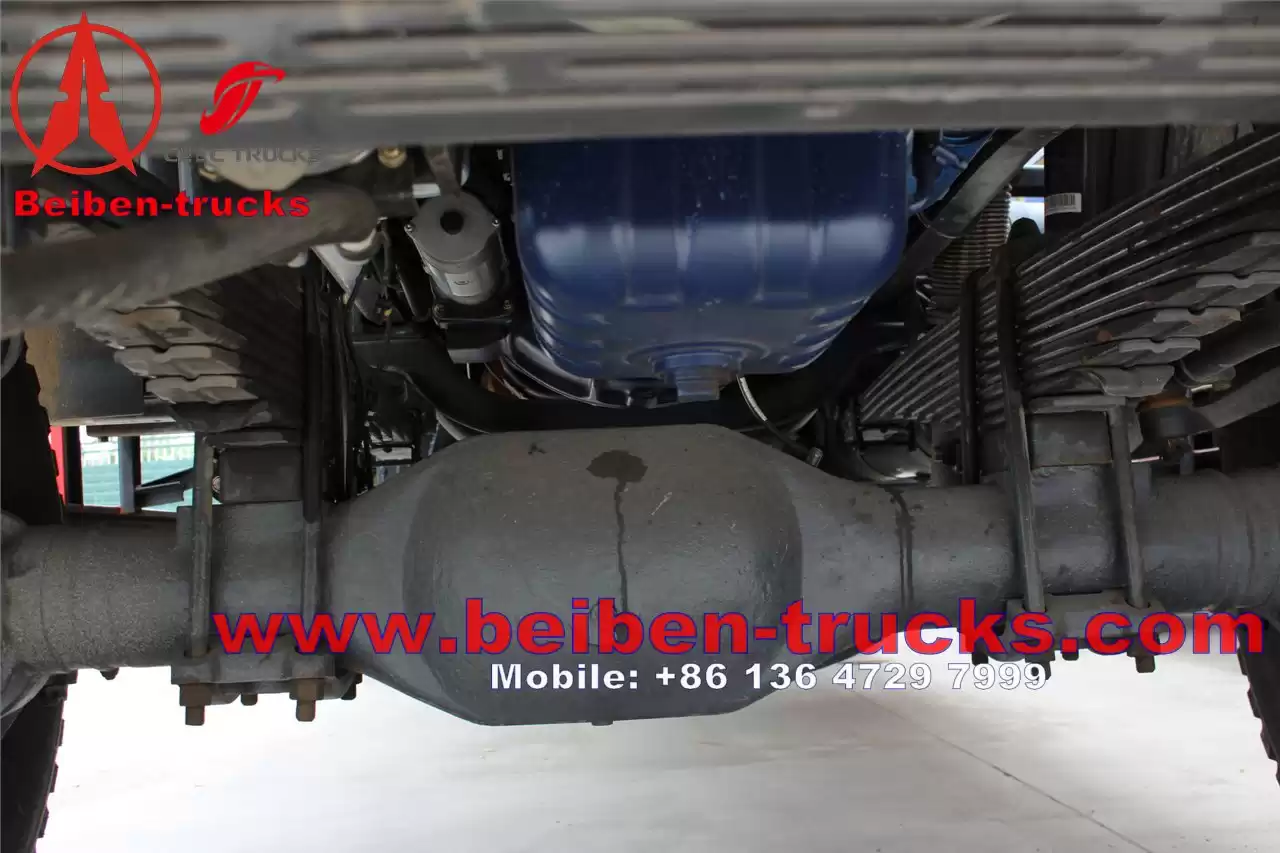

Rear Axle(kg) 18000*2 Hub reductor
Main Ratio(rear axle) 5.73
Leaf Spring L14R13/L14R13/12
Cabin Withair conditioner and MP3
Clutch andBrake
Single—plate dry coil-spring clutch,hydraulically operated with air assistance
Service brake Dual circuit compressed air brake
Parking brake Spring energy operating on rear wheels
Auxiliary brake Engine exhaust brake
SteeringSystem
hydraulic steering with power assistance,AmecicaFOWO .
Ratio 22.2-26.2
Electric System
Negative grounded
System voltage 24V
Batteries 24V/165Ah
Pneumaticdriving SYSTEM
AirCompressor
Model WBK-7.5/2A left set left rotary
Nominal working pressure 0.2 Mpa
Power take off model QH70A ShanxiFasite
Speed Ratio 0.818
pneumo itself loadings > 0.4T/minute
pneumo itself unloadings >1.2T/minute
vertical height >15 m
Range of supply cement >25 M
