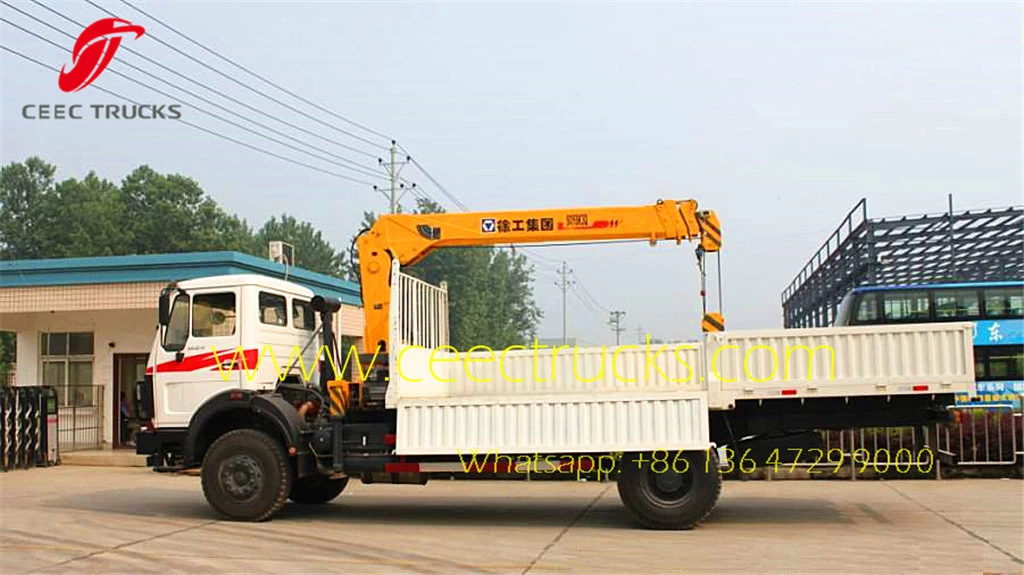

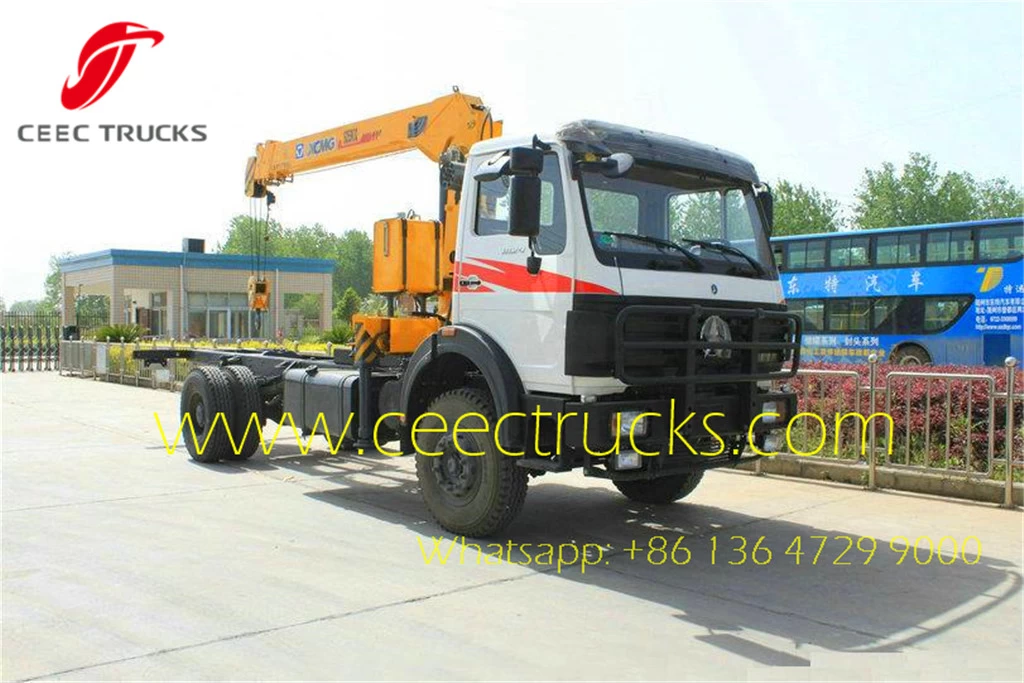

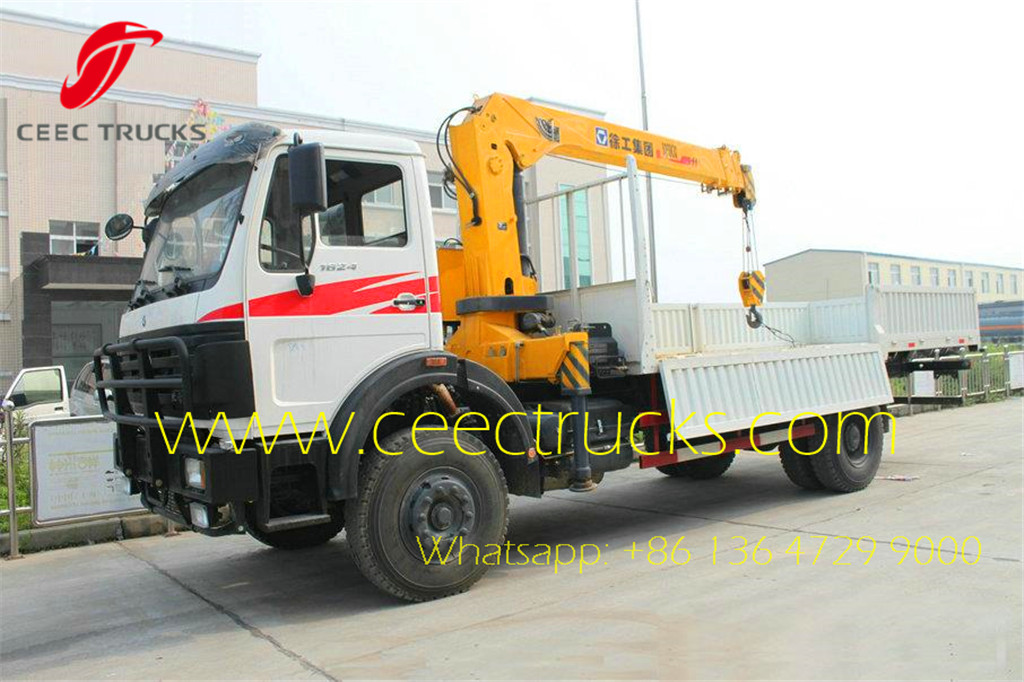

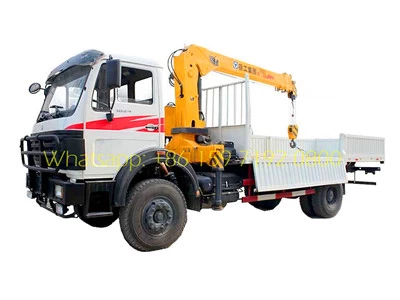

Beiben 4*4 Truck Mounted Crane

China beiben 4*4 off road truck chassis, benz technoloy 7 T front axle, military benz 16 T double reducer axle, famous weichai 300 hp diesel engine, fast 9 shift transmission, XCMG brand 5T boom crane export Fiji

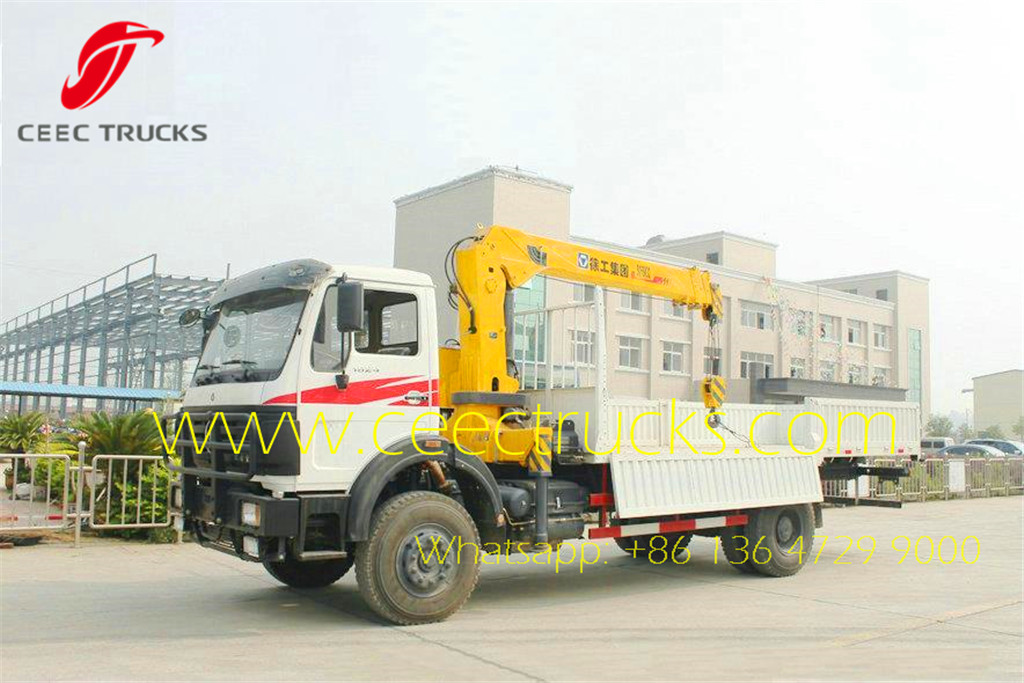

Beiben 4*4 Military Truck Mounted Crane supplier



beiben 6 wheeler offroad mounted crane truck

Beiben offroad trucks 5 Ton mounte crane , also call as beiben 4*4 crane trucks, north benz trucks mounted crane. As the most professinal beiben crane trucks manufacturer in china, we can produce the beiben military 5 T trucks mounted crane, beiben offroad 6.3 T truck mounted crane, beiben offroad 8 T trucks mounted crane.
The north benz trucks mounted can be on north benz 4*4 trucks chassis and 6*6 trucks chassis. Customer can choose XCMG, UNIC, HIAB crane system to install on these north benz trucks chassis

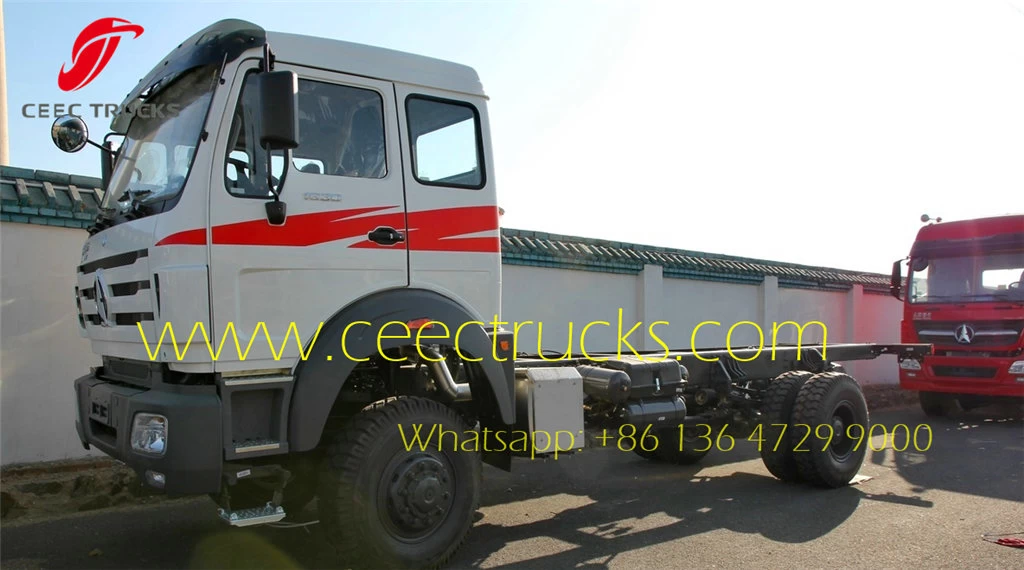

Beiben 6 wheelers truck chassis



Why customer choose Beiben 4*4 military truck mounted Crane from us ?

1. CEEC TRUCKS is the manufacturer of Beiben 5 T ton truck mounted crane many years with good reputation. And thecrane including XCMG, UNIC, PALFINGER, SANY, etc.

2. Advanced development & analysis meansmake sure design is very reliable.

3. Higher lifting capacity with four connectedbar mechanism.

4. Flange telescopic boom coupling technology.

5. Self-design & developed slewing machinewith greater drive force can meet varied requirements of working situation.

6. The more symmetrical center design of hexagonboom make it has bigger anti-bending capacity.

7. Float three-point bridge structure design canlower the accessional stress on the chassis frame when traveling.

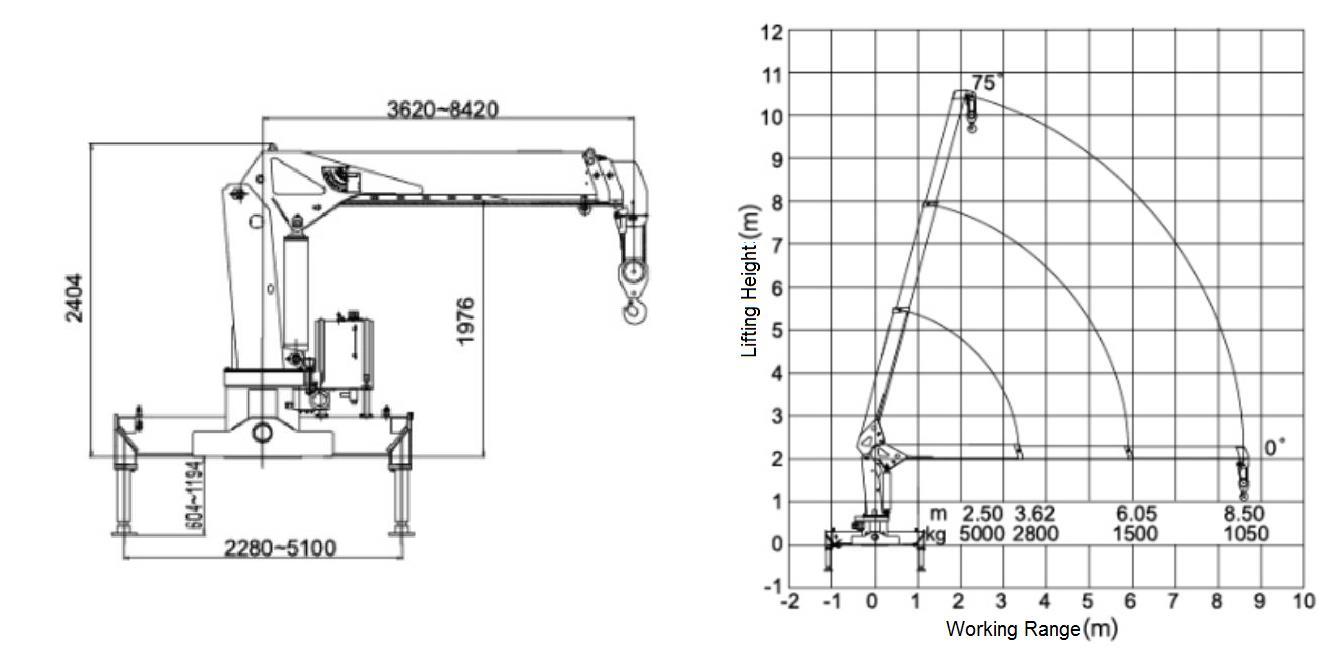

5 T truck mounted crane_dimension

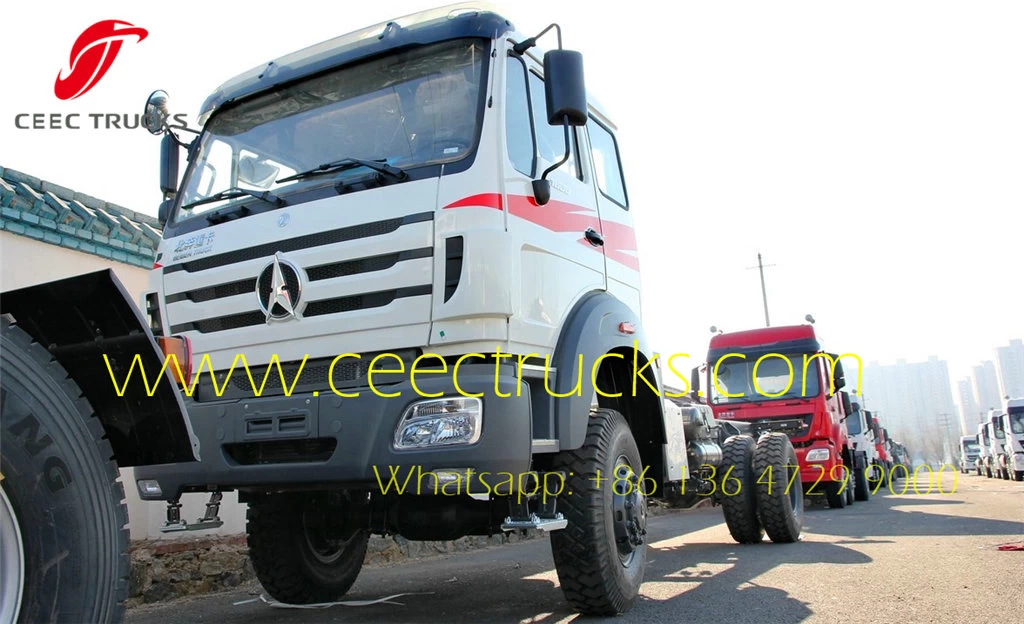

Beiben offroad truck Congo



Beiben offroad truck Congo



Beiben offroad truck Congo

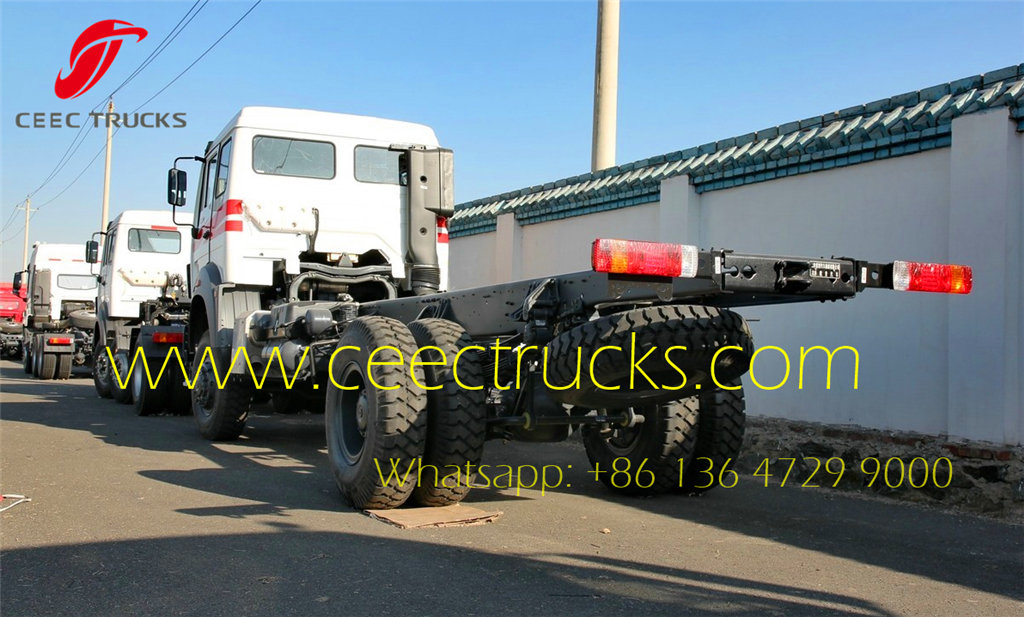

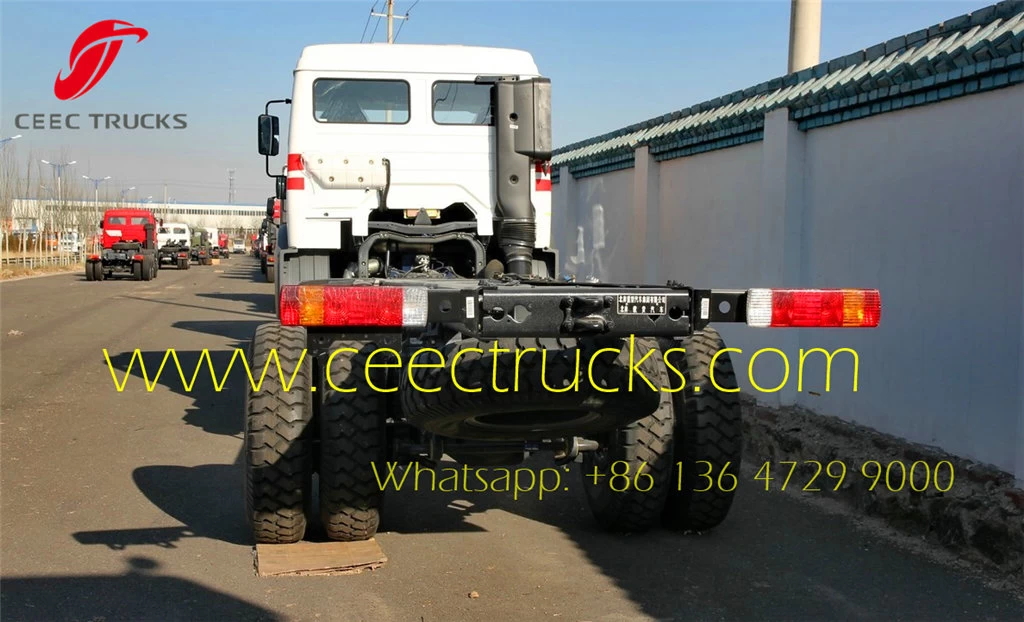

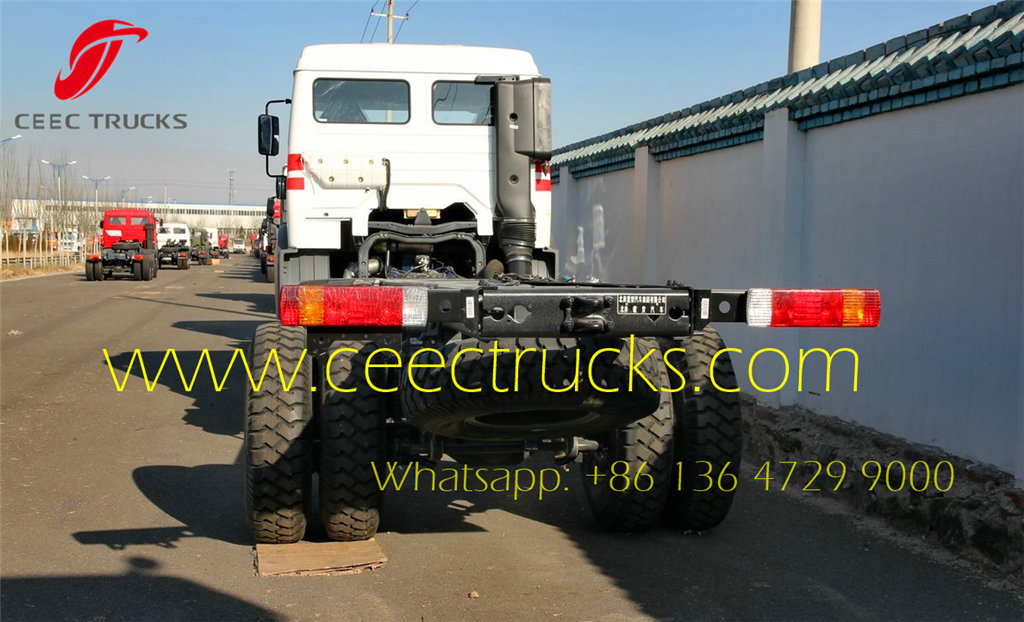

Beiben 6 wheel offroad mounted crane cargo truck chassis display:

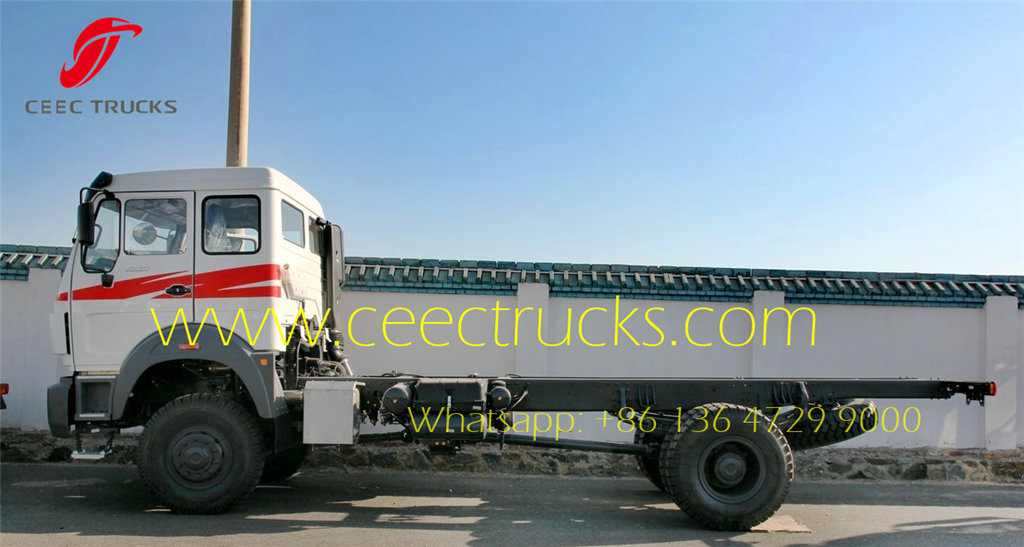

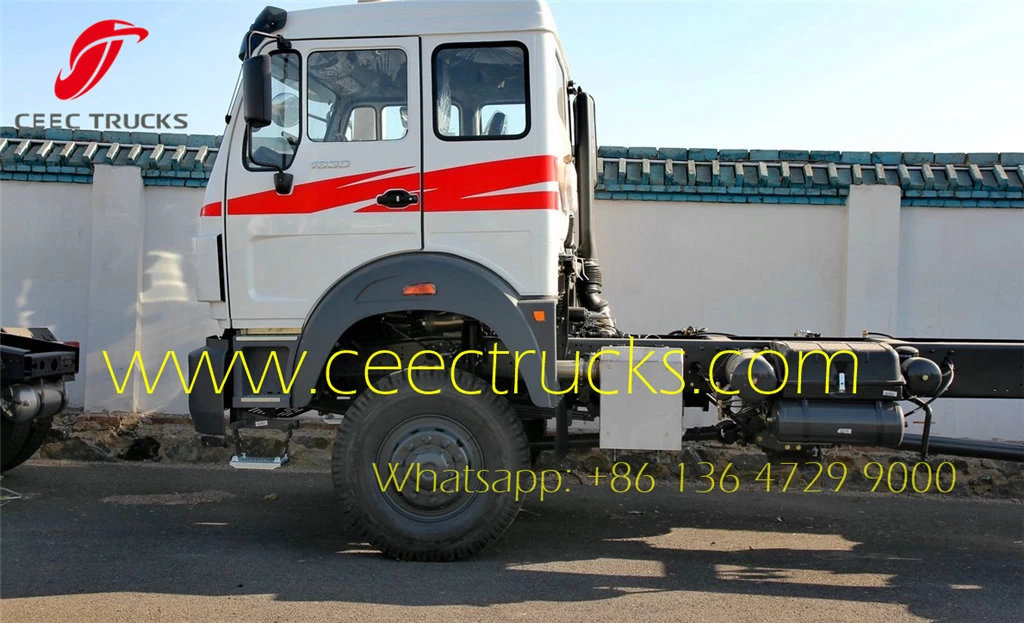

Kenya customer choose Beiben 4*4 military chassis



Kenya customer choose Beiben 4*4 military chassis



Kenya customer choose Beiben 4*4 military chassis    Kenya customer choose Beiben 4*4 military chassis



Kenya customer choose Beiben 4*4 military chassis    Kenya customer choose Beiben 4*4 military chassis



Similar Key Words: Straight Arm Isuzu 5T Truck Mounted Crane, ISUZU 5000kg Boom Truck Mounted Crane, 5t Crane ISUZU Truck Mounted Crane, 5t ISUZU crane mounted cargo truck, Myanmar isuzu truck mounted crane



5 T XCMG truck mounted crane advantages



Vehicle Name:

Beiben 4*4  truck XCMG 5 Ton mounted crane

Types of drive

Left hand drive (LHD )

Truck model number

1626S

Dimension (mm)

8665*2495*3145

Curb weight (kgs)

7440

Drive wheel

4×4

Engine model

WD10.300

Horsepower(hp)

300

Bore*stroke (MM)

126*155

Displacement (L)

9.726

Rated speed (R/min)

2200

Max torque (Nm)

1160

Max Torque speed( R/min)

1200-1600

Lowest fuel consumption (G/kw.h)

< 198

Net weight (KG)

870

Meridian tire

12.00-20

Number of tires

6 + 1(spare wheel)

Saddle types

None

Transmission types :

RT11509C

Steering mechanism:

TAS85

Wheelbase (mm)

4800

Cab style

Long cabin, Benz technology ,without bed

Air-condition

With air-condition

Cab body style

The whole steel ,The driver’s seat adjustable , high safety,lower wind resistance coefficient, Benz Technology.

Steering system

High safe and reliable, and flexible, ZF8098

Brake system

Service brake ,Can automatically adjust the brake clearance, Double air brake system , WEVB

Electric system:

Stronger load ability, high reliability and easy maintenance

Truck frame style

Fish maw shape, inequilaterally section, equal intensity, Benz technology

Front axle

Benz 7.0T Transaxle

Rear axle

Benz Technology, double deceleration bridge, high efficiency, carrying large, Mercedes Benz strengthened axle (punching-welding axle housing, double reduction driving axle, inter-wheel differential and differential lock)

Ratio=5.263

Electric system:

Stronger load ability, high reliability and easy maintenance,24 V

Emission standard

Euro 2 & EURO 3

Fuel tank capacity (L)

400

Optional equipment

Saddle, upper berth, ABS , squareness silencer.
