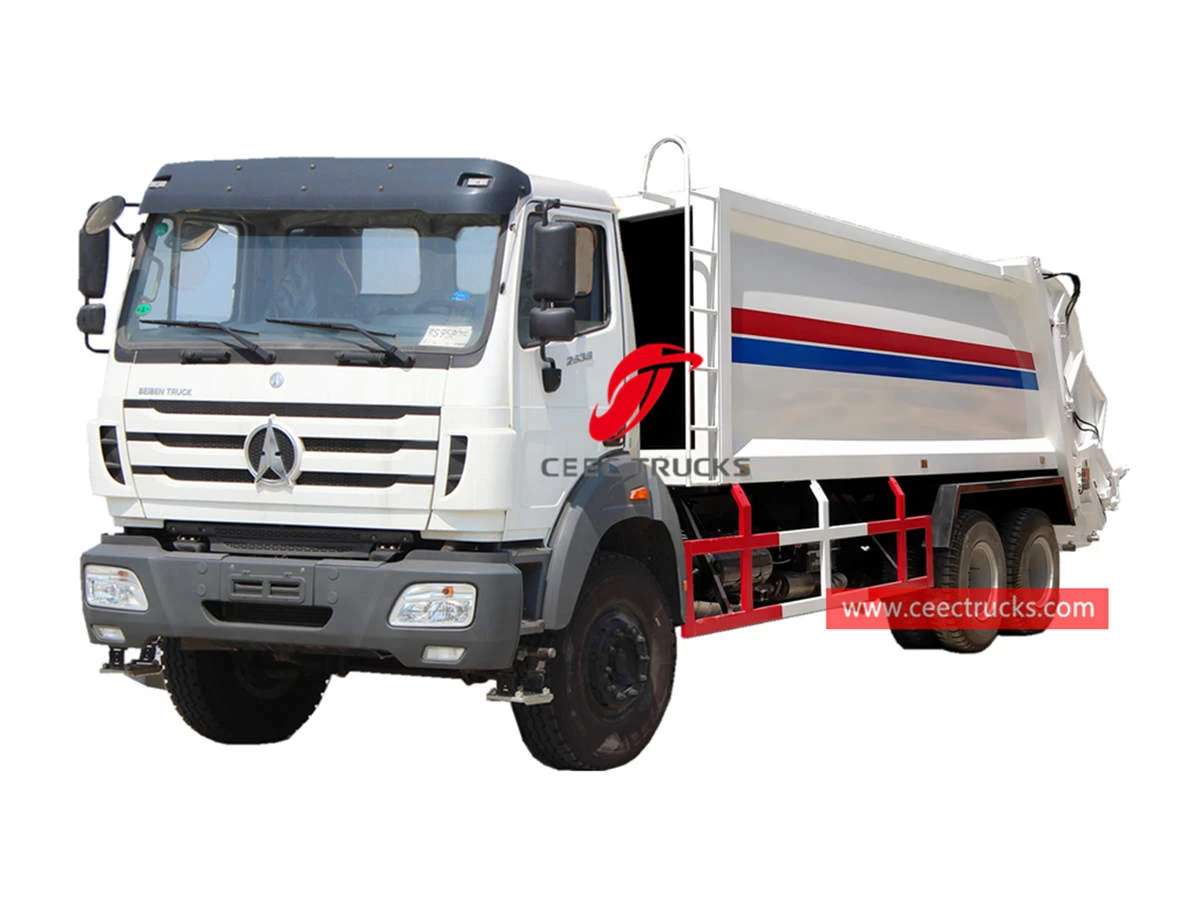

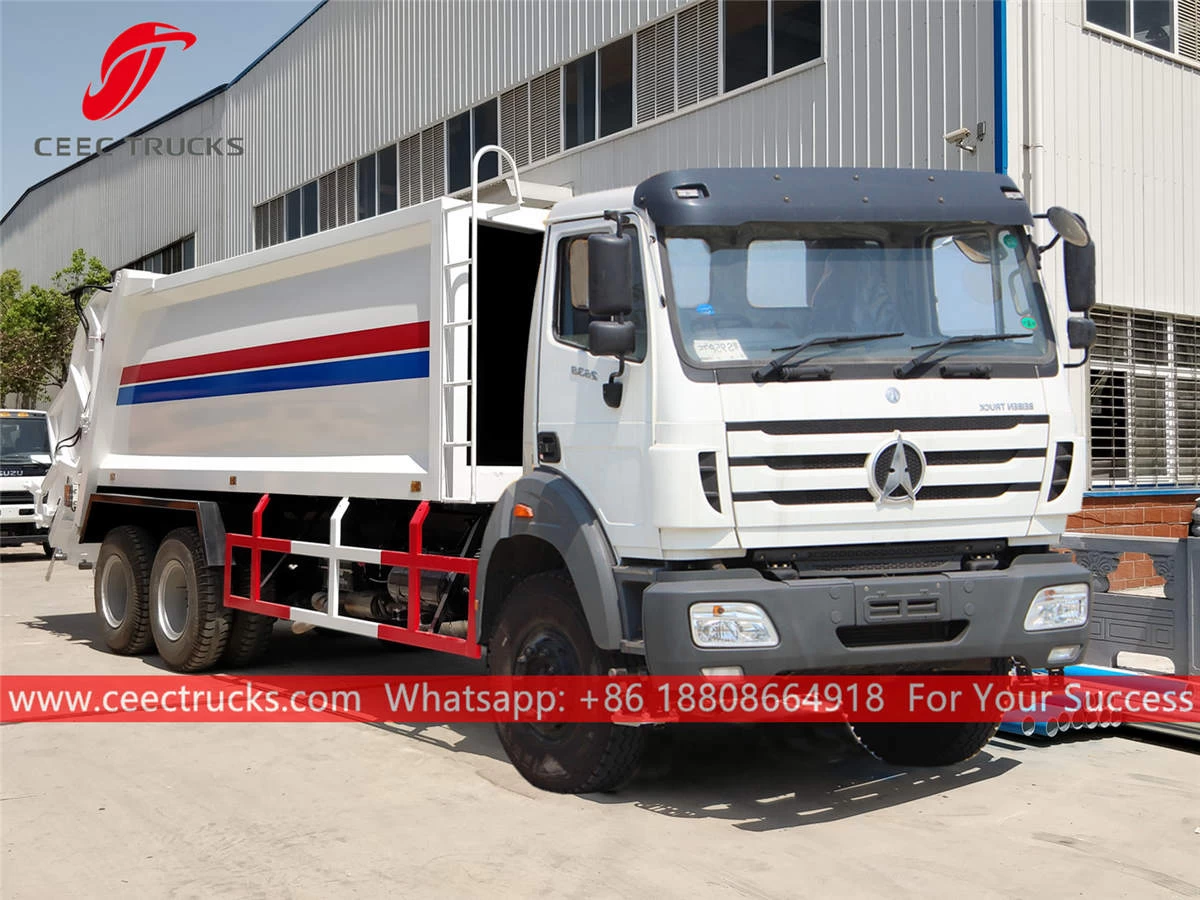

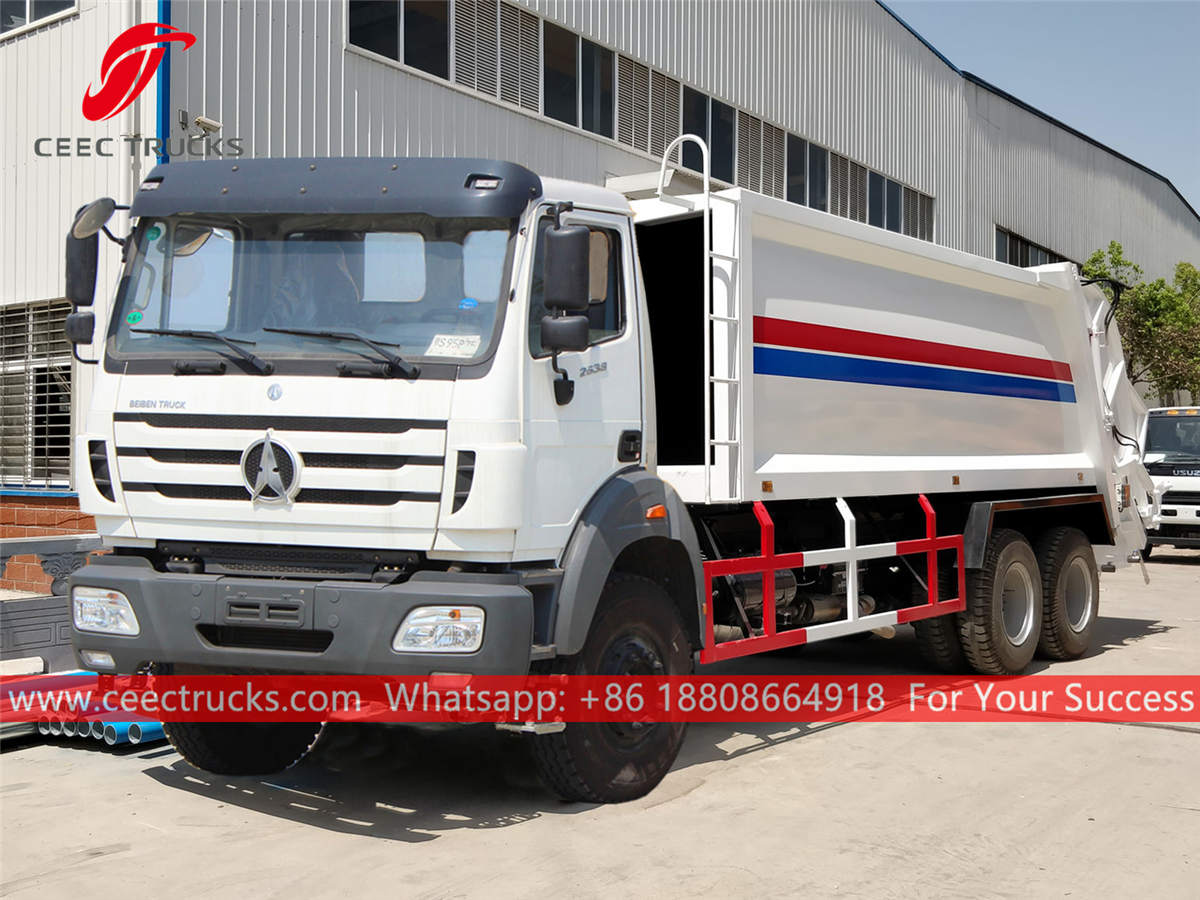

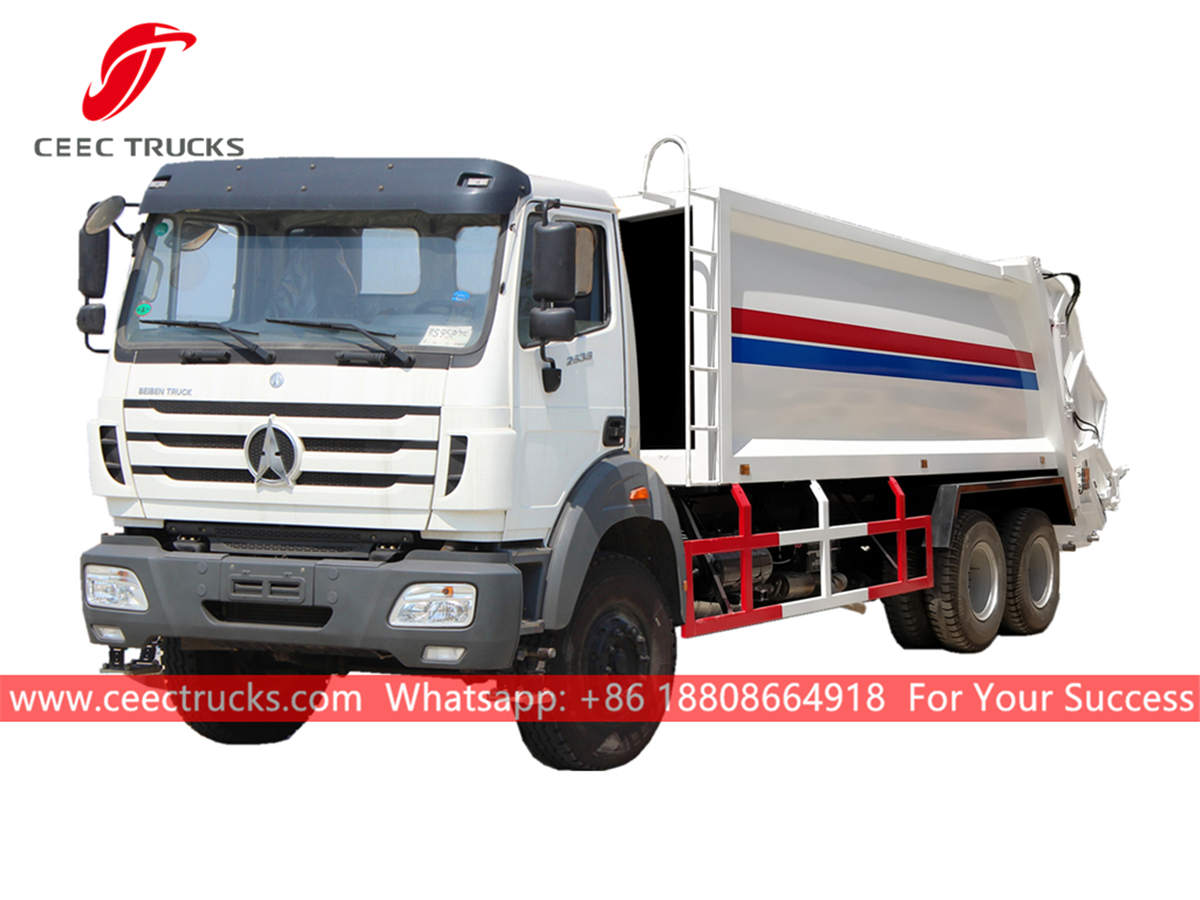

Beiben 6*4 Refuse compression truck

Beiben 6*4 rubbish compressor truck, the truck chassis use WEICHAI 336HP diesel engine, FAST 12-shift transmission gear. PLC control box for easy operation. All painting and logos based on clients requirement.




Beiben Garbage compressing truck

 Applications:



Beiben Compressed Garbage Truck (also called garbage compressing truck, 6*4 rear-load refuse truck for sale, brand new waste collection vehicle, 10 wheeler rear loader, Beiben rubbish compactor truck, rear loading trash truck manufacturer) is designed for daily rubbish transport in such living areas as all kinds of cities, large station, port and wharf, airport, and densely-populated areas like industrial and mineral enterprises and military units.



CEEC TRUCKS compactor garbage truck reduces back-and-forth transport times and prevents rubbish and stinks from spreading and avoids second-time pollution produced by polluted water.



The refuse compactor vehicle tail-gas discharge reaches EUROPEAN standard. which is safe and environmental-protective.



 Key Features:



---- Beiben chassis, perfect performance

---- WEICHAI engine, super powerful; reliable performance, no overhaul within 100,000 km.

---- Compression body capacity from 3 to 20 Cublic Meter.

---- Easy operation and easy maintenance.

---- Various types of refuse container lifter are available.



 Specifications:



Beiben 6*4 waste compressor truck (20 cbm)

General

Vehicle Brand

CEEC TRUCKS

Chassis Brand

Beiben

Overall Dimension

8500 * 2500 * 3430 mm

GVW / Kerb Weight

25,000kg / 14,960kg

Cab

Cab Capacity

3 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

WEICHAI

Power

336 HP (247 KW)

Displacement

9726 ml

Emission Standard

Euro 4 or 5

Chassis

Drive Type

6X4 (left  hand drive)

Transmission

FAST 12 speed levers with 1 reverse

Wheelbase/No. of axle

3800+1450mm / 3

Tire Specification

12.00R20

Tire Number

10 tires and 1 spare tire

Max Speed

90 km/h

Paint

Metallic paint

Superstructure

Body capacity

20 cbm

Fill Hopper capacity

1.4 cbm

Sewage tank

 200 liters

Filling work cycly time

 20~25 s

Discharge model

Horizontal Ejection

Control system

Electrically Hydraulic control

Manual hydraulic control

Control panel

English or Your language

All standard accessories: Dust bin lifter,Ladder, warning lights, Emergency stop button,

handrail, fire extinguisher, basic tool kit, English manual……

Optional

** Back alarm and Camera can be equipped.

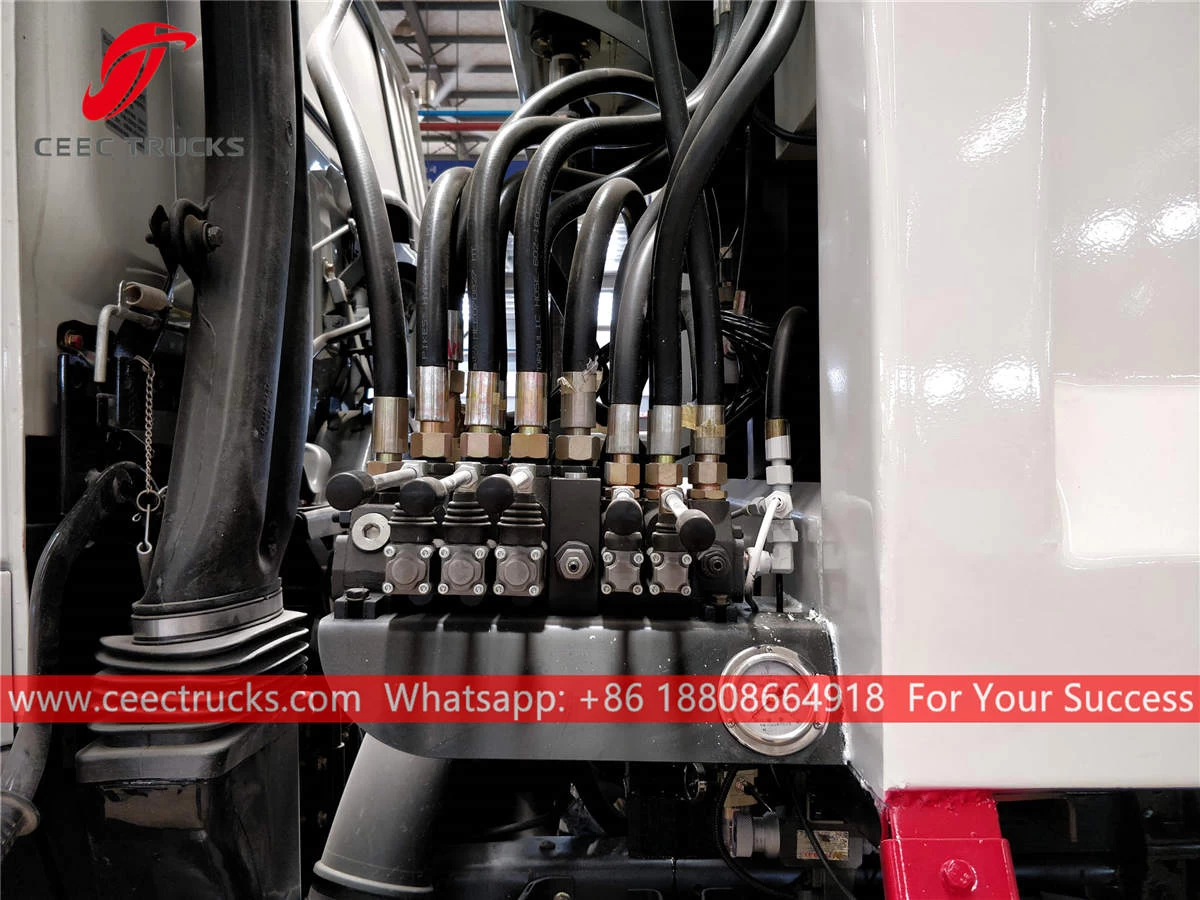

** Italy mulit-valve can be choose.

** 240L (single bin or double bin) or standard 660 L, 1100 L bins with bin lifter can be choose.

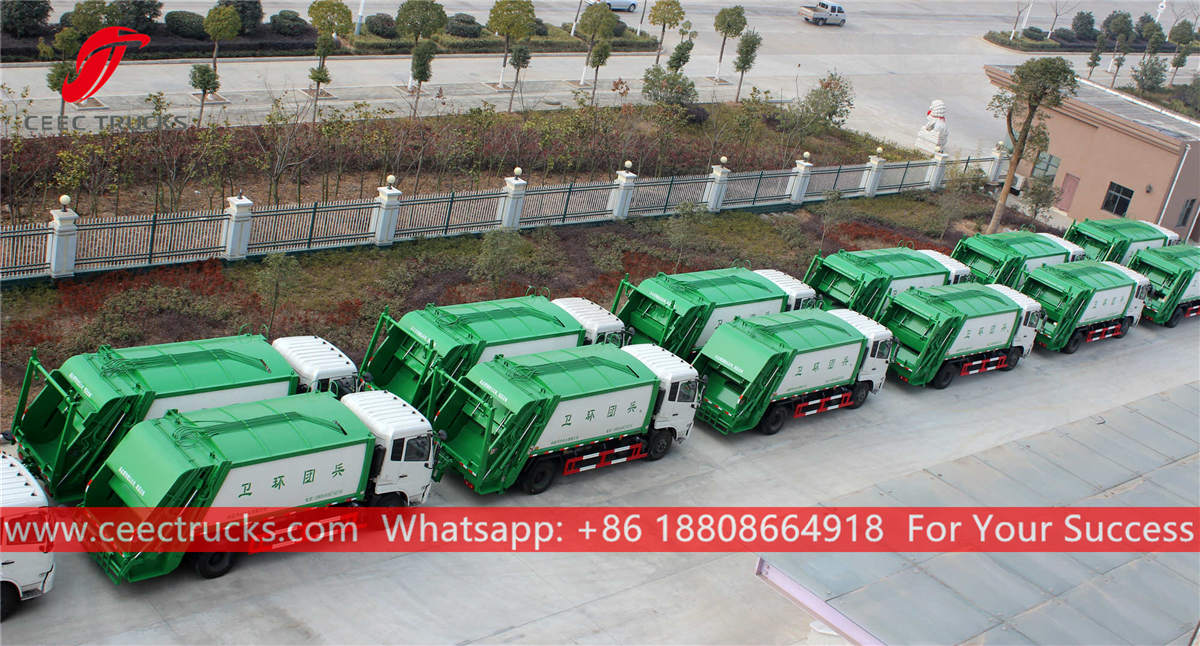

Brand new garbage compression trucks for sale

(20 units rear loader garbage trucks are ready for delivery)
