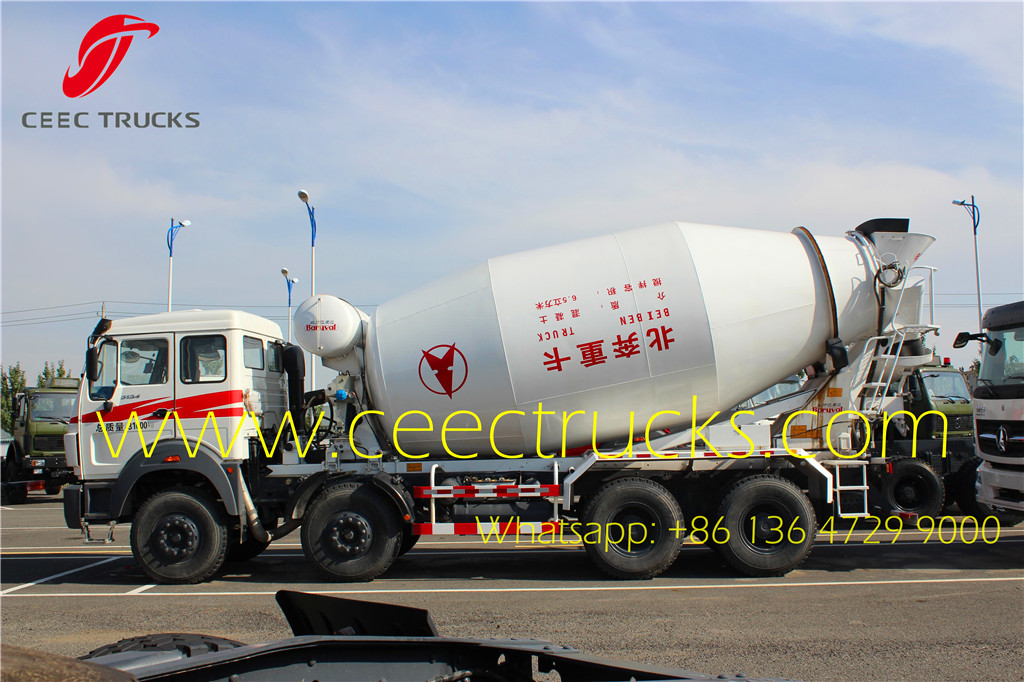

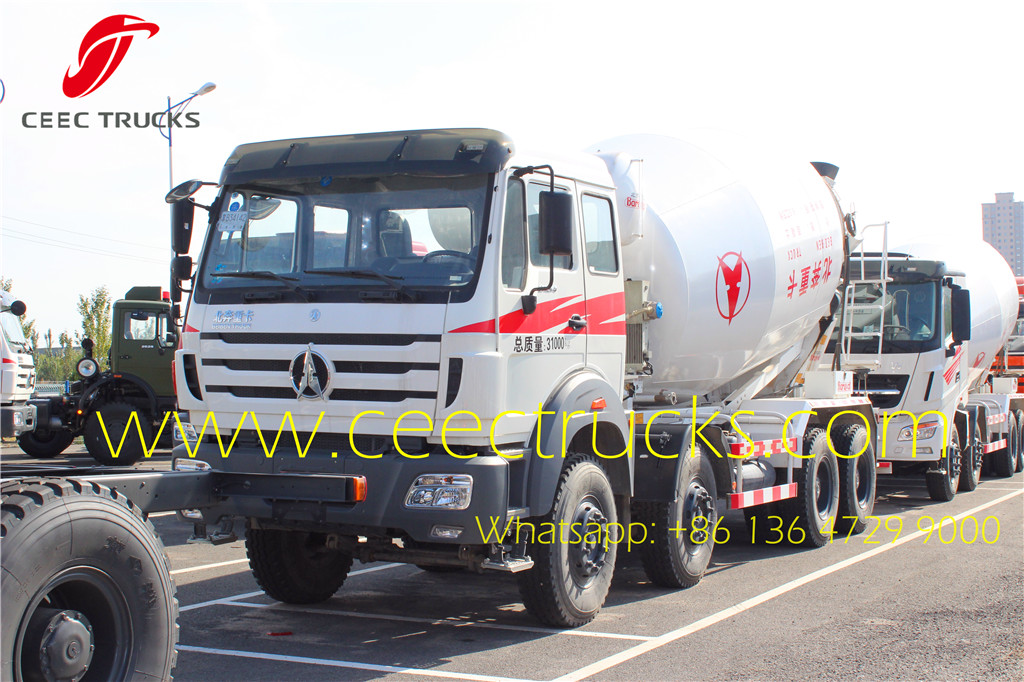

Beiben 8*4 NG80 Mixer truck

beiben NG80B 3134 concrete mixer truck, 8*4 left hand dring system, with ZF 9 shift transmission, Benz NG80B cabin fully applied with ECR29 standard, Benz famous technology axle, 12.00R20 tyre. 14 CBM volume beiben mixer trucks export Africa countries



Best beiben 14 CBM concrete mxier trucks als can be named as beiben 8*4 transit mixer truck, beiben 14 CBM mixer tanker truck, beiben 12 wheeler cement mixer truck, which mainly used for cement mixing and being widely used in Factory, Construction Plant, etc. Our beiben mixer trucks widely export to Congo, Tanzania, Ethiopia, Zambia, Dubai, Myanmar, etc.

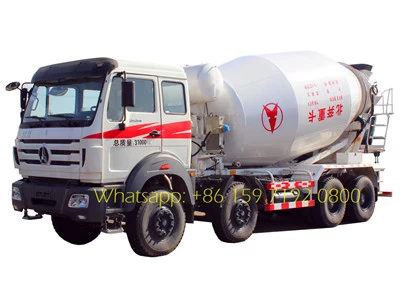

14 Cubic Meters Beiben 3134 mixer truck Sale

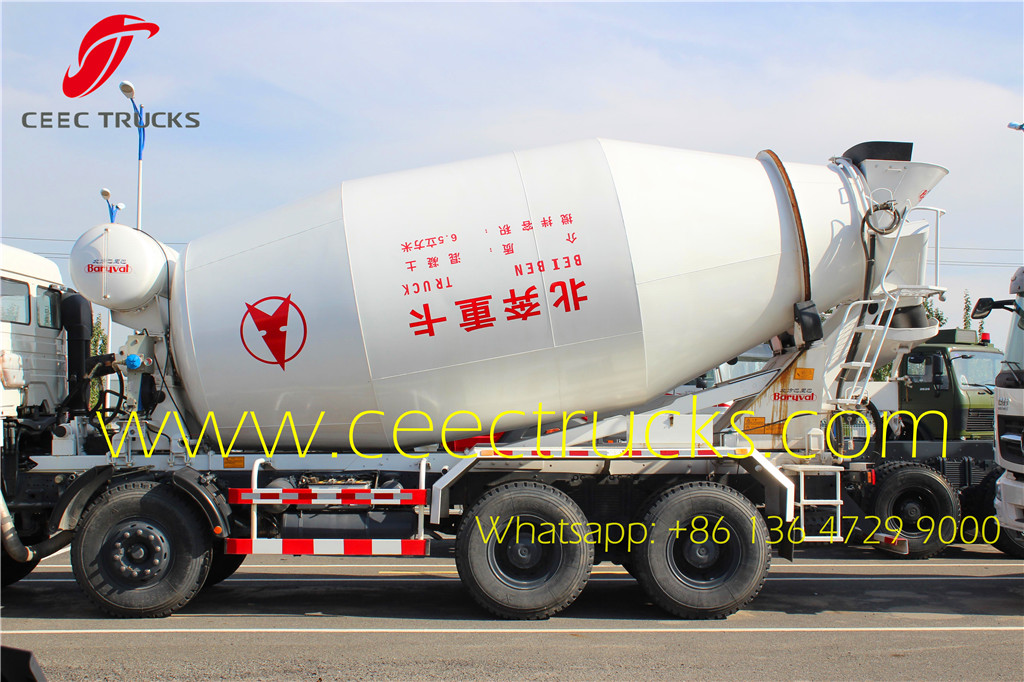

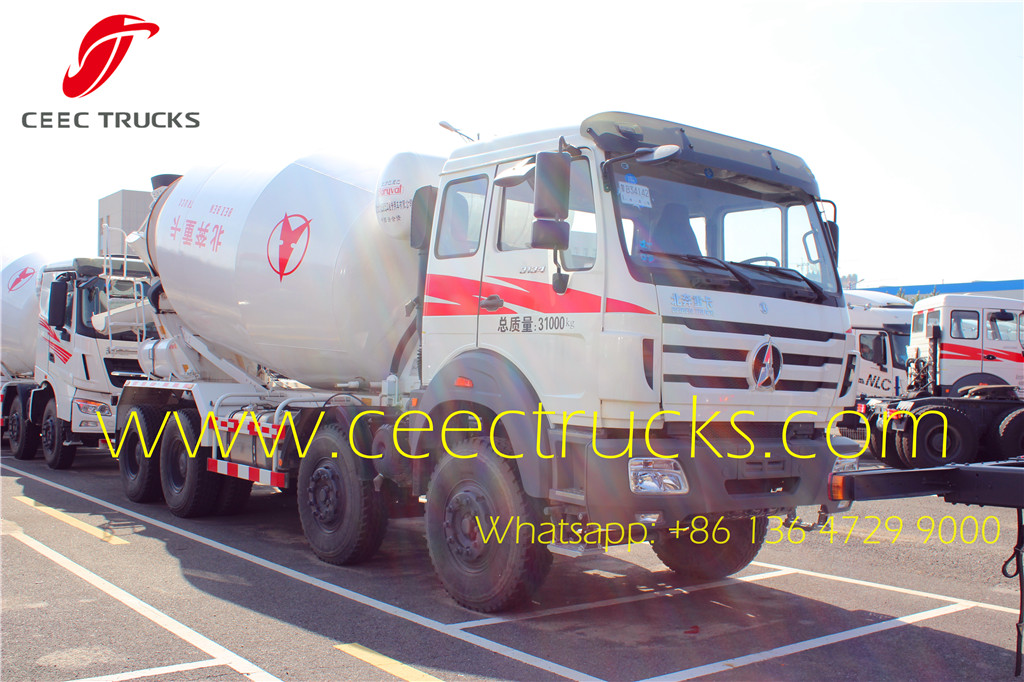

beiben 3134 NG80B mixer truck

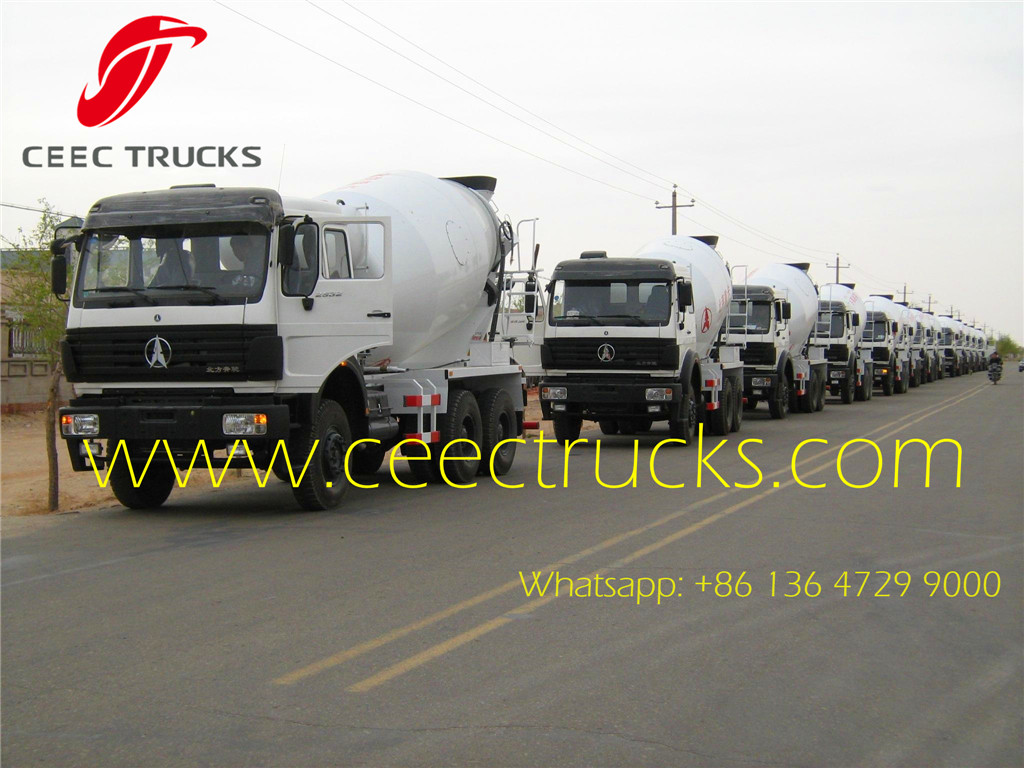

We have exported lots of beiben 8 CBM, 9 CBM, 10 CBM, 12 CBM concrete mixer truck to overseas market. Great experience on manufacturer beiben 6*4 drive transit mixer truck and beiben 8*4 drive concrete mixer truck. Our experienced engineer can produce and design differernt kinds of beiben mixer trucks based on customer's requirement.



beiben 3134 mixer truck drawing



Fetures for Beiben 3134 cement mixer truck:

1.Beiben mixer truck mixing drum and mixer blade using special wear-resisting material Q345/16Mn
2.Material of blowpit and feed hopper scaleboard is just the same as the mixing drum
3.Humanizing operating system,connecting rod operation,concise safe and reliable
4.Benz mixer truck using imported brand-name hydraulic syste, American Eaton, Germany Rexroth, Italy PMP, etc
5.Flushing water back control, easy control and maintenance
6.Cement with quick discharging, no residual
7.China famous Beiben 3138 eavy duty cement mixer truck chassis, with 340 HP euro 2/3 engine
8.Drive mode:4x2,6x4,8x4 by right hand drive or left hand drive.

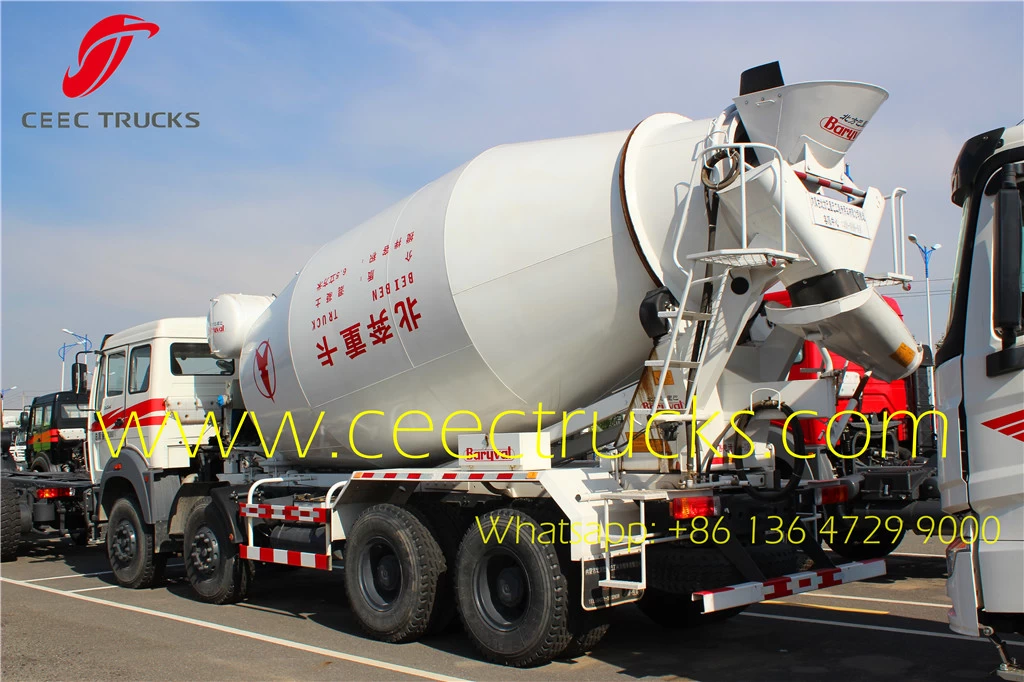

10 CBM beiben concrete mixer truck details

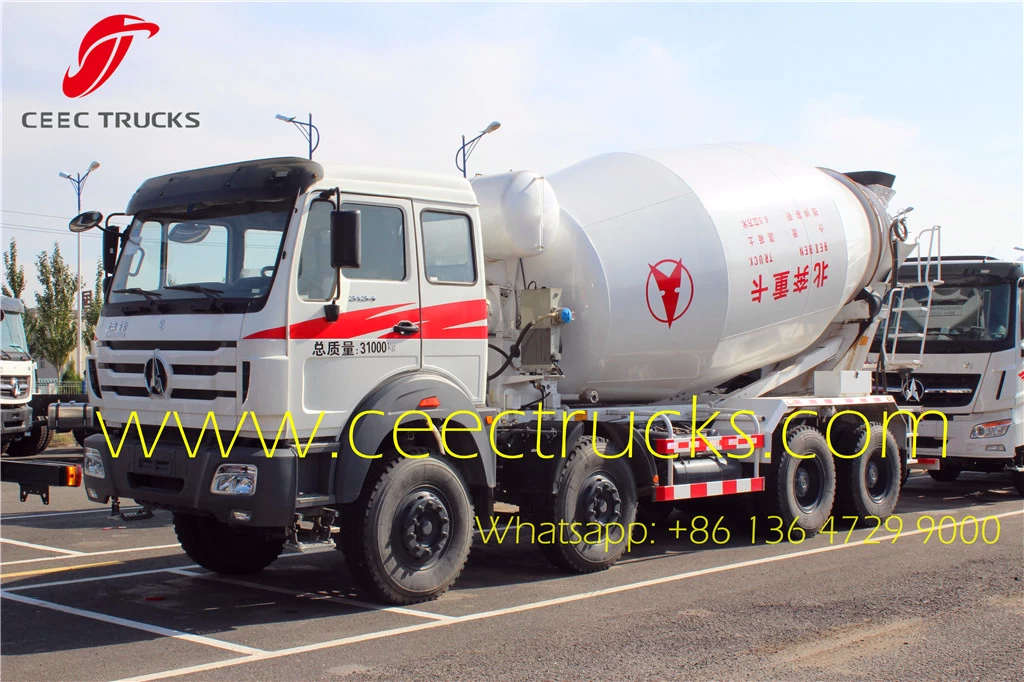

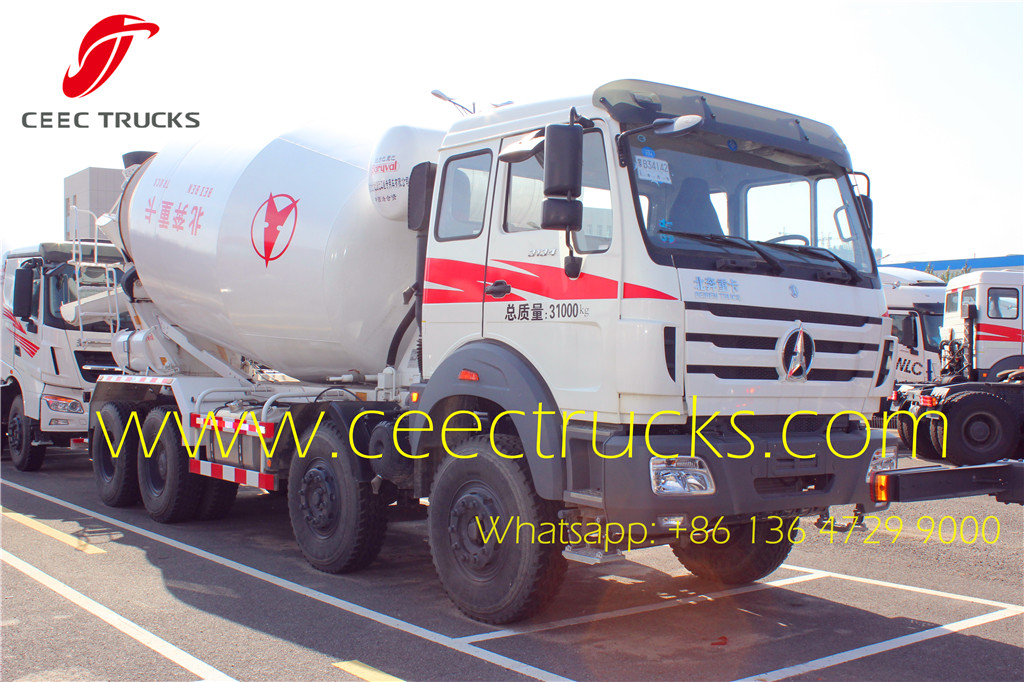

14 CBM beiben concrete mixer truck

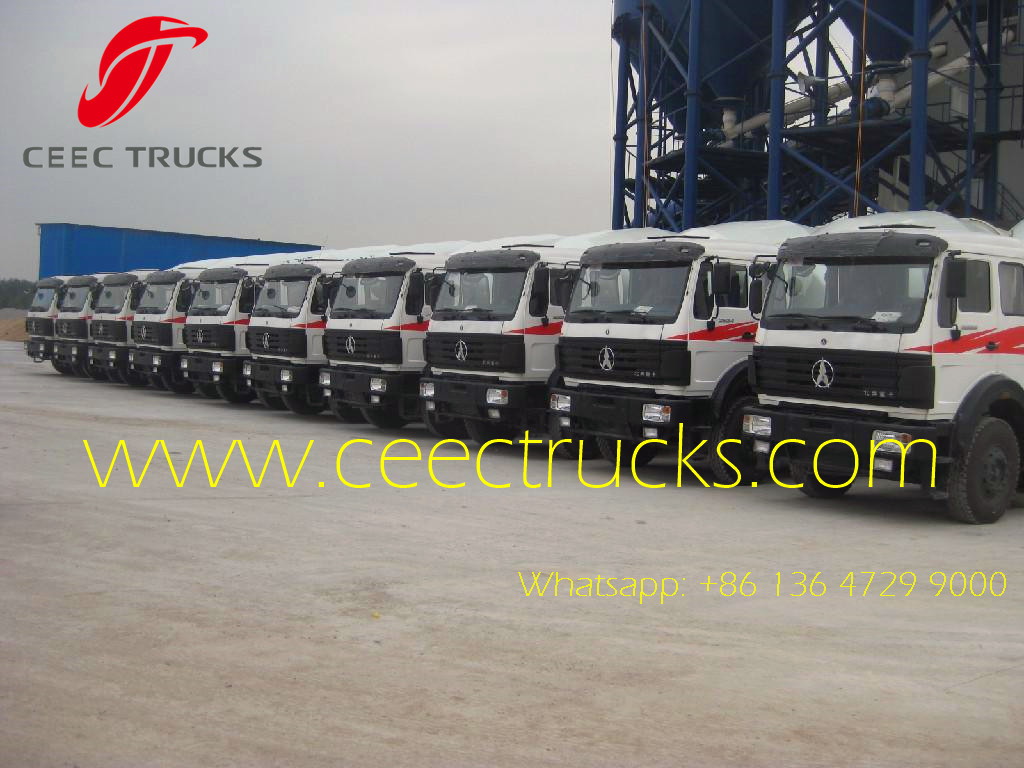

beiben 3134 NG80B mixer trucks supplier



beiben 3134 NG80B mixer trucks supplier

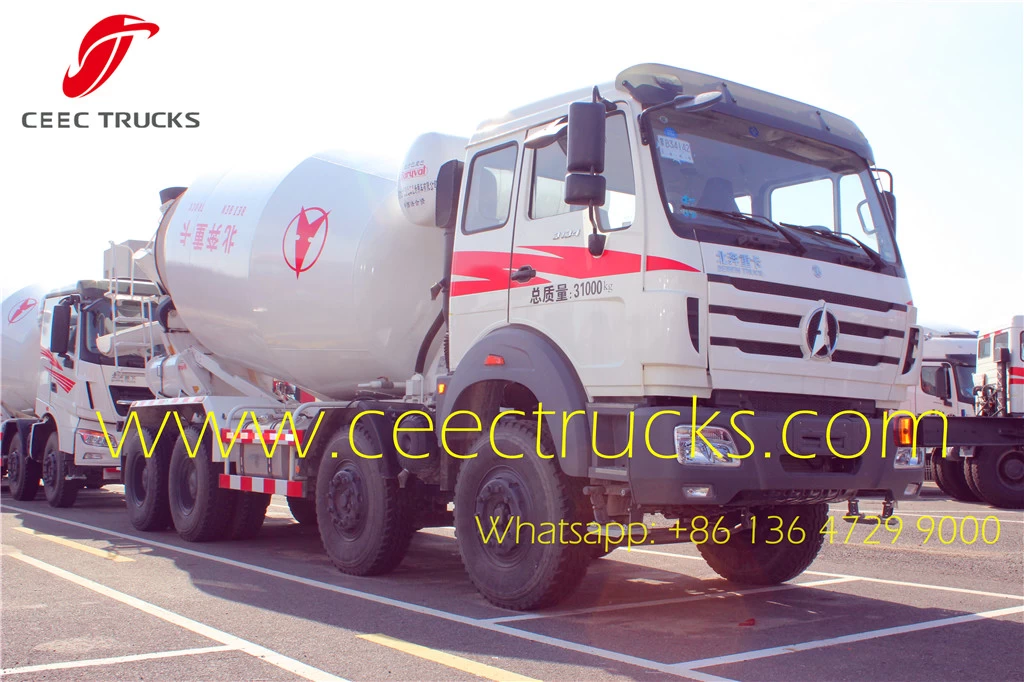

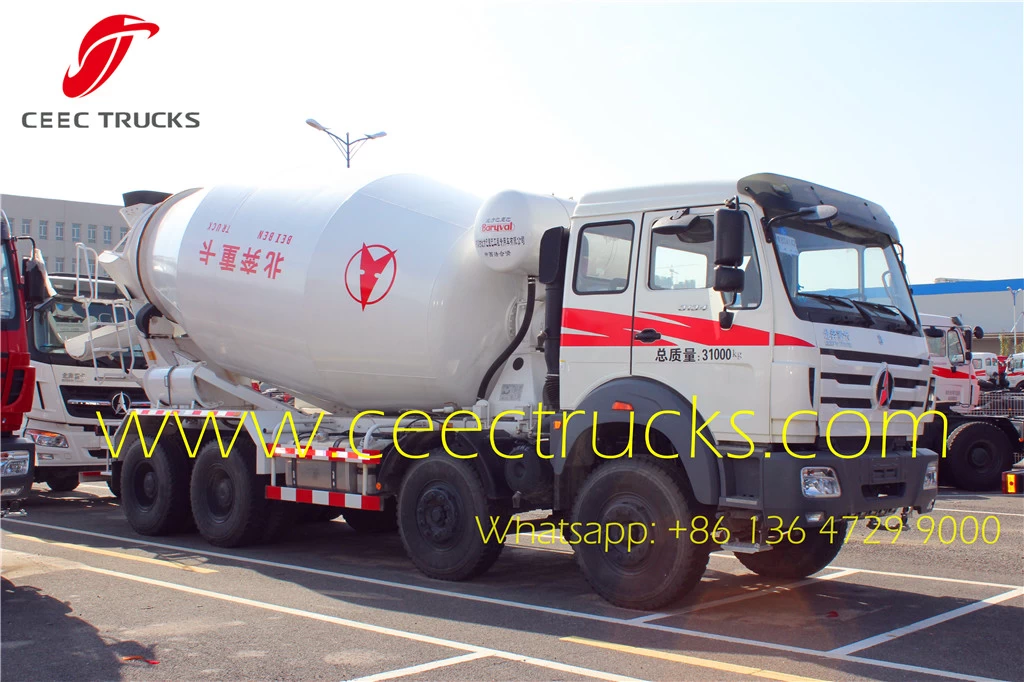

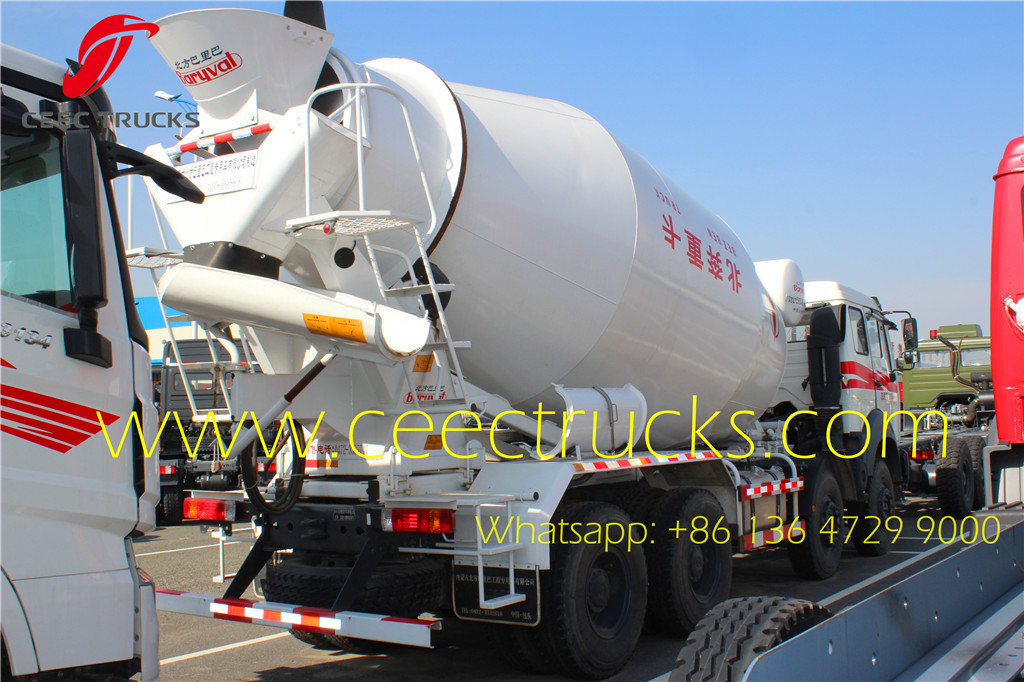

Beiben 14 CBM cement mixer truck



Beiben 14 CBM cement mixer truck    Beiben 14 CBM cement mixer truck



Beiben 14 CBM cement mixer truck    Beiben 14 CBM cement mixer truck



Similar Key Words: beiben 14 CBM concrete mixer truck, north benz 3134,3138 transit mixer truck, beiben 3138 mixer trucks, beiben 12 wheeler mixer truck, beiben 14 CBM mixer truck

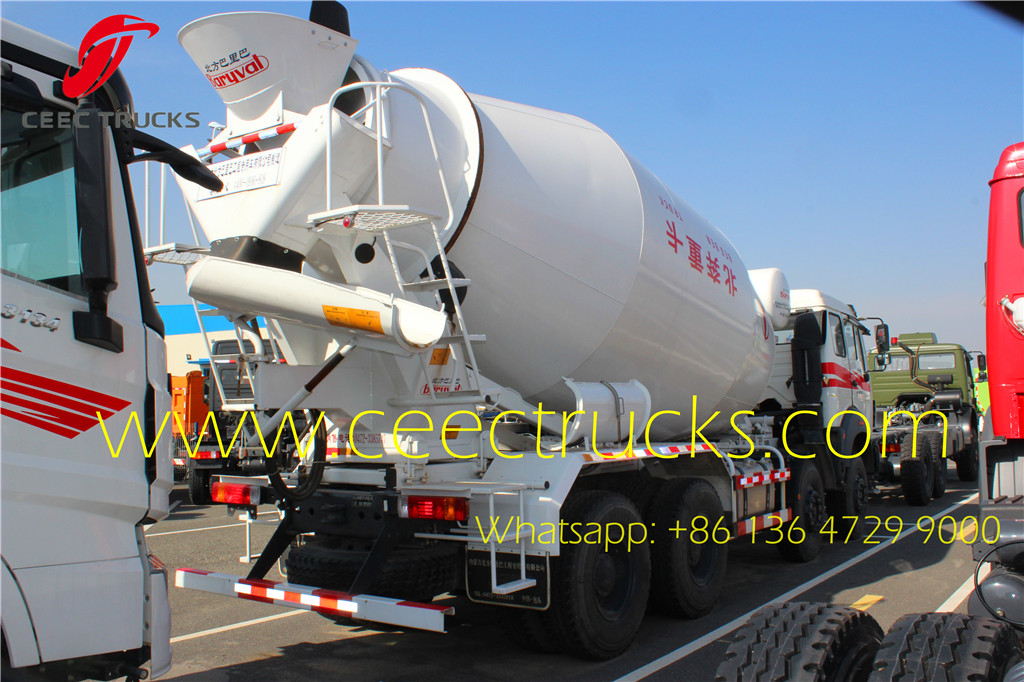

Beiben mixer truck hydraulic system

Beiben 3134 transit mixer truck  /8×4/3450+1450/Short Cab/LHD

Dimension

11080*2500*3980mm

Approaching angle/Departure angle

26/20°

Overhang(front/rear)

1410/2640mm

Wheel base

1500+3550+1450

Max speed

80km/h

Curb weight

13650kg

Loading capacity

11220kg

Slope climbing capability

Max.40%

Engine

Model

WP10.380E32water-cooledfour strokes6 cylinders in lineturbocharged, directly injection

Displacement

9.726L/Diesel

Stroke

126/130mm

Max. power

250/2200 (kw/rpm)

Max.torque

1350/1200-1600Nm/rpm

Emission stantard

Euro

Fuel tanker capacity

300L

Clutch

430, Single dry frictional discHydraulic boosting

Gearbox

ZF160, mechanism,9 forward gears,1 reverse gear, manual operated, with synchronizer

Gear ratio of gear box

12.60/8.39/6.31/4.64/3.43/2.45/1.84/1.35/1.00 R: 11.02

Suspension system

Front

Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension , 10pcs

Rear

Non-free standing stablization spring, balance suspension system, 13pcs

Brake system

Service brake

Brake gap can be adjusted automatically, double circulation air brake system

Assistant brake

Engine exhaust brake

Park brake

Potential springs pressing on middle and rear wheels

Steering system

TAS85,whole circulation in ball, hydraulic booster

Frame

Fish belly shape, variable width, variable sections

Front axle (Mercedes Technology)

Double-shoe pneumatic brake, non-driving steering axle

Middle and Rear axle (Mercedes Technology)

Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle

Tyre

12.00R20 Radial

Electrical system

Battery

2X12V/135Ah

Generator

28V-35A

Starter

5.4Kw/24V

Cabin

NG80B Long cabin with single sleeper;
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;
High back with arm seat for driver, high back seat for co-driver; With inner A/C

Main technical parameters of concrete mixer

Drum performance parameter

Geometric Volume m3

15.5 m3

Effective Volume m3

10 m3

Filling Ratio %

64.5%

Gradient of the Drum °

15°

Filling speed m3/min

≥3

Discharging Speed m3/min

≥2

Surplus Ration %

<1%

Range of Slump mm

20300

Hydraulic System

Pump

Eaton 54 (ACA542337R)

Motor

Eaton 54 (HHD542337R)

Gear Box

PMB6sp

Water supply system

Volume of water tank

400L

Water supply type

Air pressure Type
