Beiben NG80 6x4 30ton dump truck for sand/stone/earth/coal transport

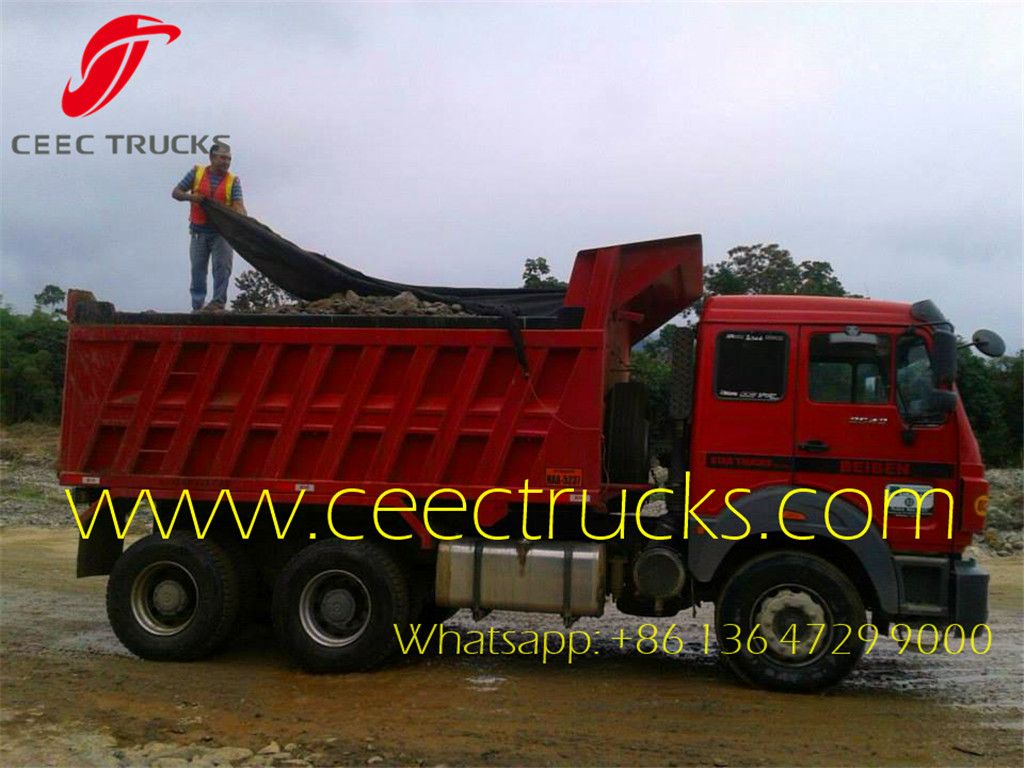

Ecuador customer choose beiben 2534 tipper truck, equipped WP10.240E32 engine, FAST 9-shift manual gearbox, HYVA lifting device, Q345 material dumper body mainly service for construction and mining project

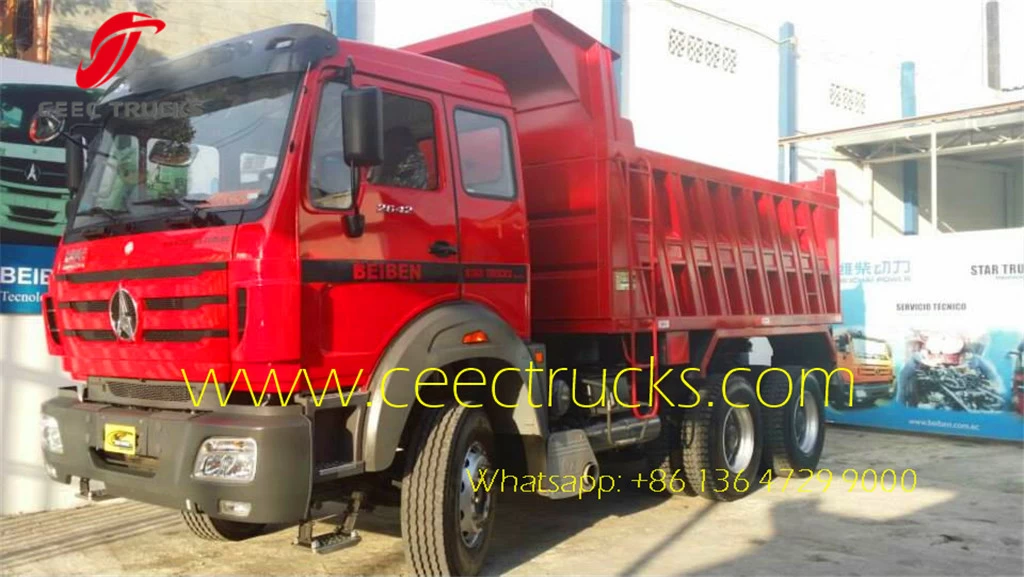

Beiben 2534, 2634 tipper trucks export Ecuador



beiben 40T dump truck for sale



 Best supplier of beiben 6*4 drive dump truck, beiben 6*6 dump truck, we have more than 15 years experience in manufacturing beiben 2527,2529,2532,2534,2538 dumpers. Genuine beiben dump truck spare parts are avaiable in 24 hours. we provide beiben 6 wheeler dump tuck, beiben 10 wheeler dump trucks, beiben 12 wheeler earth moving tipping trucks for congo, kenya, tanzania, etc.



 Beiben 40T dumper truck supplier



Advanced features for Ecuador customer purchased CEEC beiben tipper trucks:

Germany Mecedes BENZ technology chassis with high durability andreliability

Germany BENZ technology engine combined with original rear axle reducer gear and differential gear

Continuous welding throughout body for additional strength, Fulldepth rear corner post with full depth rear crossmember.

Enhanced body, and the motherboard adopts variable cross-sectionbeams.

Special maximum beiben 60 t Dumper Body Design are optional

Other customer requirements are welcome



Beiben 40T dumper truck supplier



beiben 40 T dump truck export Ecuador



Similar key words: beiben 2534 dumper truck, north benz 2534 dump truck, beiben 2534 sand transportation truck, beiben 2534 tipping truck, beiben 2534 dump truck price



2538K /6×4/4100+1450/Short Cab/LHD or RHD       Beiben 2534 tipper trucks export Ecuador

Dimension

8880*2500*3430mm

Cargo box

6000x2300x1350mm, HYVA hydraulic lifting system; thickness: bottom 8mm, side 6mm

Approaching angle/Departure angle

26/28°

Overhang(front/rear)

1410/1720mm

Wheel base

4100+1450mm

Max speed

85km/h

Curb weight

12650kg

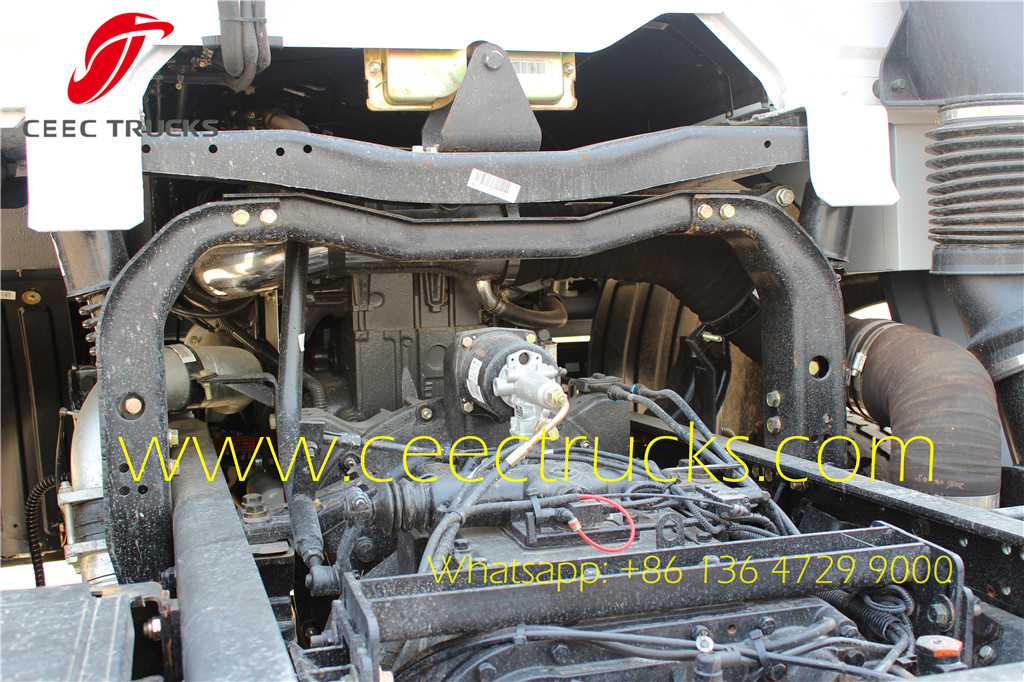

Engine

Model

WP10.380E32, water-cooled, four strokes, 6 cylinders in line, turbocharged, directly injection

Displacement

9.726L/Diesel

Stroke

126/130mm

Max. power

280/2200 (kw/rpm)

Max.torque

1600/1800(N.m/rpm)

Emission

Euro III

Fuel tanker capacity

300L

Clutch

430, Single dry frictional disc,Hydraulic boosting

Gearbox

9JS180, mechanism, 9 forward gears, 1 reverse gear, manual operated

Gear ratio of gear box

12.65/8.38/6.22/4.57/3.4/2.46/1.83/1.34/1.00 R:13.22

Suspension system

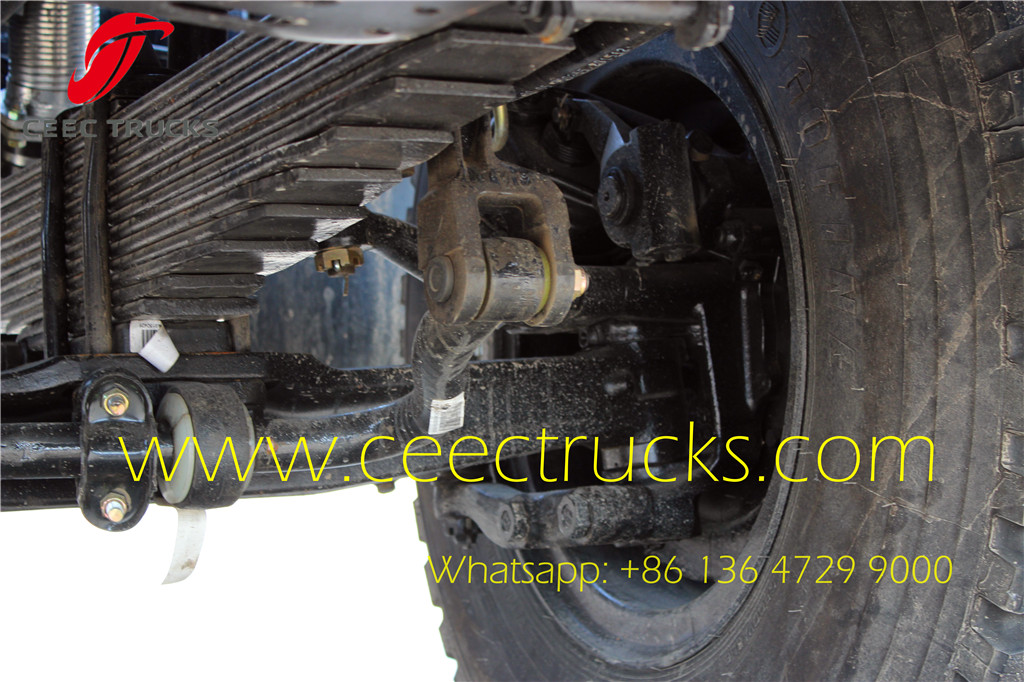

Front

Non-free standing leaf spring,telescopic shock absorber with stabilizer bar suspension , 10pcs

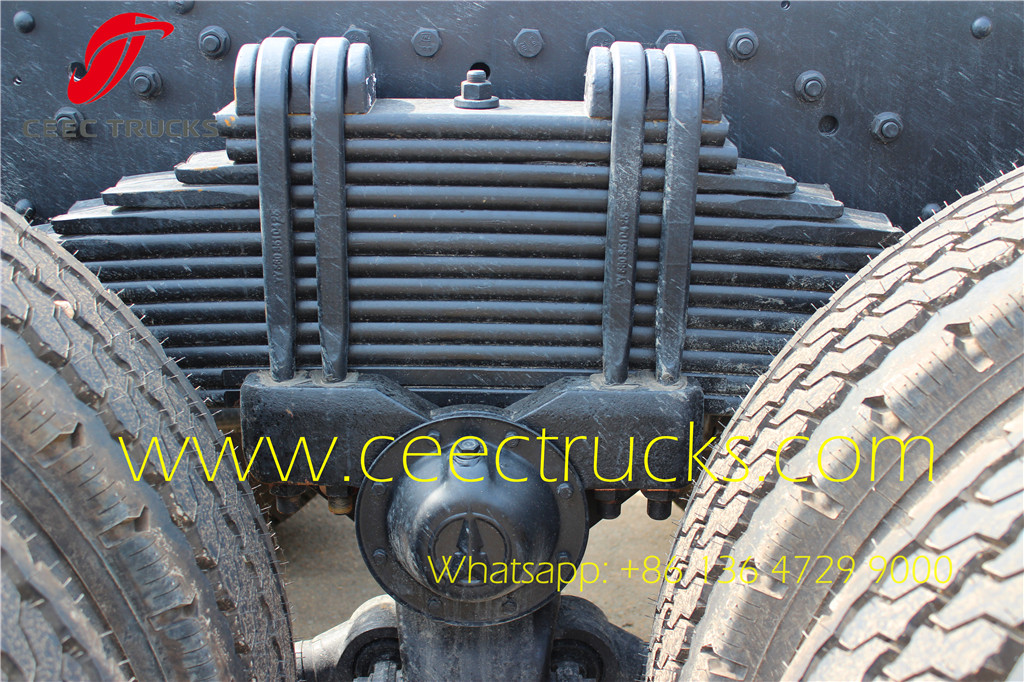

Rear

Non-free standing stabilization spring, balance suspension system, 13pcs

Brake system

Service brake

Brake gap can be adjusted automatically, double circulation air brake system

Assistant brake

Engine exhaust brake

Park brake

Potential springs pressing on middle and rear wheels

Steering system

ZF8098 hydraulic steering with power assistance

Frame

Strengthened Straight beam

Front axle (Mercedes Technology)

Double-shoe pneumatic brake, non-driving steering axle

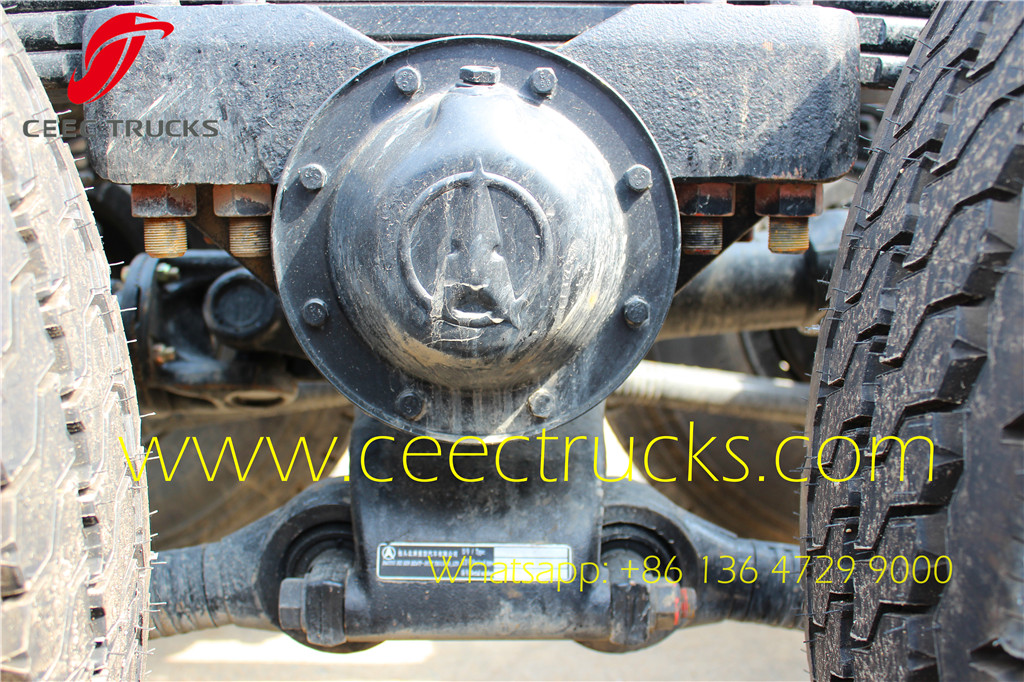

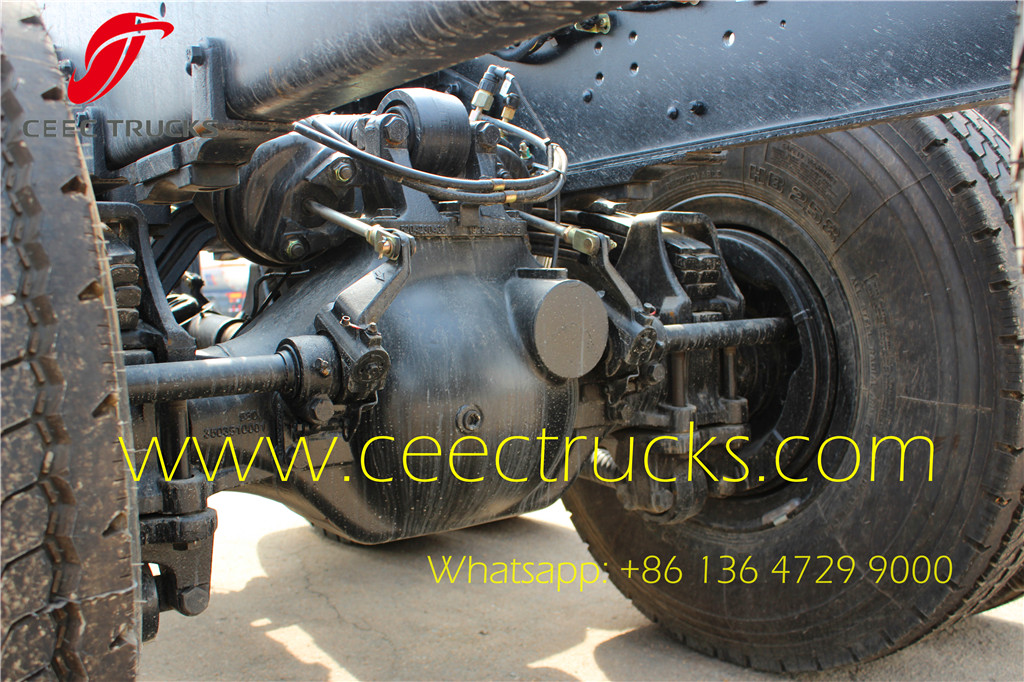

Middle and Rear axle (Mercedes Technology)

Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle

Tyre

315/80R22.5 tubeless tyres

Electrical system

Battery

2X12V/135Ah

Generator

28V-35A

Starter

5.4Kw/24V

Cabin

NG80B Long cabin one sleeper and inner A/C ;
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;
High back with arm seat for driver, high back seat for co-driver; With inner A/C



beiben 40 T dump truck export Ecuador



beiben 40 T dump truck export Ecuador    beiben 40 T dump truck export Ecuador



beiben 40 T dump truck export Ecuador



beiben 40 T dump truck export Ecuador



beiben 40 T dump truck export Ecuador    beiben 40 T dump truck export Ecuador



best selling model for beiben tipper trucks
