Beiben head truck 2542 for Tanzania, the north benz 420HP 6*4 towing truck are best selling series beiben tractors, customers from Congo, Ghana, Zimbabwe, Kenya, Togo countries prefer to choose beiben 2542 tractor head from CEEC TRUCKS, for we are authorized beiben truck supplier, and the price for beiben 2534, 2538 prime movers are relatively lower than other beiben truck supplier in European and Asia countries. All to meet all customer requirement
Beiben 2542, 2642 towing trucks export Tanzania
Beiben 420Hp powerful tractor head advanced features:
★ CEEC TRUCKS are authorized Beiben 2542 tractor trucks, north benz 6*4 prime movers supplier in China
★ All Beiben trucks share same features with Mercedes Benz tractors, like HL7, HD7 and VL4 axles used in the Actros and Atego models.
★ Same features and quality with Benz truck, but beiben 2542 towing trucks are 30% cheaper than it.
★ Beiben truck use WP10.420E32 EURO 3 model engine, which has emission 10 liters and HP can be up to 420PS.
★ FAST 12JS200T manual machanism transmission gearbox, 12 forward and 2 reverse manual
★ High quality guarantee, massive, durable, perfect performance and prolonged service life.
Similar Key Works: Beiben 2542 tractor truck, beiben 6*4 prime mover, north benz 2542 tractors camions, beiben 2642 towing truck, Benz 2542, 2546 tractor head, beiben 6*4 tractors
| Wheel base (mm)
|
3450+1450
|
| Curb weight (kg)
|
9200
|
| Max Speed:(Km/h)
|
≥90
|
| Engine
|
Model
|
WD615.38, water-cooled, four strokes, 6 cylinders straight in line, turbocharged
|
|
|
Fuel type
|
diesel
|
|
|
Min rate of consuming fuel(g/(kW.h))
|
≤198
|
|
|
Rated Power / rotating
(KW/(r/min)
|
280Kw/2400rpm
|
|
|
Emission
|
EUROⅡ
|
|
|
Maximum Torque
rotating speed(N.m/(r/min))
|
1460Nm/1400-1600rpm
|
|
|
Displacement(ml)
|
9726
|
| Fuel tanker capacity (L)
|
400
|
| Clutch
|
Model
|
#430, Single dry frictional disc, Hydraulic boosting
|
| Gearbox
|
Model
|
12JS200T, mechanical type,12 Forward speed gear,
2 reverse gear
|
|
|
Gear ratio
|
12.1/9.41/7.31/5.71/4.46/3.48/2.71/2.11/1.64/1.28/1.00/0.78
R1: 11.56 R2: 2.59
|
| Brake system
|
Service brake
|
Brake gap can be adjusted automatically, double circulation air brake system
|
|
|
Assistant brake
|
Engine exhaust brake
|
|
|
Park brake
|
Potential springs pressing on middle and rear wheels
|
| Steering system
|
Model
|
ZF8098, whole circulation in ball type, hydraulic boosting
|
| Suspension system
|
Front Suspension
|
Non-free standing leaf spring,telescopic shock absorber with stabilizer
bar suspension
|
|
|
Rear Suspension
|
Non-free standing stabilization spring, stabilization suspension
|
| Frame
|
Fish belly shape, variable width, variable sections
|
| Cross section dimension of frame(mm)
|
317×70×8.5+7+8
|
| Front axle
|
Double-shoe pneumatic brake, non-driving steering axle AL7/1DS-7/5.263
|
| Middle and Rear axle
|
Double-shoe pneumatic brake, ductile casting casing,
with hub redactor, double reduction driving axle
Middle axle: HD7/016DGS-13/5.263
Rear axle: HL7/015DS-13/5.263
|
| Tire
|
12.00-24 (one spare tire)
|
| Electrical system
|
Battery
|
2X12V/135Ah
|
|
|
Generator
|
28V-35A
|
|
|
Starter
|
5.4Kw/24V
|
| Cab
|
Short cab,
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;
|
|
|
Interior trimming:
Integral interior trimming, Integral instrument, digital instrument, inner A/C, radio
(with USB interface),

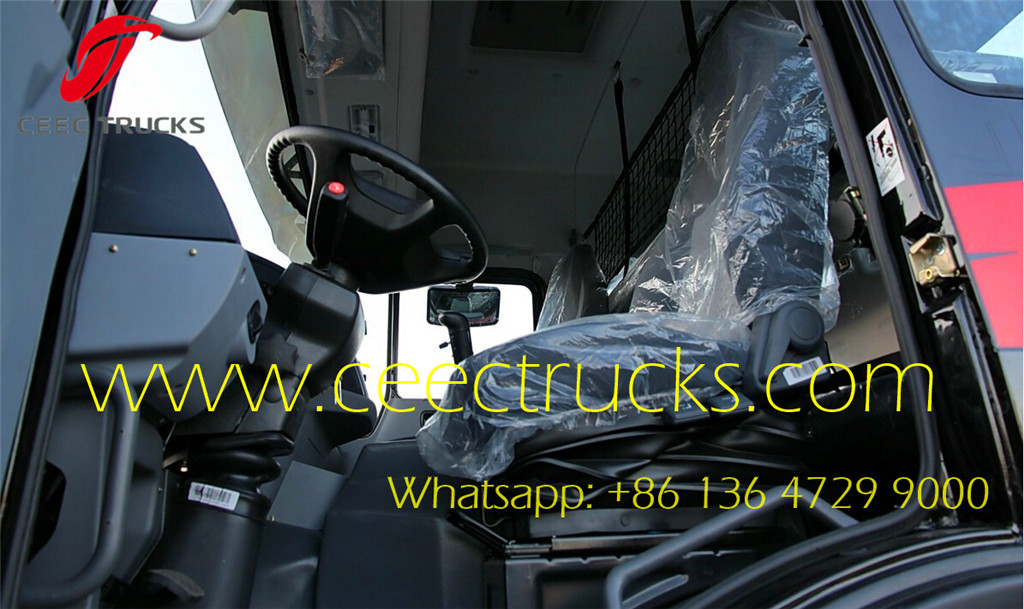

high back/shock absorption seat for driver, high back seat for co-driver. Steering wheel can be adjusted.
|
|
|
Exterior trimming:
Single layer road bumper, three steps, with new mirror. with outer sun visor
|

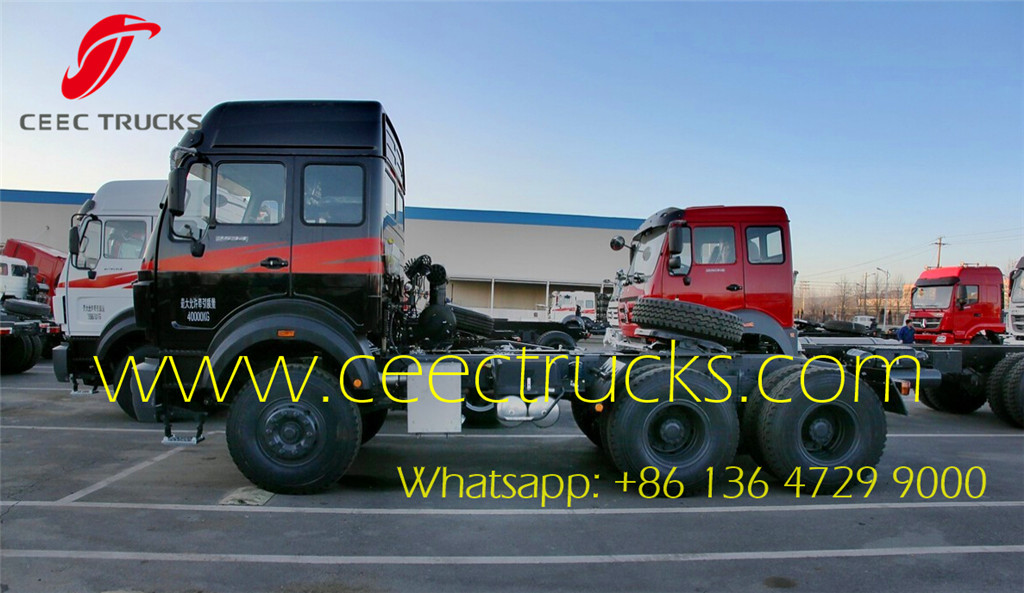

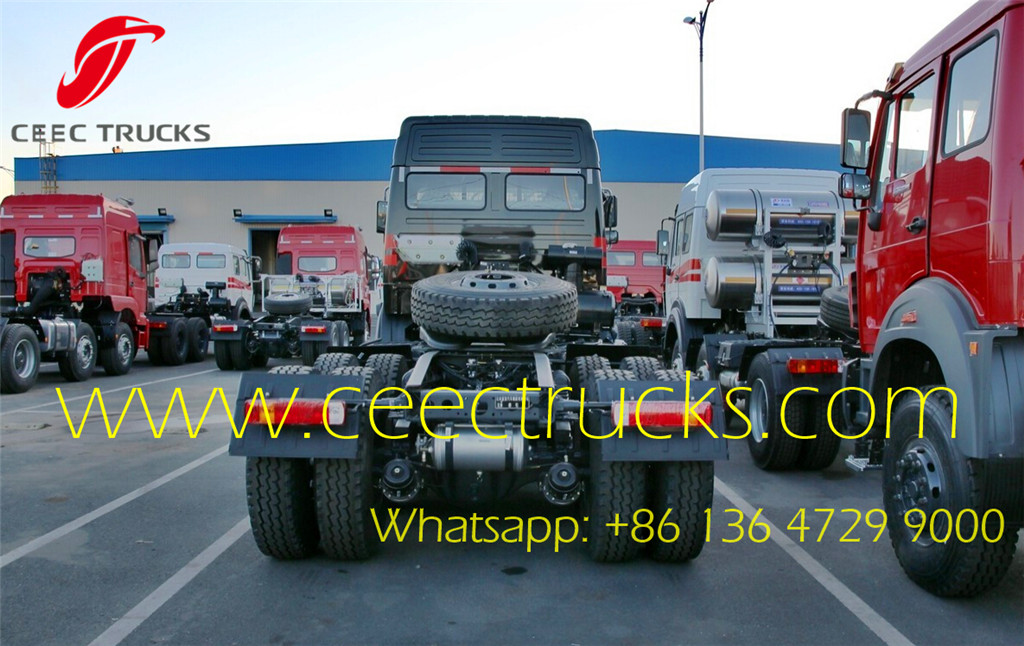

Other beiben trucks display
