Beiben tractors 340hp 10 wheel haulage truck Beiben truck prices

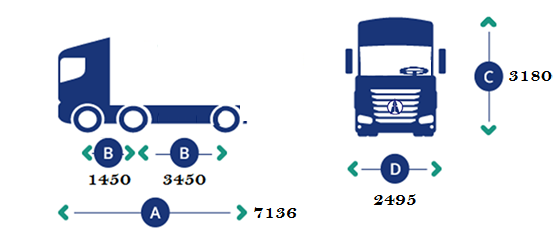

BEIBEN 6X2 TRACTOR TRUCK 340HP CAMION TRACTEUR 2434, 2534/6×4/3450+1450/Long Cab/LHD Dimension 6935*2495*3340mm Approaching angle/Departure angle 20/64 Overhang(front/rear) 1410/1625mm



Beiben 6*2 tractor trucks also named north benz 340 HP tractor head, brand new beiben diesel engine prime mover, which mainly used for towing 2 axle semitrailer, 3 axle tanker semitrailer, 4 axle low bed container transport semitrailer.



Brand new China Beiben truck north benz 340HP tractor head



beiben best tractor head manufacturer



As the best beiben camions tracteur supplier for congo customer,we aim at to be the most professinal beiben NG80B tractors supplier on beiben 340 hp engine tractor trucks, beiben 380 hp engine tractor truck, beiben 420 hp engine tractor truck for congo country.



Beiben brand new tractor trucks



We provide original beiben 340 Hp tractor truck, 380 hp, 420 hp tractor truck for CONGO , pointe noire , brazaville, kinshasa, Matati . The most competetive price for congo beiben tractor trucks.


Our congo local agent on beiben NG80 tractors will dedicate ourselves to the whole perfect solution for customer's logistic arragement. Beiben trucks , for your success.

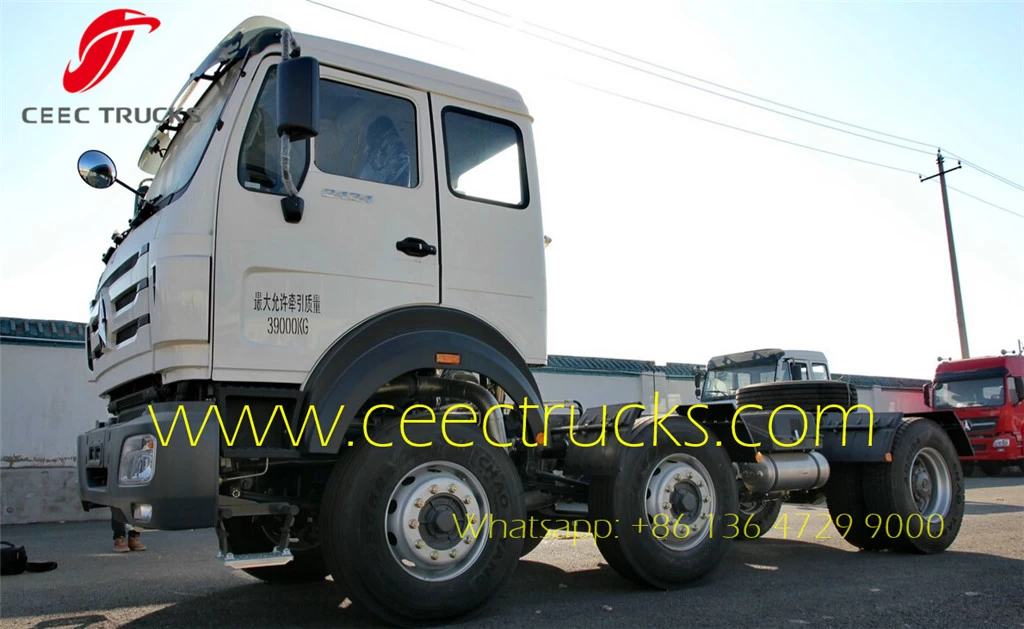

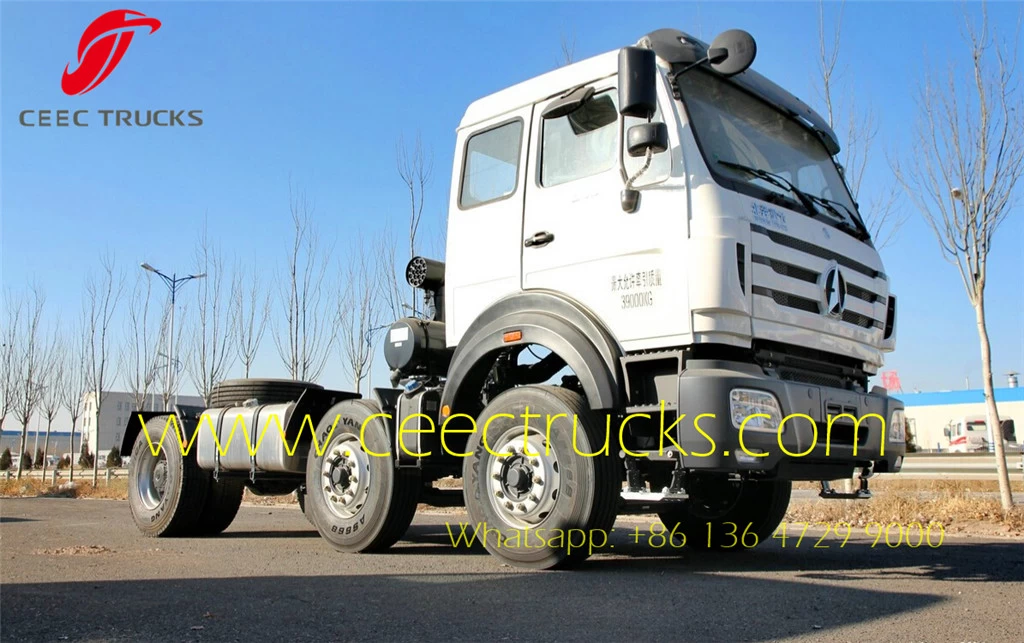

Beiben 6x2 wheel tractor head supplier

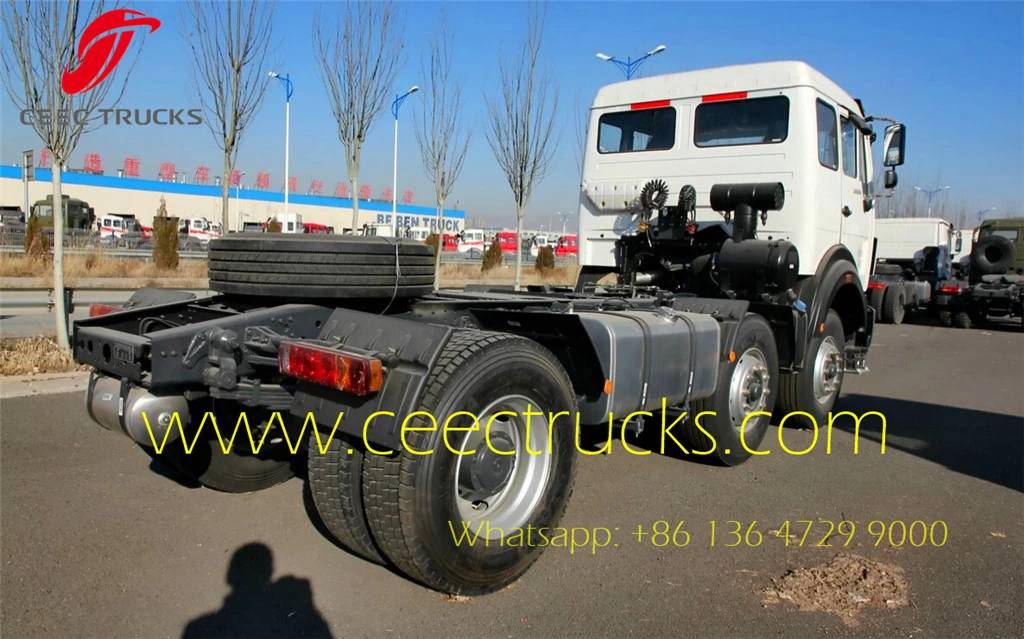

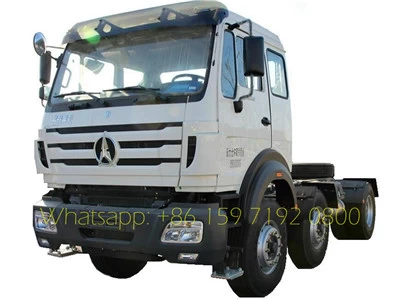

Beiben 6x2 wheel tractor head supplier

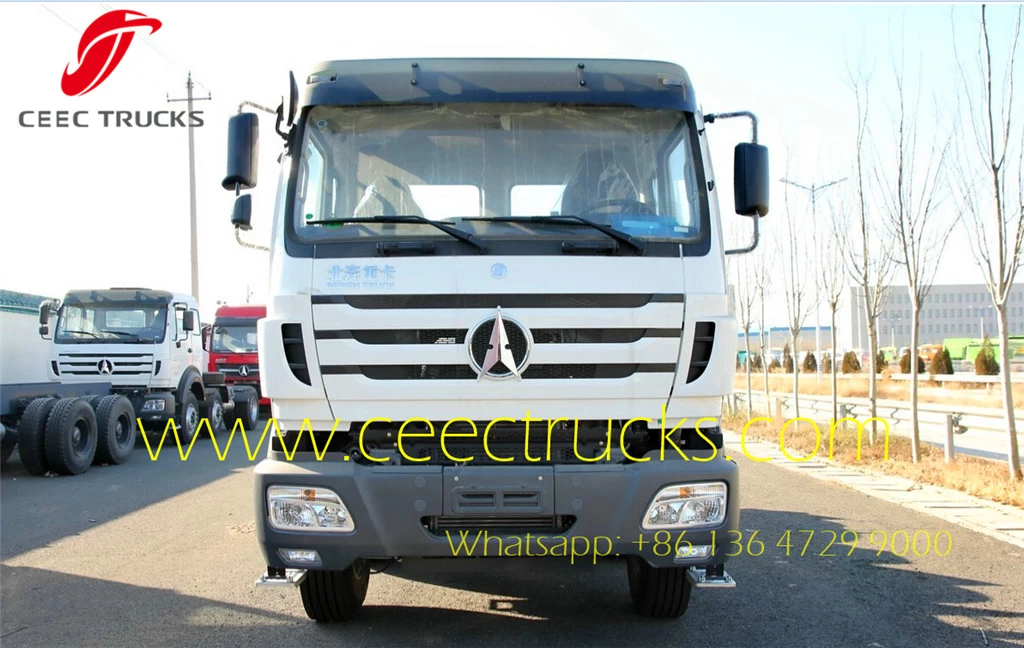

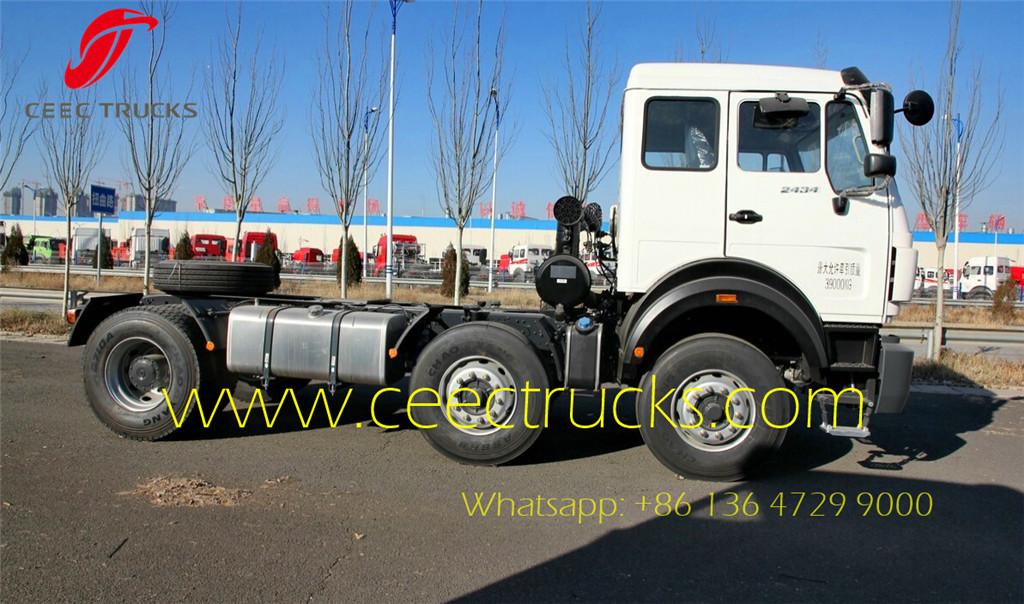

Beiben 6x2 wheel tractor head supplier

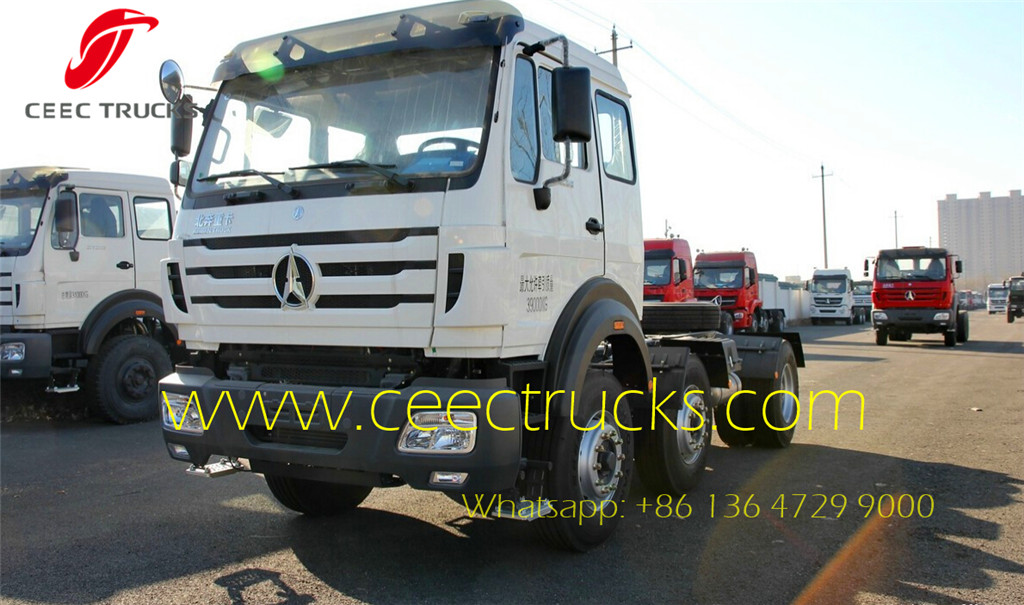

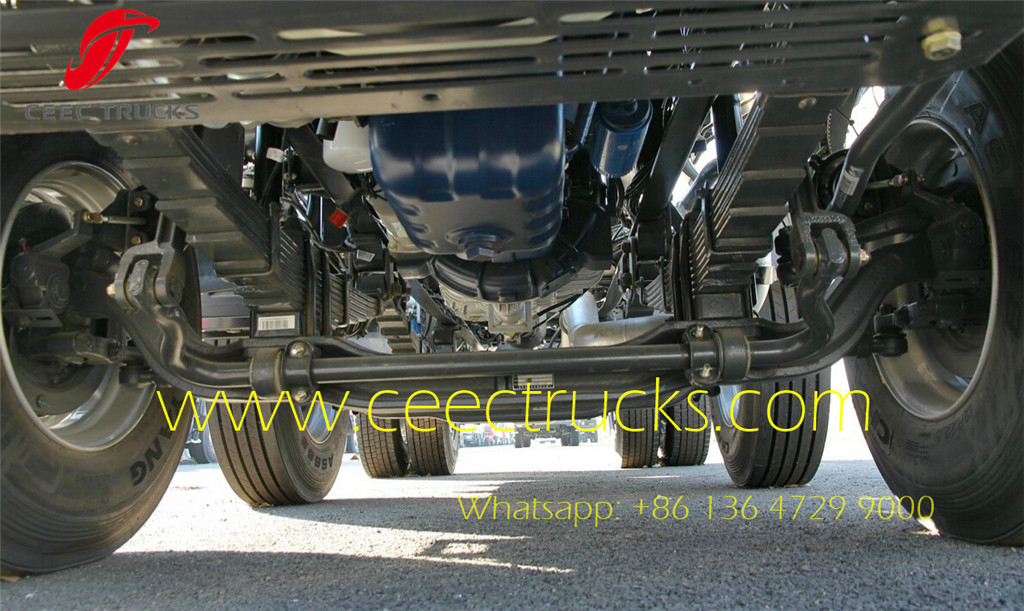

Beiben 6x2 wheel tractor head supplier

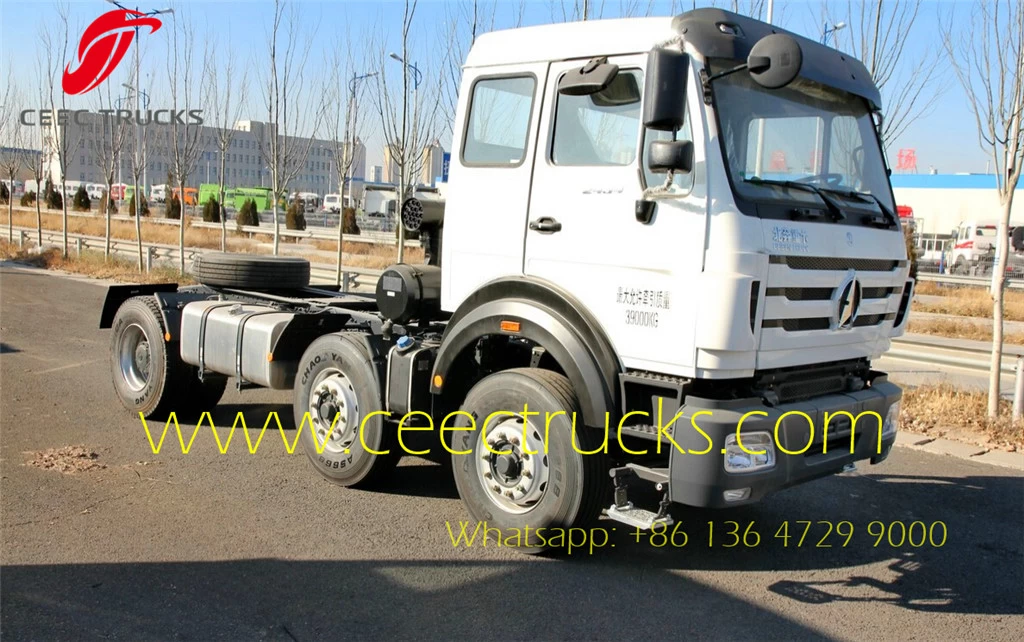

Beiben 6x2 wheel tractor head supplier    Beiben 6x2 wheel tractor head supplier



Similar Key Words: beiben tractor head, heavy haul tractor, north benz tractor truck, tractor unit truck, mobile tractor unit, mobile tractor unit, semi truck tractor, tractor semi truck, prime mover, trailer towing truck


Beiben 6*2 tractor head manufacturer supply LHD / RHD

Wheel base   (mm)

1450+3450

Curb weight (kg)

9200

Max Speed:(Km/h)

≥90

Engine

Model

WD615.38, water-cooled,four strokes,6 cylinders straight in line,turbocharged,

Fuel type

diesel

Min rate of consuming fuel(g/(kW.h))

225g/Kw.h

Rated Power / rotating

(KW/(r/min)

250Kw/2200rpm

Emission

EUROâ…¡

Maximum Torque / rotating speed(N.m/(r/min))

1750Nm/1200-1600rpm

Displacement(ml)

11596

Fuel tanker capacity (L)

400

Clutch

Model

#430,   Single dry frictional disc,Hydraulic boosting

Gearbox

Model

RT11509C, mechanical type,9 Forward speed gear.

Gear ratio of speed

15.53/12.08/9.39/7.33/5.73/4.46/3.48/2.71/2.10/1.64/1.28/1.00   R1:14.86   R2:3.33

Brake system

Service brake

Brake gap can be adjusted automatically, double   circulation air brake system

Assistant brake

Engine exhaust brake

Park brake

Potential springs pressing on middle and rear wheels

Steering system

Model

ZF8098, whole   circulation in ball type, hydraulic boosting

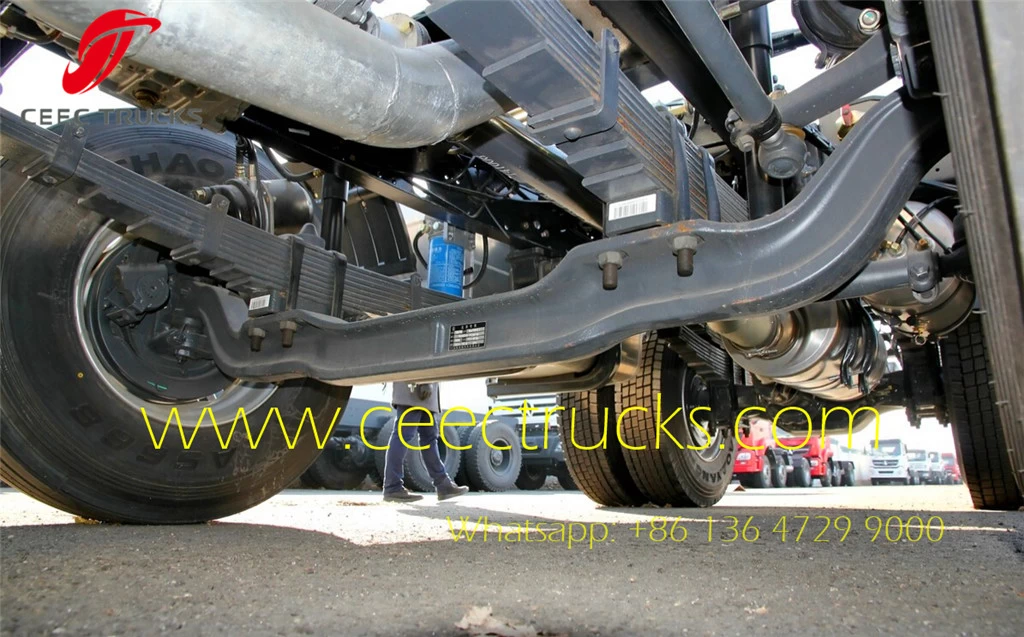

Suspension   system

Front Suspension

Non-free   standing leaf spring,telescopic shock absorber with stabilizer   bar suspension,

Rear Suspension

Non-free   standing stabilization spring, stabilization suspension,

Frame

Fish belly   shape, variable width, variable sections

Cross section   dimension of frame(mm)

317×70×8

Front axle (Mercedes Benz Technology)

Double-shoe pneumatic brake, non-driving steering   axle AL7/1DS-7/5.263

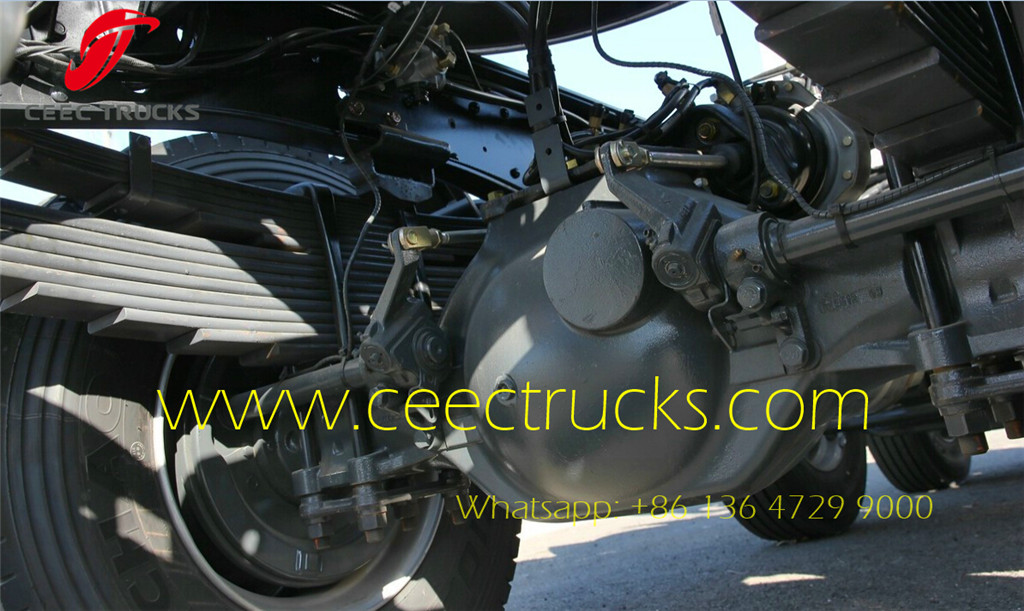

Middle and Rear axle (Mercedes Benz Technology)

Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle

Middle axle: HD7/016DGS-13/5.263

Rear axle: HL7/015DS-13/5.263

Tire

12.00R20 radial

Qty of tire

11

Electrical   system

Battery

2X12V/135Ah

Generator

28V-35A

Starter

5.4Kw/24V

Cab

Long cab with   sleeper,

Full steel   skeleton structure, covered with double layer steel plate;

Can be tipped   forwardly;

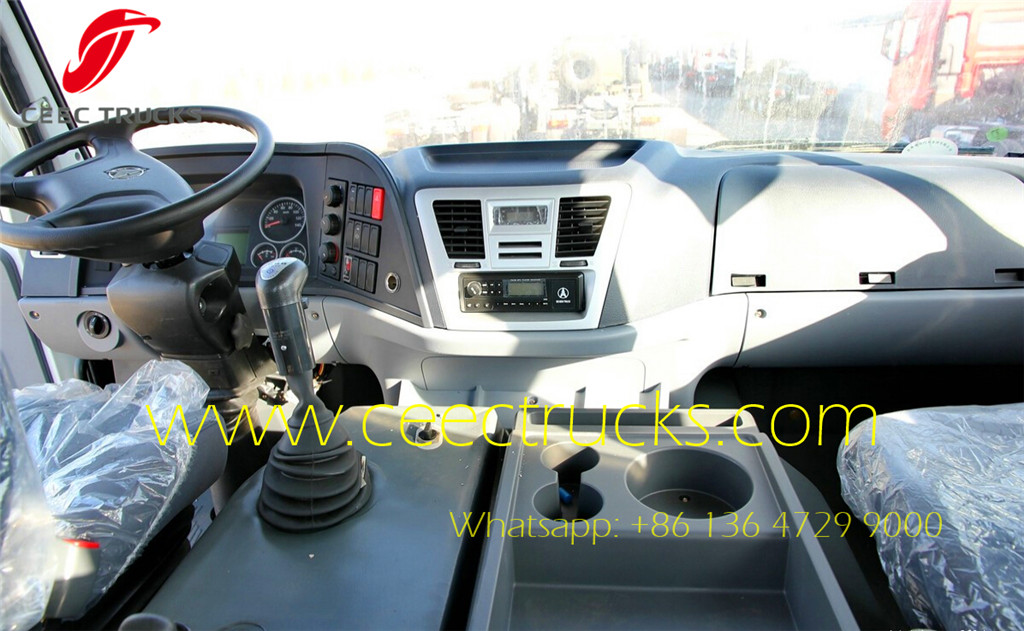

Interior   trimming:

Integral   interior trimming, Integral instrument, digital instrument, inner A/C, radio   (with USB interface), high back/shock absorption seat for driver, high back seat   for co-driver. Steering wheel can be adjusted.

Exterior   trimming:

Single layer   road bumper, three steps, with new mirror. with outer sun visor

Fifth wheel

#50 single   direction JOST



Beiben 6x2 wheel tractor head supplier
